Pentastar V6 3.6 Pentastar Diagram: Repair Guide 2026
The Chrysler 3.6L Pentastar V6 layout features a top-mounted oil filter housing (torque cap to 25 Nm), dual overhead camshafts (DOHC), variable valve timing (VVT) solenoids on front timing covers, integrated exhaust manifolds, and a single serpentine belt setup. Cylinder layout puts Bank 1 on the right/passenger side and Bank 2 on the driver side.
📌 Key Takeaways
- The 3.6L Pentastar V6 features Bank 1 (cylinders 1, 3, 5) on the passenger side and Bank 2 (cylinders 2, 4, 6) on the driver side.
- Top-mounted plastic oil filter cap must be torqued precisely to 25 Nm (18 lb-ft) to prevent housing hairline fractures.
- Most common mechanical failure points are worn rocker arm needle bearings and leaking plastic oil filter adapter housings.
- Dual independent cam phasing utilizes four camshaft position sensors located at the rear of the cylinder head structure.
- Always follow the exact multi-ribbed accessory belt configuration to ensure proper rotation of the water pump and alternator.
The Chrysler 3.6L Pentastar V6 engine is a widely deployed, dual-overhead-camshaft (DOHC) 24-valve powertrain utilizing variable valve timing (VVT) and, on post-2016 model years, a dual-stage variable valve lift (VVL) system. Navigating the mechanical architecture, sensor arrays, and electrical pinouts of this 60-degree aluminum engine block demands a precise blueprint reference. Utilizing an OEM-grade pentastar v6 3.6 pentastar diagram enables certified automotive technicians and heavy equipment mechanics to quickly identify key components, trace electrical circuits, inspect oiling passages, and confirm timing alignment during teardowns or diagnostics.

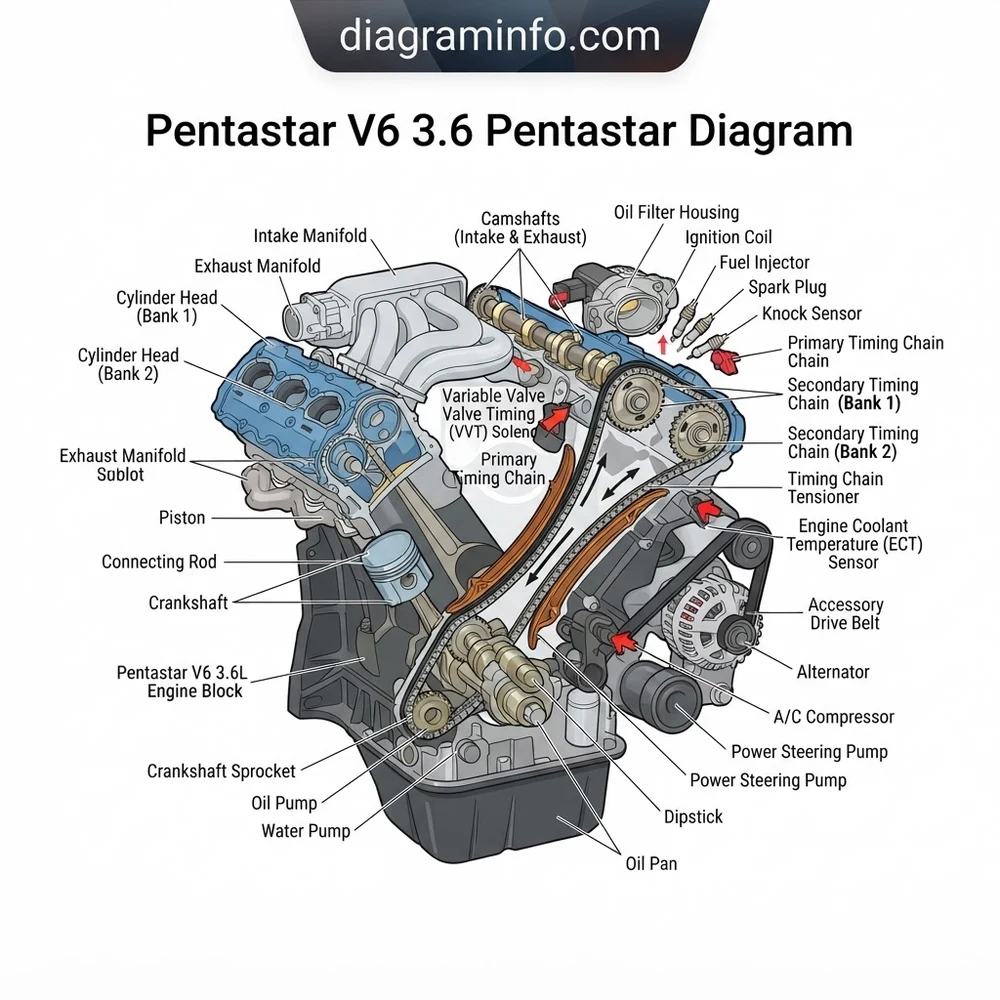

Pentastar V6 3.6 Pentastar Diagram: Major Engine Component Layout
The structural design of the 3.6-liter Pentastar V6 features a high-pressure die-cast aluminum cylinder block with cast-iron cylinder liners, cross-bolted main bearing caps, and high-flow aluminum cylinder heads. A key architectural distinction visible on any complete pentastar v6 3.6 pentastar diagram is the integrated exhaust manifold layout, where the exhaust ports merge into a single outlet cast directly into each cylinder head assembly, eliminating traditional external exhaust manifolds.
Recommended Best Deal Products
Block Architecture, Cylinder Heads, and Intake Structure
The upper engine assembly relies on a two-piece composite intake manifold structure. The upper plenum conceals six individual ignition coil packs, dual fuel rails, and the manifold absolute pressure (MAP) sensor. Underneath the upper plenum, six individual intake runners direct metered airflow into dual intake valves per cylinder. The cylinder heads house four hollow-cast assembly camshafts (two per cylinder bank) driven by an inverted-tooth dual-stage timing chain mechanism.
Lubrication System and Oil Filter Housing Assembly
Mounted directly within the engine valley between Bank 1 (cylinders 1, 3, 5 on the right/passenger side) and Bank 2 (cylinders 2, 4, 6 on the left/driver side) sits the integrated engine oil filter adapter and liquid-to-liquid heat exchanger assembly. According to OEM specifications, this unit routes pressurized engine oil directly from the two-stage variable-displacement oil pump through the top-mounted filter element before feeding the main galleries, camshaft phasers, hydraulic lash adjusters (HLAs), and main bearings.
Timing Chain and Valve Actuation Layout
The front timing layout utilizes four separate chains: a primary drive chain connecting the crankshaft gear to a central idler sprocket, two secondary chains connecting the idler to the Bank 1 and Bank 2 camshaft phasers, and a lower auxiliary chain driving the variable-displacement oil pump located inside the lower oil pan.
| Component Reference | Physical Location / Identification | OEM Torque / Technical Spec |
|---|---|---|
| Oil Filter Adapter Body | Engine valley between Bank 1 and Bank 2 | 12 Nm (106 in-lbs) |
| Camshaft Bearing Caps | Cylinder head valve train assembly | 9.5 Nm (84 in-lbs) |
| Upper Intake Plenum Bolts | Fastened to lower intake manifold | 9.5 Nm (84 in-lbs) |
| Spark Plugs | Center cylinder head tubes | 17.5 Nm (13 ft-lbs) |
| Camshaft Phaser Cam Bolts | Front intake/exhaust cam snout | 105 Nm (77 ft-lbs) |
Manufacturer specifications dictate that 2011–2015 3.6L Pentastar engines use standard 5W-20 engine oil meeting MS-6395 standards. 2016+ upgraded Pentastar engines equipped with Variable Valve Lift (VVL) strictly require 0W-20 engine oil to maintain hydraulic pin actuation speeds inside the intake rocker arms.
How to Read the Pentastar V6 3.6 Schematic and System Wiring
Interpreting a 3.6-liter Pentastar electrical schematic or component system layout requires a clear understanding of the Powertrain Control Module (PCM) connector pinouts, sensor reference circuits, and ground distribution topologies.
Recommended Best Deal Products
Tracing the Camshaft Position Sensor (CMP) and VVT Circuits
The 3.6L Pentastar engine layout utilizes four hall-effect Camshaft Position (CMP) sensors located at the rear of each cylinder head, paired with four Variable Valve Timing (VVT) oil control solenoids mounted through the front timing cover. When reading the engine wire harness blueprint, trace the 5-volt reference signal originating from PCM Connector 1 (C1), Pin 18 (typically a Yellow/Pink wire on Chrysler factory harnesses). Each CMP sensor outputs a digital square-wave signal back to dedicated PCM signal pins (e.g., Bank 1 Intake CMP to PCM C2 Pin 32). VVT solenoids operate via Pulse Width Modulation (PWM) grounded through PCM low-side drivers. For advanced diagnostics, consult our detailed guide on chrysler 3.6 vvt solenoid testing to verify duty cycle frequencies.
Interpreting Dual-Stage Oil Pump and Solenoid Wiring Schematics
The variable-displacement vane-style oil pump relies on an internal ON/OFF solenoid commanded by the PCM to alternate between low-pressure mode (~29 psi) and high-pressure mode (~60+ psi above 3,000 RPM). On the electrical schematic, this component is labeled as the Oil Pressure Control Solenoid. It receives a 12V switched power feed from the Totally Integrated Power Module (TIPM) or Power Distribution Center (PDC) and is switched to ground through PCM Connector 2, Pin 42 (Brown/Violet wire). A 3-pin oil pressure and temperature sensor monitors gallery pressure, returning a proportional voltage signal (0.5V to 4.5V) to the control module.
Sensors and Harness Signal Routing Across Engine Banks
Sub-harness schematics divide engine management wiring into three main runs: the main valley harness, the Bank 1 cylinder head harness, and the Bank 2 harness. The valley harness routes beneath the oil filter adapter to feed dual knock sensors mounted directly on the engine block ridge. Bank 1 wiring supplies power and signal ground to cylinders 1, 3, and 5 injectors and ignition coils, as well as the starter motor solenoid. Bank 2 wiring controls cylinders 2, 4, and 6 along with the Electronic Throttle Control (ETC) assembly. Refer to the dodge ram 36 cooling system schematic for longitudinal harness routing and mounting bracket orientations in truck chassis configurations.
When probing PCM wiring harnesses on 3.6L Pentastar engines, always use back-probe pins. Never puncture wire insulation; moisture intrusion leads to high resistance and phantom Diagnostic Trouble Codes (DTCs) in the low-voltage sensor return lines.
Diagnosing Failures with the Pentastar V6 3.6 Pentastar Diagram
Utilizing a comprehensive mechanical and electrical diagram during diagnostic workflows allows technicians to systematically isolate root causes, reducing shop rack time and component misdiagnosis.
Resolving Oil Filter Housing Leakage and Valley Fluid Accumulation
A prevalent mechanical issue on early 3.6L Pentastar engines (2011–2016 models) involves structural cracking of the OEM plastic oil filter adapter housing (OEM Part Number 68105583AF). Thermal cycling causes the housing base or liquid-to-liquid heat exchanger seals to fail. Symptoms include an oil pool filling the engine valley, fluid leaking down the rear bellhousing, or oil mixing into the cooling circuit. Using the lubrication system layout blueprint, technicians can trace the path of high-pressure gallery oil to determine whether oil is leaking from the lower viton O-rings or the housing body itself. Replacing the unit with an updated OEM assembly or cast-aluminum aftermarket unit restores hydraulic integrity.
Addressing Rocker Arm Ticking and Valve Train Component Wear
A distinct metallic ticking noise emanating from under the valve covers indicates a failed needle bearing inside one of the roller rocker arms. On the 3.6L engine system schematic, each valve is actuated by a hydraulic lash adjuster (HLA) and roller rocker contacting the camshaft lobe. When the internal needle bearings disintegrate, the roller wheel tilts and drops lash height, leading to loose tolerance and rapid scoring of the hardened camshaft lobe. Mechanical diagnostics involve removing the valve covers and checking lash play with a feeler gauge; immediate replacement of damaged rocker arms and camshafts prevents metal debris from circulating into the timing chains and oil pump.
Troubleshooting Variable Valve Timing (VVT) Signal Failures
Diagnostic Trouble Codes P000A, P000B, P000C, or P000D indicate slow response times on VVT phaser positioning, while code P06DD flags a failure in the dual-stage oil pump control circuit. Using the wiring schematic, verify signal continuity from the PCM to the oil pressure control solenoid and VVT actuators. If electrical continuity and reference voltage are confirmed, measure real-time oil pressure using an analog gauge tapped into the primary gallery. Low mechanical pressure or improper oil viscosity prevents hydraulic fluid from advancing the VVT phasers. For vehicle-specific oil pressure isolation procedures, review our jeep wrangler pentastar oil leak repair guide.
Do not run the 3.6L Pentastar engine with code P06DD active. Operating under heavy load while stuck in low oil pressure mode (~29 psi) will cause severe oil starvation to the overhead camshaft journals and roller rocker arm bearings, resulting in catostrophic valve train lockup.
Pentastar V6 3.6 Blueprint Specs and Configuration FAQ
What are the exact timing chain mark alignment procedures for the 3.6L Pentastar?
According to factory service specifications, align the single plated (dark colored) link on the primary timing chain with the alignment circle stamped on the crankshaft sprocket at the 6 o’clock position. Align the two opposite plated links on the primary chain with the timing marks on the central idler sprocket. On the secondary chains, line up the double plated links with the triangle timing marks stamped on the intake and exhaust camshaft phasers. Bank 1 phaser marks must face directly upward (12 o’clock), while Bank 2 phaser marks must align parallel with the cylinder head deck surface.
How does the 2016+ Pentastar VVL upgrade alter the OEM engine schematic?
The 2016 model year structural update introduced a two-step Variable Valve Lift (VVL) system on the intake valve train. This revision adds eight hydraulic VVL actuators mounted within the cylinder head assemblies and two high-speed VVL oil control solenoids. The electrical schematic expands to include dedicated high-side output drivers from the PCM to switch the intake rocker arm locking pins between low-lift (2.0 mm) and high-lift (10.3 mm) modes depending on speed, throttle angle, and engine load demands.
What torque specification is required for the 3.6L oil cooler filter adapter assembly?
OEM engineering specifications mandate that the five lower mounting bolts securing the oil filter housing to the engine valley block must be torqued to exactly 12 Nm (106 in-lbs) using a crisscross pattern starting from the center bolts outward. The upper intake manifold plenum bolts must be torqued in sequence to 9.5 Nm (84 in-lbs). Exceeding these torque values will crack the plastic housing base or crush the rubber gaskets, resulting in fluid leaks.
How do you diagnose code P06DD on a 3.6 Pentastar V6 engine system?
Code P06DD stands for “Engine Oil Pressure Control Circuit Stuck Low.” Begin diagnosis by testing the oil pressure sensor output voltage with a digital multimeter (0.5V key-on engine-off, scaling upward to 2.0V–4.5V under load). Check for 12V power at the oil pump dual-stage solenoid connector and verify ground switching from PCM C2 Pin 42. If the harness passes continuity tests, inspect the oil filter element for crushing or incorrect cap installation; if the filter is intact, replace the dual-stage oil pump assembly inside the lower oil pan.
Where are the crankshaft and camshaft position sensors located on the 3.6L engine blueprint?
The Crankshaft Position Sensor (CKP) is mounted on the lower rear passenger side (Bank 1) of the aluminum cylinder block, reading target teeth on the crankshaft tone ring near the rear main seal. The four Camshaft Position Sensors (CMP) are positioned at the rear face of both cylinder heads (two per head), reading magnetic reluctor wheels attached directly to the back end of each camshaft assembly.
Step-by-Step Guide to Understanding the Pentastar V6 3.6 Pentastar Diagram
Identify – Locate Bank 1 and Bank 2 cylinder arrangements on the Pentastar V6 3.6 diagram.
Locate – Map key service components including the top-mounted oil filter housing, VVT solenoids, and spark plug wells.
Reference – Cross-check sensor pinouts, torque specifications, and vacuum hose connections against the schematic layout.
Connect/Route – Route the serpentine belt around pulleys and secure electrical connectors to corresponding sensors.
Verify – Perform a visual inspection and verify oil pressure, VVT alignment, and belt tension before starting.
Troubleshoot – Use an OBD-II scanner to read error codes if misfires or timing fault codes occur post-assembly.
