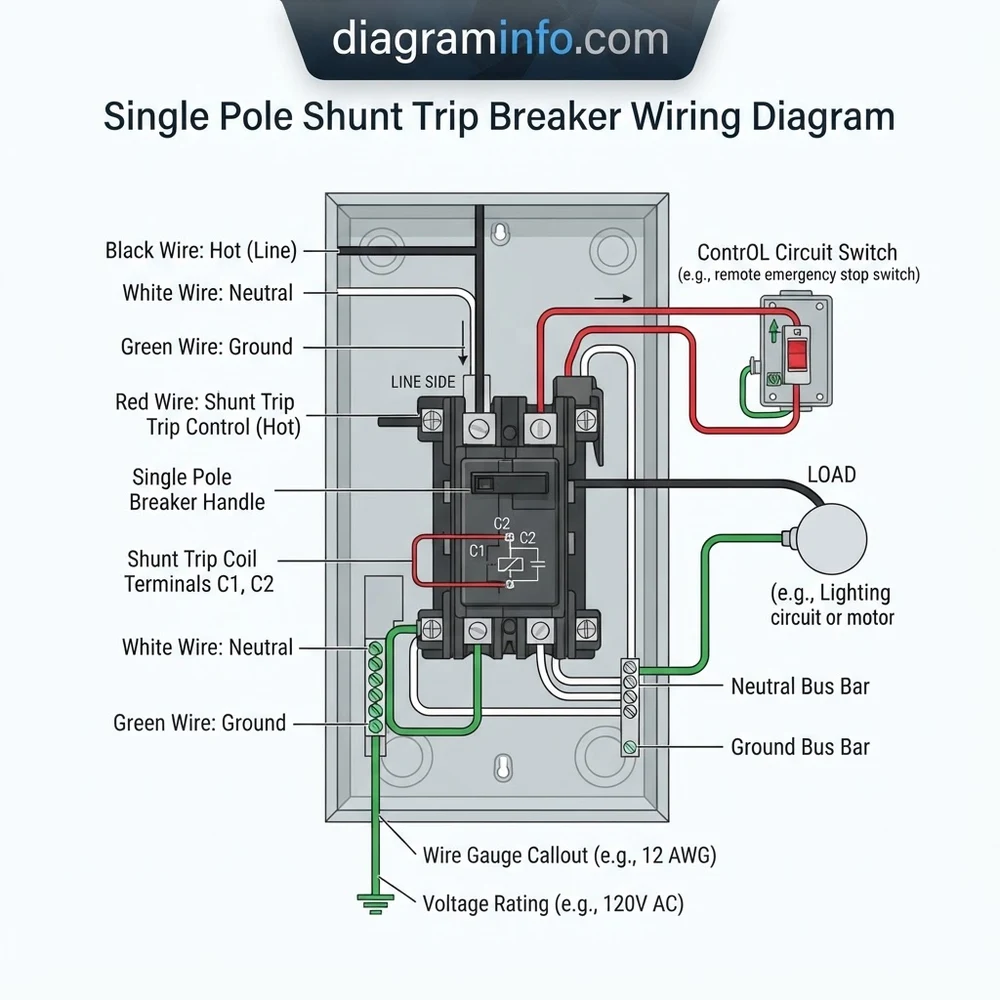

Single Pole Shunt Trip Breaker Wiring Diagram: 2026 Setup
A single pole shunt trip breaker uses a standard line hot wire (black) to the feed terminal and neutral wire (white) to the panel neutral bar. The shunt trip mechanism has two secondary control wires (C1/C2) routed through an external switch or control circuit (typically 120VAC or 24VDC) to trip the breaker remotely.
📌 Key Takeaways
- Main load power uses 12 AWG or 14 AWG hot wire, while shunt trip control circuits typically utilize 14-18 AWG control conductors.
- Terminals C1 and C2 power the internal release solenoid; continuous voltage supply will burn out standard non-cutoff trip coils.
- Proper wire color code identification prevents cross-wiring high line voltage into low-voltage auxiliary control circuits.
- Failure to attach a dedicated ground wire to the panel enclosure bus violates NEC safety codes and creates electric shock hazards.
- Licensed electrician installation is strongly recommended when integrating shunt trip breakers with fire alarm systems or emergency power-off (EPO) controls.
A single pole shunt trip breaker provides essential protection by integrating standard thermal-magnetic overcurrent protection with a remote electronic tripping mechanism. Integrating a single pole shunt trip breaker wiring diagram into your panel design enables remote emergency shutdown capabilities triggered by emergency stop (E-stop) buttons, fire alarm control panels (FACP), or safety limit switches. Understanding the precise terminal pinouts, control coil power routing, and proper wire color coding is essential to prevent coil burnout, nuisance tripping, or system failure during critical safety events.
Recommended Best Deal Products
According to OEM specifications from Schneider Electric, Eaton, and Siemens, standard single-pole shunt trip modules require a momentary control pulse (minimum 50–100 milliseconds) at the specified control voltage to mechanical trip the breaker mechanism. The integrated coil clearing contact opens automatically once the breaker trips to protect the internal solenoid from continuous voltage overload.
Single Pole Shunt Trip Breaker Wiring Diagram Architecture and Terminal Specs
A single pole shunt trip breaker consists of two distinct functional blocks housed within a expanded-width miniature circuit breaker (MCB) frame or attached as an auxiliary side-module module. The primary power circuit controls the ungrounded line conductor, while the secondary control circuit feeds the internal shunt trip solenoid coil.
To safely wire and commission this assembly, you must understand the terminal designations located on the housing of the breaker and its shunt trip module:
- Line Terminal (L1 / Lug 1): Located on the supply side (typically the top lug). Receives the incoming hot wire from the main distribution bus bar or primary feed.
- Load Terminal (T1 / Lug 2): Located on the load side (typically the bottom lug). Connects directly to the downstream branch equipment or load circuit.
- Shunt Trip Coil Terminal C1 (Control Lead 1 / Inbound): Accepts the switched hot wire coming from the remote actuation contact (E-stop switch, relay output, or sensor).
- Shunt Trip Coil Terminal C2 (Control Lead 2 / Outbound): Connects to the neutral wire (for AC control loops) or ground/negative return (for DC control loops) to complete the control solenoid circuit.
- Auxiliary Cutoff Contact (Internal): Micro-switch wired mechanically in series with the C1 terminal. It physically opens the shunt coil circuit when the breaker mechanism drops to the TRIPPED position, terminating coil power even if the remote trigger switch remains closed.
Failure to map these terminals accurately within your electrical schematic can cause direct short circuits or failure of the emergency trip function when remote interlocks trigger. For additional control interlock designs, refer to our auxiliary contact wiring guide.
Single Pole Shunt Trip Breaker Wiring Diagram Color Code Reference
Maintaining strict wire color code standards across your power feed and control loops is vital for technician safety, NFPA 70 (NEC) compliance, and future field troubleshooting. The table below delineates standard National Electrical Code (NEC) and NFPA 79 industrial machinery wire color code rules applied to a standard 120VAC or 24VDC single pole shunt trip circuit installation.
| Wire Function | Wire Color Code | Terminal / Pin Assignment | Recommended Gauge & Specs |
|---|---|---|---|
| Main Line Power Feed | Black (120VAC) or Red (24VDC+) | Breaker Line Lug (L1) | 10-14 AWG THHN Copper (Match Amp Rating) |
| Branch Load Output | Black or Red | Breaker Load Lug (T1) | 10-14 AWG THHN Copper (Match Amp Rating) |
| Control Power Supply Feed | Red (AC Control) / Blue (DC Control) | Remote Switch Input / TB-1 | 14-16 AWG Stranded Copper (MTW/THHN) |
| Switched Shunt Trip Actuation Wire | Yellow or Purple (Interlock Switched) | Shunt Coil Terminal C1 (or Lead 1) | 14-16 AWG Stranded Copper |
| Shunt Coil Return Path | White (120VAC Neutral) / Blue-White (DC-) | Shunt Coil Terminal C2 to Neutral Block | 14-16 AWG Stranded Copper |
| Equipment Ground Wire | Bare Copper or Green / Yellow Stripe | Panel Ground Bus / Terminal Block | 10-14 AWG Copper (Per NEC 250.122) |
Recommended Best Deal Products
When utilizing an external control voltage source (e.g., a 24VDC signal from a PLC or fire suppression panel to trip a 120VAC power breaker), ensure the control wires are isolated from power conductors in separate raceways or insulated to the highest voltage present in the enclosure per NEC Article 300.3(C)(1).
Step-by-Step Single Pole Shunt Trip Breaker Wiring Sequence
Properly installing a single pole shunt trip breaker requires precise execution to ensure both the branch circuit power routing and the remote tripping control circuit function flawlessly. Follow this standardized step-by-step installation process:
Step 1: Perform Lockout/Tagout (LOTO) and Voltage Verification
Isolate all incoming electrical power to the distribution panelboard or enclosure. Apply lockout/tagout devices on the main feeder breaker. Using a calibrated digital multimeter set to AC/DC voltage, check between line phases, neutral wire, and ground wire at the panel bus to confirm zero energy state before installing hardware.
Step 2: Mount the Breaker and Shunt Trip Module Assembly
Snap the single pole shunt trip breaker onto the enclosure DIN rail or panelboard bus stabs. If using a modular shunt trip accessory, clip the solenoid module onto the left or right flank of the single pole breaker body according to the manufacturer’s interlocking guide, ensuring the mechanical trip pin correctly engages the breaker’s internal trip bar.
Step 3: Connect Line and Load Main Power Conductors
Strip 0.5 inches (12mm) of insulation from the incoming hot wire feed and load wire. Insert the incoming line hot wire into breaker Lug L1 (top) and torque terminal screw to 25–30 in-lbs (per manufacturer marking). Insert the load hot wire going to downstream equipment into Load Lug T1 (bottom) and torque identically. Ensure no stray wire strands protrude past the terminal collar.
Step 4: Wire the Shunt Trip Control Loop and Remote Trigger Switch
Route a 14 AWG control hot wire from your control power source (or line side control fuse) to the Normally Open (N.O.) dry contact of your remote switch (such as an E-stop button or safety control relay). Connect the output terminal of the remote switch to Terminal C1 (switched hot wire) on the breaker’s shunt trip unit. If your circuit incorporates emergency stop devices, review our emergency stop safety relay circuit guide for proper safety channel routing.
Step 5: Connect Neutral Wire and Ground Conductors
Connect Terminal C2 of the shunt trip unit directly to the control system neutral wire or DC ground wire terminal block using a 14 AWG white or blue/white wire. Secure the branch equipment ground wire directly to the main grounding bus bar inside the panel.
Step 6: Operational Testing and Mechanical Verification
Re-energize the panel main bus. Close the single pole shunt trip breaker handle (position ON). Depress the remote actuation button to send control voltage across terminals C1 and C2. Verify that the breaker handle immediately drops to the TRIPPED center position within 50 milliseconds. Reset the breaker handle to OFF, then back to ON to confirm normal operational reset capability.
Do not apply continuous operational voltage to shunt trip control terminals C1 and C2 if the breaker is equipped with a damaged or bypassed internal cutoff switch. Continuous voltage application on a stalled mechanical trip mechanism will cause coil thermal destruction within 10 to 15 seconds.
Common Single Pole Shunt Trip Breaker Wiring Mistakes and Troubleshooting
Faulty installation or poor control wiring design can prevent a shunt trip breaker from opening during an emergency or cause accidental false trips during normal operation. Below are the top real-world installation mistakes encountered during equipment field commissioning, along with concrete diagnostic and resolution steps.
1. Continuous Voltage Applied to Non-Cutoff Shunt Coils
- Symptom: Burnt coil smell, visible discoloration on the shunt module housing, complete loss of remote trip function.
- Cause: Wiring the control circuit using a maintained closed selector switch or latching relay without an internal cutoff contact in series with C1/C2.
- Fix: Replace the damaged shunt trip module. Wire control circuits through momentary actuation contacts (E-stop mushroom head with twist-reset) or ensure an auxiliary contact cut-off switch is installed in series with control power terminal C1.
2. Control Voltage Drop Across Long Wiring Runs
- Symptom: Loud solenoid hum or mechanical buzzing upon pressing the trigger button, but the breaker fails to mechanical unlatch or trip.
- Cause: Excessive control wire run length using undersized 18 AWG gauge conductor, leading to excessive voltage drop across long remote control loops. Shunt trip solenoids require high initial inrush current (typically 1.5A to 3A for 50ms).
- Fix: Calculate maximum wire distance for the control circuit. Increase control loop wire gauge to 14 AWG or 12 AWG stranded copper wire, or insert an interposing control relay adjacent to the panel.
3. Wiring Control Power Downstream of Breaker Load Lug (T1)
- Symptom: Breaker trips successfully on first remote test, but cannot be re-tripped or fails interlock testing under fault conditions.
- Cause: Sourcing control hot wire voltage from the load terminal (T1) of the breaker itself instead of line terminal (L1) or an independent control transformer source.
- Fix: Source the control hot wire from a dedicated upstream line-side terminal block, line terminal L1, or an auxiliary control power circuit breaker so voltage remains available to trip the circuit regardless of load-side breaker state.
4. Misidentifying Neutral Wire and Control Return Terminals
- Symptom: Ground fault breaker (GFCI) or arc fault breaker (AFCI) upstream trips instantly when the remote trip button is pressed.
- Cause: Wiring the C2 return terminal to an isolated ground bus or mixing up the control neutral wire with an upstream GFCI-protected load neutral.
- Fix: Re-route the C2 return wire directly to the master neutral wire terminal block or dedicated power supply negative (-) terminal according to system ground specifications. For system grounding rules, refer to our main distribution panel board grounding specs.
Single Pole Shunt Trip Breaker Wiring Diagram Technical FAQs
What is the primary difference between a shunt trip breaker and an undervoltage trip breaker?
A shunt trip breaker uses an energize-to-trip mechanism, meaning it requires active control voltage applied across C1 and C2 terminals to mechanically trip the breaker handle. An undervoltage trip (UVT) breaker uses a de-energize-to-trip mechanism that holds the trip latch closed continuously with voltage; if control power is lost or disconnected, the UVT breaker automatically trips as a fail-safe measure.
Can I power a 120VAC shunt trip coil from the single pole breaker’s own line terminal?
Yes, provided the single pole breaker operates on a 120VAC line system. You can tap control power directly from Line Lug L1 through a line-side control fuse (typically 2A to 5A fast-acting) to the remote emergency contact, returning to C2 on the panel neutral bus. However, if the main breaker opens, control power from that phase is removed until reset.
What wire gauge should I use for single pole shunt trip control wiring?
While main power lugs require conductors matched to the load amperage rating (e.g., 12 AWG for 20A, 10 AWG for 30A), control terminals C1 and C2 are typically wired with 14 AWG or 16 AWG stranded copper wire (type MTW or THHN). Stranded wire is highly recommended over solid copper to prevent vibration loosening at the module’s small screw terminals or terminal block connections.
Why does my single pole shunt trip breaker handle stay in the middle position?
The middle handle position indicates the breaker has been tripped automatically by an overcurrent event or electrically via the shunt trip coil module. To restore power, you must manually push the handle fully down to the OFF position until the internal springs latch with a click, and then move the handle up to the ON position.
How do I wire a 24VDC fire alarm output to trip a 120VAC single pole line breaker?
Do not connect 24VDC fire alarm outputs directly to a 120VAC shunt coil terminal. Instead, wire the 24VDC output from the fire panel to drive the coil of a 24VDC interposing relay. Wire the Normally Open (N.O.) dry contact of this interposing relay in series with the 120VAC feed going to the shunt trip module’s C1 terminal. This completely isolates low-voltage signal lines from line-voltage panel power.
