Simpson 3100 Pressure Washer Parts Diagram: 2026 Guide
The Simpson 3100 pressure washer parts diagram illustrates the exploded view of the axial cam pump, Kohler or Honda engine interface, unloader valve layout, and frame structure. Key connections include the thermal relief valve on the high-pressure manifold, water inlet filter, and 1/4-inch quick-connect spray wand hose assembly.
📌 Key Takeaways
- Axial cam pumps operate at 3100 PSI and 2.3-2.5 GPM, requiring SAE 10W-30 engine oil and non-detergent pump oil.
- Critical structural identification includes the thermal relief valve, unloader bypass loop, manifold O-rings, and siphon tube.
- Unloader valve adjusting bolts require precise setting; pump manifold bolts must be torqued to 18-22 ft-lbs.
- The most common failure point is dried high-pressure water seals and stuck unloader check valves due to dry storage.
- DIY repair is recommended for seal kits and unloader swaps; full pump replacement is needed for scored pistons.
Analyzing the Simpson 3100 PSI pressure washer fluid system requires a technical understanding of its high-pressure hydraulic circuit and mechanical drive configuration. Premium small-engine configurations, such as the Simpson MegaShot 3100 paired with Honda GC190 or Kohler RH265 engines and OEM Technologies or AAA axial cam pumps, operate at precise tolerances to generate up to 3100 PSI at 2.3 to 2.5 GPM. Utilizing an accurate technical schematic enables equipment technicians and mechanics to efficiently isolate internal pump seals, bypass valves, and drive keyways during service. This comprehensive technical guide details component functions, schematic callout interpretation, torque specifications, and fluid circuit troubleshooting.

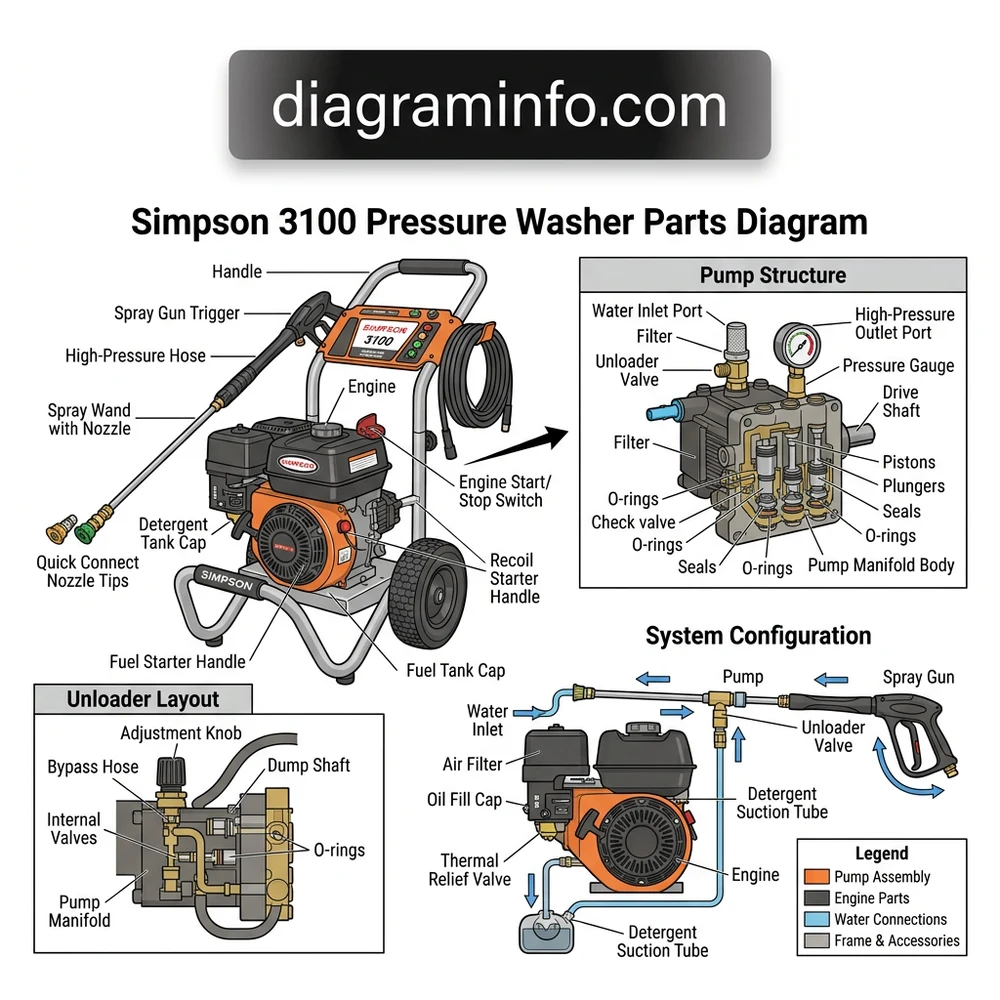

Simpson 3100 Pressure Washer Parts Diagram: Critical Component Layout
The structural layout of the Simpson 3100 pressure washer system splits into three major sub-assemblies: the internal combustion engine powerhead, the axial cam pump body, and the exterior chassis frame assembly. According to OEM specifications, power transmission occurs through a direct-drive 3/4-inch hollow shaft connected to the pump drive system via a square keyway, spinning at a nominal 3400 to 3600 RPM.
Within the axial cam pump configuration, three ceramic-coated stainless steel pistons actuate sequentially via an inclined swashplate. Water enters through an inlet brass fitting equipped with a mesh filter screen, flowing into the low-pressure suction manifold. As the pistons reciprocate inside the high-pressure manifold, water is compressed across six spring-loaded check valves (three inlet valves and three outlet valves). For engine maintenance specifications, refer to the Honda GC190 engine maintenance manual when verifying crank key alignment.
An integrated unloader valve assembly regulates fluid redirection. When the spray gun trigger releases, the unloader senses a spike in line pressure and shifts into bypass mode, cycling water within the pump head. Additionally, a thermal relief valve acts as a mechanical safety mechanism, venting water out of the pump chamber if trapped recirculation temperatures exceed 140°F (60°C).
| Component Description | OEM Part / Kit Number | Technical Specification |
|---|---|---|
| Axial Cam Pump Assembly | 510020 / 530001 (AAA) | 3100 PSI @ 2.5 GPM, 3/4″ Shaft |
| Complete Water Seal Kit | 7104223 | High/Low Pressure Elastomer V-Rings |
| Check Valve Kit (6 Pack) | 7104228 | Stainless Steel Springs & Plastic Cages |
| Unloader Valve Kit | 7105077 | Adjustable Internal Bypass Needle/Seat |
| Thermal Relief Valve | 7101359 | 1/4″ NPT Male, Trips at 140°F (60°C) |
How to Read the Simpson 3100 Pressure Washer Parts Diagram Blueprint
Deciphering an exploded schematic blueprint requires systematically cross-referencing indexed item numbers against the manufacturer’s Bill of Materials (BOM). In a standard Simpson 3100 pressure washer schematic, parts are numbered outwards from the engine crank drive toward the high-pressure outlet manifold. Sub-components enclosed within dashed perimeter boxes denote complete service kits, such as internal seal packs or unloader rebuild sets.
When inspecting the hydraulic pump manifold layout, pay strict attention to orientation markers and stacking order. High-pressure V-seals, brass intermediate rings, and low-pressure U-cups must be oriented with their sealing lips facing toward the high-pressure water chamber. Reversing a seal direction causes immediate pressure loss and blow-by fluid leakage into the crankcase pump oil reservoir. When performing seal maintenance, review our dedicated axial cam pump seal replacement procedure to ensure correct seal seating depth.
Manufacturer specifications indicate the following torque values for pump assembly maintenance:
• Pump Head Manifold Allen Bolts: 18–20 ft-lbs (24.4–27.1 Nm)
• Pump-to-Engine Mounting Bolts (5/16″-24): 7–9 ft-lbs (9.5–12.2 Nm)
• Unloader Valve Cap Assembly: 12–14 ft-lbs (16.2–19.0 Nm)
• Drain Plug Screw: 5–7 ft-lbs (6.7–9.5 Nm)
To accurately source replacement hardware from the blueprint, locate the callout pointing to the pump manifold. Note whether your pump uses a vertical split manifold or an integrated horizontal head, as shaft key size (typically 3/16-inch) and mounting flange bolt circles (PCD 3.625 inches) vary slightly between OEM Technologies and AAA pump variants.
Diagnosing Pressure Loss and Pump Leaks via the System Schematic
A structured diagnostic process using the functional overview schematic helps pinpoint pressurized system failures. When a Simpson 3100 pressure washer exhibits low output pressure, low flow volume, or severe vibration, technicians must follow a process of elimination grounded in fluid flow path analysis.
Start at the suction side shown in the overview diagram. Air entrainment at the inlet fitting or a clogged filter screen prevents complete fluid charge into the piston chambers, resulting in severe cavitation. If inlet flow is confirmed at >3.0 GPM, inspect the internal check valves. Debris trapped under any of the six valve seats, or broken valve return springs, causes fluid to backflow into the inlet manifold instead of pressurizing the discharge line.
Never inspect or adjust a pressurized unloader valve while the engine is running. Pin-hole leaks in high-pressure lines can inject fluid directly under human skin at pressures above 1000 PSI. Always release trapped system pressure by squeezing the spray trigger after shutting down the powerhead. Never allow the unit to run in bypass mode without spraying for more than two minutes, or thermal relief valve failure will occur.
If output pressure fluctuates continuously, examine the unloader valve piston assembly. Worn internal O-rings or a scored unloader pin allow high-pressure fluid to short-circuit directly back into the pump inlet port. For step-by-step unloader diagnostic procedures, refer to the pressure washer unloader valve adjustment guide.
Simpson 3100 Pressure Washer Parts Diagram Frequently Asked Questions
Where Is the Thermal Relief Valve Located on the Simpson 3100 Diagram?
The thermal relief valve is threaded directly into the low-pressure bottom port of the pump head manifold, adjacent to the garden hose inlet connection. On the schematic, it appears as a small brass fitting with a hex shoulder (1/4-inch NPT male thread) containing a heat-sensitive plastic plunger inside.
How Do I Identify the Correct Replacement Pump Configuration for a Simpson 3100?
Identify the pump configuration by measuring the engine crankshaft diameter (standard is 3/4-inch), checking the engine shaft orientation (horizontal), and noting the mounting bolt pattern. Cross-reference these dimensions with the pump model code stamped on the underside of the crankcase (e.g., OEM Technologies 90028 or AAA 530001).
What Seal Kit Alignment Order Is Shown in the Simpson 3100 Pump Blueprint?
The internal sealing assembly aligns in sequence from the crankcase out to the high-pressure manifold: oil seal, brass spacer ring, low-pressure U-cup seal, brass intermediate ring, high-pressure V-ring seal, and plastic support washer. All V-grooves must face toward the water manifold chamber.
How Does the Unloader Valve Function Within the Internal Hydraulic Schematic?
The unloader valve acts as a pressure-actuated fluid switch. When the spray gun trigger closes, line pressure spikes, pushing an internal piston that unseats a check ball. This opens a bypass channel inside the pump, re-routing water from the outlet port back to the inlet suction chamber to prevent engine stalling and pump rupture.
What Fasteners Connect the Axial Cam Pump to the Crankshaft Drive?
The pump attaches to the engine crankcase using four 5/16″-24 x 3/4″ grade-5 hex head bolts equipped with split lock washers. Torque these fasteners evenly to 7–9 ft-lbs in a cross pattern to prevent swashplate shaft binding during engine operation.
Step-by-Step Guide to Understanding the Simpson 3100 Pressure Washer Parts Diagram
Identify – Identify the specific Simpson 3100 model sub-series and pump type before referencing the schematic.
Locate – Locate the target sub-assembly, such as the pump head, unloader valve, or water inlet, on the layout diagram.
Reference – Reference part numbers and seal orientations against the explosion key to confirm correct system configuration.
Connect/Route – Route and seat high-pressure O-rings, check valves, and unloader bypass components in exact sequence according to diagram callouts.
Verify – Verify manifold bolt torque to 18-22 ft-lbs and ensure thermal relief and inlet filter fittings are securely sealed.
Troubleshoot – Troubleshoot pressure drops or surging by comparing check valve alignment and spring assembly layout with original specs.
