Heavy Timber Post and Beam Framing Diagram: 2026 Guide
A post and beam framing diagram details the load-bearing structural layout using vertical timber posts and horizontal beams connected by steel plates or traditional joinery. It specifies beam spans, post spacing, ledger attachment points, knee bracing configurations, and foundation anchor locations to transfer gravity and lateral loads to the ground.
📌 Key Takeaways
- Posts transfer load vertically to piers with typical anchor bolt torque specifications of 40-50 ft-lbs.
- Primary load-bearing beams require minimum 3.5-inch bearing surfaces on supports.
- Knee braces provide essential lateral resistance against wind and seismic forces.
- Steel knife plates or Simpson Strong-Tie post caps prevent timber rotation and uplift.
- Most common failure points occur at unsealed end-grain joints exposed to moisture.
Understanding a post and beam framing diagram is essential when designing or assembling high-clearance service bays, heavy equipment storage structures, or commercial automotive shops. Unlike conventional stud-wall framing, a post and beam structure relies on large vertical timber or steel posts to support heavy horizontal beams, concentrating structural loads onto specific pier footings. Analyzing this structural layout ensures that your build handles concentrated point loads, dynamic lifting stresses from overhead cranes, and lateral shear forces. This technical guide breaks down the blueprint schematics, hardware specifications, load path configurations, and structural troubleshooting for industrial framing systems.

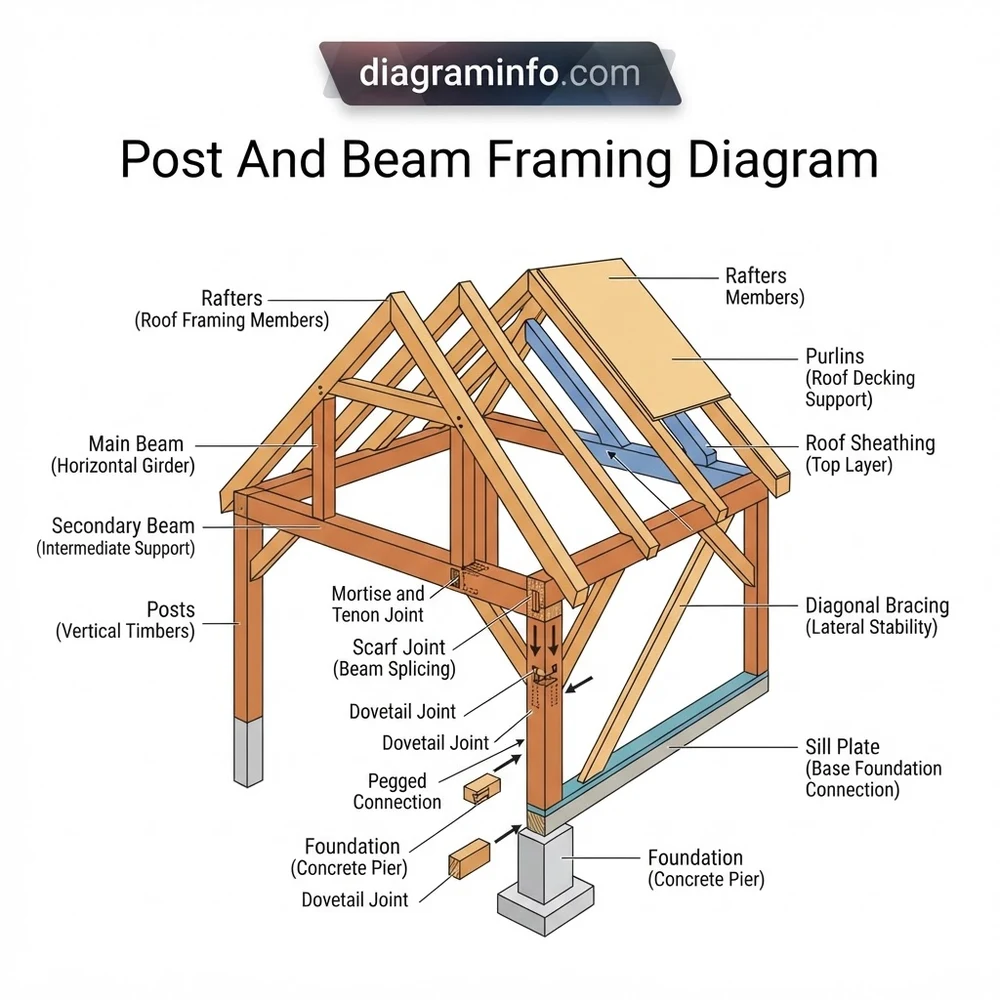

Post and Beam Framing Diagram: Structural Component Overview
A post and beam framing diagram outlines the complete skeletal network that transfers roof and live machinery loads down to the foundation. Primary load distribution depends on precise joint alignment, mechanical fastener placement, and structural member sizing. Examining the standard structural schematic reveals several key components engineered for heavy-duty load paths:
- Vertical Columns (Posts): Structural 8×8 Douglas Fir timber columns or H-section steel columns that support compressive gravity loads. Posts are anchored directly to concrete piers using heavy-gauge column bases.
- Horizontal Girders (Beams): Glulam, LVL, or W-shape steel beams (such as W12x26) running horizontally across columns to bridge wide open spans necessary for heavy equipment clearance.
- Knee Braces (Diagonal Struts): Angled timber or structural steel bracing attached at 45-degree angles between posts and beams to provide lateral racking resistance without obstructing equipment movement.
- Purlins and Rafters: Secondary framing members resting on primary beams to support roof decking and distribute snow or suspended overhead hoist loads.
- Moment Connections and Bearing Plates: Steel gusset plates, knife plates, and Simpson Strong-Tie CCQ heavy column caps that secure the post-to-beam connection interface.
According to OEM structural engineering specifications, 3/4-inch ASTM A325 structural bolts used in heavy post and beam connectors must be torqued to a minimum of 110 ft-lbs. Timber columns must sit on a minimum 4,000 PSI reinforced concrete pier foundation with 5/8-inch J-bolts to resist uplift loads up to 4,500 lbs per anchor point.
| System Component | Standard Material Spec | Fastener / Connector Specification | Primary Function |
|---|---|---|---|
| Corner & Center Posts | 8×8 #1 Dense DF / W8x31 Steel | 1/2″ Steel Base Plate with 5/8″ Anchor Bolts | Transfers concentrated vertical point loads to foundation |
| Primary Roof Beams | 6-3/4″ x 16-1/2″ Glulam / W12x26 Steel | 3/8″ Steel Gusset Plates with 3/4″ A325 Bolts | Bridges long spans to create unobstructed vehicle bays |
| Lateral Knee Braces | 6×6 Solid Timber / 3x3x1/4 Structural Tubing | 3/4″ Through-Bolts or Heavy Steel Knife Connectors | Resists lateral wind, seismic, and racking forces |
| Foundation Piers | 4,000 PSI Reinforced Concrete | #4 Rebar Cage with Embedded Anchor Bolts | Prevents soil settlement and structural uplift failure |
When integrating heavy shop equipment, review our context guide on shop floor slab reinforcement guidelines to ensure your pier footings are isolated from floor slab expansion joints to prevent stress cracking under dynamic equipment loading.
How to Read and Interpret the Post and Beam Framing Schematic
Reading a post and beam framing blueprint requires a systematic approach to trace vertical and horizontal load transfer paths. As shown in the diagram above, structural drawings utilize standardized drafting symbols, grid reference lines, and callout detail bubbles to communicate assembly configurations.
Step 1: Locate Column Centerlines and Grid Coordinates
Begin by locating the primary grid lines (typically labeled A, B, C along the Y-axis and 1, 2, 3 along the X-axis). Column intersections mark precise post centerlines. Verify the dimension callouts between post centers—such as 16-foot or 24-foot clear spans—to confirm clear bay opening widths for large service vehicles or machinery trailers.
Step 2: Trace Beam Span Configurations and Elevation Callouts
Examine the horizontal members depicted on the framing plan layout. Solid thick lines represent primary girders, while dashed or secondary lines indicate roof purlins or sub-framing. Check elevation markers (e.g., +14′-0″ T.O.B. for Top of Beam) to verify vertical clearance heights. Proper clearance is critical if your building design incorporates heavy-duty overhead crane installation schematics or hydraulic vehicle lifts.
Step 3: Decode Structural Connection Detail Bubbles
Identify detail callout circles along post-to-beam and post-to-footing connections. These callouts refer to elevation detail drawings showing plate thickness, bolt hole patterns, weld specifications, and wood notch dimensions. Verify whether the frame uses moment-resisting rigid connections or pinned end configurations, as this dictates how lateral sway is controlled across the overall structure.
Never modify structural post notch depths or drill through load-bearing Glulam beams without referring to manufacturer structural load calculation charts. Drilling through the bottom tension zone of a primary load-bearing beam can reduce its moment capacity by up to 60%, leading to catastrophic structural failure under heavy snow or hoist loads.
Troubleshooting Structural Instability in Post and Beam Configurations
Structural failure, post movement, or frame racking in post and beam configurations usually stems from improper fastener installation, foundation settlement, or unmitigated lateral loads. Identifying symptoms early using the original blueprint allows for effective structural remediation.
Frame Racking and Excessive Lateral Sway
If the structure exhibits excessive sway when operating overhead equipment or during high wind events, inspect the primary knee brace connections and shear wall attachments. Over time, wood shrinkage or un-torqued bolts create play in the brace pockets. Remediate this by re-torquing through-bolts to 110 ft-lbs or retrofitting custom-welded 1/4-inch structural steel gusset plates across post-to-beam joints as specified in modern industrial schematics.
Post Footing Settlement and Elevation Misalignment
Differential footing settlement alters beam loading paths, inducing unexpected secondary bending moments in structural beams. Use a laser level to check beam levelness across post tops. If settlement exceeds 1/2 inch across a 20-foot span, install temporary structural hydraulic shoring towers beneath the beam, jack the assembly to level, and install heavy-duty steel shims beneath the column base plate before anchor torquing.
Joint Splitting and Bolt Hole Elongation
Heavy dynamic vibrations can cause structural wood fibers to split around bolt holes. Inspect moment connection points annually. If bolt hole elongation or timber splitting along the grain is detected, install external steel clamp plates or replace wood dowel pins with heavy-gauge knife plate assemblies welded directly to steel column bases.
Post and Beam Framing Diagram Technical FAQ
What dynamic load ratings should a post and beam service bay framework support?
A standard heavy equipment post and beam frame is engineered to support a minimum roof live load of 20 to 50 PSF (depending on regional snow loads) along with concentrated point loads from overhead bridge cranes, which typically range from 2 to 10 tons. Always cross-reference your site-specific engineering blueprint to ensure column base plates are rated for these dynamic impact factors.
How do timber post and beam framing layouts differ from steel post and beam diagrams?
Timber post and beam layouts rely on larger cross-sectional members (e.g., 8×8 or 10×10 solid posts) and pocketed mortise/tenon joints or external steel bracket hardware. Steel framing blueprints utilize rolled sections (such as W-shapes or HSS square tubing) with field-welded or high-strength bolted moment connections, allowing for wider clear spans with smaller member profiles.
What is the maximum allowed span for beams in a post and beam layout?
Maximum clear beam spans depend heavily on material depth and anticipated loading. Engineered Glulam beams can achieve clear spans of 24 to 36 feet in heavy-duty shop applications, while W-shape structural steel girders can span 40 to 60 feet or more between posts. Exact limits must be confirmed using span tables provided in the engineering detail drawings.
Why are diagonal knee braces required on post and beam structural blueprints?
Because post and beam systems eliminate continuous stud shear walls, the frame lacks inherent lateral stiffness. Diagonal knee braces transfer horizontal shear loads (caused by wind, seismic activity, or stopping overhead cranes) from horizontal beams into vertical posts and down to the concrete foundation, preventing the frame from parallelograms or collapsing laterally.
Step-by-Step Guide to Understanding the Post And Beam Framing Diagram
Identify – Locate all primary grid lines, post footings, and main structural beam calls on the layout sheet.
Locate – Position concrete piers and mechanical post anchor brackets according to structural spacing dimensions.
Reference – Check callout schedule details for post dimensions, beam notch profiles, and specified steel connector plates.
Connect/Route – Align vertical posts onto anchor bases and secure horizontal beams using specified through-bolts or timber screws.
Verify – Check frame plumb, level, and cross-diagonal squareness before torquing all structural fasteners to specification.
Troubleshoot – Inspect joint gaps exceeding 1/16 inch or timber twisting, applying shims or adjustable tension rods as directed.
