Honda Civic Belt Diagram: Serpentine Routing Guide

Maintaining your vehicle requires a blend of technical knowledge and the right visual aids. When you are performing routine maintenance or replacing a failed serpentine belt, having a clear and accurate 2007 honda civic belt diagram is the most critical tool in your arsenal. This comprehensive guide provides a detailed look at the drive belt system for one of the most popular vehicles on the road. You will learn the exact routing configuration for both the 1.8L and 2.0L engines, identify every pulley component, and master the step-by-step process of belt replacement. Understanding this layout ensures your alternator, water pump, and air conditioning compressor function flawlessly.

Understanding the Drive Belt System and Layout

The 2007 Honda Civic utilizes a single serpentine belt system to power multiple peripheral components. This “ribbed” belt transfers rotational energy from the crankshaft to various pulleys, each responsible for a vital engine function. The system’s layout is designed to be compact, yet it requires a specific configuration to ensure each component rotates in the correct direction and with the necessary torque. In the 1.8L (R18) engine, which is the most common variant found in the DX, LX, and EX trims, the belt follows a complex path that integrates the alternator, water pump, air conditioning compressor, and the auto-tensioner.

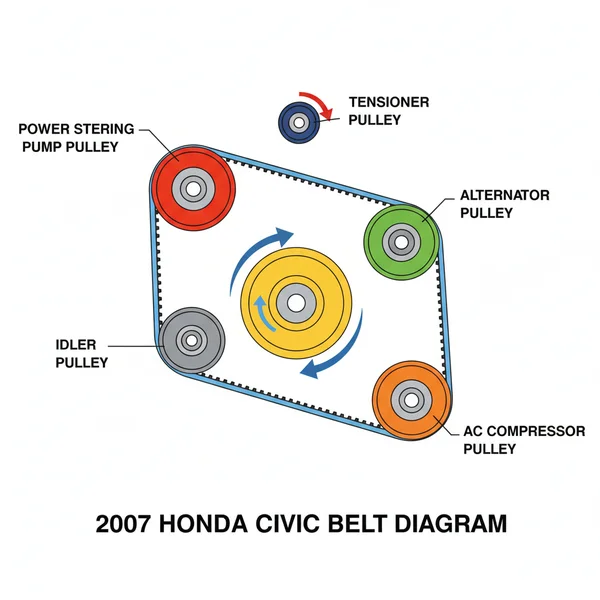

The diagram reveals a sophisticated structure where the belt must wrap around specific pulleys with “grooved” surfaces while passing over “smooth” pulleys on its backside. The main components you will see in a 2007 honda civic belt diagram include:

• ✓ Crankshaft Pulley: The primary driver of the system, located at the bottom of the engine.
• ✓ Alternator Pulley: Usually located at the top of the engine for easy access and cooling.
• ✓ A/C Compressor Pulley: Positioned toward the lower front of the engine block.
• ✓ Water Pump Pulley: Critical for engine cooling, often located in the center of the routing path.
• ✓ Auto-Tensioner: A spring-loaded component that maintains constant pressure on the belt to prevent slipping.

Step-by-Step Installation and Interpretation Guide

Interpreting a 2007 honda civic belt diagram is the first step toward a successful DIY repair. The diagram serves as a map, showing where the belt needs to go and which side of the belt (ribbed vs. flat) contacts which pulley. Most 2007 Civics feature a routing that loops from the crankshaft to the A/C compressor, up to the alternator, around the water pump, and back through the tensioner.

To perform a replacement or adjustment, follow these detailed steps:

Step 1: Preparation and Safety
Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool completely to avoid burns. Disconnect the negative battery terminal as a safety precaution. While not always necessary for a belt change, it prevents accidental engine turnover.

Step 2: Identify the Tensioner
Locate the auto-tensioner. On the 1.8L engine, the tensioner has a 19mm hex-head casting on the arm. You will need a long-handled 19mm wrench or a specialized serpentine belt tool to get enough leverage to move the spring-loaded arm.

Step 3: Relieve Belt Tension
Place your wrench on the tensioner’s hex nut. For the 1.8L engine, rotate the wrench clockwise (toward the firewall) to compress the spring and create slack in the belt. For the 2.0L engine, the direction may vary, so refer to your specific diagram for the “pivot” point.

Step 4: Remove the Old Belt
While holding the tensioner in the compressed position, carefully slide the belt off the uppermost pulley (usually the alternator). Once the belt is off one pulley, release the tensioner slowly. You can now pull the belt out of the engine bay, taking care not to snag it on any plastic clips or hoses.

Step 5: Inspect the Pulleys
Before installing the new belt, spin each pulley by hand. They should spin smoothly without noise or resistance. Check for “play” or wobbling. If the water pump or alternator pulley feels gritty or loose, those components may need replacement alongside the belt.

Step 6: Route the New Belt
Refer closely to your 2007 honda civic belt diagram. Start by looping the new belt around the bottom-most pulleys (crankshaft and A/C compressor). Work your way upward, following the specific zig-zag pattern. Leave the alternator pulley for last, as it is usually the easiest to reach while holding the tensioner.

Step 7: Final Seating
Depress the tensioner again and slide the belt onto the final pulley. Before releasing the tensioner, visually inspect every pulley to ensure the belt is perfectly centered. The ribs of the belt must sit flush within the grooves of the pulleys. If the belt is even slightly misaligned, it will shred within minutes of starting the engine.

Step 8: Testing
Release the tensioner. Reconnect the battery and start the engine. Observe the belt for a few minutes to ensure it is tracking straight and there are no unusual squealing sounds.

Common Issues and Troubleshooting

Even with a perfect 2007 honda civic belt diagram, issues can arise due to mechanical wear or environmental factors. One of the most common problems is a “squealing” sound, particularly during cold starts or when turning the steering wheel (though the 2007 Civic uses electric power steering, the belt still handles heavy electrical loads from the alternator).

If you notice a rhythmic chirping, it often indicates a pulley misalignment or a worn bearing in the tensioner. The tensioner itself is a common failure point on the 8th generation Civic. Look for the “wear indicator” marks on the tensioner body; if the pointer is outside the designated range, the internal spring has weakened, and the unit must be replaced.

Another issue is “belt glazing,” where the underside of the belt becomes shiny and smooth. This reduces friction and causes the belt to slip under load, such as when the A/C compressor kicks in. If you see cracks every inch or so on the ribbed side, the belt has reached the end of its service life and is at risk of snapping.

Tips and Best Practices for Maintenance

To ensure the longevity of your drive system, follow these professional maintenance recommendations. First, always opt for EPDM (Ethylene Propylene Diene Monomer) belts. Unlike older neoprene belts, EPDM does not crack as easily, though it does wear down in a way similar to tire tread. Using a belt wear gauge can help you determine when the grooves have become too deep, even if no cracks are visible.

When working on a 1.8L Honda Civic, be aware of a specific Technical Service Bulletin (TSB) regarding the belt routing. Honda modified the routing in some models to reduce the load on the water pump bolt, which was prone to snapping. A modern 2007 honda civic belt diagram will often show this updated routing. If your current belt path looks different from the “standard” diagram, you may have the updated configuration, which should be maintained.

Cleaning your pulleys is another overlooked best practice. Use a stiff nylon brush and some brake cleaner to remove any rubber deposits or oil from the pulley grooves before installing a new belt. This ensures maximum grip and prevents premature wear. Finally, keep a spare belt and the necessary 19mm wrench in your trunk. A snapped belt results in an immediate loss of cooling and charging, leaving you stranded. Being prepared with the knowledge of the belt’s structure and layout can turn a potential disaster into a quick roadside fix.

By following these guidelines and referencing the 2007 honda civic belt diagram, you can maintain your vehicle’s performance and avoid the high costs of emergency repairs. Regular inspection every 30,000 miles is the best way to catch issues before they lead to a breakdown.
