Fluorescent-to-LED Wiring Diagram: Mapping Guide 2026
To convert fluorescent to LED by bypassing the ballast, connect the fixture’s hot wire (typically black) to one tombstone socket and the neutral wire (typically white) to the other. Ensure all original ballast wiring is disconnected and capped safely, providing direct 120V or 277V AC power to the LED tube’s internal driver.
📌 Key Takeaways
- Always confirm if your LED tubes require a ballast bypass (direct wire) or are ballast-compatible before starting.
- Crucially identify the hot wire and neutral wire in the existing fixture using a voltage tester before beginning work.
- Ensure the power supply to the fixture is completely off at the circuit breaker before handling any wires.
- The most common mistake is failing to fully remove or bypass the original fluorescent ballast, leading to power issues or tube damage.
- Seek professional electrical help if unsure about identifying high voltage wires or performing modifications within the electrical box.
Converting existing fluorescent lighting fixtures to modern LED technology offers significant energy savings, reduced maintenance, and improved light quality. However, the process is not as simple as merely swapping bulbs. For technicians and equipment owners, understanding the precise wiring diagram for converting fluorescent to LED is critical to ensure safety, proper operation, and compliance with electrical codes. This detailed guide and accompanying wiring diagram outline the meticulous steps required for a ballast-bypass LED conversion, focusing on the direct connection of LED tubes to the main AC power supply, thereby eliminating the legacy ballast.

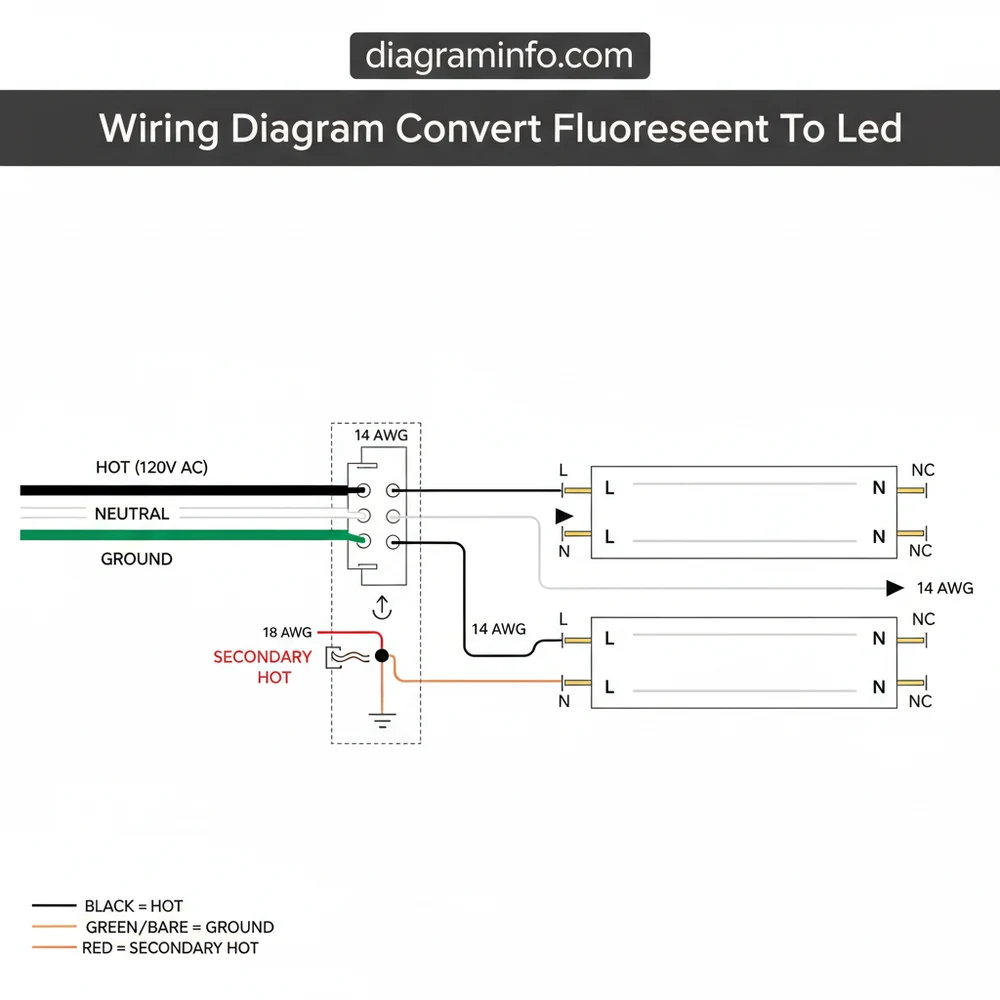

(Insert comprehensive wiring diagram illustrating the removal of fluorescent ballast and direct connection of LED tube to AC line voltage. Include labels for hot, neutral, ground, tombstone connectors, and wire gauges.)
WIRE COLOR REFERENCE TABLE
Adhering to established electrical wire color codes is paramount for safety and correct installation. The following table details common AC wiring standards pertinent to North American installations. Always verify local electrical codes and fixture-specific instructions.
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Black | Hot / Line (L1) | Input Terminal (L) | Carries current from breaker panel. Always energized. |
| White | Neutral (N) | Input Terminal (N) | Returns current to source. Completes the circuit. |
| Green or Bare Copper | Ground (GND) | Fixture Chassis / Ground Screw | Safety path for fault current. Essential for protection. |
| Red | Hot (L2) | Input Terminal (L) | Common in 277V systems or multi-circuit applications. |
For most residential and light commercial 120V applications, 14 AWG wire gauge is typically sufficient for branch circuits up to 15 amps. For 277V systems or longer runs, 12 AWG or heavier may be required. Always consult a licensed electrician or relevant electrical codes to determine the appropriate voltage and wire gauge for your specific installation.
STEP-BY-STEP CONNECTION GUIDE
This guide details the ballast-bypass method for Type B LED tubes, which are designed to operate directly on line voltage. As shown in the diagram above, this approach eliminates the need for the existing fluorescent ballast, reducing potential points of failure and further improving energy efficiency. Always verify that your chosen LED tubes are rated for direct AC line voltage input.
Before commencing any electrical work, always disconnect power at the circuit breaker or fuse panel. Verify zero voltage presence using a non-contact voltage tester and a multimeter. Failure to do so can result in severe injury or electrocution.
- Power Disconnection and Fixture Access: Locate the circuit breaker controlling the fluorescent fixture and switch it to the OFF position. Use a lockout/tagout procedure if working in a commercial or industrial environment. Remove the fluorescent tubes and the fixture’s cover to expose the wiring compartment and the ballast.
- Ballast Removal: Identify the input hot wire (typically black or red) and neutral wire (white) leading to the ballast from the main power supply. Disconnect these wires from the ballast. Next, disconnect all output wires from the ballast to the lamp holders (tombstones). Completely remove the ballast and any associated starter components.
- Lamp Holder (Tombstone) Re-wiring:
- For Single-Ended Power LED Tubes: These tubes typically receive power at one end. Identify the lamp holder at the designated “live” end of the fixture. Connect the incoming hot wire (black or red) directly to one terminal of this lamp holder (often labeled L). Connect the incoming neutral wire (white) directly to the other terminal of the same lamp holder (often labeled N). The lamp holders at the other end of the fixture can remain unwired or be replaced with non-shunted tombstone connectors, ensuring no electrical continuity.
- For Double-Ended Power LED Tubes: These tubes receive power across both ends. Connect the incoming hot wire (black or red) to one terminal of a lamp holder at one end of the fixture. Run a separate jumper wire from the other terminal of this lamp holder to a terminal on the lamp holder at the opposite end of the fixture. Similarly, connect the incoming neutral wire (white) to one terminal of the remaining lamp holder at the first end, and run a jumper wire to the remaining terminal on the lamp holder at the opposite end. Alternatively, some fixtures may allow for direct connection of hot to one end’s tombstone and neutral to the other end’s tombstone, simplifying the internal wiring.
Ensure all connections are made securely using appropriate terminal block connectors (e.g., WAGO connectors or wire nuts) and that the wire color code matches the diagram. For applications requiring precise wire management, consider utilizing industrial terminal blocks for robust and organized connections.
- Ground Wire Connection: Ensure the fixture chassis is properly grounded. The incoming ground wire (green or bare copper) must be securely fastened to the fixture’s designated ground screw. This provides critical safety in case of an electrical fault.
- Installation of LED Tubes and Final Assembly: Install the Type B LED tubes into the re-wired lamp holders. Replace the fixture cover and ensure all components are secured.
- Relabeling and Power Restoration: Affix a prominent label inside the fixture, indicating that it has been modified for LED tubes and is no longer compatible with fluorescent lamps or ballasts. This prevents future incorrect lamp installation. Restore power at the circuit breaker and test the new LED lighting.
Many modern Type B LED tubes are designed for non-shunted lamp holders, which means each pin on the tombstone is electrically isolated. If your existing fluorescent fixture uses shunted lamp holders (common in instant-start ballast systems where both pins of a single tombstone are internally connected), you must replace them with non-shunted versions. Failing to do so can create a direct short circuit across the line voltage, leading to immediate component failure or electrical hazard. Verify the lamp holder type by testing continuity between the two pins of an empty tombstone with a multimeter.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Improper wiring during a fluorescent to LED conversion can lead to non-functional lighting, premature LED failure, or dangerous electrical hazards. Precision in following the wiring diagram and understanding electrical principles is non-negotiable.
- Incorrect Ballast Removal/Bypass:
- Consequence: If the ballast is not fully bypassed, attempting to use Type B LED tubes can cause damage to the LED tube or the ballast itself (if left energized). If a Type A (ballast-compatible) LED tube is installed in a bypassed fixture, it will not function.
- Fix: Double-check the wiring diagram to ensure all ballast wires are disconnected and removed. Confirm the incoming AC line hot wire and neutral wire are directly connected to the lamp holders, not routed through any remaining ballast components. Verify the LED tube type matches the wiring modification.
- Reversed Polarity (Hot and Neutral Swapped):
- Consequence: While many LED tubes operate on AC and are not strictly polarity-sensitive, incorrect pin assignment can lead to unexpected circuit behavior, potential issues with surge protection, or in rare cases, reduced component lifespan. It also violates standard electrical safety practices.
- Fix: Always connect the black (or red) hot wire to the designated “L” terminal/pin and the white neutral wire to the “N” terminal/pin on the lamp holder or LED driver. Use a multimeter to confirm correct line and neutral identification if wire colors are ambiguous or non-standard.
- Missing or Improper Ground Connection:
- Consequence: A compromised or absent ground wire significantly increases the risk of electric shock if an internal fault occurs (e.g., a live wire touches the metal fixture housing). It also prevents fault protection devices (like circuit breakers) from tripping effectively.
- Fix: Ensure the incoming green or bare copper ground wire is securely connected to the metal chassis of the fixture using the designated ground screw. Use a continuity tester to verify a low-resistance path from the fixture chassis to the main electrical panel ground.
- Incorrect Lamp Holder Type (Shunted vs. Non-Shunted):
- Consequence: Installing a single-ended power (SEP) or double-ended power (DEP) LED tube into shunted tombstone connectors (common with instant-start ballasts) can cause a direct short circuit, tripping the breaker, or damaging the LED tube upon power application.
- Fix: For Type B LED conversions, replace existing shunted lamp holders with non-shunted ones. Visually inspect or use a multimeter to check continuity between the two pins of an unpopulated lamp holder. No continuity indicates a non-shunted type, which is correct for ballast-bypass LEDs.
FAQ
What are the primary differences between Type A, B, and C LED tubes for conversion?
Type A LED tubes are “plug-and-play” and are designed to work with existing fluorescent ballasts, requiring no wiring modifications. Type B LED tubes, the focus of this guide, are “ballast-bypass” and operate directly on line voltage, necessitating the removal of the old ballast and re-wiring the fixture. Type C LED tubes require a dedicated external LED driver, which replaces the ballast and offers advanced features like dimming or precise current control.
Can I convert a dimmable fluorescent fixture to dimmable LED?
Typically, direct conversion of a dimmable fluorescent fixture to dimmable LED requires using Type C LED tubes with a compatible dimmable LED driver. Standard Type B (ballast-bypass) LED tubes are generally not dimmable unless explicitly specified, and attempting to dim them with a standard dimmer designed for incandescent or fluorescent loads will likely cause flickering, damage to the LED, or complete failure. Always check the LED tube’s specifications and the dimmer’s compatibility ratings.
Is it necessary to replace the lamp holders (tombstones) during a ballast-bypass conversion?
It depends on the existing lamp holder type and the LED tube being installed. Many fluorescent fixtures, especially those with instant-start ballasts, use “shunted” lamp holders where both pins at one end are internally connected. For ballast-bypass LED tubes (Type B), particularly single-ended power designs, using shunted lamp holders can cause a short circuit. In such cases, replacing shunted lamp holders with “non-shunted” ones is essential. Double-ended power LED tubes may sometimes work with existing shunted holders, but verifying compatibility is crucial to avoid issues.
What voltage requirements do Type B LED tubes typically have?
Most Type B (ballast-bypass) LED tubes are designed for universal voltage input, typically ranging from 100-277V AC. This allows them to be used in both standard 120V residential/commercial settings and 277V commercial/industrial environments without a dedicated driver. Always confirm the specific voltage rating on the LED tube or its packaging to ensure compatibility with your electrical system’s supply voltage.
What about UL listing and electrical codes for these conversions?
Any electrical modification to a fixture should maintain its safety certifications. While individual UL Listed LED tubes can be used, modifying a fixture by bypassing the ballast typically voids the original fixture’s UL Listing. Professional installations often use “UL Classified” conversion kits, which provide a label to affix to the modified fixture, signifying that the conversion itself adheres to safety standards. Always consult local electrical codes and ensure the installation complies with applicable regulations (e.g., NEC in the U.S.) to avoid safety hazards and potential inspection issues.
Step-by-Step Guide to Understanding the Fluorescent-To-Led Wiring Diagram: Mapping Guide 2026
Identify – Turn off power at the circuit breaker and verify with a voltage tester that no power is present at the fixture.
Locate – Open the fixture, locate the existing fluorescent ballast and its associated wiring (hot wire, neutral wire, ground wire, and wires leading to the lampholders/tombstones).
Reference – Consult the specific wiring diagram provided with your new LED tubes, paying attention to single-ended or double-ended power input.
Connect/Route – Carefully cut all wires leading to and from the ballast. Remove the ballast. Connect the incoming hot wire to one tombstone and the incoming neutral wire to another tombstone (or both ends for double-ended power), securing connections with wire nuts. Ensure the ground wire is connected to the fixture housing.
Verify – Double-check all wire connections for tightness and proper insulation. Re-assemble the fixture, install the LED tubes, and restore power at the circuit breaker.
Troubleshoot – If the lights don’t illuminate, re-verify power is on, check individual wire connections for looseness, and ensure the LED tube type matches the wiring method (ballast bypass vs. ballast-compatible). Refer to common wiring mistakes for diagnosis.
Frequently Asked Questions
What wire color is hot or neutral when converting fluorescent to LED?
In most North American installations, the hot wire is typically black, and the neutral wire is white. However, always verify with a voltage tester. For the conversion, these wires will be directly connected to the LED tube’s tombstone sockets after bypassing the fluorescent ballast, providing line voltage power to the tube’s internal driver.
What do the pins mean on an LED tube during fluorescent conversion?
For ballast-bypass LED tubes, the pins on each end connect to the live and neutral wires. In a single-ended power tube, power goes into one end, while the other end is inert. Double-ended tubes receive hot and neutral wires at opposing ends, effectively making the tombstone sockets the new power input points after ballast removal.
How many wires are typically involved in a fluorescent-to-LED conversion?
A typical ballast bypass conversion primarily involves the main incoming hot wire, neutral wire, and ground wire from the building’s wiring. Internally, you will connect the hot and neutral directly to the tombstone sockets, usually involving two wires per socket (if double-ended) or one per socket (if single-ended), after removing the old ballast wiring completely.
What are common wiring mistakes when converting fluorescent to LED?
Common mistakes include failing to disconnect the ballast completely, wiring a ballast-bypass tube to a live ballast, incorrect identification of hot and neutral wires, or not properly capping off unused wires. Not grounding the fixture correctly is also a safety hazard. Always double-check your connections against the LED tube’s specific wiring diagram.
Is a ballast bypass required for all LED tube conversions?
No, not all LED tube conversions require a ballast bypass. Some LED tubes are designed as ‘ballast-compatible’ (or ‘plug-and-play’) and can operate with the existing fluorescent ballast. However, many newer and more efficient LED tubes are ‘ballast-bypass’ types, requiring direct wiring to line voltage after the ballast is removed.
What gauge wire does fluorescent-to-LED conversion typically require?
For most standard residential or commercial fluorescent fixture conversions (120V-277V), the existing wiring, typically 14-gauge or 12-gauge, is sufficient as the LED tubes often draw less current than fluorescent. When replacing wires, always match or exceed the existing gauge and ensure it’s rated for the voltage and amperage of the circuit.
