4-Pin Push Button Switch Wiring Diagram 2 Green One Red One Black Wires 2026

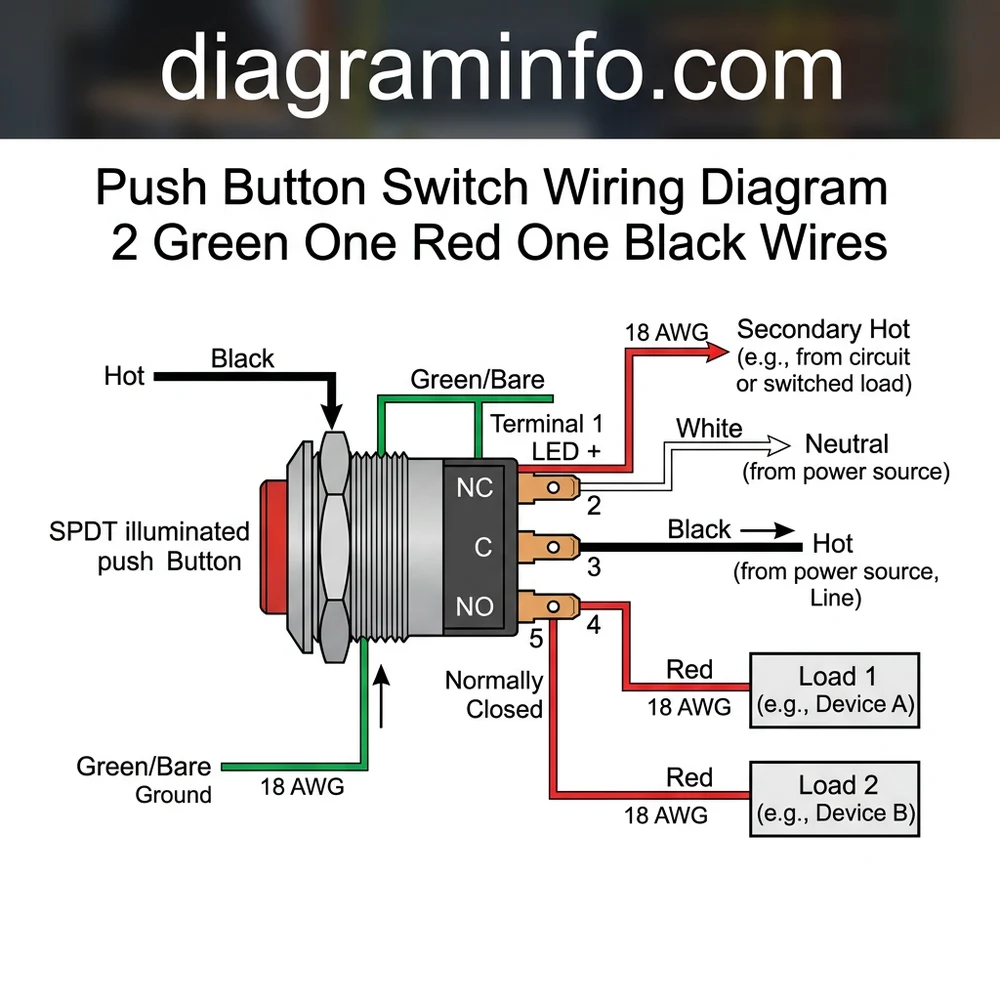

In a standard 4-wire illuminated push button switch wiring diagram, the red wire acts as the 12V fused hot wire input. The black wire serves as the switched output to your load or relay. One green wire connects to chassis ground wire, while the second green wire functions as the LED ground wire circuit return.
📌 Key Takeaways
- Red wire functions as the primary +12V DC fused hot wire input feed.
- Black wire provides switched +12V power output to the accessory load or relay pin 86.
- Two green wires serve ground functions: one internal LED negative return and one chassis ground wire.
- Loads exceeding 10 amps require triggering an external 4-pin relay to prevent contact failure.
- Always isolate circuit power and install an inline fuse on the main hot wire before wiring.
Installing an illuminated 4-wire push button switch featuring two green wires, one red wire, and one black wire requires an exact understanding of internal circuit separation. This standard wire color code configuration is common across automotive control panels, industrial control assemblies, and marine equipment switches. Unlike standard 2-pin mechanical toggle switches, this 4-wire arrangement separates the internal LED illumination circuit from the mechanical dry contact switch loop. Connecting these leads improperly can short-circuit your 12V/24V DC system, blow inline fuses, or ruin the internal light-emitting diode. The following technical manual provides complete wire color code definitions, schematic routing, relay triggering options, terminal block assignments, and voltage parameters for safe equipment integration.
Push Button Switch Wiring Diagram 2 Green One Red One Black Wires Pin Assignment
According to OEM manufacturer specifications, 4-wire momentary or latching push button switches with this color breakdown isolate the internal LED ring from the high-amperage switched load. The red and black leads power the low-current LED indicator ring, while the dual green leads serve as the primary SPST (Single Pole, Single Throw) normally open (NO) mechanical contact loop. Because the two green wires represent isolated dry contacts, they have no polarity orientation relative to each other until integrated into an active powered circuit.
| Wire Color | Function & Circuit Role | Pin Assignment / Connection Point | Electrical Specifications |
|---|---|---|---|
| Red | LED Indicator Positive Feed (Anode) | Terminal LED+ / Fused Hot Wire (+12V/+24V) | Low Current (< 20mA), 12V DC Operating Range |
| Black | LED Indicator Return / Ground | Terminal LED- / Ground Wire (Chassis / DC Neutral Wire) | System Common Ground (0V Potential) |
| Green Wire 1 | Switch Contact Line Input (COM / NO Input) | Terminal C / Contact A (Power Feed to Switch) | 3A to 5A Max Contact Current (Dry Contact) |
| Green Wire 2 | Switched Load Output (NO Output) | Terminal NO / Contact B (To Relay Coil Pin 86 or Load) | Switched Supply Voltage (+12V DC when depressed) |
Most 16mm, 19mm, and 22mm vandal-resistant push button switches integrate internal resistors matched for 12V DC operations. If integrating this switch assembly into a 24V DC heavy machinery setup or 120V AC control enclosure, verify whether an external drop resistor or intermediate control transformer is required to prevent immediate LED burnout.
Step-by-Step Wiring Guide for 4-Wire Illuminated Switches
When wiring this switch into an automotive circuit, marine dashboard, or custom equipment enclosure, always use an external 4-pin or 5-pin Bosch-style relay if the driven accessory draws more than 3 Amps. The contact micro-springs inside compact push button switches are not engineered to handle high current draw from light bars, electric fuel pumps, or air compressors.
Follow this exact wiring sequence to ensure reliable operation, full short-circuit protection, and correct LED illumination mode:
- Step 1: Isolate Circuit Power: Disconnect the negative battery terminal or drop the main DC breaker before stripping wires or inserting leads into any terminal block. Verify zero potential across circuit feeds using a digital multimeter set to DC voltage.
- Step 2: Terminate Common Ground Wire (Black): Strip 1/4-inch of insulation from the black wire. Crimp a quality ring terminal or ferrule onto the wire end and secure it directly to the vehicle chassis earth or the primary ground wire bus bar. This completes the return path for the switch LED light ring.
- Step 3: Connect Constant or Switched Power Source (Red):
- For Always-ON LED Ring: Connect the red hot wire to an inline-fused (2A to 5A fuse) constant 12V+ power feed.
- For Ignition-Key Switched Illumination: T-tap the red hot wire into an ignition-controlled switched positive circuit (ACC position).
- For Switched-With-Load Illumination: Splice the red wire directly into the output side (Green Wire 2) so the LED only illuminates when the button is active.
- Step 4: Wire the Primary Input Switch Contact (Green Wire 1): Route a fused positive main supply wire (18 AWG or 16 AWG) to Green Wire 1 using an insulated butt connector or terminal block pin assignment. This line provides the raw potential passed across the internal dry contact when the button is actuated.
- Step 5: Connect Switched Line Output (Green Wire 2): Run Green Wire 2 directly to Pin 86 on a standard automotive relay (Relay Coil Trigger input). Alternatively, for low-draw loads under 3 Amps (such as small LED dash indicators), run Green Wire 2 directly to the positive power lead of your load.
- Step 6: Finish Relay Power Wiring (Pin 30, 85, 87): Connect Relay Pin 85 to Ground Wire common. Route primary fused power from your battery distribution panel (sized via wire gauge tables for total load current) to Relay Pin 30. Connect Relay Pin 87 directly to the positive terminal of your high-amp accessory.
Do not connect Green Wire 2 directly to a ground wire or neutral wire. Connecting one green wire to +12V power and the second green wire to ground creates a direct short-circuit across the switch contacts when pressed, instantly welding the contact points together and melting the internal harness switch body.
Terminal Block Integration, Wire Gauge, and Voltage Parameters
When routing multiple 4-wire push button switches within a centralized power distribution cabinet or relay panel, passing leads through a dedicated DIN rail terminal block improves serviceability and circuit diagnosis. Proper wire gauge selection guarantees minimal voltage drop across signal lines and prevents insulation thermal degradation.
| Parameter / Dimension | Recommended Specification | Engineering Standard / Notes |
|---|---|---|
| Switch Wire Harness Gauge | 18 AWG to 20 AWG Stranded Copper | UL1007 or SAE J1128 GPT/TXL wire rating |
| Main Relay Load Feed Gauge | 14 AWG to 12 AWG Stranded Copper | Sized based on load amperage (up to 20A continuous) |
| Terminal Block Torque Spec | 4.5 to 6.2 in-lbs (0.5 to 0.7 Nm) | Prevents wire cold flow and strand shearing |
| Maximum Switch Voltage Rating | 12V DC – 24V DC / 125V AC (Model Specific) | Check laser-etched housing specs before AC application |
| Max Contact Current Limit | 3.0 Amps @ 12V DC Continuous | Requires interposing relay for higher current loads |
For custom panel assemblies, route the red and green wires through terminal blocks assigned to switched hot distribution, while combining all black switch leads onto a common grounded terminal block bus bar. Refer to standard high-amperage automotive relay schematics and fuse block sizing tables when sizing input circuits.
In 120V AC industrial control installations, the black wire functions as the circuit neutral wire reference for AC LED indicators, while the red wire attaches to the 120V Line feed. Always verify that your switch model contains an AC-compatible internal rectifier diode and drop resistor before connecting directly to grid power.
Troubleshooting Push Button Switch Wiring Diagram 2 Green One Red One Black Wires Faults
System faults on 4-wire illuminated switches typically stem from polarity mismatch on the LED ring, bridging green contact wires to ground, or over-current contact degradation. Use the following diagnostic procedures to resolve common installation issues quickly.
Fault Symptom 1: Push Button Actuates Load, But LED Indicator Rings Fail to Light
Root Cause: Reversed LED polarity or missing ground wire return connection.
Diagnostic Step: Set your digital multimeter to DC voltage. Measure potential across the red wire and black wire when the switch circuit is energized. If reading shows +12V DC yet the light fails to illuminate, check the black ground wire terminal connection point for paint isolation or rust. If voltage reads negative (-12V DC), reverse the polarity feed—the red wire must connect to positive potential and the black wire to negative ground.
Fault Symptom 2: Inline Fuse Blows Immediately When Push Button Is Pressed
Root Cause: Green output wire improperly wired directly to negative ground wire instead of load/relay coil.
Diagnostic Step: Disconnect Green Wire 2 from its downstream connector. Set multimeter to resistance (Ohms) mode. Touch one probe to Green Wire 2 and the second probe to vehicle chassis ground. If the meter reads near 0 Ohms when the button is open or depressed, the output lead is shorted against bare metal or connected to a dead ground terminal point on your terminal block.
Fault Symptom 3: LED Ring Remains On Continuously Regardless of Button Position
Root Cause: Red wire connected to constant battery battery hot line instead of switched load line or ignition feed.
Diagnostic Step: If independent illumination is desired, this state is normal. However, if dependent illumination (illuminated only when pressed) is required, disconnect the red wire from constant 12V+ and tap it into Green Wire 2 (the switched output line feeding your relay trigger).
Fault Symptom 4: Switch Works Intermittently or Contacts Melt Under Load
Root Cause: High-amperage inductive load connected directly to green dry contact leads without a relay.
Diagnostic Step: Measure total operational current draw of the load using an in-line clamp meter. If current exceeds 3.0A DC, the switch contacts are pitting due to electrical arcing. Replace the switch and install a standard 40A 12V automotive relay using our marine switch panel grounding standards to isolate load currents from the switch assembly.
Push Button Switch Wiring Diagram 2 Green One Red One Black Wires Technical FAQ
Why does this push button switch have two green wires instead of labeled supply and load terminals?
The two green wires represent non-polarized mechanical switch contact leads (Normally Open SPST circuit). Because these contacts function as a dry simple mechanical switch, current can flow in either direction through the green pair. Terminal orientation only matters once you define which green lead connects to fused supply power and which lead routes to your load or relay trigger input.
How do I wire the switch so the LED light ring turns ON only when the button is pushed?
To configure dependent illumination (LED active only when switch output is ON), connect the main 12V hot supply to Green Wire 1. Next, join the Red wire and Green Wire 2 together using a solderless connector or terminal block bridge, routing both leads directly to your relay signal coil (Pin 86). Attach the Black wire to common chassis ground.
What wire gauge should be used when extending the switch leads over long distances?
For signal run distances under 10 feet to an interposing relay coil, standard 18 AWG copper wire is optimal. If extended beyond 10 feet inside commercial vehicles or marine vessels, step up to 16 AWG marine-grade tinned copper wire (UL1426 standard) to minimize line resistance and prevent voltage drop issues across signal wires.
Can this 4-wire switch be used in a 120V AC control panel instead of 12V DC automotive setup?
Only if the switch housing is explicitly rated for 120V AC line voltage. Standard 12V DC automotive push button switches will instantly fail or burn out their internal LED diodes if connected to 120V AC. If rated for AC, the Red wire connects to the AC Line (hot wire), the Black wire connects to the Neutral wire, and the two Green wires manage the AC switched load loop.
How do I test the internal switch continuity using a digital multimeter before installation?
Set your multimeter to the Resistance (Ohms Ω) or Continuity Beeper setting. Touch probe 1 to Green Wire 1 and probe 2 to Green Wire 2. With the push button at rest, the meter should show “OL” (Open Loop / Infinite Resistance). Depress and hold the push button; the meter should beep and display zero resistance (less than 0.5 Ohms), proving the internal switch contact set is fully functional.
