240V Single Phase Wiring Diagram 2026: Troubleshooting

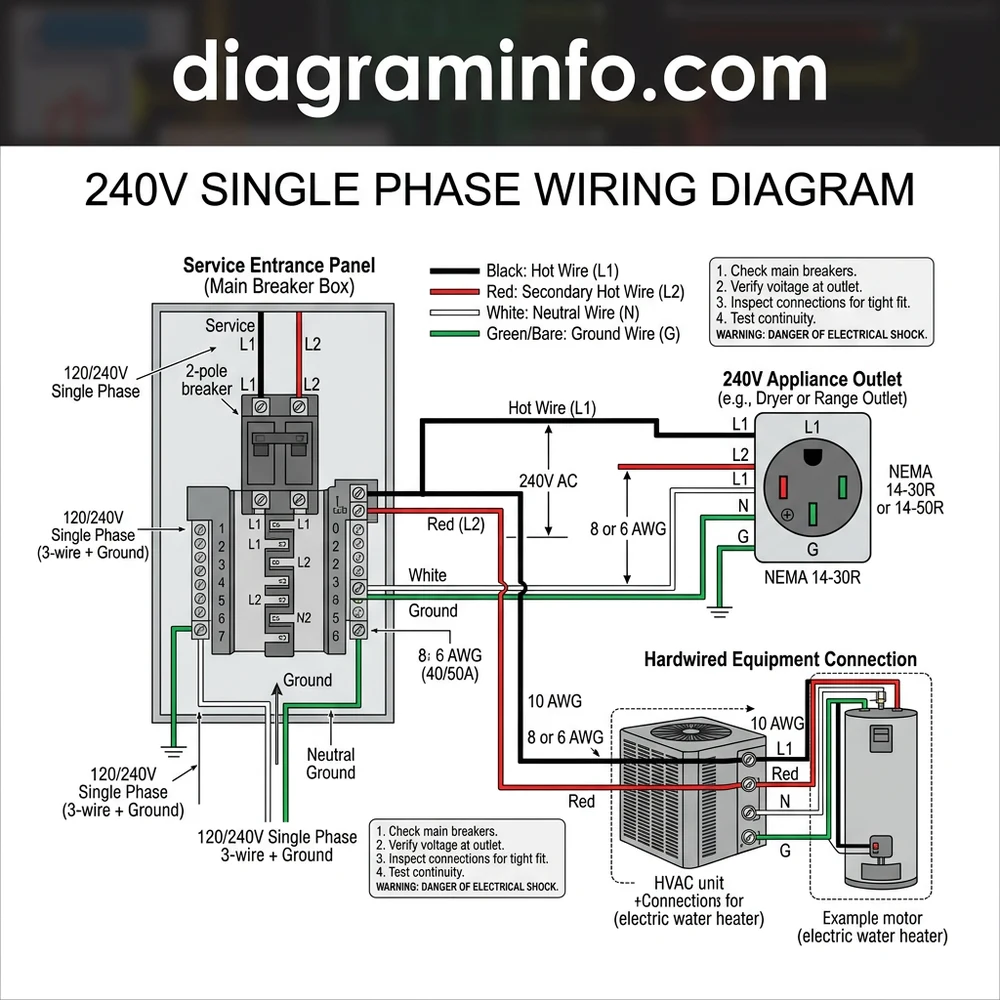

The 240v single phase wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the 240v single phase wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Navigating the complexities of a 240V single-phase electrical system is a critical skill for any technician working with automotive and industrial equipment. This article provides a comprehensive 240v single phase wiring diagram and detailed instructions for safely connecting a typical 240V single-phase motor, often found in compressors, lathes, or hydraulic power units. Understanding the precise wire color code, terminal identification, and correct wiring sequence is paramount for operational reliability and, more importantly, safety. This guide ensures you have the authoritative information required to execute these connections flawlessly, adhering to established electrical standards.
WIRE COLOR REFERENCE TABLE
This table outlines the standard North American wire color codes for 240V single-phase circuits commonly encountered in equipment installations. Adherence to these color conventions is essential for safety and consistent troubleshooting. Always verify local electrical codes and equipment-specific documentation, as variations can occur.
| Wire Color | Function | Typical Pin/Terminal | Notes |
|---|---|---|---|
| Black | Hot (L1) | Breaker Terminal, Motor Terminal T1 | Primary ungrounded conductor. Always energized when circuit is active. |
| Red | Hot (L2) | Breaker Terminal, Motor Terminal T2 | Secondary ungrounded conductor, 180 degrees out of phase with L1. |
| Green or Bare Copper | Equipment Grounding Conductor (EGC) | Ground Bus, Motor Frame Ground Lug | Safety ground, provides fault path. Never carries current during normal operation. |
| White | Neutral | Neutral Bus (if present) | Typically not required for pure 240V single-phase motor circuits. Carries return current for 120V loads. |
STEP-BY-STEP CONNECTION GUIDE
Successfully implementing a 240v single phase wiring diagram requires meticulous attention to detail and a strict adherence to safety protocols. This guide outlines the proper sequence for connecting a typical 240V single-phase motor to its power source, referencing the provided diagram.
Before commencing any electrical work, always de-energize the main circuit breaker supplying power to the equipment. Use a certified non-contact voltage tester and a multimeter to verify zero voltage at all connection points. Failure to do so can result in severe injury or fatality.
1. Preparation and De-energization: Locate the appropriate 240V double-pole circuit breaker in the service panel. Switch the breaker to the “OFF” position. Apply a lockout/tagout device if working in a commercial or industrial environment to prevent accidental re-energization. Confirm the circuit is dead at the intended connection point using a multimeter, checking voltage between L1 and L2, L1 and ground, and L2 and ground.
2. Mounting and Conduit Installation: Securely mount the equipment (e.g., motor, control panel) in its final operational position. Install appropriate electrical conduit or cable protection from the service panel to the equipment’s junction box, following local electrical codes and manufacturer specifications for routing and support. Ensure all conduit runs are properly grounded.
3. Wire Pulling and Sizing: Pull the appropriately sized conductors through the conduit. For a typical 240V single-phase motor up to 5HP, 10 AWG copper wire is often sufficient, but always consult the motor’s nameplate data for full load amperes (FLA) and refer to the National Electrical Code (NEC) tables (e.g., Table 310.16) or local equivalents to select the correct wire gauge. The wire gauge must be rated for the circuit’s overcurrent protection device. [Link to our guide on selecting appropriate wire gauge]
4. Connecting at the Service Panel (Breaker Box):
Hot (L1) Connection: Connect the Black wire to one of the terminals on the 240V double-pole circuit breaker. Ensure the connection is tight, adhering to the breaker’s specified torque rating (typically found on the breaker or in its documentation).
Hot (L2) Connection: Connect the Red wire to the second terminal on the same 240V double-pole circuit breaker. Torque this connection to spec.
Ground Connection: Connect the Green or Bare Copper wire to the main ground bus bar within the service panel. This bus bar is typically bonded to the panel enclosure and the incoming service ground.
5. Connecting at the Equipment (Motor Terminal Block):
Hot (L1) Connection: Within the motor’s terminal box, identify the terminal designated for L1 (often marked T1 or L1). Connect the Black wire to this terminal. Ensure the terminal screw is tightened to the manufacturer’s recommended torque specifications.
Hot (L2) Connection: Identify the terminal designated for L2 (often marked T2 or L2). Connect the Red wire to this terminal. Again, adhere to the specified torque.
Ground Connection: Connect the Green or Bare Copper wire directly to the motor’s frame ground lug. This is typically a dedicated screw terminal or stud on the motor housing, often marked with a ground symbol (⏚). This ensures the motor chassis is safely grounded.
6. Verify Rotational Direction (Motor Specific): For motors, after initial connection and before final enclosure, momentarily energize the circuit to check for correct motor rotation. If the rotation is incorrect, de-energize the circuit and swap the L1 (Black) and L2 (Red) connections at the motor terminal block. Do not swap the ground wire. Re-verify zero voltage before making any changes.
7. Secure and Re-energize: Once all connections are confirmed tight and correct per the 240v single phase wiring diagram, ensure all junction box covers and panel covers are securely fastened. Remove lockout/tagout devices. Re-energize the circuit breaker. Conduct a functional test of the equipment.
For critical equipment, manufacturer specs indicate that all terminal connections should be torqued to precise values, often between 20-30 in-lbs for #10 AWG wire. Consult the equipment manual for exact torque specifications to prevent loose connections and potential arc faults.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrectly interpreting a 240v single phase wiring diagram or making procedural errors can lead to equipment damage, operational failure, or hazardous conditions. Understanding common mistakes and their remedies is crucial for robust electrical installations.
1. Incorrect Wire Gauge Selection:
Mistake: Using a wire gauge that is too small (e.g., 12 AWG for a circuit requiring 10 AWG). This often occurs when technicians underestimate the motor’s FLA or future load requirements.
Consequence: Undersized wires lead to excessive voltage drop, causing the motor to run hotter and inefficiently. It also poses a significant fire hazard due to overheating, especially under continuous load or motor start-up.
Fix: Always calculate the required wire gauge based on the motor’s Full Load Amperage (FLA) plus a safety factor (typically 125% for motors, per NEC 430.22) and the circuit length to account for voltage drop. Replace undersized wires with the correct gauge. [Link to our detailed guide on voltage drop calculations]
2. Missing or Improperly Connected Equipment Grounding Conductor (EGC):
Mistake: Failing to connect the green or bare copper ground wire to the motor frame, or connecting it loosely to a painted surface without proper continuity.
Consequence: In the event of an internal electrical fault (e.g., a hot wire shorting to the motor casing), the equipment frame can become energized at 240V, creating a severe electrocution risk. The circuit breaker may not trip without a low-impedance path to ground.
Fix: Always ensure the ground wire is securely connected to a dedicated ground lug on the motor frame, providing a solid metallic path back to the service panel’s ground bus. Scrape away any paint or corrosion at the connection point to ensure excellent electrical contact.
3. Loose Terminal Connections:
Mistake: Not tightening terminal screws to the manufacturer’s specified torque, or using incorrect tools that don’t provide adequate leverage.
Consequence: Loose connections create high resistance, leading to localized heating, arcing, and potential fire hazards. They can also cause intermittent power, voltage fluctuations, and premature equipment failure due to degraded electrical contact.
Fix: Utilize a torque screwdriver or wrench to ensure all terminal screws are tightened to the precise inch-pound (in-lb) or Newton-meter (Nm) values specified by the equipment manufacturer. Regularly inspect critical connections during maintenance cycles.
4. Incorrect Motor Rotation:
Mistake: The motor spins in the opposite direction than required for the equipment (e.g., a compressor running backward). This is not a wiring mistake that causes hazard, but operational inefficiency.
Consequence: Equipment malfunction, damage to connected components (e.g., pump, fan blade), or inefficient operation.
Fix: For most single-phase motors, reversing the rotation involves swapping the L1 and L2 (Black and Red) connections at the motor’s internal terminal block. Some motors have specific internal wiring diagrams for rotation change, or a dedicated reversible switch; always consult the motor’s specific wiring diagram.
5. Failure to De-energize and Verify:
Mistake: Attempting to make connections without confirming the circuit is dead, relying solely on flipping a breaker without testing.
Consequence: Immediate and severe risk of electrical shock, arc flash, or equipment damage. This is the most dangerous and common procedural error.
Fix: Always follow the “Test Before Touch” principle. After switching off the breaker, use a two-point contact voltage tester or multimeter to verify zero voltage between all hot conductors and ground, and between hot conductors, at the point of work. [Link to our safety protocols for electrical work]
FAQ
What is the primary difference between a 240V single-phase wiring diagram for a motor and one for an appliance like a dryer?
The primary difference lies in the presence of a neutral wire. A 240V single-phase motor circuit typically only requires two hot wires (L1 and L2) and an equipment grounding conductor (EGC) for its operation, as it solely utilizes the 240V potential. Appliances like electric dryers or ranges, however, often require a neutral wire in addition to the two hot wires and ground. This neutral provides a 120V potential for internal control circuitry, lights, or other lower-voltage components within the appliance itself. Therefore, a dryer circuit will typically have a four-wire connection (L1, L2, Neutral, Ground), whereas a dedicated 240V motor circuit will usually have a three-wire connection (L1, L2, Ground).
Why is it crucial to torque electrical connections to specification, especially in equipment wiring?
Torquing electrical connections to specification is critical for maintaining a low-resistance, high-integrity connection. An undertightened connection can lead to increased resistance, which generates heat, potentially causing insulation breakdown, arcing, and fire hazards. Over-tightening can strip threads, deform conductors, or damage the terminal block, also leading to poor contact and failure. Manufacturer-specified torque values are engineered to achieve optimal contact pressure, ensuring safe and reliable current flow over the equipment’s lifespan. This precision prevents common points of failure often seen in demanding automotive and industrial environments.
Can I use solid core wire for a 240V single-phase equipment connection?
While solid core wire is permissible for fixed installations within walls or rigid conduit, stranded wire is generally preferred and often required for equipment connections, especially where vibration is a factor or the wire needs to flex (e.g., connections to motors, machinery). Stranded wire is more flexible, more resistant to metal fatigue from movement or vibration, and typically easier to route within tight equipment enclosures. For the technical automotive/equipment audience, most applications benefit from the durability and flexibility of stranded conductors, particularly when connecting to a terminal block that may experience mechanical stress or vibration during operation.
What does “single-phase” actually mean for 240V equipment operation?
In the context of 240V single-phase power in North America, it refers to split-phase power derived from a single-phase transformer with a center-tapped neutral. This provides two “hot” lines, each 120V to neutral, but 240V between them because they are 180 degrees out of phase. For a single-phase motor or heating element, the equipment simply draws power across these two hot lines to achieve the 240V potential. Unlike three-phase systems which provide smoother power delivery and are common for larger industrial motors, single-phase power is cost-effective and suitable for smaller to medium-sized motors and many heating applications in workshop or light industrial settings. Motors designed for 240V single-phase require specific starting mechanisms, such as capacitors, to
Are there any year-specific considerations for 240V single-phase wiring diagrams?
While the fundamental principles of 240V single-phase wiring (two hots, one ground) remain constant, year-specific considerations primarily relate to evolving electrical codes (like the NEC), equipment design changes, and regional variations. Older equipment (e.g., pre-1996) might have different terminal markings or internal wiring configurations, especially concerning ground bonding. Newer equipment often features more standardized terminal blocks and clearer labeling. Local electrical codes are updated on cycles (e.g., every three years for the NEC), which can introduce new requirements for conduit, overcurrent protection, wire sizing, or GFCI/AFCI protection. Always consult the specific equipment’s wiring diagram and the current local electrical code relevant to the installation year and location.
Step-by-Step Guide to Understanding the 240V Single Phase Wiring Diagram 2026: Troubleshooting
Identify the main components in the diagram
Locate connection points and relationships
Understand the flow or sequence shown
Apply the knowledge to your specific situation
Verify your understanding matches the diagram
