Parts of a Lamp Diagram: Complete Component Breakdown
A parts of a lamp diagram illustrates the essential structure and electrical system of a lighting fixture. It highlights key components like the base, harp, socket, and cord. Understanding this layout is vital for troubleshooting flickering bulbs, replacing worn sockets, or reconfiguring the internal wiring safely and effectively.
📌 Key Takeaways
- The diagram identifies the relationship between structural and electrical lamp parts.
- The socket is the most critical component to identify for electrical safety.
- Always unplug the lamp before inspecting its internal configuration or wiring.
- Use this layout to find compatible replacement parts during DIY repair projects.
- Consult this diagram when assembling a new lamp kit or rewiring an antique.
Understanding the internal structure of your lighting fixtures is essential for both home safety and successful DIY repairs. Whether you are refurbishing an antique family heirloom or assembling a modern floor light, a clear parts of a lamp diagram serves as your primary blueprint for success. This comprehensive overview identifies every critical component, from the decorative finial at the top to the electrical plug at the base, ensuring you understand the configuration of the entire system. By mastering the layout of these elements, you will gain the confidence to troubleshoot flickering lights, replace worn-out cords, and ensure your home’s illumination is both functional and secure. In this article, you will learn how to identify each element, interpret a technical schematic, and apply this knowledge to maintain your household lighting.
Most table and floor lamps follow a standardized mechanical structure regardless of their exterior design. Understanding the relationship between the threaded pipe (the “spine”) and the electrical socket (the “brain”) is the secret to successful lamp repair.
Decoding the Lamp Schematic: Main Component Description

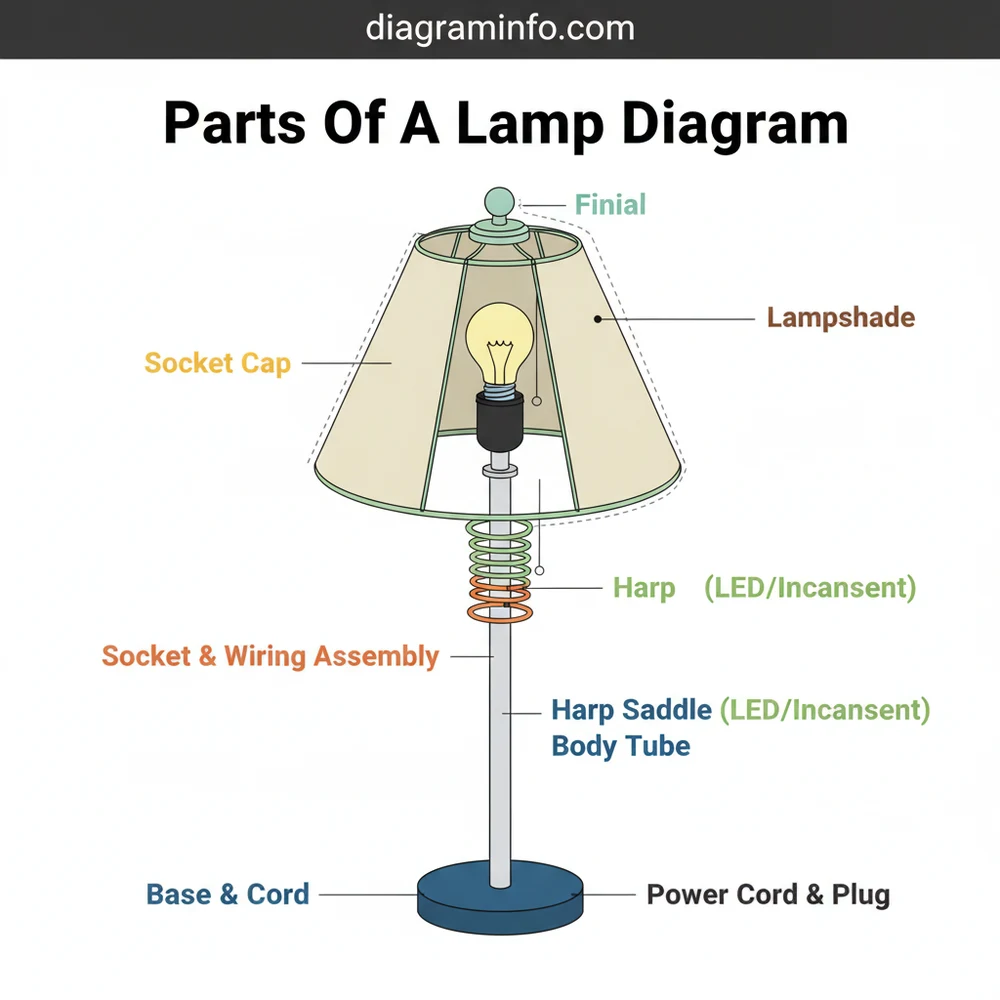

When looking at a general parts of a lamp diagram, the layout is usually presented as an “exploded view.” This means the components are shown slightly separated from one another to reveal how they stack and interlock. The system is divided into three primary categories: the decorative exterior, the structural frame, and the electrical circuit. Each component plays a vital role in either supporting the weight of the fixture or safely conducting electricity to the bulb.
The core of the lamp’s structure is the threaded pipe, often called a “nipple.” This hollow metal tube runs vertically through the center of the lamp body. It acts as the conduit for the electrical wire and the anchor point for all other pieces. At the top of this pipe sits the socket assembly, which consists of the socket shell, a cardboard insulator sleeve, and the socket interior where the bulb is screwed in. Surrounding the socket is the harp, a U-shaped metal wire that supports the lamp shade. The harp is held in place by a small sliding component called the harp saddle, located just beneath the socket.
Moving toward the bottom of the schematic, the layout reveals the lamp body—which can be ceramic, wood, or metal—resting on a weighted base. The base provides stability, ensuring the configuration does not tip over. The electrical cord enters through a hole in the side or bottom of the base, travels up through the threaded pipe, and connects to the terminal screws inside the socket interior. This streamlined configuration ensures that no live wires are exposed to the user, providing a safe and reliable light source.
[DIAGRAM_PLACEHOLDER: EXPLODED VIEW OF A STANDARD TABLE LAMP]
Labels: 1. Finial, 2. Shade, 3. Harp, 4. Socket Shell, 5. Insulator Sleeve, 6. Socket Interior, 7. Harp Saddle, 8. Neck, 9. Lamp Body, 10. Threaded Pipe, 11. Base, 12. Power Cord, 13. Plug.
Step-by-Step Guide to Interpreting and Assembling a Lamp
Interpreting a lamp blueprint is the first step toward successful assembly or restoration. While it may look like a collection of random washers and nuts, the assembly follows a logical, bottom-up progression. Follow these steps to understand the layout and successfully configure your lighting system.
- ✓ Step 1: Inventory the Components – Lay out all parts according to the diagram. You should see a base, a body, a threaded pipe, a socket assembly (shell, insulator, and interior), a harp, a shade, and a finial. Ensure you have a UL-listed cord and plug set.
- ✓ Step 2: Prepare the Threaded Pipe – Thread the hollow pipe into the lamp base. Secure it with a nut and washer if necessary. This pipe is the backbone of the entire structure; if it is loose, the lamp will be unstable.
- ✓ Step 3: Feed the Electrical Cord – Push the raw end of the electrical cord through the bottom of the base and up through the center of the threaded pipe. Leave about six inches of wire extending out of the top of the pipe to allow for easy wiring.
- ✓ Step 4: Attach the Harp Saddle and Socket Cap – Slide the harp saddle over the threaded pipe, followed by the bottom cap of the socket. Screw the socket cap onto the pipe until it is firm. This creates the platform for the electrical connections.
- ✓ Step 5: Tie the Underwriter’s Knot – This is a critical safety step not always shown in basic blueprints. Tie a simple knot in the two strands of the wire inside the socket cap. This prevents the wire from being pulled out of the terminals if the cord is accidentally yanked.
- ✓ Step 6: Connect the Wires to the Socket – Identify the “neutral” wire (it usually has a ribbed texture on the insulation) and the “hot” wire (smooth insulation). Connect the neutral wire to the silver screw and the hot wire to the brass screw on the socket interior.
- ✓ Step 7: Final Housing Assembly – Place the cardboard insulator sleeve over the socket interior, then snap the outer metal socket shell into the socket cap. You should hear a distinct click when the shell locks into place.
- ✓ Step 8: Finishing Touches – Squeeze the harp into the saddle, place your shade on top of the harp, and screw the finial onto the top of the harp’s threaded stud to secure the shade.
Never work on a lamp while it is plugged into a wall outlet. Even if the switch is “off,” the internal terminals can still carry a lethal electric current. Always verify the plug is completely disconnected before touching any internal component.
Common Issues and Troubleshooting with the Lamp Blueprint
When a lamp fails to turn on, referring to the parts of a lamp diagram can help you isolate the problem area. Most issues occur within the socket assembly or along the power cord. A common problem is a “loose connection” at the terminal screws, which can cause flickering. By consulting the schematic, you can identify how to safely remove the socket shell to inspect the brass and silver screws.
Another frequent issue is a worn-out socket switch. If the turn-knob or push-button feels “mushy” or fails to click, the internal contact mechanism has likely failed. Because these components are sealed, the blueprint will show you that the entire socket interior must be replaced as a single unit. Additionally, if you notice the lamp feels “wobbly,” the diagram indicates that the locknut at the bottom of the threaded pipe likely needs tightening. This structural fix is often overlooked but is essential for preventing the internal wires from being pinched by a shifting lamp body. If you see sparks or smell burning plastic, stop immediately; this indicates a short circuit, and the entire wiring system should be replaced or inspected by a professional.
Pro Tips and Best Practices for Lamp Maintenance
Maintaining a lamp is about more than just changing bulbs; it involves preserving the integrity of the entire system. To extend the life of your fixture, always use the correct wattage bulb. Every lamp has a maximum wattage rating printed on the socket. Exceeding this limit creates excessive heat, which can brittle the cardboard insulator and melt the wire insulation over time.
Upgrade to LED bulbs. They produce significantly less heat than traditional incandescent bulbs, which protects the internal plastic and cardboard components of your lamp from heat-related degradation, effectively doubling the lifespan of the socket assembly.
When cleaning your lamp, avoid spraying liquids directly onto the socket or the neck area. Moisture can seep into the threaded pipe and cause corrosion or electrical shorts. Instead, use a dry microfiber cloth to dust the exterior and a slightly damp cloth for the base. For those looking to save money, refurbishing a vintage lamp with a modern “lamp kit” is a cost-effective alternative to buying new. These kits include all the parts shown in a standard parts of a lamp diagram, ensuring that you have a matching set of components designed to work together safely. Always look for UL (Underwriters Laboratories) labels on replacement parts, as this ensures the components have been tested for rigorous safety standards. By following these best practices and keeping a copy of the schematic handy, you can ensure your lighting remains a bright and safe feature of your home for years to come.
Frequently Asked Questions
Where is the lamp socket located?
The lamp socket is located at the top of the lamp neck, typically positioned inside the lamp harp which supports the shade. It serves as the central hub where the light bulb is inserted and the electrical wiring is connected through internal screw terminals for power delivery.
What does a parts of a lamp diagram show?
A parts of a lamp diagram provides a visual breakdown of the structural and electrical configuration of a lighting fixture. It helps users identify various components like the finial, switch, and plug, making it easier to troubleshoot connectivity issues or replace specific parts during a repair project.
How many wires does a standard lamp have?
Most standard household lamps feature a two-wire system consisting of a hot wire and a neutral wire. The neutral wire usually has a ribbed texture on its insulation for identification. These wires must be correctly mapped to the silver and brass terminals on the socket for safety.
What are the symptoms of a bad lamp component?
Common symptoms of a faulty lamp component include flickering lights, a buzzing sound, or a scorched smell near the socket. If the switch feels loose or the bulb fails to light despite being new, it indicates a failure in the electrical system or a loose internal wiring connection.
Can I replace the lamp parts myself?
Replacing lamp components is a common DIY task that most people can perform with basic care. By following a diagram, you can safely swap out a socket or power cord. Just ensure the lamp is unplugged and that you match the wire polarity to the correct screw terminals.
What tools do I need for lamp repair?
To work on your lamp, you will need a flathead or Phillips screwdriver to access the socket terminals. Wire strippers are necessary for prepping new cord ends, and needle-nose pliers are helpful for bending wire into loops. Electrical tape may also be useful for securing specific structural joints.
