A Mitsubishi mini split parts diagram maps the indoor air handler (evaporator coil, blower motor, control board) and outdoor condenser (inverter compressor, EEV, fan motor). Communication wires connect terminal blocks S1, S2 (208/230V AC) and S3 (24V DC signal). Line sets route refrigerant between flare connections, detailing system layout and mechanical configuration.
📌 Key Takeaways
- S1 and S2 terminals supply 208/230V AC power, while S3 transmits a 24V DC communication signal between control boards.
- The electronic expansion valve (EEV) regulates micro-metered refrigerant flow to maintain precise system superheat.
- Line set flare nut connections require strict torque specs (11 to 48 ft-lbs) to prevent R410A or R32 leaks.
- Thermistor drift and blown control board micro-fuses account for over 60% of unexpected system fault codes.
- Basic filter and casing repairs are suitable for DIYers, but high-voltage PCB and line set work requires HVAC certification.
Navigating a mitsubishi mini split parts diagram requires an understanding of inverter-driven HVAC architecture, split-system refrigerant flow, and high-voltage DC communication links. Whether servicing an Mr. Slim M-Series residential unit or a CITY MULTI commercial configuration, referencing an accurate exploded diagram and electrical schematic is essential for precise component identification and diagnostic isolation. Manufacturer specifications for Mitsubishi Electric systems integrate split indoor and outdoor assemblies linked by line sets, control wiring, and DC inverter drive circuits. This technical guide outlines the system structure, blueprint conventions, and step-by-step diagnostic workflows required for advanced equipment servicing.

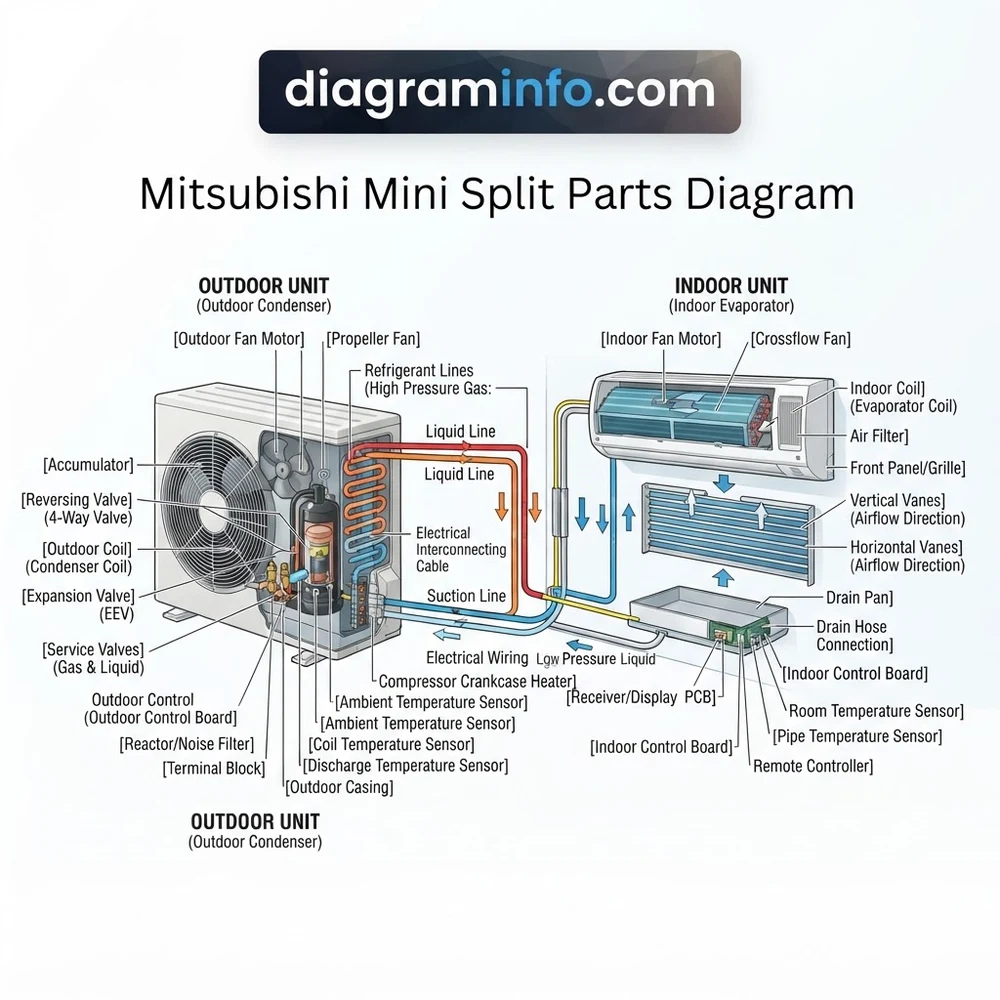

Mitsubishi Mini Split Parts Diagram: Core System Components
A standard Mitsubishi heat pump or air conditioner configuration divides its operational layout between the indoor air handler (such as the MSZ-GL or MSZ-FS series) and the outdoor condensing unit (such as the MXZ or PUZ series). The mitsubishi mini split parts diagram maps both mechanical refrigeration pathways and solid-state electrical connections. Understanding how these sub-assemblies interact is crucial prior to teardown or circuit board replacement.
Mitsubishi M-Series equipment utilizes a unified 3-wire inter-unit communication protocol (S1, S2, S3). S1 and S2 deliver 208/230V AC power to the indoor unit, while S2 and S3 handle a dynamic 24V DC pulsed communication signal. Never combine S3 with external transformer power.
The outdoor schematic breakdown highlights the variable-capacity DC twin-rotary compressor, the Intelligent Power Module (IPM), electronic expansion valves (EEV), and outdoor fan motor drivers. The indoor breakdown focuses on the cross-flow tangential blower assembly, stepper-motor-driven louver vanes, multi-pass evaporator coil, and main control board PCB.
| Component Name | Diagram Identification | Technical Specification / Location | Primary Function |
|---|---|---|---|
| Inverter Compressor | MC / COMP | Outdoor Unit Base; 3-Phase DC Brushless | Modulates refrigerant flow via variable frequency drive (VFD). |
| Outdoor Power PCB | P.B. / IPM Assembly | Outdoor Electrical Box; Heat-Sink Mounted | Rectifies AC line voltage to DC; generates 3-phase synthesized AC for motor drive. |
| Electronic Expansion Valve | LEV-A / LEV-B | Outdoor Liquid Line Manifold; Stepper Driven | Precise metering of R-410A / R-32 refrigerant based on superheat calculations. |
| Indoor Control PCB | I.C. Board / Indoor Board | Indoor Control Box; Right Side Assembly | Processes room temperature thermistors, infrared signals, and commands fan speed. |
| Tangential Fan Motor | MF / Fan Motor (IN) | Indoor Chassis Left/Center; Multi-Speed DC | Drives cross-flow blower wheel for low-noise air distribution across coil. |
How to Read the Mitsubishi Mini Split Blueprint and System Layout
Interpreting a technical mitsubishi mini split parts diagram requires cross-referencing two distinct visual formats: the exploded mechanical assembly layout and the line-wire schematic symbol chart. OEM manuals from Mitsubishi Electric use standard IEC and JIS symbol notations to represent solid-state switching, thermistor circuits, and transformer windings.
1. Trace Power Input and Terminal Strip Wiring
Begin at the main power supply connection on the outdoor unit wiring diagram. Locate terminals L1 and L2 (or N) on the main block. Verify line voltage pathways routed through the primary noise filter PCB and surge absorber elements. Follow the inter-unit connection wire runs from terminals S1, S2, and S3 down to the indoor unit terminal block. Check line-voltage values between S1-S2 (208/230V AC) and dynamic signal voltages between S2-S3 (pulsing 12-24V DC).
2. Map Refrigerant Piping and Solenoid Circuitry
Cross-reference the mechanical schematic to follow high-pressure discharge vapor leaving the compressor scroll/rotary chamber. Trace line-runs through the 4-way reversing valve (21S4) on heat pump configurations. Locate liquid line sub-cooling circuits, strainer networks, and electronic expansion valve coils (LEV). Ensure directional flow matches arrows indicated on the blueprint schematic during valve replacement routines.
3. Locate Thermistor Control Loops
Identify temperature sensing probes marked as TH1 through TH8 across both indoor and outdoor diagrams. The indoor layout features the room temperature thermistor (TH1) and indoor coil liquid/gas thermistors (TH2/TH5). The outdoor circuit incorporates discharge pipe thermistors (TH3), outdoor ambient sensors (TH7), and heat exchanger temperature sensors (TH6). These thermistors feed analog resistance data back to the primary microcomputer to adjust compressor inverter output frequency.
Proper mechanical assembly requires adhering to OEM flare torque ratings during line set attachment: 1/4″ liquid line flares must be torqued to 10–13 ft-lbs (14–18 N·m); 3/8″ lines to 25–30 ft-lbs (34–42 N·m); 1/2″ lines to 36–42 ft-lbs (49–57 N·m); and 5/8″ suction lines to 50–55 ft-lbs (68–75 N·m).
Diagnosing Common Mitsubishi Mini Split System Layout Faults
When executing field repairs, technicians must align observed error codes with specific pathways on the mitsubishi mini split parts diagram. System failures typically fall into communication drops, inverter drive module short circuits, or thermistor resistance drift.
High-voltage DC capacitors on the main outdoor inverter PCB retain hazardous electrical charges (up to 380V DC) long after AC disconnect power is switched off. Wait a minimum of 10 minutes and measure across main electrolytic capacitor terminals with a DC voltmeter to verify 0V before touching components.
If encountering a communication fault (Error Code E6, E9, or 6840 series), use the mitsubishi mini split parts diagram to isolate the S2/S3 circuit. Disconnect the S3 wire at the outdoor terminal block while maintaining unit power. Measure DC voltage across S2 and S3 on the outdoor board: a functional board produces a fluctuating signal swinging between +15V DC and +24V DC. If the voltage remains flat at 0V DC or static 24V DC, the outdoor control board switching circuit has failed.
For compressor motor diagnostics (Error Codes 4200, 4210, or P8), isolate the U, V, and W phase leads running from the Intelligent Power Module (IPM) to the compressor terminal block. Disconnect the harness and perform phase-to-phase resistance measurements using a calibrated digital multimeter set to low ohms. According to OEM specifications, phase resistance between U-V, V-W, and W-U should be balanced perfectly within 0.5 to 2.0 ohms at 68°F (20°C). Any reading showing continuity to copper ground indicates an insulation breakdown within the stator windings.
For additional details regarding variable refrigerant flow electrical setups, review our companion Inverter Compressor Wiring Guide. To review standard mechanical assembly practices across split system designs, consult our HVAC Refrigeration Cycle Overview and our detailed Heat Pump Reversing Valve Testing Guide.
Mitsubishi Mini Split Blueprint and Assembly FAQs
Where can you locate the official mitsubishi mini split parts diagram on an installed unit?
The electrical wiring schematic is permanently printed on the inside access panel cover of the outdoor condenser electrical box and beneath the front cabinet cover of the indoor wall unit. Complete mechanical exploded view diagrams are available in the OEM service manual under the designated model series number (e.g., MSZ-GL12NA-U1).
How do you read the terminal block (S1, S2, S3) configuration on a Mitsubishi schematic?
Terminals S1 and S2 supply 208/230V AC single-phase line voltage from the outdoor unit to power the indoor blower and control board. S2 acts as the neutral/common reference point for the communication loop, while S3 transmits serial DC data. Ensure S1-S1, S2-S2, and S3-S3 matching configurations are maintained end-to-end without wire crossover.
What thermistor resistance values should be expected on Mitsubishi units during testing?
Standard indoor pipe and room thermistors exhibit a baseline resistance of approximately 10 kΩ at 77°F (25°C). Outdoor discharge pipe thermistors (TH3) use a higher base resistance curve, measuring approximately 50 kΩ at 77°F (25°C). Always test resistance with the sensor uncoupled from the circuit board connector to prevent parallel feedback loops.
Why does the indoor layout show multiple stepping motors on the louver assembly?
Premium Mitsubishi indoor units (such as the 3D i-See Sensor models) employ dual independent vertical vanes and horizontal guide vanes. Each direction vector relies on dedicated 12V DC micro-stepping motors tied to specific multi-pin pinout headers on the indoor board PCB, detailed on the exploded cabinet section of the diagram.
Step-by-Step Guide to Understanding the Mitsubishi Mini Split Parts Diagram
Identify – Locate the specific Mitsubishi model number on the cabinet rating plate to match the accurate parts diagram layout.
Locate – Find the main electrical enclosure panel and service valve ports on the outdoor unit frame structure.
Reference – Cross-check high-voltage power terminals S1/S2 and DC communication line S3 against the wiring diagram legend.
Connect/Route – Route interconnecting line set piping and control wire harnesses along factory-specified pathways.
Verify – Test DC signal voltage across S2 and S3 terminals (14-24V DC fluctuating) using a digital multimeter.
Troubleshoot – Match active LED error codes on the main board to the schematic’s diagnostic flowchart to isolate failing parts.
