Cub Cadet PTO Belt Diagram: Installation & Routing

When your mower deck stops spinning or the blades fail to engage, the most likely culprit is a worn or snapped drive belt. Navigating the internal mechanics of a riding mower can be daunting, but having a clear cub cadet pto belt diagram is the essential first step toward a successful DIY repair. This article serves as a comprehensive resource to help you understand the specific layout of your machine’s Power Take-Off (PTO) system. By mastering the diagram, you will learn how to identify critical components, route the belt correctly, and troubleshoot common performance issues, ensuring your lawn tractor returns to peak operating condition with minimal downtime.

Understanding the PTO Belt System Layout

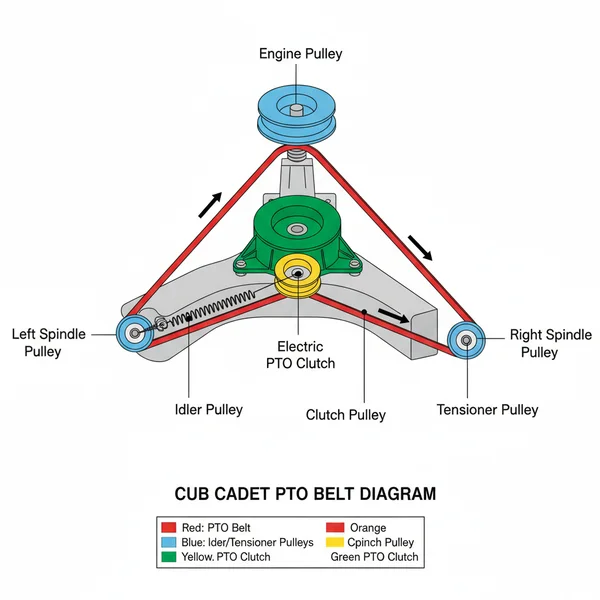

The PTO belt system is the mechanical bridge between your mower’s engine and the cutting blades. A standard cub cadet pto belt diagram illustrates a sophisticated configuration designed to transfer high-torque energy while maintaining appropriate tension. The structure typically begins at the engine crankshaft, where the PTO clutch or drive pulley is located. From this point, the belt follows a specific path through a series of pulleys that determine its direction and tension.

The layout is generally categorized by three primary types of pulleys: the drive pulley, the idler pulleys, and the spindle pulleys. The drive pulley is the source of motion, while the spindle pulleys are attached to the mower blades themselves. In between these, you will find idler pulleys. These are critical components that do not drive the blades directly but instead guide the belt and provide the necessary tension to prevent slipping. Some diagrams will show a “V-side” and a “Flat-side” orientation; it is vital to note that the V-shaped side of the belt always sits in the grooves of the drive and spindle pulleys, while the flat back of the belt typically rides against the flat surfaces of the idler pulleys.

Variations in the layout often depend on the width of the mower deck. For instance, a 42-inch deck may have a simpler triangular configuration, whereas a 50-inch or 54-inch deck often utilizes a more complex “M” or “W” pattern to accommodate three blades. Regardless of the specific model, the diagram serves as a blueprint that ensures the belt does not rub against the mower frame or stationary brackets, which would cause immediate failure.

Step-by-Step Installation and Interpretation Guide

Interpreting a cub cadet pto belt diagram requires a methodical approach. It is not just about where the belt goes, but how it interacts with the tensioning system. Follow these steps to correctly read the diagram and install a new belt.

• ✓ Identify the “Fixed” vs. “Movable” Pulleys: On your diagram, spindle pulleys are fixed to the deck. The idler pulley is usually attached to a spring-loaded arm. This movable arm is what you will need to manipulate to create slack.
• ✓ Check the Belt Orientation: Look closely at the diagram for icons indicating the V-side or Flat-side. If the belt is twisted or flipped, it will burn out within minutes of operation.
• ✓ Note the Belt Keepers: Many Cub Cadet decks have small metal pins or “keepers” near the pulleys. The diagram may not always show these, but the belt must be routed inside these pins to prevent it from jumping off during use.

Installation Steps:

1. Preparation and Access: Lower the mower deck to its lowest position. Depending on your model, you may need to remove the belt covers (usually plastic shields held by 10mm or 12mm bolts) to gain a full view of the system.
2. Release the Tension: Locate the tensioner idler pulley. Use a socket wrench or a dedicated deck tool to pull the idler arm away from the belt. This will release the pressure, allowing you to slide the old belt off.
3. Clear the Debris: Use a leaf blower or compressed air to remove grass clippings and dirt from the pulley grooves. A clean surface is essential for the new belt to grip properly.
4. Route the New Belt: Starting at the engine pulley (PTO clutch), begin threading the belt according to the cub cadet pto belt diagram. Work your way toward the outermost spindle pulleys.
5. The Final Loop: The last part of the belt usually goes over the adjustable tensioner pulley. Pull the tensioner arm again to create the necessary slack to slip the belt into place.
6. Verify Alignment: Double-check that the belt is seated deep within every pulley groove. Ensure it is not pinched under any belt keepers.
7. Test Engagement: Reconnect the spark plug and start the engine in a clear area. Engage the PTO lever or switch briefly to ensure the belt is spinning smoothly without vibrating or smoking.

Tools Needed:

• • Socket set (9/16″, 1/2″, and metric equivalents)
• • Large flat-head screwdriver or pry bar (for tensioner leverage)
• • Work gloves (to protect against sharp pulley edges)
• • A printed copy of your specific model’s diagram

Common Issues & Troubleshooting

Even with a perfect cub cadet pto belt diagram, problems can arise. Understanding why a belt fails helps you diagnose issues beyond just a simple replacement.

One frequent problem is belt slippage. If you engage the PTO and hear a high-pitched squealing, the belt may be stretched beyond its service limit, or the tensioning spring has lost its elasticity. Consult your diagram to ensure the tensioner is moving freely; if the idler arm is rusted or stuck, it won’t apply enough pressure, causing the belt to slip and eventually burn.

Another common issue is frequent belt snapping. This often points to a mechanical obstruction. Check the spindles—the components the blades attach to. If a spindle bearing is seizing, it creates immense friction and heat, which will melt or snap a new belt within minutes. Spin each pulley by hand (with the belt off) to ensure they rotate smoothly without grinding noises.

Lastly, if the belt keeps jumping off the pulleys, check for bent belt keepers or pulley misalignment. Over time, the deck shell can flex or the pulley brackets can bend. If a pulley is not perfectly level with the others, the belt will naturally want to climb out of the groove.

Tips & Best Practices for Long-Term Maintenance

To get the most out of your PTO system, maintenance should be proactive rather than reactive. The cub cadet pto belt diagram is your guide for repairs, but following these best practices will ensure you rarely have to use it.

First, always prioritize Original Equipment Manufacturer (OEM) belts. While aftermarket belts are cheaper, they often lack the specific cord construction (such as Kevlar reinforcement) required to handle the high-speed engagement of a Cub Cadet PTO clutch. OEM belts are designed with exact fractional lengths that aftermarket “universal” belts often miss by a quarter-inch, leading to vibration or premature wear.

Second, keep your mower deck clean. Grass buildup under the belt covers retains moisture and acidity, which can rust pulleys and degrade the rubber compound of the belt. After every few mows, blow out the top of the deck to ensure the belt is operating in a dry, debris-free environment.

Third, inspect your PTO clutch air gap if your model has an electric PTO. If the gap is too wide, the engagement will be “soft,” causing the belt to slip momentarily every time you turn the blades on. This creates heat that hardens the rubber, leading to cracks. Regular inspection of the tension spring is also vital; if the spring looks stretched or has visible gaps between the coils when at rest, it is time for a replacement.

By understanding the configuration and system layout of your mower, you take control of your equipment’s longevity. A properly routed belt, verified by a reliable cub cadet pto belt diagram, ensures a clean cut, a healthy engine, and a much more enjoyable mowing experience. Consistent maintenance and the right parts are the secrets to a professional-looking lawn.
