Understanding the intricacies of a modern marine diesel engine’s fuel system is paramount for reliable operation and efficient performance. This comprehensive guide dissects the typical marine boat fuel system diagram for a common rail diesel engine, specifically focusing on a Cummins QSB 6.7M series. This diagram serves as a critical reference for technicians and experienced vessel owners, illustrating the flow path of fuel from the tank, through filtration and pressurization stages, to the injectors, and back to the tank via the fuel return line. Familiarity with this layout is essential for effective diagnostics and maintenance, ensuring your vessel’s propulsion system remains robust and dependable.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

FUEL SYSTEM COMPONENTS BREAKDOWN

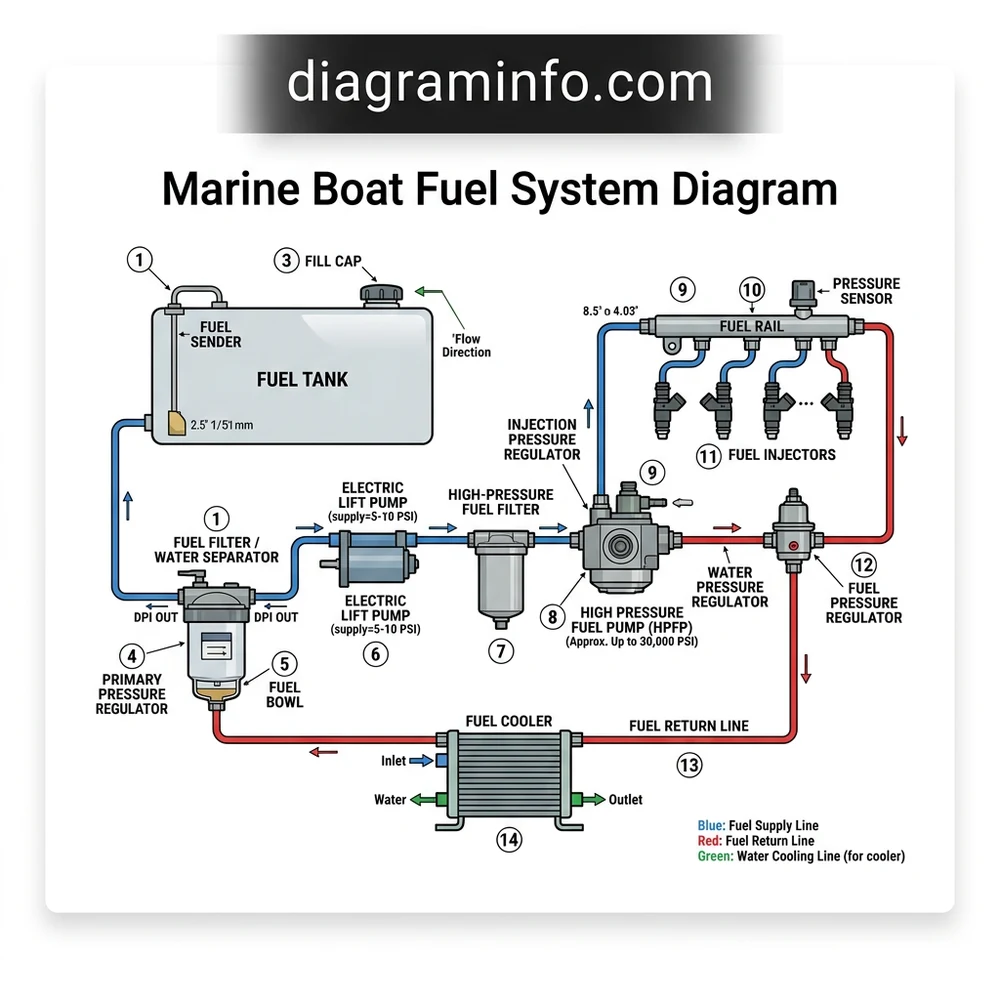

The fuel system in a modern marine diesel, as depicted in the typical marine boat fuel system diagram, is a complex network designed for precise fuel delivery and optimal engine performance. Each component plays a vital role in ensuring clean, adequately pressurized, and temperature-controlled fuel reaches the engine’s injectors.

1. Fuel Tank: Stores diesel fuel. Often features a pickup tube, a separate return port, and a vent line. Tanks can accumulate sediment and water over time, necessitating periodic inspection and cleaning.

2. Primary Fuel Filter / Water Separator: This is the first line of defense against contaminants. It separates water from fuel and filters out larger particulate matter (typically 10-30 micron). Many units include a clear fuel bowl for visual inspection of water accumulation and a drain valve.

3. Pre-Filter Fuel Heater: Positioned before primary filtration, the fuel heater prevents fuel gelling in cold ambient temperatures by warming the fuel, ensuring consistent flow and proper filtration efficiency. It is often thermostatically controlled.

4. Lift Pump (Low-Pressure Pump): This electric or mechanical pump draws fuel from the tank, through the primary filter, and delivers it to the secondary filter and then to the high-pressure pump. It maintains a positive pressure (typically 30-70 psi) in the low-pressure circuit and often incorporates a primer pump function, either manual or electric, for bleeding air after maintenance.

5. Secondary Fuel Filter: Provides finer filtration (typically 2-5 micron) to protect the sensitive components of the high-pressure fuel system from smaller particles that passed the primary filter. This is critical for the longevity of the high pressure fuel pump (HPFP) and injectors.

6. High Pressure Fuel Pump (HPFP): The core of the common rail system, the HPFP takes low-pressure fuel from the lift pump and elevates it to extremely high pressures (up to 29,000 psi or 2000 bar) for the common rail. It’s mechanically driven by the engine and is a precision component critical for injection timing and pressure. The Cummins QSB 6.7M commonly utilizes a Bosch CP3 or CP4 HPFP.

7. Fuel Rail (Common Rail): A high-pressure accumulator that stores fuel delivered by the HPFP. It distributes pressurized fuel evenly to all injectors. The rail incorporates a pressure sensor to monitor actual rail pressure and an injection pressure regulator (also known as a Fuel Pressure Control Valve or Metering Unit) to precisely control fuel pressure within the rail, responding to engine control module (ECM) commands.

8. Fuel Injectors: Electronically controlled solenoids or piezoelectric devices that precisely meter and atomize fuel directly into the combustion chambers. In common rail systems, injectors operate at extremely high pressures and are critical for optimal combustion and emissions control.

9. Fuel Return Line: Unused fuel from the injectors and excess fuel bled off by the common rail’s injection pressure regulator or pressure relief valve is routed back to the fuel tank via the fuel return line. This continuous flow helps cool the fuel system components and prevent vapor lock.

10. Fuel Cooler: Mounted in the fuel return line, the fuel cooler dissipates heat absorbed by the fuel as it circulates through the engine and high-pressure components. Cooling the return fuel prevents excessive temperature buildup in the fuel tank, which can degrade fuel quality and increase vapor emissions. Manufacturers’ specifications for fuel temperature are crucial, often recommending return fuel temperatures below 160°F (71°C).

11. Pressure Relief Valve: A safety device located on the common rail, designed to open and vent excessively high fuel pressure back to the return line, protecting the system from damage in the event of a fault with the injection pressure regulator.
