2011 Chevy Traverse Belt Diagram: Proper Routing (2026)
The 2011 Chevy Traverse 3.6L V6 uses a single 6-rib serpentine belt (ACDelco 6K930 / GM 12637259). The belt routing path runs around the crankshaft, A/C compressor, power steering pump, alternator, idler pulley, and automatic belt tensioner. Rotate the tensioner counterclockwise using a 1/2-inch drive breaker bar to release tension.
📌 Key Takeaways
- Standard belt spec: 6-rib serpentine belt, 93.0-inch effective length (OEM GM #12637259 / ACDelco 6K930).
- Requires a 1/2-inch square drive breaker bar or serpentine belt tool on the tensioner arm for release.
- Automatic belt tensioner eliminates manual adjustment; tensioner wear indicator marks reveal spring stretch.
- Common failure symptom is power steering heavy feel or battery charging warning due to slippage.
- DIY installation takes 30-45 minutes using the right front wheel well access panel.
The 2011 Chevrolet Traverse equipped with the 3.6L V6 LLT direct-injection engine utilizes a single continuous 6-rib serpentine belt to operate all front-end accessory drive components. This system powers the engine alternator, power steering pump, air conditioning compressor, and water pump. Maintaining the precise serpentine belt routing path is critical for establishing proper wrap angles across driven pulleys. Incorrect belt installation alters directional rotation—such as reversing water pump impeller spin—and causes excessive lateral shear on belt ribs. Referring to the primary pulley diagram ensures correct rib alignment and prevents catastrophic accessory drive failure.

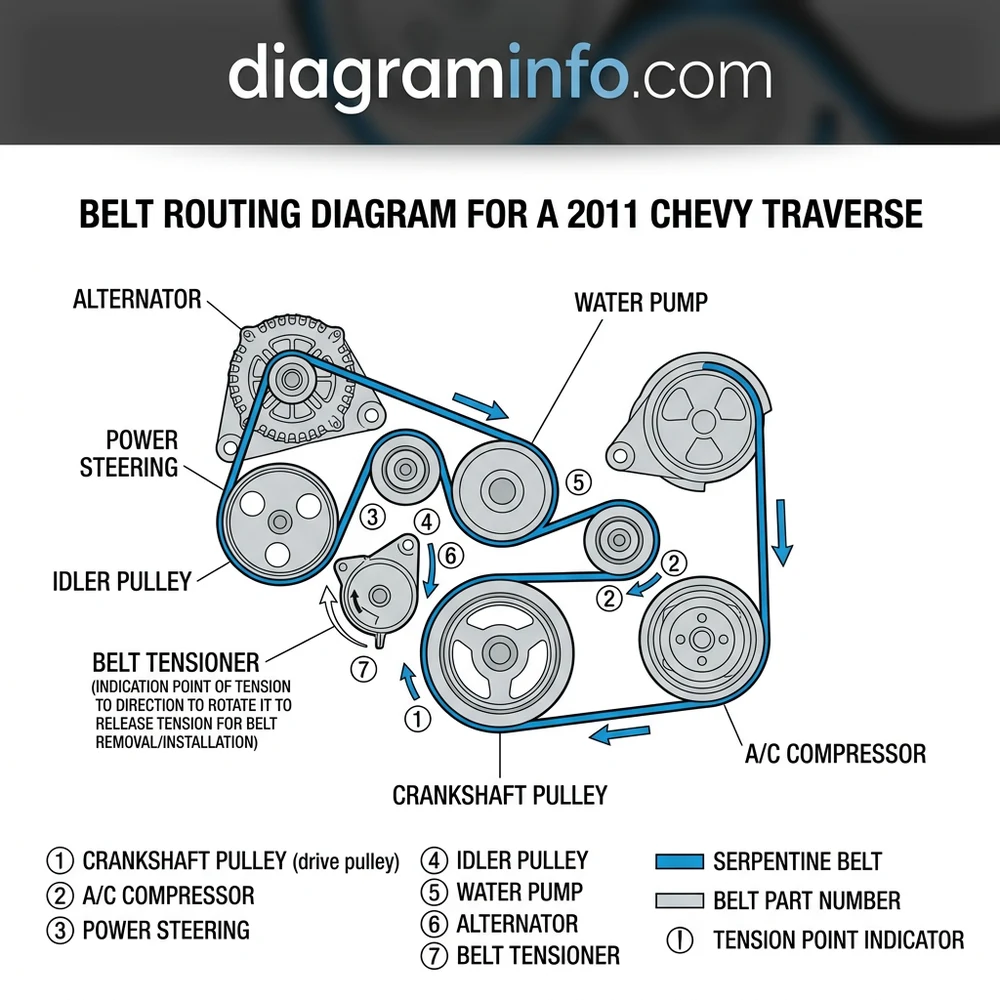

Belt Diagram for a 2011 Chevy Traverse: Part Numbers and Specs
When performing belt replacement on the 3.6L V6 Traverse, choosing an OEM belt or high-tier aftermarket equivalent ensures exact pitch, rib alignment, and tensile strength. The serpentine system relies on an EPDM (Ethylene Propylene Diene Monomer) construction designed to withstand extreme thermal cycle variations within the transverse engine bay.
| Specification / Part Type | OEM Part Number | Dimensions / Ribs | Compatible Platform Models |
|---|---|---|---|
| OEM Drive Belt | ACDelco 6K956 (GM 12638848) | 6 Ribs | Effective Length: 95.6 in (2428 mm) | 2009–2017 Chevy Traverse 3.6L |
| Gates Micro-V Aftermarket | Gates K060956 | 6 Ribs | Width: 0.82 in (21 mm) | 2009–2017 GMC Acadia / Buick Enclave 3.6L |
| Continental Elite | Continental 4060956 | 6 Ribs | Length: 95.5 in (2425 mm) | 2007–2010 Saturn Outlook 3.6L |
| OEM Belt Tensioner | ACDelco 38159 (GM 12609719) | Spring-Loaded Torsion / Smooth Pulley | GM Lambda Platform 3.6L Engines |
According to OEM service manuals, the 2011 Traverse serpentine belt specification demands a 6-rib belt with a nominal length of 95.6 inches. Bolt torque for the belt tensioner assembly is 40 lb-ft (55 N·m), while the upper smooth idler pulley bolt requires 37 lb-ft (50 N·m).
Routing the Belt Diagram for a 2011 Chevy Traverse Around Pulleys
Replacing the accessory drive belt requires access through the passenger-side wheel well. Engine compartment clearance on GM Lambda body vehicles is severely restricted, making sequential tracking along the pulley diagram mandatory during installation.
Disconnect the negative battery terminal before routing the drive belt. Secure the vehicle on jack stands and remove the right front wheel and inner splash shield. Never place fingers between the belt and any pulley while relieving tensioner pressure.
Step 1: Lower Accessory and Crankshaft Pulley Engagement
Position the multi-ribbed side of the serpentine belt around the main crankshaft pulley located at the bottom center of the engine front cover. Route the belt backward toward the lower front of the engine, wrapping the grooved inner surface over the air conditioning (A/C) compressor pulley positioned lower-left relative to the crankshaft.
Step 2: Alternator and Upper Idler Pulley Routing
Extend the belt upwards along the front edge of the timing cover. Guide the inner grooved track over the top of the alternator pulley located at the upper-left of the accessory drive. From the alternator, pull the belt horizontally across to the smooth surface of the primary upper idler pulley. Ensure the smooth outer back of the belt rides directly against the smooth face of the idler pulley.
Step 3: Power Steering, Water Pump, and Tensioner Engagement
Loop the grooved side of the belt around the power steering pump pulley located on the upper right side of the engine block. Carry the belt down toward the center-mounted water pump pulley. Finally, form a loop in front of the dynamic belt tensioner pulley. Use a 15mm socket or 3/8-inch drive serpentine belt tool to rotate the dynamic tensioner lug clockwise to compress the internal torsional spring. Slide the flat side of the belt underneath the smooth belt tensioner pulley and slowly release tensioner torque to seat the system.
Inspecting the Automatic Belt Tensioner and Idler Pulley Alignment
The 2011 Chevy Traverse uses an automatic dynamic mechanical belt tensioner to maintain constant dampening force on the EPDM belt. Unlike manual screw-adjusted systems, this tensioner compensates for minor belt elongation over time. However, internal dampening spring fatigue or bearing wear on the dynamic pulley arm can lead to improper belt tension.
When servicing the drive belt, inspect the dynamic belt tensioner arm indicators. The tensioner body features cast index marks that show acceptable operating range. If the pointer rests outside these cast limits when a new OEM belt is installed, the tensioner spring has lost dynamic force or the belt length is incorrect. Furthermore, check the stationary idler pulley for smooth rotation, lateral endplay, or rough bearing operation. Malaligned idler bearings create non-parallel pulley drive tracking, leading to belt rib destruction and thrown belts.
If you observe unusual edge wear or rib shredding, verify component alignment across the accessory drive. Proper pulley wrap and complete rib-to-groove deck engagement are vital to maintain drive torque to the alternator and power steering pump during heavy hydraulic loading. Refer to our alternator replacement guide and water pump replacement procedures for detailed specs on accessory component service.
2011 Chevy Traverse Belt Diagram Troubleshooting and FAQs
How Do You Relieve Tension on a 2011 Chevy Traverse Serpentine Belt?
Insert a long 3/8-inch drive breaker bar or a serpentine belt tool with a 15mm shallow socket onto the hex lug cast into the dynamic belt tensioner body. Rotate the tool firmly clockwise (toward the rear of the vehicle) against internal spring force. This action pulls the tensioner roller away from the belt, allowing you to slip the belt off the upper idler pulley or alternator.
What Are the Symptoms of a Failing Belt Tensioner or Idler Pulley?
Common failure symptoms include a high-pitched chirping or squeal during cold starts, visible belt flutter while idling, uneven rib wear, and power steering notchiness during low-speed parking maneuvers. Mechanical failure of the tensioner bearing often produces a grinding noise near the lower passenger side of the engine bay. If you encounter hydraulic steering loss, review our power steering pump diagnostic guide alongside pulley testing.
Can You Replace the 2011 Chevy Traverse Belt Without Removing the Tire?
While technically possible using long reach serpentine wrenches from above, working through the engine bay alone is extremely difficult due to close chassis rails. Manufacturer service manuals recommend removing the right front wheel assembly and unclipping the plastic wheel liner inner shield. Accessing the lower crankshaft, A/C compressor, and tensioner through the side wheel well provides full line-of-sight visual access to confirm correct pulley alignment.
What Size Socket Is Required for the 2011 Chevy Traverse Belt Tensioner?
The standard OEM dynamic belt tensioner assembly on the 3.6L V6 engine utilizes a 15mm hex bolt head on the center pulley, while the tensioner housing mounting bolt requires a 15mm socket. Some original factory tensioner arms also feature a direct 3/8-inch square drive recess cast into the tensioner frame for quick tool engagement.
Step-by-Step Guide to Understanding the Belt Diagram For A 2011 Chevy Traverse
Identify – Verify engine cool-down and locate the pulley diagram decal on the upper radiator support.
Locate – Gain access by removing the front passenger wheel and inner fender liner access panel.
Reference – Insert a 1/2-inch drive breaker bar into the automatic belt tensioner square recess.
Connect/Route – Rotate the tensioner counterclockwise to relieve tension and slide the old belt off the alternator pulley.
Verify – Route the new belt around all pulleys per the routing path, leaving the smooth idler pulley for last.
Troubleshoot – Release tensioner arm onto belt, double-checking that all belt ribs seat fully inside pulley grooves.
