L14-30P Wiring Diagram: Complete Connection Guide 2026
The L14-30P wiring diagram outlines connections for 120/240V circuits. Typically, the L1 (hot) and L2 (hot) pins are connected to black and red wires, respectively. The neutral pin connects to a white wire, and the ground pin to a green or bare copper wire. Pin assignment ensures proper phase and safety grounding.
📌 Key Takeaways
- L14-30P is a 30A, 125/250V locking plug, requiring a 4-conductor cable (L1, L2, Neutral, Ground).
- Correct pin assignment is critical: L1 (hot) and L2 (hot) for 120/240V, Neutral (common return), and Ground (safety).
- Always verify circuit breaker rating (30A) and wire gauge (e.g., 10 AWG copper) to prevent overload and ensure safety.
- The most common wiring mistake involves swapping neutral and ground wires, leading to dangerous shock hazards.
- Consult a licensed electrician if unsure about proper L14-30P installation, especially with main panel wiring or complex circuits.
Understanding the L14-30P wiring diagram is critical for safely and effectively connecting power-hungry equipment in automotive, marine, RV, and industrial settings. This specific NEMA locking plug, rated for 30 Amps at 125/250 Volts, is commonly found on generators, transfer switches, and heavy-duty machinery requiring both 120V and 240V circuits. Proper wiring ensures reliable power delivery, protects your valuable equipment from electrical damage, and most importantly, safeguards personnel from severe electrical hazards. This guide will meticulously detail each connection, wire color code, and safety protocol to ensure your L14-30P installation meets professional standards.

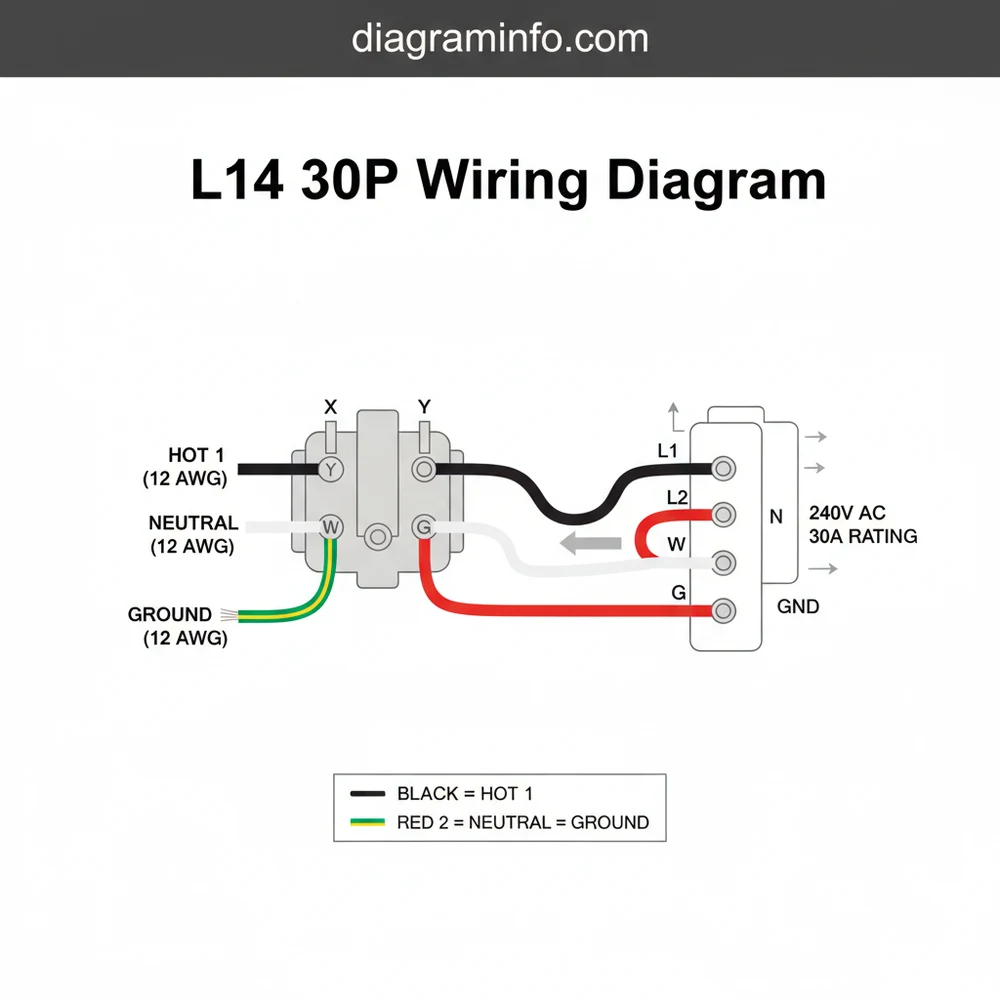

[DIAGRAM_PLACEHOLDER]
Wire Color Reference Table for L14-30P
The L14-30P connector is a 4-wire, 3-pole, 125/250V locking plug. Adhering to the standard wire color codes is non-negotiable for safety and proper functionality. The following table details the universally accepted color assignments for the L14-30P, as per NEMA standards, which professionals must strictly follow.
| Wire Color (Standard) | Function | Pin/Terminal Marking | Notes / Voltage Potential |
|---|---|---|---|
| Green or Bare Copper | Equipment Grounding Conductor (EGC) | G (Ground) | Safety path to earth; provides fault current return path. Never carries current during normal operation. |
| White or Grey | Neutral Conductor | W (White) | Return path for 120V loads. Carries current under normal operation. Voltage potential is 0V to Ground. |
| Black | Hot Conductor (Phase 1) | X | Supplies 120V to Neutral (W) and 240V to other Hot (Y). Always energized. |
| Red | Hot Conductor (Phase 2) | Y | Supplies 120V to Neutral (W) and 240V to other Hot (X). Always energized. |
While typical residential wiring might use black for both hot legs in some 240V applications, the L14-30P standard distinctly differentiates the two 120V phases with Black and Red to avoid confusion and ensure correct split-phase identification, which is crucial for balanced load distribution and troubleshooting. Always confirm wire colors match the function indicated by the terminal markings (G, W, X, Y).
Step-by-Step L14-30P Connection Guide
Executing a precise L14-30P wiring installation demands attention to detail and adherence to established electrical practices. This guide assumes a basic understanding of electrical safety and proper tooling. Always consult the specific manufacturer’s instructions for the L14-30P plug or receptacle you are installing, as minor design variations may exist.
Before commencing any wiring procedures, ALWAYS ensure that the power source is completely disconnected and locked out. Verify zero voltage presence using a calibrated multimeter. Failure to follow proper lockout/tagout procedures can result in severe injury or fatality. This procedure should only be performed by qualified individuals.
- Power Disconnection and Verification: De-energize the circuit at its source (e.g., circuit breaker panel or generator main switch). Apply lockout/tagout procedures. Using a multimeter, confirm that no voltage is present across any conductors you intend to work with, including between hot and neutral, hot and ground, and neutral and ground.
- Gather Required Tools and Materials: For this task, you will need a NEMA L14-30P plug, appropriate 10 AWG 4-conductor cable (or larger if local codes and application dictate), a wire stripper/cutter, various screwdrivers (flathead and/or Phillips, often insulated), needle-nose pliers, a torque screwdriver (if specified by plug manufacturer), and a multimeter for post-installation verification.
- Cable Preparation:
a. Carefully strip the outer jacket of the 4-conductor cable to the length specified by the L14-30P plug manufacturer, typically 1.5 to 2.5 inches. Avoid nicking the internal conductor insulation.
b. For each individual wire (green, white, black, red), strip approximately 3/8 to 1/2 inch of insulation from the end. The stripped length should be sufficient to ensure full contact with the terminal screw without excess bare wire exposed.
- Terminal Identification and Loosening: Disassemble the L14-30P plug according to its design (usually involves removing a cover or splitting the body). Identify the clearly marked terminals: ‘G’ for Ground, ‘W’ for Neutral, ‘X’ for Hot Phase 1, and ‘Y’ for Hot Phase 2. Loosen each terminal screw sufficiently to allow insertion of the corresponding wire.
- Connect the Ground Wire: Take the bare copper or green insulated wire. Form a clockwise hook at the end if the terminal uses a screw-down plate, or insert straight into a cage clamp terminal. Connect this wire securely to the ‘G’ (Ground) terminal. Tighten the screw firmly. According to NEMA specifications and NEC guidelines, the ground connection is paramount for safety and is always the first wire connected.
- Connect the Neutral Wire: Next, take the white insulated wire. Connect it to the ‘W’ (Neutral) terminal. Ensure the wire is fully seated and tighten the screw to the manufacturer’s specified torque, if provided. The neutral wire provides the return path for 120V loads.
- Connect the Hot Wires:
a. Connect the black insulated wire to the ‘X’ (Hot Phase 1) terminal. Secure it firmly.
b. Connect the red insulated wire to the ‘Y’ (Hot Phase 2) terminal. Secure it firmly. These hot wires carry the two 120V phases that combine to provide 240V across terminals X and Y, and 120V from each to the neutral (W).
- Secure Strain Relief: Once all conductors are properly terminated, reassemble the plug body. Ensure the cable’s outer jacket is firmly clamped by the plug’s internal strain relief mechanism. This prevents tension on the individual conductor connections if the cable is pulled, protecting against shorts and disconnections. Manufacturers often specify torque values for strain relief screws; adhere to these.
- Post-Installation Verification: Before restoring power, perform continuity tests with your multimeter to confirm no short circuits exist between any conductors. After power restoration, use your multimeter to verify correct voltages: 120V between X and W, 120V between Y and W, and 240V between X and Y. Crucially, confirm 0V between the ‘G’ terminal and any other terminal, especially the ‘W’ (Neutral) terminal, indicating a proper ground. This thorough verification process, as outlined in our Advanced Electrical Troubleshooting with a Multimeters guide, is indispensable.
For 30 Amp circuits, the National Electrical Code (NEC) typically mandates a minimum of 10 AWG copper wire. However, specific applications, cable length, and ambient temperature may necessitate a larger gauge to prevent excessive voltage drop and conductor overheating. Always refer to NEC Article 310 and local electrical codes for precise ampacity requirements. Torque specifications for terminal screws typically range from 12-20 inch-pounds (in-lbs) for 10 AWG conductors, but defer to the plug manufacturer’s data sheet.
Common L14-30P Wiring Mistakes & Troubleshooting
Even for experienced technicians, wiring errors can occur, leading to equipment malfunction, system damage, or hazardous conditions. Understanding common L14-30P wiring mistakes and their implications is crucial for effective troubleshooting and ensuring safe operation. Recognizing these issues, often before they cause failure, can save significant time and resources.
- Reversed Polarity (Hot/Neutral Swap):
Consequences: While a 240V heating element might still operate, 120V components could experience severe damage. Equipment with sensitive electronics may fail immediately. Crucially, reversed polarity can energize the neutral chassis, creating a severe electric shock hazard if the ground path fails or is compromised. This is a critical safety violation.
Troubleshooting & Fix: A multimeter check between the ‘X’ and ‘W’ terminals, and ‘Y’ and ‘W’ terminals should show 120V. If one or both show 0V or an unexpected reading, re-verify the wire connections against the L14-30P wiring diagram. Ensure the white wire is strictly connected to the ‘W’ terminal and black/red wires to ‘X’ and ‘Y’ respectively. Visually inspect for incorrect wire colors at terminals.
- Missing or Improper Ground Connection:
Consequences: This is arguably the most dangerous wiring error. Without a robust ground path via the green or bare copper wire to the ‘G’ terminal, any internal fault (e.g., a hot wire touching the equipment casing) will energize the entire metallic enclosure. This creates a lethal shock hazard for anyone touching the equipment. It also prevents overcurrent protection devices (circuit breakers) from tripping in a timely manner during a fault.
Troubleshooting & Fix: Always verify continuity between the ‘G’ terminal of the plug and the equipment’s metal chassis. A multimeter should show near zero ohms. If continuity is open or resistance is high, check the ground wire connection at both the plug and the equipment end. Ensure the wire is properly stripped, fully inserted, and the terminal screw is tight. Consult our comprehensive Advanced Grounding Techniques for Generators for further guidance.
- Loose Terminal Connections:
Consequences: Loose connections are a common cause of intermittent power, excessive heat generation, arcing, and ultimately, fire. Vibration from equipment operation or movement of the cable can exacerbate the issue, leading to rapid degradation of the connection and potential failure of the associated equipment. Over time, oxidation at loose points increases resistance, further escalating heat.
Troubleshooting & Fix: During installation, always tighten terminal screws to the manufacturer’s specified torque. If no specific torque is provided, tighten until snug, then give an additional quarter-turn, being careful not to strip the threads. For troubleshooting, physically inspect and gently tug each wire at its terminal. If any wire moves, or signs of heat (discoloration, melted insulation) are present, disconnect power, loosen the terminal, re-seat the wire securely, and re-tighten. Use a torque screwdriver for precision if available.
- Incorrect Wire Gauge for Amperage:
Consequences: Using a wire gauge that is too small (higher AWG number) for the 30 Amp circuit can lead to severe overheating of the conductor, significant voltage drop, and frequent tripping of the circuit breaker. This not only damages the wire insulation and presents a fire hazard but also reduces the performance and lifespan of the connected equipment due to inadequate power delivery.
Troubleshooting & Fix: Verify the wire gauge against the circuit’s amperage rating (30A for L14-30P). For copper wire, 10 AWG is typically required for 30A circuits. If the existing wire is smaller, it must be replaced with the correct gauge. Refer to the NEC Ampacity Tables (e.g., Table 310.16) for precise conductor sizing based on insulation type, ambient temperature, and installation method. Improper conductor sizing, much like faulty circuit breaker diagnostics, can lead to serious electrical issues.
- Lack of Proper Strain Relief:
Consequences: The strain relief clamp inside the L14-30P plug is designed to secure the cable’s outer jacket, preventing mechanical stress on the individual wire connections. Without it, repeated pulling or flexing of the cable can cause the individual conductors to pull out of their terminals, resulting in open circuits, short circuits (especially if hot and neutral/ground wires touch), and exposed energized conductors.
Troubleshooting & Fix: Always ensure the cable’s outer jacket is firmly gripped by the plug’s strain relief clamp. The clamp should not be so tight as to deform the cable but tight enough that the cable cannot be easily pulled out. If issues arise, disassemble the plug and check the strain relief. Re-position and re-tighten as necessary, ensuring the internal wiring remains undisturbed and secure.
Frequently Asked Questions about L14-30P Wiring
What voltage is an L14-30P plug designed for?
The NEMA L14-30P plug is specifically designed for 125/250 Volt split-phase electrical systems. This means it provides two 120V hot legs, a common neutral, and a ground. This configuration allows connected equipment to draw either 120V power (between one hot leg and neutral) or 240V power (between the two hot legs), making it versatile for applications requiring both voltage levels, such as generators powering homes with diverse loads.
What wire gauge should be used for an L14-30P connection?
For a 30 Amp L14-30P connection, the National Electrical Code (NEC) generally requires a minimum of 10 AWG (American Wire Gauge) copper wire. This gauge is rated for 30 amps under most standard conditions. However, factors such as cable length (to mitigate voltage drop), ambient temperature, and specific local electrical codes or equipment manufacturer specifications might necessitate the use of a larger wire gauge (e.g., 8 AWG) to ensure safe and efficient operation. Always consult the NEC and local authorities for definitive requirements.
Can I use an L14-30P plug for a 120V-only circuit?
While physically possible to wire a 120V-only load to an L14-30P by utilizing one hot leg, the neutral, and the ground, it is generally not recommended as a permanent solution. Doing so leaves one hot terminal unused, which can lead to confusion and potential hazards if someone assumes it’s a standard split-phase connection. For dedicated 120V 30 Amp circuits, a NEMA L5-30P (3-prong locking, 120V) plug and receptacle is the appropriate and safer choice, as it clearly indicates a single-phase 120V connection. Misapplication can violate electrical codes and reduce safety.
How do I test an L14-30P outlet or cable for proper wiring?
After ensuring power is off, use a continuity tester on the disconnected plug or receptacle to verify each wire connects to its correct terminal and that there are no shorts between terminals. Once power is safely restored, a multimeter is essential. Measure voltage: you should read approximately 120V between the ‘X’ hot terminal and ‘W’ neutral, 120V between the ‘Y’ hot terminal and ‘W’ neutral, and 240V between the ‘X’ and ‘Y’ hot terminals. Crucially, measure 0V between the ‘G’ (ground) terminal and all other terminals (‘X’, ‘Y’, ‘W’) to confirm proper grounding and no unwanted potential differences. These voltage readings should be stable within a safe tolerance.
What is the significance of the “locking” feature on the L14-30P?
The “locking” feature, indicated by the ‘L’ in L14-30P, is a crucial safety and operational design element. Unlike non-locking straight-blade plugs, the L14-30P has curved blades that engage with corresponding slots in the receptacle and then rotate to lock into place. This mechanism prevents accidental disconnection caused by vibration, tugging, or movement of the equipment or cable. This is particularly vital in environments where an unexpected loss of power could lead to safety hazards (e.g., medical equipment, industrial machinery) or significant disruption (e.g., emergency generator power for a critical facility). The secure connection ensures continuous power supply under dynamic conditions.
Frequently Asked Questions
What wire color is hot on l14-30p wiring diagram?
On an L14-30P wiring diagram, the hot wires (L1 and L2) are typically assigned black and red colors, respectively. These carry the 120V phases, combining for 240V across them. Correct wire color code and pin assignment prevent incorrect connections and ensure proper operation of 120/240V appliances.
What do the pin numbers mean on l14-30p wiring diagram?
The pins on an L14-30P are usually labeled for specific functions. L1 and L2 are the two hot phases (120V each), ‘N’ is for the neutral wire (common return), and ‘G’ or a ground symbol is for the ground wire. This pin assignment ensures safe and correct electrical connections.
How many wires does l14-30p wiring diagram have?
An L14-30P wiring diagram typically shows connections for four wires: two hot wires (L1 and L2), one neutral wire, and one ground wire. This configuration provides both 120V and 240V power to connected equipment, making it versatile for various applications.
What are common wiring mistakes with l14-30p wiring diagram?
Common mistakes include confusing the neutral wire with the ground wire, incorrect hot wire phase connections, or using an inadequate wire gauge. Always follow the wire color code strictly and verify pin assignment with a multimeter to prevent shorts, equipment damage, or electrical hazards during installation.
Do I need a brake controller for l14-30p wiring diagram?
An L14-30P is a power connector for 120/240V circuits, commonly used for generators, welders, or RVs. It does not directly relate to brake controllers, which are used for trailer braking systems. This wiring diagram is for power supply, not vehicle control, so a brake controller is irrelevant here.
What gauge wire does l14-30p wiring diagram require?
