D Flip Flop Timing Diagram: Step-by-Step Instructions

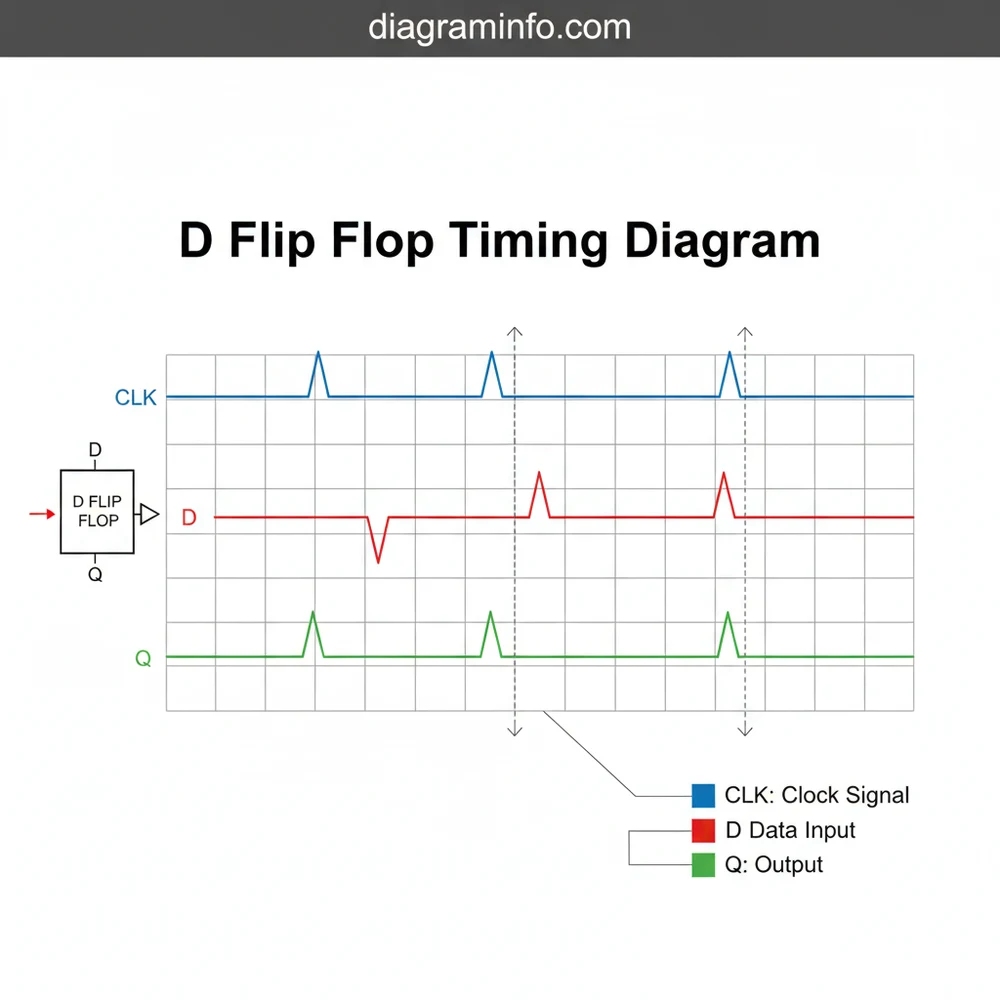

A D flip flop timing diagram illustrates the relationship between the clock pulse, data input (D), and output (Q). It visualizes how the output captures the data input at the clock’s rising or falling edge, helping users understand the temporal layout and synchronization within a digital system configuration easily.
📌 Key Takeaways
- Visualizing the exact relationship between clock, D, and Q waveforms
- Identifying the active clock edge triggers for state transitions
- Avoiding setup and hold time violations to prevent metastability
- Mapping the physical system layout to the logical output state
- When to use this diagram during sequential logic design and simulation
Mastering the d flip flop timing diagram is a fundamental skill for anyone working in digital electronics, whether you are a hobbyist building a breadboard circuit or an engineer designing a complex integrated system. This schematic representation provides a temporal overview of how data is captured and stored within a flip-flop component. By understanding this diagram, you can predict exactly how a circuit will behave under various clock speeds and input conditions. In this article, you will learn the blueprint of these timing diagrams, how to interpret signal changes, and how to avoid common synchronization errors in your digital layout. Having the correct diagram is essential because it serves as the ultimate reference for signal integrity, ensuring that your data transitions are stable and your timing margins are sufficient for reliable operation.
A D flip-flop, or Data flip-flop, is the primary building block of digital memory and shift registers. The timing diagram is a graphical representation of the relationship between the Clock (CLK), Data (D), and Output (Q) signals over time.
Anatomy of the D Flip Flop Timing Diagram
The d flip flop timing diagram acts as a visual blueprint that plots voltage levels against a horizontal time axis. To read one effectively, you must understand the configuration of its three primary horizontal signal lines. At the top of the schematic, you typically find the Clock (CLK) signal. In most modern digital systems, this is represented as a square wave that oscillates between a logic low (0) and a logic high (1). The vertical lines or arrows on the clock signal indicate the “active edge”—the precise moment the flip-flop component “samples” the input. This is usually the rising edge (low-to-high transition).
Below the clock is the Data (D) input line. This signal represents the information you wish to store. Unlike the clock, the D line can change at any time, but its state is only relevant to the flip-flop during the active edge of the clock. The bottom-most line is the Output (Q). This line shows the stored state of the device. The layout of the Q signal is designed to follow the state of the D signal, but with a slight delay known as the propagation delay. In more complex diagrams, you might also see a “Q-not” line (Q̅), which is simply the inverse of the Q output.
Variations in these diagrams occur based on the specific model or specification of the hardware. For example, an edge-triggered D flip-flop focuses on the transition point, while a D-type latch might show a “transparent” window where the output follows the input as long as the clock remains high. Recognizing these nuances in the schematic layout is vital for troubleshooting system timing and ensuring that the data being clocked into the component is valid and stable.
Step-by-Step Guide to Reading the D Flip Flop Timing Diagram
Interpreting a timing diagram requires a systematic approach to ensure you don’t miss the subtle details of signal interaction. Follow these steps to analyze the layout of any D flip-flop circuit.
Step 1: Identify the Trigger Type
Look at the CLK line in your blueprint. Most D flip-flops are edge-triggered. If there is a small triangle at the clock input on the schematic, it reacts to the rising edge (0 to 1). If there is a circle (bubble) before the triangle, it reacts to the falling edge (1 to 0). Pinpointing this trigger point is essential because the state of the system only changes at these specific instances.
Step 2: Locate the Setup Time Window
Before the clock edge occurs, the D input must be stable. This is known as the “Setup Time” (ts). On the timing diagram, look at the area immediately to the left of the vertical trigger line. If the D signal is transitioning or “noisy” during this period, the flip-flop might capture the wrong value. Ensure your layout allows enough time for the signal to settle before the clock pulses.
Step 3: Analyze the Hold Time Window
Just as the signal must be stable before the clock edge, it must also remain stable for a brief period after the edge. This is the “Hold Time” (th). In your d flip flop timing diagram, verify that the D signal does not change state for a few nanoseconds after the trigger. Violating this window is a common cause of logic errors in high-speed systems.
Step 4: Map the Input to the Output
Look at the level of the D signal at the exact moment of the active clock edge. If D is high, the Q output will transition to high. If D is low, Q will transition to low. Draw a vertical line from the D signal down to the Q signal at the clock edge to see how the state “transfers” from the input to the storage component.
Step 5: Account for Propagation Delay
Notice that the Q output does not change at the exact same instant as the clock edge. There is always a tiny horizontal gap on the diagram between the clock trigger and the change in Q. This is the propagation delay (tpd). When designing a system with multiple flip-flops in a series (like a shift register), you must account for this delay to ensure the next component in the chain receives the data at the correct time.
Ignoring propagation delay in high-speed configurations can lead to “race conditions,” where the data reaches the next stage before the clock, causing the entire system to desynchronize.
Step 6: Check Asynchronous Inputs
Some D flip-flops include Preset (PRE) and Clear (CLR) pins. These are often shown at the bottom of the diagram. These inputs are “asynchronous,” meaning they override the clock. If the Clear signal goes low, the Q output will drop to low immediately, regardless of what the clock or D input is doing. Always check if these signals are active (usually indicated by a horizontal line over the signal name) before interpreting the clock-based transitions.
Common Issues & Troubleshooting
When working with a d flip flop timing diagram, several common issues can arise that interfere with the desired system performance. The most frequent problem is “Metastability.” This occurs when the D input changes state exactly during the setup or hold time window. When this happens, the output Q may hover between logic levels or oscillate, leading to unpredictable system behavior. The diagram helps you solve this by allowing you to visualize the “forbidden zones” around the clock edge.
Another issue is “Clock Skew.” In a complex configuration, the clock signal might reach different flip-flops at slightly different times due to variations in wire length or gate delays. By comparing the timing diagrams of two adjacent components, you can identify if the clock skew is large enough to cause the second flip-flop to sample the wrong data. If you see the output Q changing before or during the setup time of the next stage, you likely need to introduce a delay or slow down the master clock. If troubleshooting fails and the output remains stuck regardless of input, check the asynchronous Preset and Clear pins, as they may be inadvertently tied to an active state.
Tips & Best Practices for Timing Design
To ensure your digital layout is robust and reliable, follow these professional recommendations when working with flip-flop components:
- ✓ Use Decoupling Capacitors: Place a 0.1µF capacitor close to the VCC pin of each flip-flop component. This filters out power supply noise that can cause jitter in your timing signals.
- ✓ Minimize Trace Length: In a high-speed system, keep the traces between the clock source and the flip-flop as short as possible to reduce electromagnetic interference and signal degradation.
- ✓ Match Impedance: For very fast clocks, ensure the PCB traces are impedance-matched to prevent signal reflections that could be mistaken for multiple clock edges.
- ✓ Implement Synchronizers: If you are bringing an external, asynchronous signal into your clocked system, pass it through two D flip-flops in series to reduce the risk of metastability.
Always refer to the manufacturer’s datasheet for the specific “Minimum Setup Time” and “Maximum Propagation Delay” values. These specifications vary significantly between CMOS, TTL, and High-Speed CMOS families.
Finally, when designing your schematic, always assume the worst-case scenario for timing. A circuit that works on a breadboard at room temperature might fail in a cold environment or when mass-produced with components from a different batch. By building a margin of safety into your d flip flop timing diagram—ensuring that data is stable well before the setup time requirements—you create a resilient system that will perform reliably for years to come. Understanding this overview of signal interaction is the key to moving from basic hobbyist projects to professional-grade digital engineering.
Frequently Asked Questions
Where is the D flip flop component located?
In most digital circuits, the D flip flop component is located within memory modules, registers, and shift registers. It is often embedded inside integrated circuits like the 7474 dual D-type flip-flop. The physical layout on a PCB typically places it near the clock source to ensure precise signal timing.
What does a D flip flop timing diagram show?
The diagram shows the temporal relationship between inputs and outputs. It visualizes how the Q output transitions based on the D input when triggered by the clock signal. This layout is crucial for identifying propagation delays, setup times, and hold times within a synchronous digital system configuration.
How many connections does a D flip flop have?
A standard D flip flop typically has four main connections: Data input (D), Clock input (CLK), Output (Q), and Complementary output (not-Q). Some specialized models include additional Preset (PR) and Clear (CLR) pins to force the component into a specific state regardless of the clock signal’s current status.
What are the symptoms of a bad D flip flop component?
Symptoms of a faulty D flip flop include intermittent output switching, total signal failure, or the component becoming excessively hot. In a digital circuit, this results in data corruption or timing violations. Using a diagram helps verify if the physical behavior deviates from the expected logical structure and system configuration.
Can I design this logic system myself?
Yes, you can design a D flip flop system using discrete NAND or NOR gates, or by using dedicated 7400-series ICs. Modern designers often use HDL languages like Verilog or VHDL to define the structure and then simulate the timing diagram using software before any hardware is implemented.
What tools do I need for timing analysis?
To analyze timing diagrams, you need digital simulation software like ModelSim, Logisim, or Proteus. For physical testing, a logic analyzer or a high-speed oscilloscope is required to capture the real-time layout of waveforms and verify that the D flip flop operates within the required logic parameters.
