3 Wire Starter Wiring Diagram: Easy Setup Guide
A 3 wire starter wiring diagram illustrates the essential connections between the battery, ignition switch, and solenoid. The hot wire delivers high current from the battery, the neutral wire or ground wire completes the circuit, and a signal wire triggers the common terminal on the solenoid to engage the motor.
📌 Key Takeaways
- Visualizes the electrical path from the battery to the starter motor.
- Crucial for identifying the S-terminal signal wire and the main B-terminal.
- Requires disconnecting the battery to prevent high-amperage short circuits.
- Critical to maintain clean connections at the common terminal for efficiency.
- Essential for troubleshooting automotive, marine, or small engine ignition.
When you are faced with a vehicle or piece of machinery that refuses to turn over, having a clear 3 wire starter wiring diagram is the most effective way to diagnose the fault. Most modern starter systems utilize a three-terminal configuration to manage the heavy electrical load required to spin an engine while safely interfacing with low-voltage ignition switches. Understanding how these wires interact—moving from the battery to the solenoid and finally to the motor—is critical for any DIY repair. In this comprehensive guide, you will learn to identify terminal markings, decode wire colors, and follow a professional sequence to ensure your electrical connections are safe, secure, and functional.
Understanding the 3 Wire Starter Wiring Diagram Components

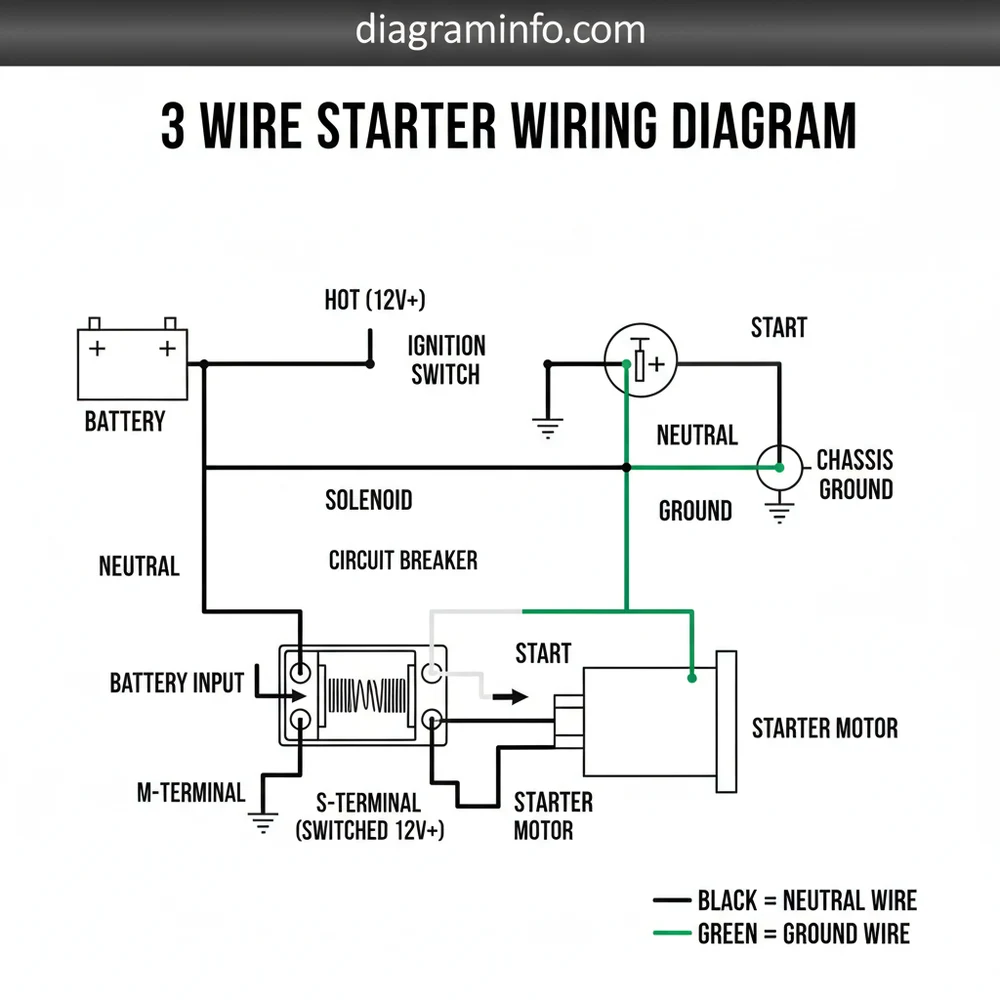

A 3 wire starter wiring diagram typically illustrates the relationship between the battery, the ignition switch, and the starter solenoid. The solenoid acts as a high-current relay; without it, the high amperage required to start the engine would melt a standard ignition switch. The diagram breaks down the three primary connection points found on the back of the solenoid, which are often labeled as “B,” “S,” and “M.”
The first connection is the primary battery cable, often referred to as the hot wire. This is a heavy-gauge cable, usually red, that carries the full current of the battery directly to the starter’s “B” (Battery) terminal. Because this wire is always live, it is usually secured with a robust brass screw or a large nut to ensure maximum surface contact and conductivity.
The second connection is the “S” (Start) terminal. This is a smaller wire that leads back to your ignition switch or starter button. When you turn your key to the “Start” position, voltage is sent through this wire to the solenoid. This signal triggers the internal electromagnet, which pulls the plunger to engage the starter gear with the engine flywheel and simultaneously bridges the gap between the battery and the motor. In some industrial motor applications, this might be referred to as the traveler wire or signal lead, as it travels between the control station and the contactor.
The third wire is the internal motor lead, often labeled “M.” In many automotive configurations, this is a short, braided wire that connects the output of the solenoid directly into the starter motor housing. While it is physically part of the starter assembly, its placement on the diagram is vital for understanding the flow of current.
Most starters are grounded through their mounting bolts to the engine block. However, if your starter features a fourth terminal or a dedicated ground wire, it must be connected to the negative battery terminal or a clean chassis ground point to complete the circuit.
Step-by-Step Installation Guide Using the 3 Wire Starter Wiring Diagram
Reading a 3 wire starter wiring diagram is one thing; implementing it requires a methodical approach to ensure safety and electrical integrity. Before beginning any work, ensure you have the correct gauge of wire. For the main battery leads, 2 or 4-gauge wire is standard, while 14 or 16-gauge wire is usually sufficient for the ignition signal.
Always disconnect the negative battery cable before touching any starter wiring. Failure to do so can result in massive electrical sparks, fire, or severe burns if your tools accidentally bridge the hot wire to the chassis.
1. Identify and Label Your Terminals
Before mounting the starter, look at the back of the solenoid. Locate the largest stud (B terminal), the smallest stud or spade connector (S terminal), and the terminal that connects directly to the motor (M terminal). If the labels are obscured by dirt or rust, use a wire brush to clean the surface until the letters become visible.
2. Prepare the Wire Ends
Ensure all wire terminals are clean and free of corrosion. If you are making new wires, use high-quality copper ring terminals. If the original hot wire shows signs of “green crust” or frayed insulation, replace it immediately. A common terminal failure occurs when corrosion creates high resistance, leading to a “click” but no crank.
3. Connect the Main Battery Hot Wire
Slide the heavy-gauge red wire onto the “B” terminal stud. This is the wire that provides the constant 12V or 24V voltage required for operation. Tighten the nut onto the brass screw firmly, but be careful not to over-torque it, as the solenoid housing is often made of plastic or brittle Bakelite.
4. Attach the Ignition Signal (S) Wire
Connect the smaller wire coming from the ignition switch to the “S” terminal. On some diagrams, this may be shown as a purple or yellow wire. This wire acts as the trigger. In systems involving a neutral wire safety switch, this signal will pass through the transmission sensor first to ensure the vehicle is in Park or Neutral before allowing the starter to engage.
5. Verify the Motor Connection
Ensure the motor lead (the “M” terminal) is tight. Generally, this comes pre-connected from the factory, but if you are rebuilding the unit, this connection must be as solid as the main battery lead. This is the point where the current finally enters the motor brushes to create rotation.
6. Establish the Ground Path
The starter requires a path back to the negative terminal of the battery. Most starters achieve this through the mounting flange. Clean the mating surface on the engine block with sandpaper to ensure metal-to-metal contact. If your specific diagram includes a dedicated ground wire, attach it to a clean bolt on the engine block.
7. Final Inspection and Testing
Double-check your 3 wire starter wiring diagram to ensure no wires are crossed. Ensure the wires are routed away from hot exhaust manifolds or moving parts like steering shafts. Reconnect the negative battery cable and attempt to start the engine.
Apply a thin layer of dielectric grease to all terminal connections after tightening. This prevents moisture from entering the connection and stops the formation of corrosion, extending the life of your starter significantly.
Common Issues & Troubleshooting
Even with a perfect 3 wire starter wiring diagram, issues can arise during or after installation. The most frequent problem is the “single click” sound. This usually indicates that the “S” terminal is receiving voltage and the solenoid is engaging, but the “B” terminal (hot wire) isn’t providing enough current to turn the motor. This is often caused by a loose connection or a discharged battery.
Another common issue is a “spinning” sound without the engine turning over. This suggests that the solenoid is engaging the motor but failing to push the starter gear forward into the flywheel. While this is often a mechanical failure inside the solenoid, it can also be caused by insufficient voltage to the “S” terminal.
If the starter does absolutely nothing, use a multimeter to check the voltage at the “S” terminal while someone else turns the key. If you don’t see battery voltage (typically 12.6V), the problem lies in the ignition switch, a fuse, or the neutral safety switch rather than the starter itself.
- ✓ Check for voltage drop between the battery and the starter.
- ✓ Ensure the ground wire or mounting surface is free of paint and rust.
- ✓ Inspect the brass screw on the solenoid for signs of overheating or melting.
Best Practices and Maintenance
To keep your starter operating reliably, regular maintenance is key. Heat is the primary enemy of electrical components. If your starter is located near an exhaust pipe, consider installing a reflective heat shield. This prevents the internal copper windings from becoming brittle and failing prematurely.
Always use the correct wire gauge. Using a wire that is too thin will cause it to heat up, creating resistance and reducing the voltage that reaches the motor. For heavy-duty applications or long wire runs (such as a trunk-mounted battery), you may need to increase the wire size to compensate for voltage drop.
When purchasing replacement parts, avoid the cheapest “no-name” starters. Quality components feature better internal seals and higher-quality brass screws that resist stripping and corrosion. Investing in a reputable brand ensures that the internal solenoid components can handle the high-amperage spikes without welding themselves shut.
In conclusion, mastering the 3 wire starter wiring diagram allows you to take control of your vehicle’s starting system. By correctly identifying the battery, signal, and motor terminals, and ensuring a robust ground, you can eliminate the most common causes of vehicle breakdown. Whether you are replacing a faulty unit or building a custom project from scratch, following these wiring principles ensures a reliable start every time you turn the key.
Frequently Asked Questions
Where is the starter located?
The starter is typically found near the transmission housing where it meets the engine block. In most vehicles, it is positioned on the lower side of the engine, requiring access from underneath. You can follow the large red battery cable to find its exact mounting position on the assembly.
What does a 3 wire starter wiring diagram show?
A 3 wire starter wiring diagram shows how the battery, ignition switch, and solenoid interact. It highlights the main power feed, the ground wire path, and the signal wire that activates the solenoid plunger, allowing the engine to crank when you turn the ignition key to the start position.
How many connections does a 3 wire starter have?
Most 3 wire starters feature three main connection points: the large B-terminal for the hot wire from the battery, the S-terminal for the ignition switch signal, and the M-terminal or ground wire connection that sends power directly into the starter motor assembly to initiate the cranking process.
What are the symptoms of a bad starter?
Common symptoms include a loud clicking sound, a slow engine crank, or no response at all when turning the key. You might also notice smoke from the solenoid or a grinding noise if the starter drive gear fails to engage correctly with the engine flywheel during the starting cycle.
Can I install this starter myself?
You can replace or wire a starter yourself if you have basic hand tools and can safely lift the vehicle. It is a straightforward bolt-on process, but you must strictly follow a 3 wire starter wiring diagram to ensure the traveler wire and hot leads are attached to the correct terminals.
What tools do I need for starter wiring?
To wire a starter, you will need a socket set, a torque wrench, a wire brush for cleaning terminal corrosion, and a multimeter for testing voltage. Safety equipment such as jack stands and eye protection is also essential when working underneath a vehicle or near the battery terminals.
