A simple air compressor setup connects the pump unit through an unloader tube and check valve directly to the pressure tank. A pressure switch controls the motor, activating at 90 PSI cut-in and stopping at 125 PSI cut-out. Air exits through a regulator, moisture trap, and NPT quick-connect fittings for tool supply.
📌 Key Takeaways
- Pressure switch default cut-in/cut-out thresholds are set to 90 PSI and 125 PSI respectively for standard pneumatic configurations.
- A 100% one-way check valve installed at the tank inlet prevents compressed air backflow into the pump head assembly.
- Never exceed the tank’s maximum rated working pressure, typically protected by a 150 PSI safety relief valve.
- An unloader valve failure causes high starting torque, tripping thermal breakers during compressor motor restarts.
- Replace cracked pressure switches or rusted tanks professionally; minor fitting air leaks and regulator replacements are manageable DIY tasks.
Designing or servicing an industrial pneumatic distribution network requires a precise understanding of fluid power dynamics, pressure regulation, and inline moisture management. Utilizing a comprehensive simple air compressor setup diagram enables technicians and shop managers to trace airflow paths from the atmospheric intake filter through compression stages, receiver tanks, filtration manifolds, and final point-of-use drops. Proper execution of this pneumatic schematic ensures minimal dynamic pressure drop (typically maintained under 3 to 5 PSI across the primary header), eliminates downstream condensate contamination, and maintains operating parameters according to OEM specifications. Below is the primary schematic blueprint outlining the complete system topology.

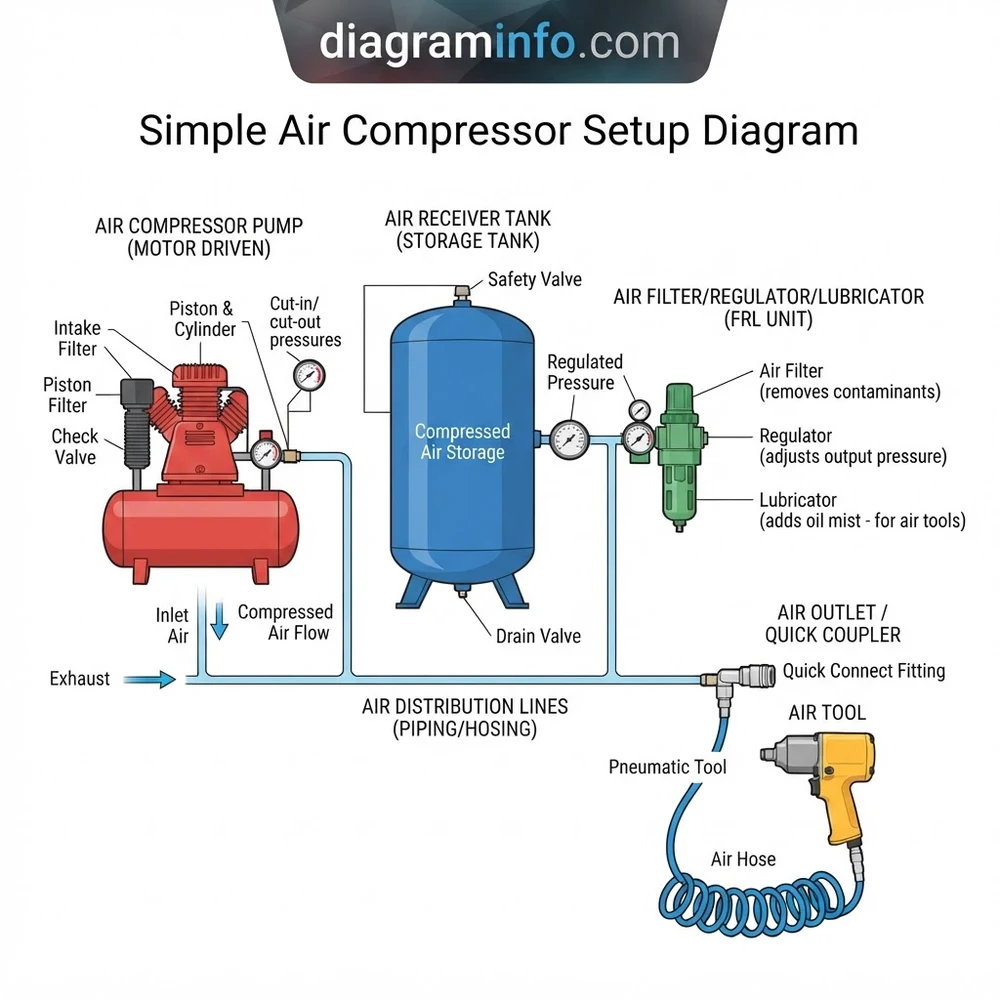

Simple Air Compressor Setup Diagram: Core System Component Identification
A reliable pneumatic architecture relies on balanced component selection to handle peak CFM demands while maintaining strict pressure stability. As shown in the diagram above, compressed air flows sequentially through mechanical, thermal, and filtration stages before entering primary distribution lines. Failing to align component flow ratings with pump output leads to severe flow restrictions, rapid pressure drop, and thermal motor overload.
| Component Name | OEM Technical Spec / Rating | System Function & Location |
|---|---|---|
| Air Compressor Pump & Motor | 5 HP, 17.5 CFM @ 90 PSI, 230V Single-Phase | Primary mechanical head; compresses ambient air into high-pressure potential energy. |
| In-Line Tank Check Valve | 1/2″ NPT Male x Female, 250 PSI Max, Brass Body | Prevents backflow from compressed receiver tank to pump head upon motor shutdown. |
| Pressure Switch & Unloader | Cut-In 145 PSI / Cut-Out 175 PSI, 1/4″ NPT Port | Controls motor contactor state and bleeds discharge line pressure via unloader valve. |
| Particulate & Coalescing Filter | 5-Micron Primary, 0.01-Micron Oil Removal, 40 CFM | Positioned immediately downstream of receiver tank to capture moisture and bulk solids. |
| Point-of-Use Pressure Regulator | 0-150 PSI Adjustment, Self-Relieving, 1/2″ NPT | Steps down main header pressure to match tool specs (typically 90 PSI dynamic). |
Always size inline treatment components based on total pump output CFM multiplied by a 1.25 service factor. Installing a 1/4″ NPT regulator on a pump system generating 18 CFM creates an unacceptable 15 to 20 PSI pressure drop under continuous load.
Tracing the Compressed Air Piping Layout and Schematic Structure
Navigating a simple air compressor setup diagram requires understanding line progression, pipe slope requirements, and condensation collection nodes. The schematic relies on gravity, thermal cooling, and directional fittings to deliver dry air to work bays while directing moisture toward low-point manual or automatic drain valves.
1. Tracing Supply Lines from Compressor Pump to Receiver Tank
The high-temperature discharge tube connects the pump cylinder outlet directly to the tank inlet check valve. Liquid condensate begins forming instantly as hot compressed air enters this line. Manufacturer specs indicate this jumper line must consist of high-temperature braided stainless steel or rigid copper to withstand continuous operation temperatures exceeding 350°F (177°C).
2. Mapping the Moisture Separation and Air Treatment Loop
Air exits the upper coupling of the storage tank and enters the air treatment branch. The flow passes through a primary 5-micron particulate filter followed by an inline drying unit. For industrial installations, reference our detailed refrigerated air dryer wiring schematic to properly integrate automated power cycling relays. Water dropped out by the cooling process accumulates in an automatic drain solenoid assembly located at the lowest elevation of the treatment loop.
3. Analyzing Distribution Headers and Closed-Loop Main Drops
From the air treatment loop, air enters the main distribution header. A closed-loop (ring main) configuration is highly recommended over a dead-end layout because it balances airflow from two directions simultaneously. The main header pipe must pitch downward at a slope of 1:100 (1/16 inch per foot) toward a dedicated moisture drop leg. Every workstation branch must step off the top of the main header using a gooseneck fitting (top-side tee) to prevent standing pipe condensate from draining straight down into air tools.
Using smooth-bore extruded aluminum piping (such as Transair or FastPipe) significantly reduces internal surface friction compared to Schedule 40 black iron pipe, allowing for smaller pipe diameters while maintaining identical delivery velocities.
Troubleshooting Failures in Your Simple Air Compressor Setup Diagram
Pneumatic system degradation usually manifests as low operating delivery pressure, excessive pump run cycles, or liquid moisture at pneumatic actuators. Use the following diagnostic protocol to systematically identify root causes across the system structure.
Diagnostic 1: Excessive Dynamic Pressure Drop at Point of Use
If static pressure reads 120 PSI on the tank gauge but drops below 70 PSI when pulling the trigger on an impact wrench, check the differential pressure indicator on your main filter housings. A dirty 5-micron element or undersized 1/4″ quick-disconnect couplers create extreme flow restriction. Verify that air line sizing matches total run distance: use 3/4″ ID line for main runs up to 100 feet, and upgrade to 1″ ID for runs exceeding 200 feet.
Diagnostic 2: Continuous Air Leak at the Pressure Switch Unloader Valve
When the compressor shuts down at its cut-out setpoint (e.g., 175 PSI), a brief 2-second burst of air from the unloader valve is normal. If air bleeds out continuously from the switch unloader port, the main tank check valve seating surface has failed due to carbon buildup or mechanical wear. Compressed air from the receiver tank is backflowing past the check valve and venting out the unloader port. Disassemble the check valve body and clean or replace the internal Viton seal disc.
Fully depressurize the receiver tank to 0 PSI on the gauge before servicing check valves, pressure switches, or filter housings. Never attempt to unbolt or unscrew threaded fittings under pressure.
Diagnostic 3: Rapid Motor Short-Cycling
Short-cycling occurs when the motor turns ON and OFF repeatedly in short increments. Inspect the pressure switch cut-in and cut-out differential setting. If the differential gap drops below 20 PSI, recalibrate the internal range spring according to our compressor pressure switch calibration guide. Furthermore, confirm that receiver tank capacity meets the minimum standard of 4 gallons of tank storage per CFM of pump output.
Air Compressor Piping Blueprint and Configuration FAQs
Why must compressed air drop lines take off from the top of the header pipe?
Tapping drop lines from the top of the main header prevents water droplets and compressor oil pooling along the bottom of the pipe from entering tool lines. Gravitational separation keeps liquid runoff inside the main header where it drains harmlessly into vertical drain legs, ensuring dry air is supplied downstream.
What pipe material is recommended for a rigid shop air system configuration?
Extruded aluminum and Schedule 40 black iron piping are industry standards. Aluminum offers superior corrosion resistance, low friction coefficients, and modular assembly. Black iron is strong and cost-effective but prone to internal scale flaking over time if moisture control is inadequate. Schedule 40 PVC pipe must never be used for compressed air due to brittle explosive shattering risks under pressure loads.
How do I determine if my system layout requires a closed-loop ring main?
A closed-loop ring main layout is necessary whenever multiple high-CFM tools operate simultaneously at distinct locations in a shop. The ring main allows compressed air to travel along two parallel flow paths toward any point of high demand, effectively doubling line volume capacity and reducing systemic pressure drops by up to 50% compared to a single-line dead-end header.
What is the exact function of the unloader valve in the electrical schematic?
The unloader valve vents high-pressure air trapped in the pump discharge tube between the pump head and the check valve once cut-out pressure is reached. Relieving this head pressure allows the electric motor to restart during the next cycle without working against counter-torque resistance, preventing high inrush current draw and tripped motor starters.
How frequently should manual drain legs be purged in a standard shop layout?
Manual drop legs should be opened and purged at the beginning of every work shift. For high-humidity regions or production facilities running continuously, installing zero-loss electronic auto-drains is strongly recommended. Cross-reference your equipment requirements with our pneumatic tool CFM consumption chart to determine expected water condensation rates based on daily air usage.
Step-by-Step Guide to Understanding the Simple Air Compressor Setup Diagram
Identify – Identify all pneumatic components in the layout, including pump, pressure switch, tank check valve, and regulator.
Locate – Locate the main tank inlet port and thread the high-pressure check valve securely using Teflon tape.
Reference – Reference the electrical wiring configuration to connect power line cables through the pressure switch terminals to the motor.
Connect/Route – Route the copper unloader line from the pump head port directly into the pressure switch unloader fitting.
Verify – Verify pressure regulator function and check all NPT threaded joints using soapy water to ensure a leak-free system.
Troubleshoot – Troubleshoot pressure drops or continuous running by adjusting switch differential screws or replacing faulty check valves.
