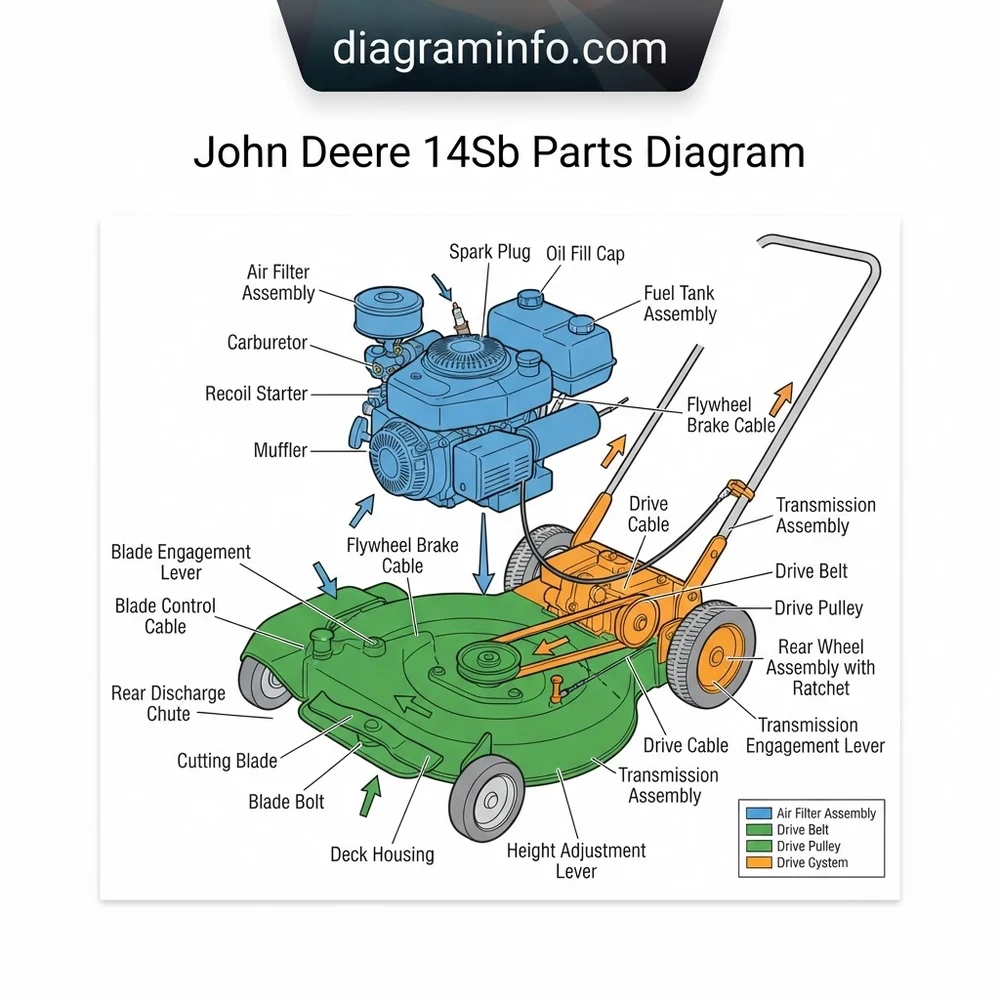

The John Deere 14SB parts diagram illustrates the exploded view layout of the Kawasaki FC150V engine, 5-speed transmission system, Blade Brake Clutch (BBC) assembly, and 21-inch aluminum deck structure. It maps exact component configuration, OEM belt routing paths, cable tension setups, and hardware positioning for precise disassembly and repair.
📌 Key Takeaways
- The 14SB features a 5-speed gear drive system powered by a 4.5 HP Kawasaki FC150V engine.
- The Blade Brake Clutch (BBC) component layout isolates blade engagement from engine operation for safety.
- Blade bolt torque specification requires strictly 55 ft-lbs (75 Nm) during deck assembly maintenance.
- Worn drive traction cables and frayed drive belts represent the most frequent drive system failure points.
- Complex transmission internal gear rebuilding requires specialized tools, while belt and cable swaps are suitable for DIY.
The John Deere 14SB remains one of the most engineered commercial-grade walk-behind mowers produced, operating on a heavy-duty 21-inch cast aluminum deck powered by a 4.5-horsepower Kawasaki FC150V engine. Key to servicing and maintaining this machinery is a comprehensive understanding of the john deere 14sb parts diagram. For power equipment technicians and experienced mechanics, navigating the exploded views of the mechanical Blade Brake Clutch (BBC), the 5-speed gear-driven transmission, and the engine control linkage is crucial for precision overhaul and accurate component identification. Equipment schematics reveal not only individual replacement numbers, but also critical assembly stack-ups, fastener orientation, and structural relationship details across different production series years.
John Deere 14SB Parts Diagram: Primary Component Identification
Analyzing the complete john deere 14sb parts diagram requires breaking down the machine into its core sub-assemblies. The structural frame revolves around a high-strength aluminum die-cast deck, which eliminates rust issues common to stamped steel units but requires specific torque values on all threaded mounting points to prevent thread stripping.
Recommended Best Deal Products
Kawasaki FC150V Engine and Fuel System Assembly
The power supply relies on the overhead valve (OHV) 153cc Kawasaki FC150V engine. The schematic layout details the crankcase, flywheel, governor assembly, and external carburetion linkage. According to OEM specifications, the engine utilizes a pressure-lubricated oil system on select revisions, with an external oil filter (Part No. AM107423). The parts diagram reveals the governor spring connections and throttle cable routing to the control plate. Maintaining correct linkage orientation is critical; improper spring placement causes hunting, surging, or failure to maintain the nominal operating engine speed of 3,200 RPM under load.
Mechanical Blade Brake Clutch (BBC) Configuration
Unlike direct-drive mowers where the blade bolt directly threads into the crankshaft extension, the 14SB utilizes an independent mechanical Blade Brake Clutch (BBC) system. As detailed in the standard John Deere 21-inch deck height adjustment schematic, this assembly permits the cutting blade to stop within three seconds of releasing the bail handle while the Kawasaki engine continues to idle. The diagram breakdown includes the top drive pulley, lower flywheel pad, clutch pack (Part No. AM122802), heavy-duty release spring, and center retaining bolt (Part No. 19M7402, M10x45). Proper sequencing of the thrust washers and Belleville cone washers inside this stack-up is vital to prevent severe vibration or clutch slippage.
5-Speed Transmission and Wheel Drive System Layout
Self-propelled operation is handled by a fully enclosed 5-speed mechanical gear transmission mounted at the rear of the aluminum deck. The blueprint illustrates an internal shift fork, bevel gear drive, selector shaft, and external drive pinion gears (Part No. M78380). The pinion gears engage directly with the internal teeth of the rear drive wheels (Part No. AM115139). Power flows from the engine shaft upper pulley down to the transmission input pulley via a high-traction V-belt (Part No. M111536). The exploded schematic highlights key failure points, including the drive keyways, tensioner arm pivot bushings, and wheel ratcheting pawl assemblies responsible for differential action during sharp turns.
Cast Aluminum Deck Structure and Blade Mounting
The 21-inch deck housing functions as the structural chassis, featuring integrated height adjuster quadrants at all four wheel stations. The blade adapter stack mounts beneath the BBC friction disk, securing the standard high-lift blade (Part No. AM102401). Manufacturer specs indicate that the mounting hardware consists of a specialized heavy-duty blade washer and a 3/8-inch UNF high-tensile bolt. Inspecting the deck blueprint aids in identifying missing discharge chute baffle hardware, rear mulch plug brackets, and lower deck reinforcement plates essential for clean bagging and mulching performance.
Engine Spec: Kawasaki FC150V-AS00/BS00 4-Stroke OHV | Spark Plug Gap: 0.028–0.030 in (0.7–0.8 mm) | BBC Center Bolt Torque: 38–42 lb-ft (51–57 Nm) | Blade Center Bolt Torque: 55 lb-ft (75 Nm) | Crankshaft Bolt Thread: M10 x 1.25 metric fine.
Recommended Best Deal Products
How to Read the John Deere 14SB Schematic and Blueprint Layout
Interpreting a complex equipment schematic demands a systematic approach to callout lines, item numbers, and sub-assembly index trees. In the standard john deere 14sb parts diagram, solid leader lines point directly to individual line items, while dashed lines delineate sub-assemblies that can be ordered as complete factory kits versus individual hardware components.
Decoding Index Numbers and Callout Legends
Each component on the blueprint corresponds to an index number matched to a master parts table. When reviewing these callout tables, note the distinction between basic fasteners and custom engineered parts. For example, a standard bolt may list standard dimensions (e.g., 5/16-18 x 3/4 in.), whereas proprietary items such as the clutch control cable (Part No. AM118816) refer directly to unique OEM stock numbers. Pay strict attention to index numbers enclosed in brackets; these usually indicate parts contained within a complete service kit, such as the full transmission overhaul seal kit.
Tracing Mechanical Drive Cable Assemblies
Understanding cable routing requires following the control system schematic from the upper handle down to the deck actuators. The 14SB utilizes three primary mechanical cables:
- Zone Control / Engine Stop Cable: Connects upper bail arm to ignition kill switch and ground circuit.
- Blade Brake Clutch Cable: Applies tension to the BBC engagement lever arm against high-rate internal springs.
- Ground Speed Selector Cable: Modulates the shift arm positioning on the 5-speed transmission housing top cover.
Tracing these cables on the diagram reveals correct anchor clip locations, cable guide routing hooks, and spring terminal attachment points. Misrouting any cable on the wrong side of the handle frame will result in severe binding, premature cable sleeve failure, or incomplete BBC disengagement.
Before performing diagnostic checks or maintenance on the Blade Brake Clutch assembly, disconnect the spark plug wire and secure it away from the terminal. The BBC return spring is held under high tension; use dedicated spring pullers during disassembly to prevent mechanical recoil injuries.
Identifying Serial Number Break Points and Production Revisions
John Deere manufactured the 14SB over several production runs with notable engineering revisions. When reviewing the parts manual diagram, verify your machine’s unit serial number against the callout note (e.g., “-120000” indicating up to serial number 120,000, or “120001-” indicating production after that split). Major design revisions occurred in the transmission input shaft sealing arrangement, lower handle mounting brackets, and rear wheel hub bearings. Cross-referencing serial break points prevents ordering incompatible generation hardware.
Diagnosing Failures Using the John Deere 14SB Parts Diagram
Exploded view schematics act as powerful diagnostic tools when troubleshooting mechanical drive malfunctions, engine execution issues, or deck engagement failures. Isolating worn components relative to surrounding structural parts streamlines field repairs and prevents unnecessary assembly teardowns.
Drive Belt Slippage and Pulley Misalignment
If the 14SB loses ground drive power under heavy load or fails to propel up inclines, refer to the drive train system configuration diagram. The drive belt (Part No. M111536) routes from the crank shaft pulley over a spring-loaded idler arm assembly down to the rear transmission pulley. Check these specific areas using the schematic as a blueprint guide:
- Idler Arm Tension Spring: Inspect for stretched or broken coil ends (Item reference on deck sheet).
- Drive Pulley Keyway: Verify that the stepped drive key on the transmission input shaft has not sheared.
- Guide Bracket Alignment: Ensure metal belt keepers are aligned within 1/16 to 1/8 inch off the belt outer surface to prevent the belt from jumping off during clutch release.
Blade Brake Clutch Engagement and Pad Wear Breakdown
A blade that continues to rotate after releasing the control bail, or a blade that fails to spin up to full RPM when engaged, indicates a failure within the BBC assembly layout. The mechanical brake disc relies on a specific friction pad thickness. When diagnosing BBC issues, cross-reference the explosion view with these failure points:
If the clutch slips under load, inspect the driven friction plate for oil contamination or excessive groove wear. If the blade fails to stop within three seconds, check the secondary brake shoes inside the housing for friction material delamination. Always consult a dedicated 5-speed lawn mower transmission service manual alongside engine drawings when diagnosing complex combined driveline faults.
When reassembling the BBC assembly onto the Kawasaki engine crank stub, coat the crankshaft extension with high-temperature anti-seize compound. Never grease or lube the friction plate surface. Torque the main center bolt to 40 lb-ft using a calibrated torque wrench to ensure proper clutch pack pre-load.
Transmission Gear Disengagement and Shift Linkage Binding
When the 5-speed transmission locks in a single gear, jumps out of drive, or refuses to roll backward freely, consult the shift linkage and rear axle structure overview. Common root causes located on the diagram include worn wheel drive ratchet keys (located inside the drive pinion gears), broken shift detent springs inside the gear housing, or severe adjustment slop in the shift control cable end fittings.
John Deere 14SB Critical System Specifications and Part Numbers
To assist during mechanical maintenance, the standard component specifications and core service part numbers for the John Deere 14SB walk-behind mower are compiled in the reference table below.
| Sub-System / Component | OEM Part Number | Engineering Spec / Torque Value |
|---|---|---|
| High-Lift Mower Blade | AM102401 / M121019 | 21-inch steel, 55 lb-ft (75 Nm) bolt torque |
| Blade Brake Clutch Assembly | AM122802 / AM107871 | Mechanical disc clutch, 38–42 lb-ft center bolt |
| Transmission Traction V-Belt | M111536 | 3/8 in. x 33.8 in. raw-edge fabric wrapped |
| Kawasaki Oil Filter | AM107423 (49065-2078) | 3/4-16 UNF thread, 2.3 in. outer diameter |
| Engine Air Filter Combo | M97211 (Filter) / M70128 (Pre-filter) | Dual-element foam/pleated paper core |
| Rear Drive Wheel Assembly | AM115139 | 8×2 in. rubber tread with internal gear ring |
| Transmission Cable | AM118816 | Adjustable conduit with spring retention end |
When working on throttle bodies and internal fuel delivery components, technician reviews of the Kawasaki FC150V carburetor rebuild guide should be paired with the physical parts list to verify main jet sizing (typically #62 or #65 depending on elevation) and float level settings (11mm height from housing face).
John Deere 14SB Parts Diagram Frequently Asked Questions
Where can I locate the exact serial number on my John Deere 14SB?
The unit serial number tag on the John Deere 14SB walk-behind mower is stamped on a silver barcode decal located at the rear left section of the cast aluminum deck, near the left rear height adjuster bracket. The engine model and specification numbers (e.g., FC150V-ES00) are stamped separately on a metallic plate fixed to the engine crankcase near the oil drain plug. You must have both numbers ready when cross-referencing specific parts diagrams, as transmission and electrical components depend on mower deck serial breaks, whereas internal engine valves depend on the Kawasaki code.
What are the critical torque values for the John Deere 14SB blade bolt?
The primary center blade retaining bolt requires a torque spec of 55 lb-ft (75 Nm). If your 14SB is equipped with the Blade Brake Clutch system, the internal BBC retaining bolt mounting directly up into the engine crankshaft stub requires 38 to 42 lb-ft (51 to 57 Nm). Never use an impact wrench to tighten the BBC center bolt without verifying final torque using a calibrated hand torque wrench, as over-torquing can deform the internal Belleville spring washers and cause total clutch failure or crankshaft damage.
How do I identify early vs late production variations in the 14SB drive system?
Early production models (typically below serial number 120,000) feature a metal-bodied 5-speed transmission housing with grease fittings and a specific shift selector arm length. Late production units (serial numbers 120,001 and above) utilize a modified transmission casing with upgraded input shaft lip seals, synthetic fluid packings, and updated drive belt tensioner arm geometry. Consulting the john deere 14sb parts diagram for rear axle assemblies will highlight structural differences in wheel hub ratchets, axle snap rings, and drive pinion cover plates between these two build generations.
Why does my 14SB Blade Brake Clutch fail to engage properly?
Failure of the Blade Brake Clutch to engage or stay locked under load usually stems from three main mechanical causes shown on the parts breakdown: excessive stretch in the BBC engagement control cable (Part No. AM118816), oil leakage down the crankshaft seal contaminating the friction disc, or worn internal friction clutch pads (Part No. AM122802). Additionally, check the large outer recoil spring attached to the BBC control arm. If this spring loses tension or breaks, the clutch arms will not exert enough mechanical leverage to hold the friction disk against the engine flywheel pulley.
Which drive belt part number matches the 5-speed transmission schematic?
The official OEM part number for the 5-speed self-propelled drive system V-belt on the John Deere 14SB is M111536. This belt is manufactured to precise raw-edge depth specs matching the engine lower driver pulley and transmission input pulley dimensions. Installing an aftermarket standard fraction-size fractional horsepower (FHP) belt often causes slippage or shifting delays, as off-spec belt thickness prevents complete release when the drive bail handle is disengaged.
Step-by-Step Guide to Understanding the John Deere 14Sb Parts Diagram
Identify – Determine the specific sub-system requiring maintenance, such as the BBC clutch or transmission system.
Locate – Find the corresponding section layout on the John Deere 14SB parts diagram to trace hardware ordering.
Reference – Match part index numbers to OEM reference codes to secure exact replacement components.
Connect/Route – Route control cables, belts, and springs precisely along the path outlined in the structural diagram.
Verify – Set blade bolt torque to 55 ft-lbs and check safety clutch operation prior to engine startup.
Troubleshoot – Adjust cable tension adjusters if drive engagement or blade stopping delay persists after assembly.
