4-Conductor Humbucker Coil Split Wiring Diagram: 2026 Setup
A humbucker coil split wiring diagram routes a 4-conductor pickup’s series link to ground via a DPDT switch. Connect the north finish and south finish wires together to the center switch pin, send the bottom pin to the pot ground wire casing, and route the north start hot wire to volume.
📌 Key Takeaways
- 4-conductor humbuckers require uniting the series link wires (e.g., red and white for Seymour Duncan) to short one coil to ground.
- Color coding varies by manufacturer: Seymour Duncan uses black for hot wire, while DiMarzio uses red as the primary hot lead.
- Bare shield wires and south start wires must always solder directly to the back of a potentiometer for ground wire stability.
- Phase issues occur when hot wire and ground wire pin assignment polarity are accidentally reversed between neck and bridge pickups.
- Use a 250k or 500k push-pull DPDT potentiometer to enable coil splitting without drilling additional switch holes in the body.
Splitting a four-conductor humbucking pickup isolates a single magnetic coil, converting standard dual-coil series output into a focused single-coil tonal character. Executing this circuit modification requires precise terminal pin assignments on a Double-Pole Double-Throw (DPDT) switch or push-pull potentiometer, clear mapping of manufacturer wire color codes, and verified ground wire continuity. Distinguishing the series junction (composed of the north finish and south finish internal leads) from the hot primary signal wire and chassis ground wire prevents out-of-phase audio cancelations, unwanted 60Hz mains hum, and high-impedance ground loops. This technical guide outlines exact pin connections, terminal lug assignments, and electrical signal routing across major pickup manufacturers to ensure flawless circuit integration.

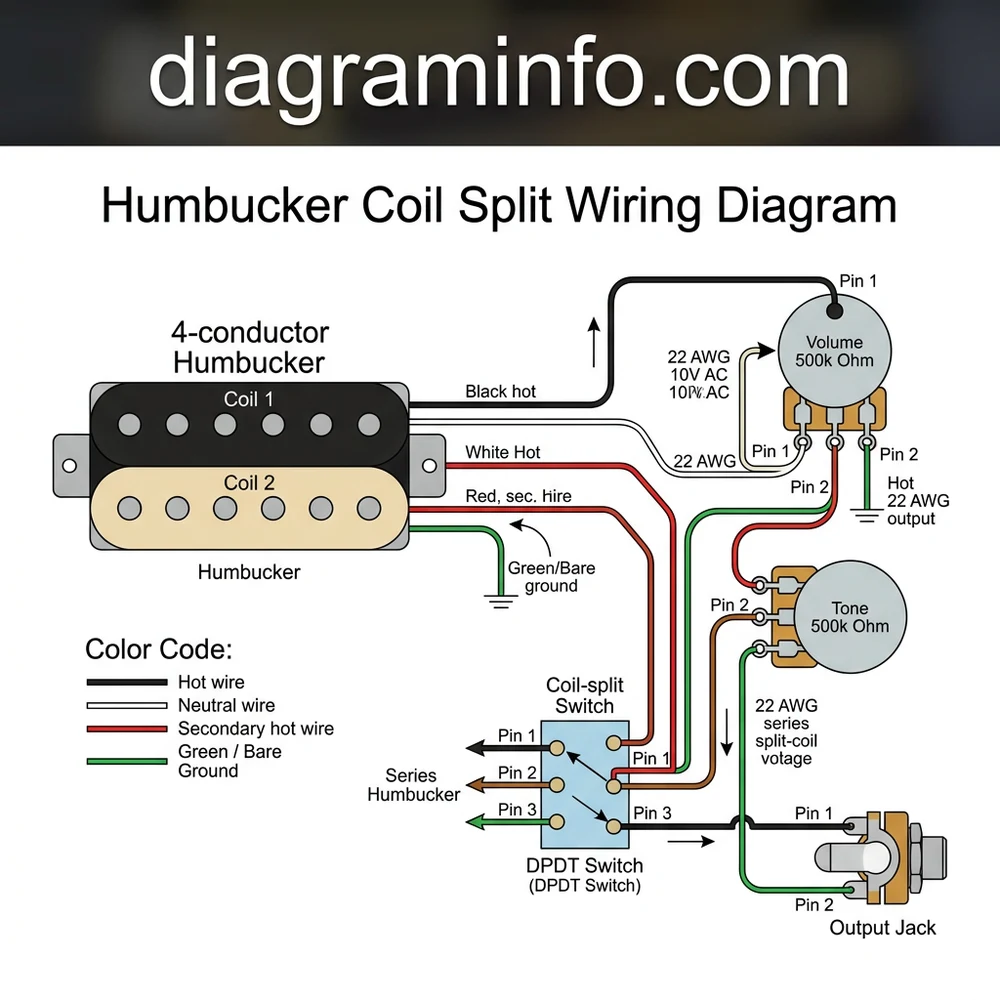

[DIAGRAM_PLACEHOLDER: Complete Humbucker Coil Split Wiring Diagram showing 4-conductor pickup connected to a DPDT push-pull potentiometer, detailing north start (hot wire), north finish, south finish, south start, and bare shield ground wire routing to switch terminal lugs]
Recommended Best Deal Products
Standard Humbucker Wire Color Code and Pin Assignment Matrix
Four-conductor humbucking pickups utilize two distinct internal magnetic coils: the North (Slug) coil and the South (Screw) coil. Each coil contains a “Start” wire (the inner winding wire closest to the magnetic core) and a “Finish” wire (the outer winding wire). To run the pickup in standard series operation, the finish wires of both coils are soldered together to create a series junction, while signal enters through one coil’s start lead and exits through the second coil’s start lead to ground. Because manufacturers do not adhere to a universal color standardization model, referencing manufacturer-specific wire color codes is mandatory prior to heating a soldering iron.
Connecting wires without verifying internal coil winding polarity leads to immediate phase cancellation or dead signal states. The table below lists the standardized pin assignment and conductor color matrix across primary pickup manufacturers. Standard internal wiring uses 28 AWG stranded copper lead conductors inside the pickup casing, routed out through a 22 AWG shielded multi-conductor cable harness.
| Manufacturer | North Start (Hot Signal) | North Finish (Series Pair) | South Finish (Series Pair) | South Start (Ground/Earth) | Chassis Shield Wire |
|---|---|---|---|---|---|
| Seymour Duncan / Duncan Designed | Black | White | Red | Green | Bare Silver Wire |
| DiMarzio / Ibanez OEM | Red | Black | White | Green | Bare Silver Wire |
| Gibson (4-Conductor Lead) | Black | White | Red | Green | Bare Silver Wire |
| Fender (Atomic / Enforcer) | Green | White | Black | Red | Bare Silver Wire |
| Bare Knuckle Pickups | Black | White | Red | Green | Bare Silver Wire |
• Full Series Resistance: 7.5 kΩ to 16.5 kΩ DC Resistance (DCR)
• Split Single-Coil Resistance: 3.75 kΩ to 8.25 kΩ DCR (exact 50% drop of series value)
• Internal Wire Gauge: 28 AWG 4-conductor insulated lead wire; 22 AWG outer braided shield
• AC Signal Output Voltage: 100 mV to 500 mV RMS under standard string strumming forces
• Potentiometer Load Spec: 500kΩ Audio Taper Potentiometer (500k retains high-frequency single-coil clarity)
Step-by-Step Humbucker Coil Split Wiring Diagram Guide
Executing a coil split circuit involves modifying the humbucker’s series junction wire routing through a 6-terminal DPDT switch (commonly mounted on the bottom block of a push-pull potentiometer). When the switch is in the DOWN position (normal mode), the series junction remains floating, allowing current to flow continuously through both coils in series. When pulled UP (split mode), the DPDT switch shorts the series junction wire directly to the ground wire plane, diverting the South coil to ground and leaving only the North coil active.
Step 1: Potentiometer Case Ground Bus Preparation
Clean the back casing of the volume potentiometer using 600-grit sandpaper to remove anti-corrosion varnish. Using a 35-watt soldering iron, flow a smooth pool of 63/37 rosin-core solder onto the scrubbed chassis area. Solder a 22 AWG solid tinned copper ground wire from Terminal Lug 3 (the rightmost lug when looking at the back of the pot with lugs pointing down) directly to the pot casing. Bend Lug 3 flush against the casing prior to soldering to establish a permanent ground connection.
Recommended Best Deal Products
Step 2: Wire the North Start Hot Wire to the Input Lug
Identify the North Start lead wire (e.g., Black wire on Seymour Duncan, Red wire on DiMarzio). Strip 1/4 inch of insulation, twist the stranded copper end tightly, and coat it with solder. Thread this hot wire into Terminal Lug 1 (leftmost lug) of the primary volume potentiometer. Solder the connection securely. This lead acts as the primary signal hot wire regardless of whether the pickup operates in full series or single-coil split mode.
Step 3: Connect the Series Junction Wire Pair to the DPDT Switch
Locate the North Finish and South Finish conductors (e.g., White and Red wires on Seymour Duncan). Strip and twist both stranded wires together into a single unified jumper. Insert this combined wire bundle into Pin C1 (Center Terminal Lug 1) on the DPDT terminal block of your push-pull potentiometer. Apply heat to the pin terminal block and flow solder until the joint completely saturates both conductors and the pin loop.
Step 4: Establish the DPDT Ground Isolation Jump
Cut a 1-inch piece of 22 AWG insulated jumper wire. Strip both ends. Solder one end of this wire to Pin 1 (Top Terminal Lug above C1) on the DPDT switch block. Solder the opposing end directly to the grounded metal casing of the volume potentiometer. When the shaft of the push-pull pot is pulled UP, internal metal contact fingers connect Pin C1 to Pin 1, instantly shorting the series junction to ground and bypassing the secondary screw coil.
Step 5: Terminate South Start and Chassis Shield Ground Wires
Gather the remaining South Start wire (e.g., Green wire on Seymour Duncan) and the bare silver shield wire. Strip the South Start wire to reveal fresh copper. Twist the bare shield wire and the South Start conductor together tightly. Solder both of these wires directly to the back of the volume potentiometer casing ground bus established in Step 1. This guarantees that the pickup metal frame remains shielded against ambient electromagnetic interference (EMI) at all times.
Standard DPDT switch blocks feature six terminal pins arranged in two parallel vertical columns of three (Pin 1, C1, Pin 2 on the left; Pin 3, C2, Pin 4 on the right). Always orient the potentiometer with the switch pins facing you to ensure correct pin identification. Center pins (C1 and C2) are common poles. Connections made to top pins (Pin 1 and Pin 3) engage when the pot shaft is pulled UP. Bottom pins engage when pushed DOWN.
Electrical Signal Flow and Voltage Dynamics in Split Circuits
Understanding signal flow through a coil split humbucker circuit requires analyzing alternating current (AC) signal pathways generated by vibrating guitar strings breaking magnetic flux lines. In standard humbucking mode, generated AC audio signal enters via the North Start hot wire, flows through the North coil, crosses the series junction (North Finish to South Finish connection), travels through the South coil, and completes the AC circuit path through the South Start ground wire into the common circuit earth point.
When the DPDT switch is pulled UP, the electrical path shifts. Because electrical current follows the path of least resistance, routing the series junction directly to ground via Pin C1 and Pin 1 creates an immediate electrical bypass around the South coil. The AC signal generated in the North coil enters through the North Start hot wire, passes through the North coil winding, and immediately flows down to ground at the switch junction pin block without traversing the South coil. The South coil becomes electrically passive, leaving the North (slug) coil working independently as a true single-coil pickup.
This structural change alters key electrical specifications across the instrument circuit:
- DC Resistance (DCR): Dropping from a standard series resistance of ~14.0 kΩ down to ~7.0 kΩ instantly alters circuit load parameters. Peak resonant frequency shifts higher, yielding enhanced treble attack and lower mid-range congestion.
- Signal Output Voltage: AC peak-to-peak output drops by approximately 50% (a -6dB attenuation in voltage amplitude). Peak output decreases from ~350 mV RMS down to ~175 mV RMS under standard picking dynamics.
- Wire Gauge & Resistance Losses: Because 28 AWG conductor wire possesses higher internal resistance (~65 Ω per 1,000 feet) than standard 22 AWG hookup wire (~16 Ω per 1,000 feet), keeping pickup conductor leads trimmed as short as practical minimizes stray capacitance and prevents signal treble loss.
Troubleshooting Common Humbucker Coil Split Wiring Diagram Errors
Excessive soldering iron contact on the back casing of push-pull potentiometers will destroy internal plastic components and burn out the carbon element track. Limit soldering iron tip contact on pot casings to under 3 seconds per joint using a high-wattage iron (35W–50W) with a wide chisel tip to transfer heat rapidly without soaking the casing.
Wiring errors during coil split modifications manifest in distinct electrical performance failures. Mechanics and technicians must use a Digital Multimeter (DMM) set to the Resistance (20k Ω scale) and DC Millivolt settings to isolate faults quickly.
1. Out-of-Phase Output in Split Mode
Symptom: The pickup sounds full in humbucking mode, but when combined with a middle or neck pickup while split, the audio becomes extremely thin, hollow, nasal, and low in volume.
Root Cause: The active single coil’s magnetic polarity and electrical phase conflict with the adjacent pickup.
Fix: Reverse the coil isolation logic. Instead of shorting the series junction to ground (which isolates the North coil), wire the series junction to the hot primary output lug to isolate the South coil instead. Alternatively, swap the North Start and South Start connections at the switch and ground terminals.
2. Total Signal Loss (Dead Silence) When Switch Is Pulled UP
Symptom: Standard humbucking mode works normally, but pulling the push-pull switch to split mode cuts off audio completely.
Root Cause: Misidentifying the conductor wire color code, resulting in the primary Hot Wire being connected to the series junction pin rather than the North Start lead.
Fix: Disconnect all pickup leads. Measure resistance across lead pairs using a multimeter. Identify the North coil pair (resistance across North Start and North Finish should read ~3.5kΩ–8kΩ). Re-verify manufacturer color charts and re-solder the series finish pair to Pin C1, ensuring the dedicated hot lead routes exclusively to Pot Lug 1.
3. Persistent Intense 60Hz Mains Hum and Buzzing
Symptom: Loud buzzing noise occurs when touching the instrument strings or volume pot knobs, remaining severe even when shielding is present.
Root Cause: Unattached or floating bare silver shield wire, or a cold solder joint on the pot chassis ground bus.
Fix: Ensure the bare silver outer shield wire is braided together with the South Start wire (or ground lead) and soldered firmly to the pot casing. Test continuity with a multimeter between the metal pickup baseplate and the output jack ground sleeve; reading must be less than 0.5 Ohms.
4. Partial Coil Shorting / Volume Drop in Full Series Mode
Symptom: Humbucker output sounds thin and low in volume even when the push-pull pot is pushed DOWN into series mode.
Root Cause: Solder bridge on the DPDT switch between Center Pin C1 and Top Pin 1, or exposed bare wire strands touching the grounded metal pot casing.
Fix: Inspect the DPDT switch terminal block under bright light and magnification. Clean away excess solder using desoldering braid. Wrap exposed series junction solder joints with heat-shrink tubing to prevent accidental contact with the grounded shielding cavity wall or pot casing.
Humbucker Coil Split Wiring Diagram Technical FAQs
What is the technical difference between coil splitting and coil tapping?
Coil splitting isolates and completely turns off one of the two coils in a dual-coil humbucker, leaving a single coil operational. Coil tapping applies to specially built single-coil or humbucking pickups that feature an intermediate wire lead inserted halfway along a single coil’s internal copper wire winding. Tapping takes a signal tap off a lower turn count along the winding to reduce output and DC resistance without disabling a physical coil structure entirely.
How does coil split wiring affect pickup output voltage and overall circuit resistance?
Splitting a humbucker reduces total DC resistance by exactly 50% because current traverses only one set of coil windings rather than two coils in series. Output AC voltage drops by roughly half (-6dB gain reduction). For example, a humbucker measuring 14.0 kΩ DC resistance in standard series mode will measure 7.0 kΩ in split mode. RMS AC signal voltage output drops proportionally from approximately 300 mV down to 150 mV RMS under identical string displacement.
Can a vintage 2-conductor braided metal humbucker be rewired for a coil split diagram?
A vintage-style 2-conductor humbucker cannot be split without disassembling the pickup assembly. Standard 2-conductor leads internalize the series junction connection inside the pickup tape wrapping where the North finish and South finish wires are soldered together permanently. To enable coil splitting, a technician must carefully peel back the protective tape, locate the buried series junction wire splice, solder two separate lead wires to the junction, and re-lead the unit as a modern 4-conductor harness wrapped in 28 AWG wire.
Which DPDT switch terminal pin assignment shorts the slug coil versus the screw coil?
To isolate the North (Slug) coil, connect the series junction pair to DPDT Pin C1 and connect DPDT Pin 1 to Ground; when pulled UP, the South (Screw) coil shorts to ground. To isolate the South (Screw) coil instead, connect the series junction pair to DPDT Pin C1 and connect DPDT Pin 1 to the Primary Hot Output (Potentiometer Lug 1); when pulled UP, this shorts the North (Slug) coil out of the active circuit, routing signal exclusively through the South coil.
Why is a 500k Ohm potentiometer recommended over a 250k Ohm pot for split humbuckers?
Standard humbuckers require a 500kΩ potentiometer load to prevent excessive high-frequency signal bleed to ground through the control network. A 250kΩ pot loads down the pickup, attenuating upper-midrange frequencies and causing the output to sound muddy. While single coils typically run on 250k pots to tame bright treble response, retaining a 500k pot in a coil-split circuit preserves natural single-coil clarity and treble sparkle when operating in split mode, while maintaining full fidelity when switched back to humbucker series mode.
