Jayco Pop Up Camper Parts Diagram: Component Breakdown 2026
A pop up camper parts diagram maps the mechanical lift system (Goshen or L&W winch, pulleys, 3/16-inch stainless steel cables), canvas bed rail channels, and 12-volt DC converter wiring system. It illustrates mechanical linkages under the chassis floor and telescoping lifter posts at each corner for precise alignment during maintenance or cable replacement.
📌 Key Takeaways
- Lift system cables typically utilize 3/16-inch flexible aircraft-grade galvanized or stainless steel wire.
- Lifter post springs require heavy-gauge marine grease every season to prevent bind-up and corrosion.
- Always maintain 12V DC power off and relieve cable tension before performing winch mechanism repairs.
- Main cable snapping on single-cable Goshen systems drops all four corners simultaneously.
- Seek professional service if telescoping lift post tubes are bent or floor mounting plates show rot.

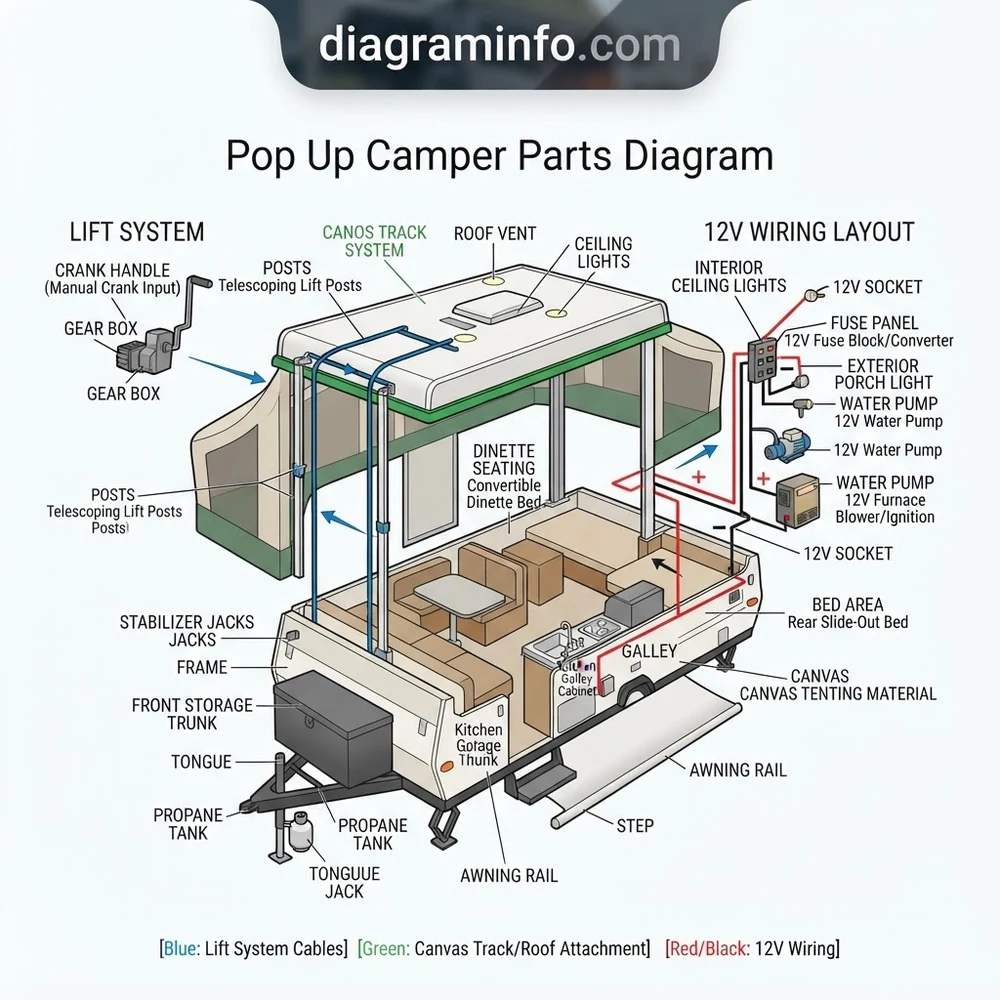

Understanding a comprehensive pop up camper parts diagram is essential for maintaining, troubleshooting, and overhauling expandable recreational vehicles. Modern and vintage pop-up trailers rely on an integrated matrix of mechanical, electrical, and structural systems working in precise synchronization. From the primary chassis outriggers to the telescoping roof lift assembly, interpreting these technical schematics allows mechanics and advanced DIYers to isolate structural stress points, diagnose mechanical bind, and order exact replacement components according to original equipment manufacturer (OEM) specifications. As shown in the diagram below, a complete system overview establishes the spatial configuration required for precision repairs.
Anatomy of a Pop Up Camper Parts Diagram: Core Structural Systems
An accurate pop up camper parts diagram divides the vehicle layout into distinct functional sub-assemblies: the chassis/frame, the lift mechanism, the body/shell structure, and the utility distribution systems. Structural integrity begins at the boxed or C-channel steel frame, designed to support both static living loads and dynamic towing stresses. Sub-frame components include outriggers, leaf spring hangers, brake backing plates, and the tongue coupler assembly.
The central mechanical focus on any blueprint is the roof lift mechanism. Manufacturers historically utilized variations such as the Goshen Stamping system (single cable push-spring), the Coleman/Fleetwood Whiffletree drive screw, or the L&W eight-pulley internal system. Identifying your exact configuration within the schematic ensures correct cable routing through frame-mounted pulley brackets, master curved tracks, and telescoping corner lifter posts. For electrical diagnostics, technicians should cross-reference the power layout with 12-volt DC distribution block wire color codes to trace circuit paths through the lower floor channel up into the canvas roof sleeves.
| Sub-System Component | OEM Specification / Ref No. | Operational Function & Parameters |
|---|---|---|
| Winch Assembly (Manual/Power) | Dutton-Lainson / Carefree 12V | 1,200 lb – 1,500 lb load rating; incorporates automatic friction brake or ratchet pawl. |
| Main Drive Cable | 7×19 Galvanized Steel (1/8″ or 3/16″) | Transfers linear force from drive screw/winch to master pulley plates; breaking strength 2,000+ lbs. |
| Lifter Springs (Push Rods) | Goshen Series 1473 / 2673 Springs | Flexible oil-tempered steel coil rods that push telescoping post stages upward within guide tubes. |
| Corner Lift Posts | 3-Stage or 4-Stage Stainless Steel | Nested square tubing providing vertical roof extension; height range 40″ – 48″ fully extended. |
| Bed Extension Slides | Heavy-Duty Ball-Bearing Channels | Extends bunk ends laterally; dynamic rating up to 1,000 lbs combined static capacity. |
When reviewing pre-2000 Coleman/Fleetwood schematics versus post-2010 Forest River or Jayco blueprints, note that Coleman Whiffletree drives use a continuous threaded drive screw with a draw bar traveler, requiring high-pressure grease lubrication, whereas Goshen systems feature a single main cable running through greaseable floor-mounted master tubes.
How to Read the Pop Up Camper Parts Diagram for Lift System Rebuilds
Rebuilding a damaged pop-up trailer lift assembly requires executing a strict sequential workflow based on schematic callouts. Before beginning mechanical disassembly, secure the roof structure at all four corners using safety props cut to match OEM roof-height specifications.
Step 1: Identify the Drive Mechanism and Primary Cable Anchor Points
Refer to the lower-chassis section of your pop up camper parts diagram. Locate the manual crank drive or 12V DC power winch. Trace the primary drive cable from the winch drum through the frame cross-members to the equalizer plate or Whiffletree draw bar. Check for drive bolt shear pins, retaining rings, and grease zerk locations indicated on the blueprint.
Step 2: Map Cable Routing through Pulleys and Guide Tubes
Follow the directional arrows on the schematic illustrating cable pathing. In multi-cable systems (such as L&W or Jayco internal configurations), four separate 1/8-inch aircraft cables travel from corner turnbuckles over frame-mounted corner pulleys down to the master winch plate. Verify that every pulley pin and bronze bushing aligns with the structural reference numbers listed in the layout legend.
Step 3: Inspect and Align Telescoping Lift Posts
Consult the exploded view of the telescoping post assembly. Verify the arrangement of the nested stainless steel stages, top mounting brackets, and lower spring tube attachments. For step-by-step replacement procedures on single-cable spring-push setups, refer to our detailed Goshen lift system cable replacement guides to verify spring tube radii and cable clamp placement.
Step 4: Execute Height Adjustment and Load Balancing
Once mechanical components are installed, use the turnbuckle adjustment callouts shown in the diagram to calibrate roof height. Adjust turnbuckles until all four roof corners measure within 1/16 inch of one another when measured from the top of the body rail to the lower edge of the roof seal extrusion.
Main cable tension must be set with the roof fully lowered to prevent strain on pulley bearings. Torque structural pulley mounting bolts to 25–30 ft-lbs. Apply NLGI Grade 2 lithium grease to Whiffletree drive screws and interior push spring guide tubes every 12 operating months or 20 lift cycles.
Diagnosing System Failures Using the Pop Up Camper Blueprint
When a pop-up roof fails to elevate uniformly or binds midway through operation, the pop up camper parts diagram serves as your primary diagnostic map. Component binding usually stems from three distinct physical issues: frayed wire rope strands jamming inside pulley sheaves, bent telescoping post stages caused by unlevel setup conditions, or dry drive tubes increasing system friction past normal limits.
Begin diagnosis by isolating the failure zone using the schematic layout. If one corner remains low while the remaining three elevate normally, trace that specific corner’s cable branch back to the master junction point. On Whiffletree or Goshen setups, a single low corner indicates a failed corner pulley bearing, a detached cable eye-bolt, or a kinked internal push rod spring. If all four corners fail to rise simultaneously, focus diagnosis on the main drive nut, motor shear pin, or primary cable connection at the winch drum.
When repairing structural frame alignment or roof perimeter track binding, ensure canvas retainers are properly disengaged. For weatherproofing specifications and rubber seal channel identification, cross-reference our guide on camper roof canvas track sealing specs to prevent water intrusion into structural wood core panels.
High-tension spring and cable hazard: Lift system components operate under severe mechanical tension (300+ lbs static load per corner). Never remove pulley retaining bolts or cable turnbuckles without supporting the roof weight on 2×4 lumber safety struts positioned securely at all four corners.
Pop Up Camper Parts Diagram Technical Questions Answered
What lift system configuration is used in Coleman and Fleetwood campers?
Coleman and Fleetwood pop-up trailers manufactured from 1968 through 2011 primarily utilize the proprietary Whiffletree lift mechanism. This system uses a center-mounted, continuous-threaded drive screw located inside a protective steel frame channel under the floor. A heavy-duty draw bar travels along the screw, pulling four individual stainless steel cables simultaneously via corner pulleys directly to the roof posts.
How do I determine exact cable tensions using the pop up camper layout?
Cable tension is evaluated by measuring corner elevation uniformity rather than direct strand tension. Consult your blueprint for maximum roof elevation limits (typically 26 to 28 inches above the body bed rail depending on canvas height). Raise the roof completely, install safety support struts, and measure all four corners. Adjust individual corner turnbuckles or eye-bolts until diagonal measurements are identical within 0.125 inches.
Where are the primary electrical junction boxes located on pop up camper schematics?
In standard camper wiring layouts, the primary 12V DC junction box is located on the interior surface of the front A-frame tongue member or inside the driver-side lower front storage cabinet. This box acts as the junction point connecting the 7-way tow vehicle umbilical harness, the trailer breakaway switch, the battery bank, and the internal 30-amp converter panel.
What visual symbols indicate hydraulic vs manual winch mechanisms on a pop up camper parts diagram?
On technical blueprints, manual winches are denoted by a gear wheel schematic symbol with a manual crank shaft arrow (indicating rotational input direction) and a mechanical ratchet pawl icon. Power hydraulic systems feature fluid reservoir symbols, positive/negative motor terminal circles, hydraulic cylinder stroke directional vectors, and high-pressure fluid line callouts rated for 1,500+ PSI operating pressure.
Step-by-Step Guide to Understanding the Pop Up Camper Parts Diagram
Identify – Locate the specific pop up camper parts diagram section matching your repair area.
Locate – Find the winch box, cable pulley routes, or lifter post bases beneath the chassis.
Reference – Match part callout numbers with factory part numbers in the diagram key.
Connect/Route – Route replacement cables through floor pulleys or align canvas channel tracks accurately.
Verify – Tension lift cables evenly and test roof balance at all four telescoping corners.
Troubleshoot – Adjust winch stop limits or pulley alignment if the roof lifts unevenly.
