Bosch F00C2G2030 MAF Sensor Wiring Diagram: Pinout Guide 2026
The Bosch F00C2G2030 MAF sensor uses a 5-pin harness: Pin 1 handles the IAT temperature signal, Pin 2 provides 12V ignition power (hot wire), Pin 3 connects to chassis ground wire, Pin 4 delivers 5V ECU reference, and Pin 5 transmits the air flow signal output back to the PCM.
📌 Key Takeaways
- Pin 2 requires 12V DC battery voltage while Pin 4 operates on a regulated 5V DC reference signal.
- Pin 5 voltage output scales from 1.0V at idle up to 4.5V+ under full engine load conditions.
- Ensure terminal tension is verified; loose pin contacts cause erratic P0101 and P0102 trouble codes.
- Ground wire resistance at Pin 3 must measure strictly under 0.5 Ohms to the negative battery post.
- Clean contaminated sensor hot wires with dedicated MAF cleaner—never use brake spray or carb solvents.
Diagnosing intake air flow faults or replacing a damaged harness connector on a vehicle equipped with a Bosch F00C2G2030 mass air flow insert requires a precise understanding of the pin connections and circuit pathways. The Bosch F00C2G2030 hot-film sensor relies on stable operating voltages, clean sensor ground connections, and uncorrupted analog signal output back to the Engine Control Unit (ECU). Utilizing the correct f00c2g2030 maf sensor wiring diagram prevents costly ECM driver damage, eliminates persistent diagnostic trouble codes (DTCs) such as P0101 and P0102, and restores optimal air-fuel ratio calculations across all engine operating load ranges.
Bosch F00C2G2030 MAF Sensor Pin Assignment and Circuit Overview
The Bosch F00C2G2030 belongs to the HFM-5 (Hot-Film Air Mass Meter Type 5) family widely utilized across various European and global vehicle platforms. Unlike older vane-type meters or exposed platinum wire sensors, the hot-film design uses a micromachined sensor element housed inside a bypass duct. To measure mass air flow accurately independent of air density and ambient temperature, the internal circuitry requires three distinct power and reference inputs, a dedicated signal line, and a secondary thermistor input for intake air temperature monitoring.
According to OEM technical documentation, the standard 5-pin terminal block layout operates on a dual-voltage architecture. Pin 2 receives system operating power direct from the fuel pump relay or main ECM power relay, acting as the primary hot wire heating element supply line. Pin 4 receives a regulated 5.0-volt reference signal direct from the engine control module’s internal power supply chip. Pin 5 delivers the processed analog voltage signal back to the ECM pin, translating airflow mass into a dynamic DC voltage reading ranging from approximately 1.0 volt at engine idle to over 4.5 volts under full wide-open throttle (WOT) load conditions.
Supply Voltage (Pin 2): 11.0V – 14.5V DC nominal
Reference Voltage (Pin 4): 5.00V ± 0.05V DC regulated
Idle Signal Voltage (Pin 5): 1.00V – 1.40V DC (engine at operating temperature)
Full Load Signal Voltage (Pin 5): 4.20V – 4.70V DC
Maximum Current Draw: < 0.25 Amperes
Recommended Wire Gauge: 18 AWG (12V Supply/Ground), 20 AWG Shielded (Signal Lines)

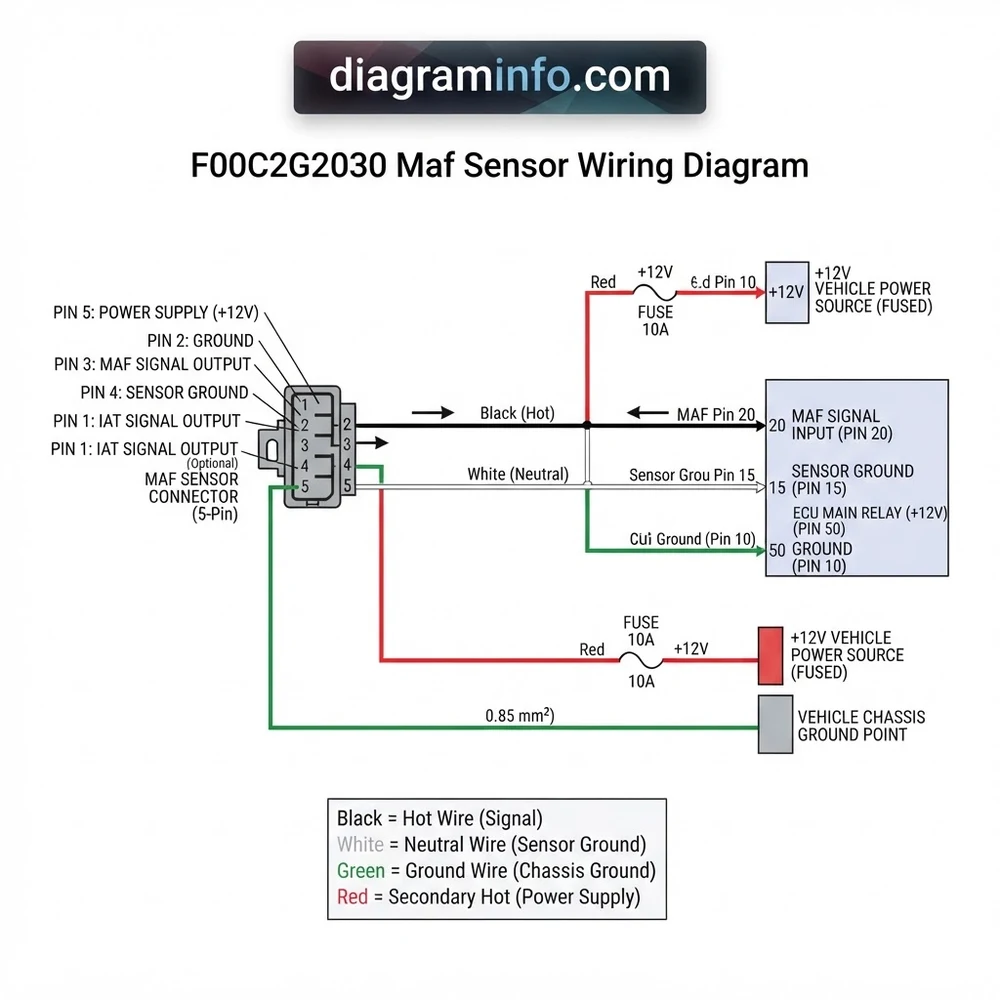

F00C2G2030 MAF Sensor Wire Color Code and Terminal Block Table
When working on customized wire harnesses, repinning factory terminal blocks, or repairing damaged engine pigtails, identifying the wire color code alongside exact terminal positions is mandatory. While color coding varies slightly depending on vehicle make and model year (e.g., Volkswagen Audi Group vs. industrial equipment installations), the mechanical pin assignment on the sealed 5-pin Bosch connector housing remains identical across all standard F00C2G2030 installations.
| Pin / Terminal ID | Standard OEM Wire Color Code | Circuit Function | Electrical Specification | Connection Point / Destination |
|---|---|---|---|---|
| Pin 1 | Violet / White | IAT Sensor Signal Output | 0.5V – 4.5V Variable DC (NTC) | ECM Intake Air Temp Input Pin |
| Pin 2 | Red / Purple | Hot Wire Power Supply | 12V Nominal Battery Voltage | Main Relay / Fuse (10A-15A) |
| Pin 3 | Brown | Ground Wire (Sensor Low) | 0.00V DC (< 0.05V Drop) | ECU Signal Ground / Engine Block |
| Pin 4 | Green / Yellow | 5V Reference Voltage Input | 5.00V Regulated DC | ECU Sensor Reference Power Pin |
| Pin 5 | Yellow or Green | MAF Analog Signal Output | 1.0V Idle – 4.7V Max Flow | ECU MAF Input Terminal |
Note that unlike household alternating current (AC) wiring diagrams, standard DC automotive wiring diagrams do not incorporate a neutral wire. The brown return path on Pin 3 serves as the primary sensor ground wire. Never connect Pin 3 directly to chassis ground if the manufacturer wiring diagram specifies an isolated sensor ground returning directly to the ECU internal ground bus.
Step-by-Step F00C2G2030 MAF Sensor Wiring Diagram Installation Guide
Executing a harness repair, connector repinning, or custom installation using the f00c2g2030 maf sensor wiring diagram demands precision techniques to avoid signal attenuation or thermal resistance buildup. Follow this step-by-step connection sequence:
Step 1: Isolate Power and Prepare Wire Harness Wire Gauge
Disconnect the negative battery terminal to eliminate short-circuit risks during terminal manipulation. Inspect the existing engine wiring harness. Ensure all repair wire meets automotive cross-linked polyethylene (TXL or GVT) insulation standards. For Pin 2 (12V hot wire supply) and Pin 3 (ground wire), select an 18 AWG conductor to safely handle heater coil inrush current. For Pin 1, Pin 4, and Pin 5, a 20 AWG conductor is ideal for maintaining pristine analog signal transmission without introducing capacitive line losses.
Step 2: Inspect and Release the Terminal Block Connector
Slide back the red or yellow secondary locking tab located on the sealed Bosch 5-pin female terminal block. Insert a specialized 1.5mm twin-prong terminal release tool into the cavity release slots above each pin terminal. Carefully pull the wires from the rear rubber weather seal. Inspect the cavity seal inserts for hardening, tears, or oil contamination, replacing them if necessary to maintain weather-tight integrity.
Do not use soldering guns with high inductive heat directly adjacent to the sensor housing or connected ECU harness. Voltage spikes induced during soldering can destroy internal ESD protection diodes inside the ECU or damage the delicate thin-film resistor on the Bosch F00C2G2030 sensing element. Use ratcheting crimp tools with open-barrel OEM crimp terminals for all terminal block wire joins.
Step 3: Pin Out Connections Following the Wiring Sequence
Crimp fresh gold-plated or tin-plated female terminals onto stripped wire ends (strip length: 3.5mm to 4.0mm). Insert terminals into the connector housing according to the numbered pin assignments on the rear housing face:
- Terminal Pin 1: Attach the intake air temperature signal wire (typically Violet/White 20 AWG).
- Terminal Pin 2: Attach the 12-volt battery switched hot wire (typically Red/Purple 18 AWG) coming from the fused fuel pump relay line.
- Terminal Pin 3: Attach the low-resistance sensor ground wire (typically Brown 18 AWG) terminating at the dedicated ECU sensor ground junction.
- Terminal Pin 4: Attach the regulated 5.0-volt reference input wire (typically Green/Yellow 20 AWG) coming from ECM reference supply pin.
- Terminal Pin 5: Attach the primary MAF analog signal output wire (typically Yellow 20 AWG shielded) routed directly to the ECM signal channel.
Step 4: Secure Weather-Pack Seals and Retain Secondary Lock
Push each terminal wire forward into the connector housing until an audible “click” confirms the primary locking lance has engaged the terminal block body. Gently tug on each wire to verify mechanical retention. Push the secondary locking tab forward until flush with the connector outer shell.
Testing Hot Wire Voltage and Ground Wire Resistance Specifications
Before reconnecting the MAF sensor insert to the intake pipe, perform static and dynamic electrical checks using a Digital Multimeter (DMM) set to DC Volts and Low Ohms. This step ensures the physical wiring matches the criteria outlined in the f00c2g2030 maf sensor wiring diagram.
1. Testing Supply and Reference Voltages
Turn the ignition switch to the “KEY ON, ENGINE OFF” (KOEO) position without cranking the engine. Measure voltage between pin cavity 2 (12V hot wire supply) and a known solid engine ground. Your multimeter must display battery voltage (12.2V to 12.8V DC). Next, place the red DMM lead on pin cavity 4 (5V reference) and the black lead on pin cavity 3 (ground wire). The voltage reading must stay within 4.95V to 5.05V DC. Any value below 4.80V indicates high resistance or internal short circuits inside the reference supply circuit.
2. Testing Ground Wire Circuit Integrity
Switch off the ignition key. Set the DMM to measure resistance (Ohms). Probe between pin cavity 3 on the terminal block and the main negative battery terminal or engine ground block. Resistance must read less than 0.2 Ohms. A resistance measurement exceeding 0.5 Ohms points to corroded ground ring terminals, broken wire strands within the harness, or internal ECU ground driver degradation.
3. Dynamic Signal Sweep Verification
Back-probe Pin 5 (MAF signal wire) and Pin 3 (ground wire) while the connector is fully seated into the F00C2G2030 sensor and the engine is idling at normal operating temperature. Use an oscilloscope or fast-sampling DMM to observe signal behavior during throttle movement:
- Key On, Engine Off (Zero Airflow): ~1.00V DC baseline reference.
- Stable Warm Idle (~750 RPM): 1.20V to 1.40V DC (depending on displacement).
- Snap Throttle Acceleration: Instantaneous voltage spike climbing smoothly to 3.8V – 4.5V DC without signal dropouts, excessive noise, or voltage drop glitches.
Troubleshooting Common F00C2G2030 MAF Sensor Wiring Diagram Errors
Errors made during harness repairs or sensor replacement lead to erratic engine running, severe fuel trimming anomalies, rich/lean fault codes, or catastrophic sensor failure. Below are the most frequent wiring issues, symptoms, and correction protocols.
Fault 1: Transposed 12V Hot Wire (Pin 2) and 5V Reference Wire (Pin 4)
Symptom: Immediate sensor failure, blown ECM fuses, or P0103 High Circuit Input error codes logged upon turning the key on.
Consequence: Applying 12V battery power directly to the internal 5V reference bus destroys the sensor’s internal hot-film processing IC and can burn out the ECM pin voltage regulator.
Fix: Disconnect power immediately. Use a multimeter in KOEO mode to verify 12V power is strictly confined to Pin 2 before reconnecting any new F00C2G2030 sensor element.
Fault 2: Floating Sensor Ground Due to Chassis Grounding
Symptom: Fluctuation in MAF signal voltage, erratic idling, random engine stalling, and persistent oxygen sensor trim codes.
Consequence: Standard chassis grounds suffer from ground loops induced by alternator ripple and high-current components like cooling fans or ignition coils. Connecting Pin 3 to chassis ground instead of the ECU dedicated ground introduces electrical noise into the analog signal line.
Fix: Trace the ground wire on Pin 3 back to the factory ECM ground junction point as specified in the original f00c2g2030 maf sensor wiring diagram. Ensure the ground wire is completely isolated from high-current loads.
Fault 3: Missing Shielding on Analog Signal Line (Pin 5)
Symptom: Diagnostic trouble codes related to signal plausibility (P0101) occurring exclusively under hard acceleration or high ignition load.
Consequence: Parallel wire runs near spark plug wires, ignition coils, or alternator charge cables induce electromagnetic interference (EMI) onto unshielded 20 AWG signal wire.
Fix: Ensure the Pin 5 yellow signal wire uses twisted-pair shielding or keep signal lines routed at least 4 inches away from secondary ignition components and alternator charge leads.
Frequently Asked Questions About F00C2G2030 MAF Sensor Wiring Diagram Schematics
What is the normal signal voltage output on Pin 5 at engine idle?
At a stable warm idle (approximately 750 to 850 RPM), the normal signal output voltage measured on Pin 5 relative to Pin 3 ground is between 1.20 volts and 1.40 volts DC. At key-on engine-off (zero mass airflow), the sensor outputs a baseline resting voltage of approximately 1.00 volt DC (±0.05V). If your multimeter displays 0 volts or 5 volts continuously, the signal wire is shorted or the sensor element is damaged.
Can I substitute 22 gauge wire when repairing the terminal block pigtail?
Using 22 AWG wire is not recommended for repairing the Pin 2 hot wire power supply or Pin 3 ground wire circuits. The heated film element inside the Bosch F00C2G2030 draws momentary current peaks up to 0.25 amps upon startup; 22 AWG wire can induce unwanted resistance and localized voltage drop. Use 18 AWG TXL wire for power and ground circuits, and minimum 20 AWG for signal pathways.
How do I test if the ground wire circuit has excessive voltage drop?
Perform a dynamic voltage drop test while the engine is running. Connect the positive lead of your multimeter to Pin 3 on the rear of the connected MAF terminal block and the negative lead directly to the negative battery post. Set your meter to millivolts DC. A healthy ground wire circuit will show a voltage drop of less than 50 millivolts (0.050V). A reading higher than 100mV indicates excessive resistance in the ground circuit that must be repaired.
Why does my scanner show 12 volts on the 5V reference pin?
If you measure 12V on Pin 4 (5V reference line), the wire harness has suffered a short-circuit to a 12V power wire (such as the Pin 2 supply or an adjacent oxygen sensor heater circuit inside the main harness loom). Turn off the ignition immediately. Inspect the harness for melted insulation or shorted pigtail splices before plugging in a replacement MAF sensor or ECM.
Is a neutral wire used in the automotive F00C2G2030 terminal block assembly?
No. Automotive electrical systems operate on Direct Current (DC), which does not utilize a neutral wire like residential or industrial AC power systems. In the context of the f00c2g2030 maf sensor wiring diagram, return current paths are handled strictly via dedicated DC ground wires (Pin 3) tied to the engine block or the ECM ground bus.
