Delta Kitchen Faucet Parts Diagram: Identification Guide
A Delta kitchen faucet parts diagram identifies internal components like the cartridge, spout, and handles, along with connections to the drain assembly and tailpiece. Understanding these parts allows for precise leak diagnosis and part replacement, ensuring your sink, P-trap, and garbage disposal function seamlessly together to prevent leaks.
📌 Key Takeaways
- Provides an exploded view of internal faucet components for easier repair
- The cartridge is the most important component to identify for leak fixes
- Ensure water supply is off before disassembling any faucet components
- Use the model-specific diagram to find correct replacement part numbers
- Helps visualize the connection between the faucet and the drain assembly
Repairing or upgrading your kitchen sink starts with a clear understanding of your hardware, and a delta kitchen faucet parts diagram is the most essential tool in your DIY arsenal. Whether you are dealing with a persistent drip from the spout, a loss of water pressure, or a complete installation of a new pull-down model, knowing how the internal components fit together saves time and prevents costly errors. Delta faucets are known for their durability and specific engineering, such as Diamond Seal Technology or ball-valve designs, which require precise part identification. This guide provides a comprehensive breakdown of those components, from the visible handle and spout to the intricate valves and hoses beneath the deck. By the end of this article, you will be able to navigate an exploded view diagram with confidence and understand how your faucet interacts with the wider plumbing system under your sink.
Decoding the Delta Kitchen Faucet Parts Diagram
When you first look at a delta kitchen faucet parts diagram, the sheer number of lines and numbers can feel overwhelming. However, these diagrams are organized in an “exploded view” format, meaning they show the faucet as if it were blown apart, with every screw, O-ring, and washer suspended in its relative position. Most Delta models consist of three primary zones: the handle assembly, the spout and body, and the mounting hardware located underneath the countertop.
The handle assembly is usually the most complex part of the diagram. If you have a single-handle faucet, the diagram will show a set screw, the handle itself, a trim cap, and a cam assembly. Below these lies the heart of the unit—the cartridge or the ball valve. Delta often uses a specialized cartridge like the RP50587, which controls both flow and temperature. If your faucet uses the older ball-style mechanism, the diagram will highlight the ball, the rubber seats, and the small metal springs (often referred to as RP4993) that provide the tension necessary to seal the water flow.
Moving to the spout, the diagram illustrates how the spout connects to the faucet body. For pull-down models, the diagram will highlight the spray head (wand), the hose, and the weight that allows the hose to retract. Crucially, the diagram also shows the O-rings that prevent water from leaking at the base of the spout. These are common wear-and-tear items that are frequently replaced. At the base of the entire unit is the mounting hardware, which typically includes a shank, a mounting bracket, and a nut that secures the faucet to the sink deck.
Most Delta kitchen faucets manufactured after 2006 utilize Diamond Seal Technology (DST). These models feature a one-piece supply line and a diamond-embedded ceramic disc cartridge designed to last up to 5 million uses. If your faucet has DST, your parts diagram will show integrated PEX supply lines rather than traditional threaded connections.
Integrating the Faucet with Your Drainage System
A faucet does not operate in isolation; it is the entry point for a system that relies on a functional drain assembly to remove waste. While the delta kitchen faucet parts diagram focuses on the water delivery, the installation process requires you to connect the faucet to the rest of the kitchen plumbing. This involves the tailpiece, which is the pipe extending downward from the sink strainer.
The tailpiece connects to the P-trap using a slip joint. The P-trap is a critical U-shaped pipe that holds a small amount of water to create a seal, preventing sewer gases from entering your home. In modern kitchens, these components are usually made of white or black PVC, which is easy to cut and assemble. If your sink is part of a kitchen island or lacks a traditional wall vent, you might see an AAV valve (Air Admittance Valve) in your under-sink diagram. This mechanical vent allows air into the system to ensure smooth drainage without the need for a vent pipe that extends through the roof.
Furthermore, many kitchen setups include a garbage disposal. In these configurations, the discharge from the disposal connects to the drain assembly before reaching the P-trap. Understanding the flow from the faucet spout, through the sink, and into the PVC network is vital. If you find that your faucet installation is complete but the sink isn’t draining, the issue likely lies in the slip joint alignment or a blockage in the P-trap rather than the faucet itself.
Always ensure the water supply valves under the sink are fully closed before attempting to disassemble any part of the faucet. If the valves are old and won’t budge, you may need to shut off the main water line for the entire house to avoid flooding your kitchen cabinet.
How to Read and Apply the Parts Diagram for Repair
Using a delta kitchen faucet parts diagram to perform a repair requires a systematic approach. You cannot simply pull parts out at random; you must follow the order of assembly shown in the visual guide. Follow these steps to interpret the diagram and execute a successful repair.
- ✓ Identify the Model Number: Before looking at a diagram, find the model number on the tag attached to the supply line under the sink. If the tag is missing, match the physical appearance of your faucet to photos on the Delta website.
- ✓ Locate the Exploded View: Match your model number to the official technical specification sheet. This sheet will contain the parts diagram with numbered callouts.
- ✓ Verify Part Numbers: Each number on the diagram corresponds to a specific Delta part number (e.g., RP61322). Ensure you order the exact RP number to guarantee compatibility.
- ✓ Prepare the Workspace: Clear out the area under the sink. Have a bucket ready to catch residual water from the tailpiece or supply lines.
- ✓ Remove the Handle: Use a hex wrench (usually 1/8 inch) to loosen the set screw. The diagram will show exactly where this screw is hidden—often behind a small plastic button.
- ✓ Disassemble the Internal Valve: Unscrew the cap and remove the cam and packing. Use the diagram to see the orientation of the cartridge. Note the position of the “locator pins” on the cartridge so you can install the new one correctly.
- ✓ Check the Aerator and Spray Head: If you have low flow, consult the diagram to see how the aerator unscrews from the spout or spray head for cleaning.
- ✓ Reassemble in Reverse: Use the diagram as a roadmap to put everything back together, ensuring O-rings are seated properly.
To complete these tasks, you will need a few basic tools: an adjustable wrench, a set of Allen (hex) wrenches, needle-nose pliers, and a basin wrench for reaching the mounting nut behind the sink basin. You should also keep a small container of plumber’s grease nearby to lubricate the O-rings before reassembly.
Common Troubleshooting and Visual Indicators
A delta kitchen faucet parts diagram is essentially a diagnostic map. When a problem occurs, the location of the leak or the nature of the malfunction tells you exactly which part of the diagram to focus on.
If you see water leaking from the base of the handle, the diagram points to the cartridge or the seats and springs. A leak from the base of the spout (where it meets the sink) usually indicates that the internal O-rings have become brittle or cracked. If your pull-down sprayer is leaking, the connection between the hose and the spray head is the likely culprit; the diagram will show a small washer inside that connection that often needs replacing.
Another common issue is reduced water pressure. By looking at the tip of the spout on the diagram, you can see the aerator assembly. Over time, minerals from hard water build up here. Similarly, if the “diverter” (the part that switches water from the spout to the side spray) fails, you will experience low pressure in both areas. The diagram will help you locate the diverter, which is often housed inside the faucet body.
Before replacing a cartridge, try cleaning it with white vinegar. Often, calcium deposits prevent the internal discs from sealing properly. If the diagram shows a stainless steel ball valve, check for pitting on the surface of the ball; if it’s not perfectly smooth, it will always leak, regardless of how many times you change the seats and springs.
Maintenance and Best Practices for Longevity
To prevent the need for frequent repairs, regular maintenance is key. Once you are familiar with the components in your delta kitchen faucet parts diagram, you can perform preventative care. For example, once a year, you should unscrew the aerator and soak it in a descaling solution. This maintains consistent water pressure and prevents the buildup of backpressure that can damage internal seals.
When it comes to the under-sink area, check your drain assembly and P-trap for signs of moisture. Small leaks at a slip joint can lead to wood rot in your cabinetry. Ensure that the garbage disposal is properly supported and that its vibration hasn’t loosened the faucet mounting hardware. If you have an AAV valve, ensure it is not blocked by cleaning supplies, as it needs air flow to function correctly.
Investing in genuine Delta parts is always recommended. While generic “universal” kits are available at most hardware stores, they often lack the precise tolerances required for a perfect seal in Delta’s proprietary valve designs. Using the correct RP-numbered part from your diagram ensures that the repair lasts as long as the original installation.
Summary of the Delta System
Mastering the delta kitchen faucet parts diagram is about more than just fixing a leak; it is about understanding the mechanical logic of your home’s plumbing. By identifying the specific cartridge, O-rings, and mounting hardware unique to your model, you move from guesswork to precision. Remember that the faucet is just the visible part of a larger network that includes the tailpiece, the P-trap, and the vent pipe or AAV valve. By maintaining both the delivery and the drainage sides of the system, you ensure a functional, leak-free kitchen. Keep your specific model’s diagram printed and stored under the sink for quick reference, and you will be well-prepared for any plumbing challenge that arises.
Step-by-Step Guide to Understanding the Delta Kitchen Faucet Parts Diagram: Identification Guide
Identify your specific Delta model number to find the matching parts diagram.
Locate the water shut-off valves and the drain assembly under the sink area.
Understand how the spout connects to the tailpiece and P-trap for proper drainage.
Apply the diagram’s exploded view to remove the handle and access the internal cartridge.
Verify that all seals are seated correctly and the vent pipe is not obstructed.
Complete the repair by reassembling the faucet and testing the garbage disposal connection.
Frequently Asked Questions
Where is the faucet cartridge located?
The cartridge is located inside the main body or handle hub of the faucet. After removing the handle with an Allen wrench, the cartridge is typically held in place by a bonnet nut. It regulates the flow and temperature of water entering from the supply lines before reaching the spout.
What does a Delta kitchen faucet parts diagram show?

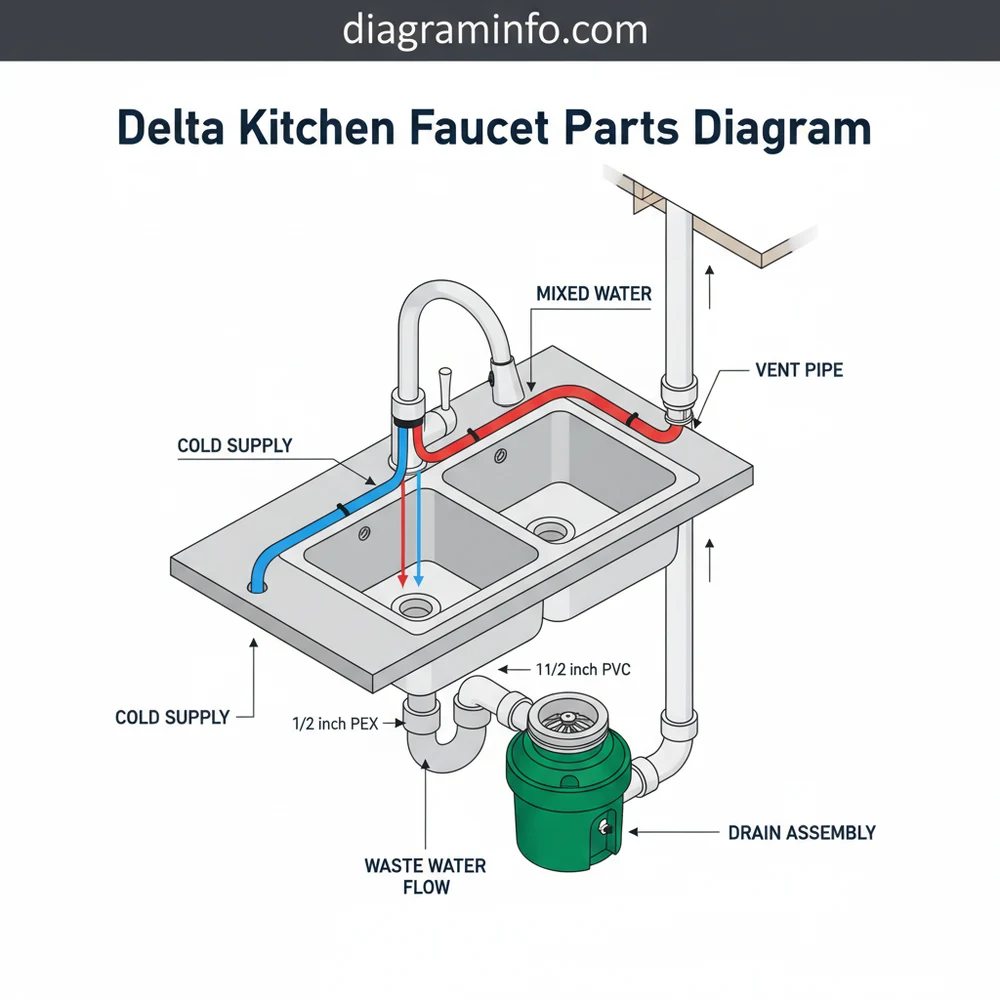

This diagram provides an exploded view of every individual component, including the handle, spout, O-rings, spray head, and mounting hardware. It also illustrates how the faucet body interacts with the sink’s drain assembly and the tailpiece, making it easy to see where specific seals or springs are located.
How many connections does a Delta kitchen faucet have?
A standard Delta kitchen faucet typically has three to four main connections. These include the hot and cold water supply lines, a connection for the pull-down sprayer hose, and the main mounting shank. Some models may also feature a connection point for a soap dispenser or air gap.
What are the symptoms of a bad faucet cartridge?
Common symptoms include a persistent drip from the spout, water leaking from around the handle base, or difficulty moving the handle. If you notice leaks near the drain assembly or P-trap, the issue may be related to the drainage system rather than the internal faucet cartridge itself.
Can I replace Delta faucet parts myself?
Yes, replacing Delta kitchen faucet parts is a manageable DIY project for most homeowners. Using the diagram to identify the correct part number allows you to swap out cartridges or O-rings with basic tools. Most repairs involve simple disassembly without needing to modify the vent pipe or garbage disposal.
What tools do I need for faucet repair?
You will generally need an Allen wrench (hex key) for the handle, an adjustable wrench for the bonnet nut, and a basin wrench for mounting nuts under the sink. Pliers and a screwdriver are also helpful when adjusting the tailpiece or checking connections near the garbage disposal unit.
