12v Solar Panel Wiring Diagram: Easy Setup Guide
A 12v solar panel wiring diagram illustrates the connection between solar panels, a charge controller, and a battery bank. Connect the panel positive to the controller input, then the controller output to the battery. This setup ensures safe voltage regulation and prevents battery overcharging in small-scale off-grid power systems.
📌 Key Takeaways
- Explains how to link solar modules to energy storage safely
- The charge controller is the most critical component to identify
- Always fuse the positive line to prevent electrical fires
- Use high-quality copper wiring to minimize voltage drop
- Ideal for RV, boat, or small cabin off-grid applications
When setting up an off-grid power system for a van, RV, or cabin, having an accurate and clear 12v solar panel wiring diagram is the most critical step in ensuring system safety and efficiency. This guide acknowledges the complexity of balancing voltage requirements with wire gauge limitations and provides a comprehensive visual and technical roadmap for your installation. By following a structured diagram, you eliminate the guesswork involved in terminal identification and connection sequences. You will learn how to properly route power from your photovoltaic cells through a charge controller to a battery bank, and eventually to an inverter where standard AC components like hot and neutral wires come into play.
The Anatomy of a 12v Solar Panel Wiring Diagram

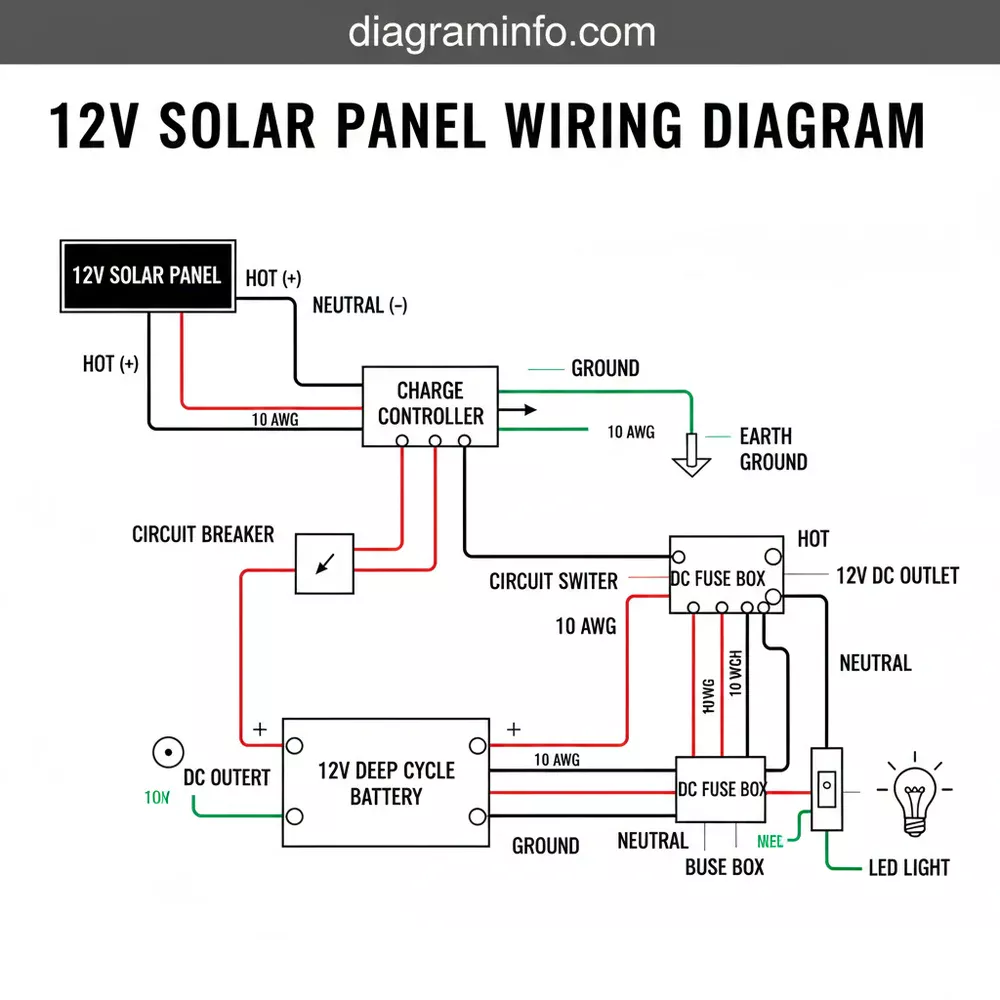

The primary 12v solar panel wiring diagram serves as a blueprint for the flow of direct current (DC) and its eventual conversion to alternating current (AC). At its core, the diagram illustrates the relationship between the solar array, the charge controller, the battery storage, and the load distribution. Unlike standard household wiring, a 12v DC system relies heavily on the distinction between positive (usually red) and negative (usually black) conductors. The diagram visually segments these paths to prevent short circuits and ensure that the polarity remains consistent across all components.
Key elements in the diagram include the solar panels themselves, which are often connected using MC4 connectors. These lead to the charge controller, which acts as the “brain” of the system, regulating the incoming voltage to prevent overcharging the battery. The diagram specifically highlights the common terminal points on the charge controller where the panel inputs and battery outputs meet. On the output side of the system, specifically when an inverter is introduced, the diagram transitions to include standard AC labels. Here, you will see the hot wire, neutral wire, and ground wire connections that allow you to use standard household appliances. The diagram also accounts for the specific gauge of the wire, which must be sized according to the total amperage to prevent overheating and voltage drop.
SOLAR ARRAY (-) —————> CHARGE CONTROLLER (PV-)
CHARGE CONTROLLER (BATT+) —-> [FUSE] —-> BATTERY (+)
CHARGE CONTROLLER (BATT-) —————–> BATTERY (-)
BATTERY (+) —-[FUSE]—-> INVERTER (DC IN +)
BATTERY (-) ————–> INVERTER (DC IN -)
INVERTER AC OUT:
[HOT] (Brass Screw) —-> AC LOAD
[NEUTRAL] (Silver Screw) -> AC LOAD
[GROUND] (Green/Bare) —-> CHASSIS GROUND
Understanding the Components and Terminal Connections
To effectively use a 12v solar panel wiring diagram, one must understand the specific hardware involved and the terminology of the connection points. In a DC environment, the “common terminal” often refers to a negative busbar where all ground wires or negative returns are consolidated. This keeps the wiring tidy and ensures a solid path back to the battery.
On the AC side of your system, which begins at the inverter, you will encounter more traditional electrical components. For example, if you are wiring an outlet from your inverter, you must identify the brass screw on the receptacle, which is reserved for the hot wire. The silver screw is designated for the neutral wire, and the green screw is for the ground wire. While a “traveler wire” is more common in household three-way switch configurations, in a solar setup, you might encounter similar multi-point switching logic if you are managing lighting circuits across large areas, requiring specialized routing from a central distribution block.
In 12v systems, voltage drop is a significant concern. Because the voltage is low, the current (amperage) is relatively high for the same amount of power. Always use a high-quality wire gauge (such as 10 AWG for panels and 2/0 AWG for inverters) to ensure the system operates efficiently without losing power to heat resistance.
The charge controller is the most critical junction. It typically features six terminals: two for the solar panel input, two for the battery connection, and two for a “load” output (often used for small DC lights). When identifying these terminals, always look for the (+) and (-) symbols etched into the casing. Connecting a panel to the battery terminals by mistake can lead to immediate hardware failure. This is why the wiring sequence—connecting the battery to the controller first—is a non-negotiable step in the installation process.
Comprehensive Step-by-Step Installation Guide
Reading the 12v solar panel wiring diagram is the first step, but physical implementation requires a strict sequence of events to protect the sensitive electronics in your charge controller and inverter.
1. Prepare Your Workspace and Materials
Gather all necessary tools, including a high-quality wire stripper, a crimping tool for MC4 and lug connectors, and a multimeter. Ensure you have the correct wire gauge for every leg of the journey. For the distance between the solar panels and the controller, 10 AWG is standard. For the short, high-current jump between the battery and the inverter, much thicker cables (often 0 or 2/0 gauge) are required.
2. Mount the Main Components
Secure your solar panels to the roof or ground mount, and mount your charge controller and inverter in a well-ventilated, dry area. Keep the charge controller as close to the battery bank as possible to minimize voltage drop.
3. Establish the Battery Connection (The “Brain” First)
Before the panels are even uncovered, connect the charge controller to the battery. Follow your diagram to identify the battery terminals on the controller. Attach the positive wire to the battery’s positive post (include an inline fuse here) and the negative wire to the negative post. Once connected, the charge controller’s screen should turn on, signifying it is ready to manage power.
4. Wire the Solar Panels (Series vs. Parallel)
Consult your diagram to see if you are wiring in series (combining voltage) or parallel (combining amperage). For a 12v system using a PWM controller, parallel is common. For MPPT controllers, series is often preferred to take advantage of higher voltage. Connect your MC4 leads, ensuring the positive and negative cables are routed clearly toward the controller.
5. Connect Panels to the Charge Controller
Insert the solar wires into the PV (photovoltaic) terminals on the controller. Tighten the screws firmly. At this point, if the panels are in sunlight, you should see an “arrow” or “charging” icon on the controller display, indicating that power is flowing from the sun into your batteries.
6. Connect the Inverter
The inverter should be wired directly to the battery bank, not the “load” terminals of the charge controller, as inverters draw more current than most controllers can handle. Connect the thick positive cable to the battery (+) and the negative to the battery (-). Ensure the ground wire from the inverter is attached to the vehicle chassis or a dedicated grounding rod.
7. Wiring the AC Output
If you are extending the AC power from the inverter to a breaker box or outlets, remember the color codes: the hot wire (black) goes to the brass screw, the neutral wire (white) goes to the silver screw, and the ground wire (green) goes to the green screw.
When inserting bare stranded wire into the screw-down terminals of a charge controller, the strands can spread and cause a poor connection. Use copper ferrule terminals on the ends of your wires. They create a solid pin-like connection that maximizes surface contact and prevents arcing.
Common Issues and Troubleshooting Techniques
Even with a perfect 12v solar panel wiring diagram, issues can arise during the first power-up or after months of use. One of the most common problems is a “reverse polarity” error, which happens when the positive and negative wires are swapped at a terminal. Most modern controllers have protection for this, but it will prevent the system from charging.
Another frequent issue is a significant voltage drop. If your diagram shows 14.4V at the controller but your battery monitor only shows 13.2V, your wire gauge may be too thin for the distance of the run. This causes the energy to dissipate as heat rather than reaching the battery. Use a multimeter to check the voltage at every junction—the solar panel connectors, the controller input, the battery posts, and the inverter terminals.
If the inverter refuses to power on, check the common terminal connections on your negative busbar. A loose ground wire can create intermittent power or “ghost” voltages that fluctuate wildly. Additionally, inspect the fuses. If a fuse is blown, do not simply replace it; use the diagram to trace the circuit and find the short that caused the surge.
Even a single 100W solar panel can produce enough voltage to cause a spark or a mild shock in wet conditions. Always cover your panels with a blanket or work at night when making final connections to the charge controller to ensure the wires are “dark” and safe to handle.
Tips and Best Practices for a Reliable System
To ensure your solar setup lasts for decades, you should go beyond the basic 12v solar panel wiring diagram and implement high-standard electrical practices.
- ✓ Label Every Wire: Use heat-shrink labels or colored tape to identify the hot wire, neutral wire, and various DC leads. This makes future troubleshooting much faster.
- ✓ Consistent Grounding: Ensure the ground wire from your AC system and the negative ground from your DC system share a common potential to prevent “ground loops” which can cause interference in electronics.
- ✓ Use Proper Terminals: Always use ring terminals for battery posts and never wrap bare wire around a bolt. A brass screw terminal should be tightened to the specific torque manufacturer’s specification.
- ✓ Oversize Your Controller: If your diagram calls for a 30A controller, consider a 40A model. This provides a “buffer” for cold, clear days when solar panels can actually exceed their rated output due to the “edge of cloud” effect.
Maintenance is equally important. Every six months, use your diagram to perform a physical inspection of all connection points. Vibrations in mobile environments like RVs can loosen a common terminal or a brass screw on an outlet. Tighten all lugs and check for any signs of heat discoloration on the wire insulation. If you see browning or melting, it is a sign of high resistance, usually caused by a loose connection or an undersized gauge.
The Importance of Proper Fusing and Protection
No 12v solar panel wiring diagram is complete without the inclusion of circuit breakers and fuses. Fuses are designed to protect the wire, not the device. For instance, the fuse between the charge controller and the battery is there to prevent the wire from catching fire if there is a short circuit. The fuse should be rated slightly higher than the maximum current the controller can output, but lower than the maximum amperage capacity of the wire gauge used.
In a professional setup, you will find four primary protection points:
1. Between the Solar Panels and Charge Controller (Circuit Breaker).
2. Between the Charge Controller and Battery (Fuse).
3. Between the Battery and Inverter (Large ANL or Class T Fuse).
4. Between the Battery and DC Distribution Block (Blade Fuses).
By integrating these safety measures into your wiring sequence, you create a robust system that can handle the rigors of daily use. Whether you are identifying the common terminal on a busbar or ensuring the neutral wire is properly seated on its silver screw, attention to detail is your best defense against system failure.
In conclusion, successfully implementing a 12v solar panel wiring diagram requires a blend of visual mapping and technical discipline. By understanding the flow from the high-voltage solar array down to the regulated 12v battery storage and finally through to the AC loads, you create a reliable energy source. Remember to prioritize wire gauge selection to minimize voltage loss and always follow the correct connection sequence to protect your equipment. With the right components and a careful approach to terminal identification, your solar power system will provide clean, renewable energy for years to come.
Frequently Asked Questions
Where is the charge controller located?
In a 12v solar panel wiring diagram, the charge controller is typically located between the solar panels and the battery bank. It should be mounted in a dry, ventilated area close to the batteries to minimize voltage drop and ensure accurate temperature compensation for the charging process.
What does this 12v solar diagram show?
This diagram shows the flow of DC electricity from solar modules through a charge controller to a battery. While household AC systems use a traveler wire for multi-switch setups, solar diagrams focus on the DC path from the source hot wire equivalent to the negative ground wire.
How many connections does a standard solar controller have?
Most 12v charge controllers have six connections: two for the solar panel array, two for the battery bank, and two for DC loads. Unlike AC systems with a neutral wire, DC solar systems rely on distinct positive and negative terminals to maintain a proper and safe circuit.
What are the symptoms of a bad solar wiring setup?
Symptoms include low battery voltage, lack of charging current, or excessive heat at connection points. If a ground wire is loose or a common terminal is corroded, the system may experience intermittent power or fail to charge the batteries correctly even during peak daylight hours.
Can I install this 12v solar system myself?
Yes, DIY installation is feasible for those who understand basic DC circuits. While you won’t typically use a traveler wire common in 3-way AC lighting, you must correctly identify positive hot wire leads and negative leads to avoid damaging sensitive electronic components or the battery bank.
