E26/E27 Light Bulb Socket Wiring Diagram 2026: Installation Setup

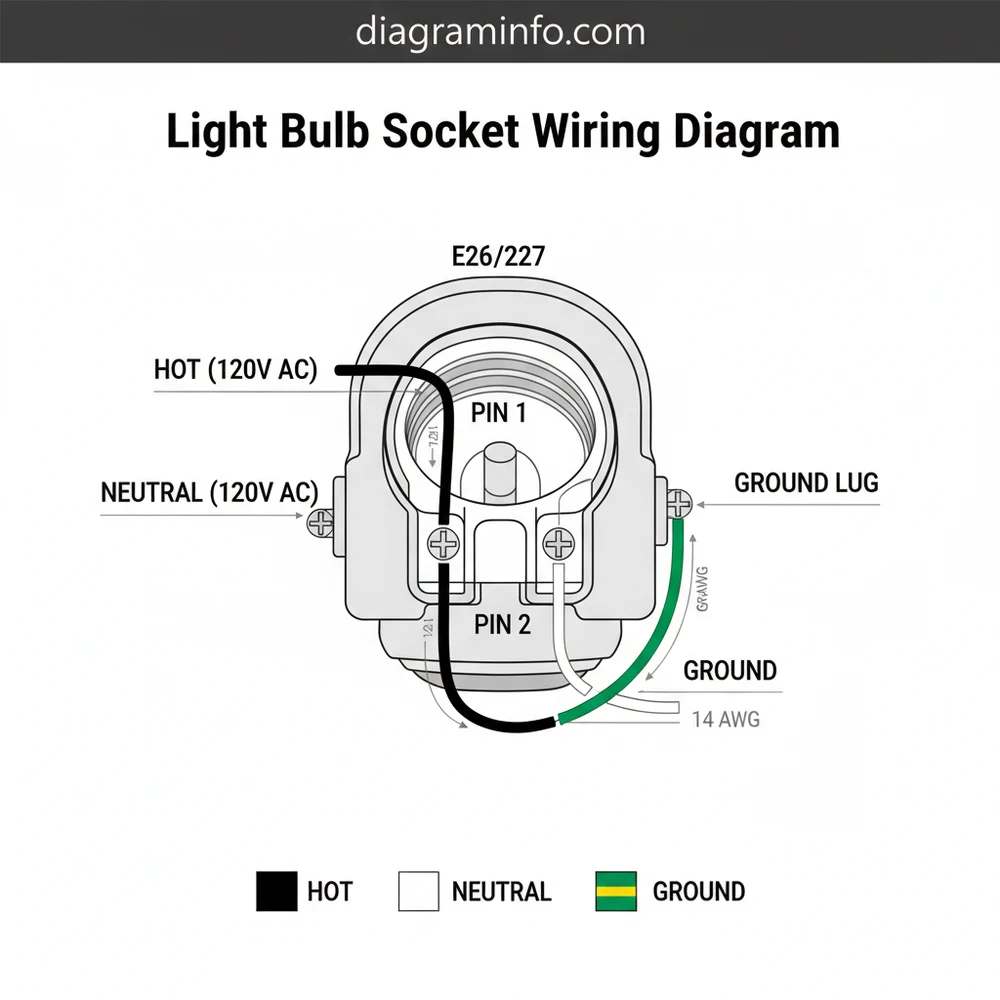

A standard light bulb socket wiring typically involves three wires: black (hot) connected to the center terminal, white (neutral) connected to the outer screw shell, and green/bare (ground) to the metal fixture housing or a dedicated ground terminal. Ensure correct polarity to prevent shock hazards and ensure proper function.
📌 Key Takeaways
- Always connect the black (hot) wire to the center tab terminal of the socket for correct polarity and safety.
- The white (neutral) wire connects to the outer screw shell terminal; reverse polarity is a shock hazard.
- Ensure the green or bare copper (ground) wire is securely attached to the metal fixture housing or ground screw to prevent electrocution in case of a fault.
- The most common wiring mistake is reversing hot and neutral wires, leading to a continuously live screw shell even when the switch is off.
- Consult a licensed electrician if you are unsure about safe wiring practices or working with unfamiliar voltage systems.
Mastering the precise wiring of a light bulb socket is a fundamental skill for any automotive technician or equipment specialist. This detailed guide and accompanying light bulb socket wiring diagram are designed to ensure accurate connections, crucial for maintaining optimal functionality and safety in diverse electrical systems. From replacing a damaged socket to integrating custom lighting solutions, understanding the correct wire color codes, pin assignments, and power distribution is paramount. Incorrect wiring can lead to system failures, blown fuses, component damage, or even electrical hazards. This resource provides the authoritative information required for reliable light socket wiring, minimizing troubleshooting time and ensuring operational integrity.
Wire Color Reference Table
Understanding the standardized wire color codes is critical for accurate light bulb socket wiring, particularly in automotive and equipment applications. While specific color conventions can vary by manufacturer and region, the table below outlines common assignments for a typical dual-filament socket, such as those found in combined brake/tail light assemblies. Always consult the specific OEM service manual for the equipment you are working on, especially for year-specific variations.
| Wire Color (Common) | Function/Circuit | Pin/Terminal (Example) | Notes |
|---|---|---|---|
| Black | Ground / Negative (-) | Terminal A / Pin 1 | Essential return path for the circuit. Often connected to vehicle chassis. |
| Brown / Green (US/Euro) | Parking/Tail Light (Low Filament) | Terminal B / Pin 2 | Provides constant voltage for low-intensity illumination. |
| Green / Yellow (US/Euro) | Brake Light / Turn Signal (High Filament) | Terminal C / Pin 3 | Provides switched voltage for high-intensity illumination. |
| White with Stripe | Reverse Light | Terminal D / Pin 4 (if applicable) | Activated when vehicle is in reverse. (Often a single-filament circuit) |
For non-automotive or custom applications, such as trailer wiring or agricultural equipment, specific wire color code standards may apply. Always verify continuity and function with a multimeter before finalizing connections, especially when dealing with aftermarket components or repairs on older equipment.
Step-by-Step Connection Guide
This guide details the procedure for wiring a common dual-filament automotive light bulb socket, focusing on precision and adherence to established electrical practices. Refer to the light bulb socket wiring diagram provided above for visual context throughout these steps.
Before commencing any electrical work, always disconnect the negative (-) battery terminal or power source to prevent accidental shorts, component damage, or personal injury. Verify the circuit is de-energized using a multimeter.
- Isolate and Prepare the Circuit: After disconnecting power, locate the existing wiring harness or the point where the new circuit will originate. Inspect the condition of the existing wires for fraying, corrosion, or insulation damage. If replacing an existing socket, carefully cut the old wires, leaving sufficient length for the new connections. Identify the incoming wires and their intended functions based on the vehicle’s automotive electrical system diagnostics and wiring schematics.
- Strip Wire Insulation Accurately: Using a precision wire stripper, carefully remove approximately 1/4 to 3/8 inch (6-10 mm) of insulation from the ends of both the vehicle harness wires and the new light bulb socket wires. Ensure that no copper strands are nicked or cut during this process, as this can reduce the wire’s current carrying capacity and increase resistance.
- Connect the Ground Wire: Locate the ground wire on your light bulb socket, typically identified by its black insulation or a dedicated ground terminal. As illustrated in the light bulb socket wiring diagram, this wire connects to the vehicle’s primary ground circuit. Crimp a high-quality, insulated spade, ring, or butt connector (appropriate for your wire gauge) onto the stripped end of the ground wire. Connect this to the chassis ground point or the corresponding ground wire from the vehicle harness (also typically black, but verify with a multimeter for continuity to the chassis). A secure ground connection is paramount for proper circuit operation and preventing intermittent issues.
- Connect the Parking/Tail Light Wire: Identify the wire designated for the parking or tail light function on your light bulb socket. This is often brown or green/brown depending on the OEM and region. Crimp an appropriate connector onto this wire. Connect it to the corresponding parking/tail light power wire from the vehicle harness. This wire provides the low-voltage, continuous power supply for the tail light filament when the parking lights or headlights are active. The voltage should be consistent with the vehicle’s 12V DC system when activated.
- Connect the Brake/Turn Signal Wire: Locate the wire for the brake light or turn signal function on the light bulb socket. This wire commonly features green, yellow, or green/yellow insulation. Prepare and connect this wire to the corresponding brake/turn signal power wire from the vehicle harness. This circuit receives a switched 12V DC hot wire signal, activating the high-intensity filament when the brake pedal is pressed or the turn signal is engaged. Verify correct pin assignment by matching the socket’s internal connections to the filaments.
- Secure and Insulate Connections: Once all connections are made and verified, ensure they are mechanically secure and electrically insulated. Use heat-shrink tubing for superior protection against moisture and abrasion, or high-quality electrical tape. Avoid bare wire exposure. Tug gently on each connection to confirm its integrity.
- Test and Finalize: Reconnect the battery or power source. Test the light bulb socket by activating each circuit (parking lights, brakes, turn signals). Verify that the bulb illuminates correctly, without flickering or dimness. Ensure the correct intensity for each function. Secure the light bulb socket in its mounting location according to manufacturer specifications. Refer to best practices for soldering electrical connections if your installation method involves soldering rather than crimping.
For typical automotive lighting circuits, a wire gauge of 16-18 AWG is commonly specified by manufacturers to handle the current draw of incandescent bulbs without excessive voltage drop. Always match the gauge of the replacement wire to the existing harness, or consult OEM documentation for precise requirements, especially for higher wattage applications.
Common Wiring Mistakes & Troubleshooting
Even experienced technicians can encounter issues during light bulb socket wiring. Understanding common mistakes and their resolutions is key to efficient troubleshooting and ensuring a reliable electrical system.
- Reverse Polarity (for LED Bulbs):
- Consequence: LED bulbs will not illuminate or may be damaged. Incandescent bulbs are not polarity-sensitive but will not function if power is on the ground line and vice-versa.
- Fix: Use a multimeter to identify the positive (+) and ground (-) wires from the vehicle harness. Re-wire the socket connections to ensure the correct polarity is observed for LED applications. For incandescent bulbs, verify the power feed is correctly connected to the filament input and the ground to the return.
- Insufficient or Excessive Wire Gauge:
- Consequence: Undersized wire (gauge too high, e.g., 20 AWG for a high-wattage bulb) can overheat, cause significant voltage drop, dim lights, or even present a fire hazard. Oversized wire (gauge too low, e.g., 10 AWG for a small bulb) is harder to work with, adds unnecessary weight, and may not fit into existing connectors.
- Fix: Always use the appropriate wire gauge as specified by the OEM or calculated based on the bulb’s wattage and wire length (referencing a wire gauge chart for voltage drop). Generally, 16-18 AWG is suitable for most automotive lighting.
- Poor Ground Connection:
- Consequence: Dim, flickering, or intermittent illumination; corrosion buildup; unexplained electrical issues; “ghosting” or cross-talk between circuits (e.g., brake lights coming on with turn signals).
- Fix: Ensure the ground wire connection to the chassis or harness ground is clean, tight, and free of corrosion. Scrape away paint if grounding to the chassis. Use a multimeter to check for continuity between the socket’s ground terminal and a known good chassis ground point (resistance should be near 0 ohms).
- Incorrect Pin Assignment or Wire Color Code Interpretation:
- Consequence: Lights operating incorrectly (e.g., tail light comes on with brakes, brake light with turn signals), blown fuses, or non-functional lights.
- Fix: Double-check the light bulb socket wiring diagram and the OEM vehicle schematic. Verify each wire’s function with a multimeter by testing for voltage at different circuit activation points (e.g., parking lights on, brake pedal pressed, turn signal activated). Match the wires precisely to the socket’s internal terminals based on the bulb’s filament configuration.
- Loose or Corroded Connections:
- Consequence: Increased resistance, heat generation, intermittent operation, flickering, or complete loss of function.
- Fix: Inspect all crimped and soldered connections. Ensure crimps are tight and wires are fully seated. Clean any corrosion on terminals with a wire brush or fine abrasive, then apply dielectric grease to prevent future oxidation. Re-crimp or re-solder any suspect connections to ensure a robust electrical pathway.
FAQ
What is the standard operating voltage for automotive light bulb sockets?
Most automotive light bulb sockets are designed for 12-volt DC (Direct Current) systems, which is the standard electrical architecture for light-duty vehicles, trucks, and many types of equipment. Heavy-duty trucks and some industrial equipment may utilize 24-volt DC systems. Always verify the specified voltage of the bulb and the electrical system to prevent overloading or underpowering the circuit, which can lead to premature bulb failure or non-operation.
How do I differentiate between a hot wire and a ground wire in a DC automotive system?
In a DC automotive system, the “hot wire” refers to the positive (+) voltage supply wire, while the “ground wire” is the negative (-) return path to the battery or chassis. To identify them, use a multimeter: connect the black lead to a known good chassis ground. Touch the red lead to each wire in question. The wire that shows approximately 12V (or 24V, depending on the system) when the circuit is activated is the hot wire. The wire that shows 0V (or very close to 0V) and has continuity to the chassis (low resistance) is the ground wire. Adhering to the established wire color code, such as black for ground, also aids in identification, though verification is always recommended.
Can I use a terminal block for light bulb socket connections?
Yes, a terminal block can be used to consolidate and organize multiple light bulb socket connections, particularly in custom installations, trailer wiring, or equipment requiring modular wiring. Using a terminal block provides a secure, organized, and easily maintainable point for wire termination. Ensure the terminal block is rated for the circuit’s voltage and current, is properly insulated, and is mounted in a location protected from moisture, vibration, and physical damage. Each terminal should be tightened to the manufacturer’s specified torque to prevent loose connections.
What factors influence the choice of wire gauge for a light bulb circuit?
The primary factors influencing wire gauge selection are the total current draw (amperage) of the bulb(s) and the length of the wire run. Higher current and longer wire runs require a larger diameter wire (lower AWG number) to minimize voltage drop and prevent overheating. For most single automotive incandescent bulbs (e.g., 21W brake light), 16-18 AWG is sufficient for typical vehicle lengths. For LED bulbs, which draw significantly less current, a smaller gauge wire might suffice, but it’s often prudent to match the existing harness gauge to maintain consistency and durability. Always consult a wire gauge chart that accounts for both amperage and length to ensure safe and efficient operation.
How do I confirm correct pin assignment on a multi-filament light bulb socket?
Confirming correct pin assignment on a multi-filament light bulb socket typically involves inspecting the socket’s internal design and cross-referencing with the bulb’s base. For an 1157-type bulb (dual filament), the bottom contacts on the bulb base have different heights. The higher contact usually connects to the brighter filament (brake/turn), and the lower contact to the dimmer filament (tail/parking). Inside the socket, identify which internal terminal corresponds to each of these contacts. Then, use a multimeter to trace which external wire from the socket connects to which internal terminal. This allows you to match the vehicle’s incoming power wires (tail, brake/turn, ground) to the correct socket pins, as detailed in the light bulb socket wiring diagram.
Frequently Asked Questions
What wire color is hot on a light bulb socket wiring diagram?
On a light bulb socket wiring diagram, the hot wire is typically black. It connects to the center contact tab inside the socket. This ensures that the outer screw shell, which is easily accessible, remains neutral, minimizing shock risk when changing a bulb. Always verify with a multimeter before connecting.
What do the terminals mean on a light bulb socket wiring diagram?
Light bulb sockets don’t have ‘pin numbers’ but rather specific terminals. The center terminal is for the hot (black) wire, activating the bulb’s filament. The outer threaded shell terminal is for the neutral (white) wire, completing the circuit. A separate green/bare screw is for the equipment ground.
How many wires does a light bulb socket wiring diagram have?
A standard light bulb socket wiring diagram typically shows two or three wires. For an ungrounded system, you’ll see a hot (black) and neutral (white) wire. For grounded fixtures, a third wire, green or bare copper, is present for safety grounding, connecting to the fixture’s metal body.
What are common wiring mistakes with a light bulb socket wiring diagram?
Common mistakes include reversing the hot (black) and neutral (white) wires, making the screw shell live even when the switch is off—a severe shock hazard. Incorrectly connecting the ground wire or failing to secure wire connections properly are also frequent issues that can lead to electrical faults or fire risks.
When should I use a grounded light bulb socket?
You should use a grounded light bulb socket whenever the fixture or luminaire is made of metal and accessible, or if local electrical codes require it. The ground wire provides a critical safety path, diverting fault current away from anyone touching the fixture, greatly reducing the risk of electrocution during an electrical fault.
What gauge wire does a light bulb socket wiring diagram require?
For typical household light bulb sockets, 14-gauge or 12-gauge copper wire is generally required, depending on the circuit’s amperage and length. A standard 15-amp lighting circuit commonly uses 14-gauge wire, while a 20-amp circuit would require 12-gauge. Always consult local electrical codes and the fixture’s rating.
