5-Wire Trailer Plug Diagram: 5 Wire Trailer Wiring Guide 2026
A 5-wire trailer wiring diagram assigns White (Ground), Brown (Running Lights), Yellow (Left Turn/Brake), Green (Right Turn/Brake), and Blue (Auxiliary/Reverse). This system adds a fifth wire for functions like reverse lights or auxiliary power, separate from a dedicated electric brake controller signal.
📌 Key Takeaways
- Pin 5 (Blue wire) typically serves as Auxiliary Power or Reverse Lights; it’s generally not a dedicated brake controller output in standard 5-wire setups.
- The White (Ground) wire is critical; ensure it has a clean, secure connection to the trailer frame for all running lights and turn signal circuits.
- Use appropriate wire gauges: 16-14 AWG for signal/running lights and 12 AWG for high-draw auxiliary power circuits.
- A common wiring mistake is swapping Yellow (Left Turn/Brake) and Green (Right Turn/Brake) or poor grounding, causing erratic lighting.
- For persistent issues beyond basic troubleshooting, especially with RV blade connectors or vehicle brake controller integration, seek professional assistance.
Navigating the intricacies of trailer wiring is crucial for safe and compliant towing operations. For trailers requiring more than just basic lighting functions, the 5-wire flat connector system offers an essential upgrade from the ubiquitous 4-wire setup. This configuration is predominantly utilized on trailers equipped with hydraulic surge brakes that incorporate a reverse lockout solenoid, or those needing a dedicated circuit for auxiliary functions such as backup lights. Understanding the precise pin assignments, wire color conventions, and proper connection sequence is paramount for mechanics, experienced DIYers, and equipment owners to ensure reliable performance on the road. This guide will meticulously detail the 5-wire trailer wiring diagram, focusing on the standard flat connector type, pin identification, and the critical functions of each conductor.

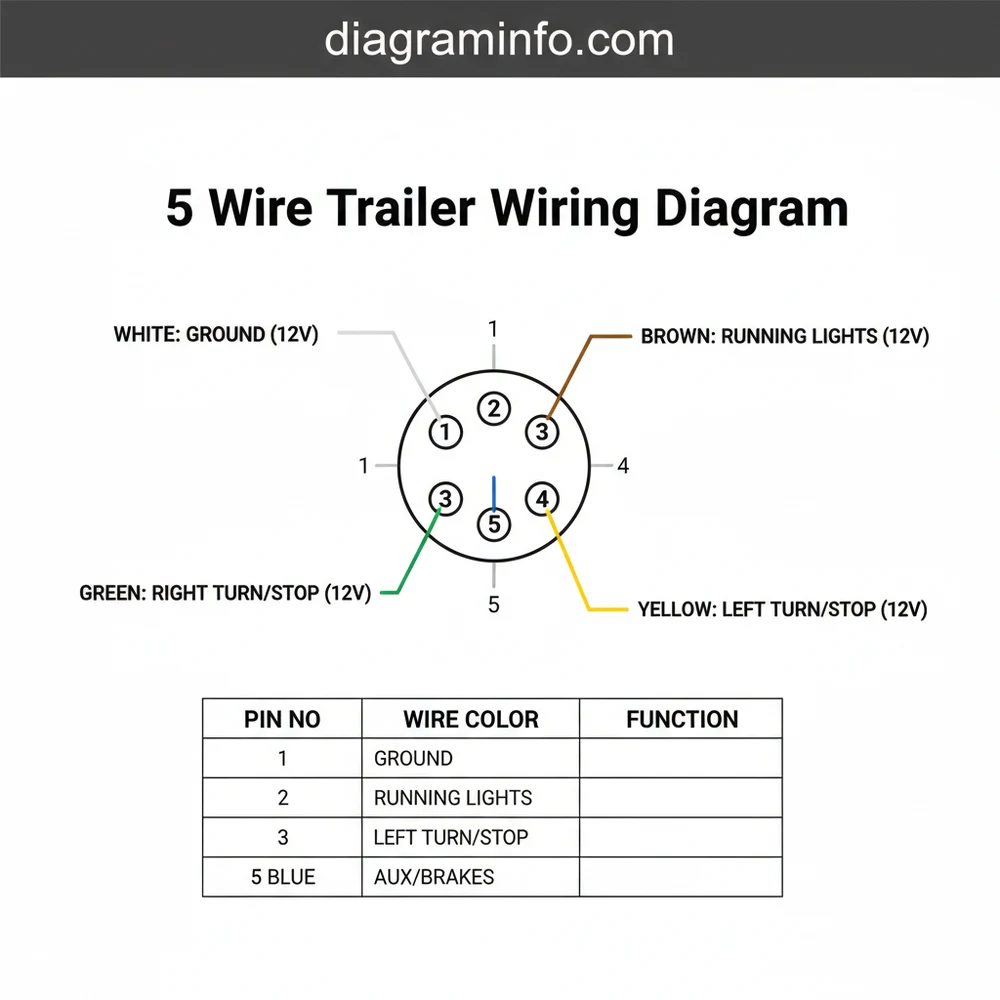

Pin Assignment Table: 5-Wire Flat Connector
The following table outlines the standard pin assignments, corresponding wire colors, and their respective functions for a 5-wire flat trailer connector. Adhering to these specifications is critical for interoperability and proper signal transmission between the tow vehicle and the trailer.
| Pin # | Wire Color | Function | Notes |
|---|---|---|---|
| 1 | White | Ground | Provides common ground for all trailer lighting and electrical functions. Essential for system integrity. |
| 2 | Brown | Tail / Running Lights | Powers all running lights, clearance lights, and identification lights on the trailer. |
| 3 | Yellow | Left Turn / Stop Signal | Activates the left turn signal and left brake light on the trailer. |
| 4 | Green | Right Turn / Stop Signal | Activates the right turn signal and right brake light on the trailer. |
| 5 | Blue or Purple | Auxiliary / Reverse Lights or Surge Brake Lockout | Provides power for backup lights, or more commonly, activates the reverse lockout solenoid on surge brakes to prevent braking when backing up. |
While Blue is the most common color for the auxiliary/reverse wire in aftermarket 5-wire harnesses, some OEM applications or older trailer models may utilize a Purple wire. Always verify the function with a multimeter or by tracing the wire before making final connections. This pin is distinct from the electric brake output found on larger 7-way RV blade connectors, which typically uses a Blue wire for the brake controller output.
Step-by-Step Wiring Guide for 5-Wire Trailer System
Properly wiring a 5-wire trailer connector demands precision and adherence to established electrical standards. This guide details the connection sequence for the trailer-side connector, assuming your tow vehicle is already equipped with a compatible 5-pin receptacle. Always ensure the vehicle’s battery is disconnected during installation to prevent accidental shorts or electrical hazards.
Before commencing any wiring procedures, disconnect the tow vehicle’s battery to eliminate power to the wiring harness. Failure to do so can result in electrical shock, damage to vehicle electronics, or fire. Always use appropriate personal protective equipment (PPE), including safety glasses and gloves.
-
Preparation and Safety:
Ensure the trailer is safely chocked and stable. Gather all necessary tools: wire strippers, crimpers, heat gun (for heat-shrink connectors), dielectric grease, and a multimeter. Disconnect the tow vehicle’s battery. If working on an existing setup, carefully label wires if they are not color-coded to prevent confusion.
-
Connect the Ground Wire (Pin 1 – White):
The ground connection is the foundation of any reliable electrical system. Connect the White wire from your trailer’s wiring harness to the designated ground pin (Pin 1) on your 5-wire flat connector. Ensure this wire is also securely grounded to the trailer frame at a clean, paint-free metal point. A poor ground connection is a leading cause of intermittent lighting issues, as detailed in our guide on trailer light troubleshooting.
🔧 SpecificationFor trailer lighting circuits, 16-gauge (AWG) wire is typically sufficient for individual light circuits. However, the main ground and power feeds should be sized appropriately for the cumulative load, often 14 AWG or 12 AWG, adhering to SAE J1128 standards for automotive wire.
-
Connect the Running Light Wire (Pin 2 – Brown):
Splice and connect the Brown wire from the trailer’s running lights, clearance lights, and identification lights to Pin 2 of the connector. This circuit provides power to all marker lights when the tow vehicle’s headlights are on.
-
Connect the Left Turn/Stop Signal Wire (Pin 3 – Yellow):
Connect the Yellow wire from the trailer’s left brake/turn signal lamp to Pin 3. This conductor transmits the combined left turn and brake signal from the tow vehicle to the trailer’s left rear lighting unit.
-
Connect the Right Turn/Stop Signal Wire (Pin 4 – Green):
Similarly, connect the Green wire from the trailer’s right brake/turn signal lamp to Pin 4. This conductor transmits the combined right turn and brake signal to the trailer’s right rear lighting unit.
-
Connect the Auxiliary/Reverse Wire (Pin 5 – Blue or Purple):
This is the distinguishing wire for the 5-pin system. Connect the Blue (or Purple) wire from your trailer’s auxiliary function to Pin 5. For trailers with surge brakes, this wire typically connects to the solenoid on the brake actuator. When the tow vehicle is in reverse, power is sent through this wire, activating the solenoid to lock out the surge brakes, allowing you to back up without engaging the trailer brakes. If your trailer has backup lights, this wire would connect to those lamps.
-
Secure Connections and Test:
Once all wires are connected, ensure they are securely crimped or soldered and protected from moisture using heat-shrink tubing and dielectric grease. Reconnect the tow vehicle’s battery. Perform a comprehensive test of all lighting functions: running lights, left turn, right turn, brake lights, and the auxiliary function (e.g., engage reverse to test the surge brake lockout or backup lights). Verify continuity and voltage at each pin using a multimeter, referencing the pin assignment table.
Common Wiring Mistakes and Troubleshooting Tips
Even for experienced technicians, trailer wiring can present challenges. Avoiding common pitfalls will save time and prevent potential safety hazards. The most frequent issues stem from inadequate connections or incorrect wire identification.
- Poor Ground Connections: This is by far the most prevalent issue. A corroded, loose, or incorrectly terminated ground wire (White) will manifest as dim, flickering, or non-functional lights. Always ensure the ground wire is secured to a clean, unpainted, and robust section of the trailer frame. According to industry diagnostics, over 70% of trailer lighting failures can be traced back to an insufficient ground.
- Reversed Turn/Brake Signals: Swapping the Yellow and Green wires (Pins 3 and 4) will result in the left turn signal activating the right light, and vice-versa. Always test these functions independently to confirm correct routing.
- Incorrect Auxiliary/Reverse Wire Function: Mistaking the Blue/Purple wire’s function can lead to significant problems, especially with surge brakes. If this wire is misconnected or not receiving power when in reverse, the trailer’s surge brakes will engage every time you attempt to back up, potentially damaging the brake system or trailer components.
- Inadequate Wire Gauge: Using wire that is too thin for the electrical load or length can cause voltage drop, resulting in dim lights or overheating. Refer to load charts; while 16 AWG is common for individual lights, main feeds might require 14 AWG or even 12 AWG depending on the total amperage draw.
- Poorly Sealed Connections: Exposure to moisture, road salt, and debris will inevitably lead to corrosion and electrical failure. Always use marine-grade connectors, heat-shrink tubing, and dielectric grease to protect all splices and terminals.
- Pin Orientation Confusion: While the diagram clearly shows pin orientation, it’s easy to misalign the tow vehicle and trailer connectors. Always ensure the keying features (if present) align, and double-check wire colors at the connection point.
Frequently Asked Questions About 5-Wire Trailer Wiring Diagrams
What is the primary difference between a 4-wire and a 5-wire trailer wiring system?
The main distinction lies in the additional fifth wire, typically Blue or Purple. A 4-wire system only provides ground, running lights, left turn/brake, and right turn/brake. The 5-wire system adds a dedicated circuit for an auxiliary function, most commonly for a reverse lockout solenoid on trailers with hydraulic surge brakes, or for trailer backup lights. This extra circuit is essential for preventing the surge brakes from engaging when backing up.
Can I convert a 4-pin trailer to a 5-pin system?
Yes, converting a 4-pin trailer to a 5-pin system is feasible, but it requires additional wiring on the trailer. You will need to install a 5-wire flat connector, run a new auxiliary wire from the connector to the specific component requiring the fifth circuit (e.g., surge brake lockout solenoid or backup lights), and ensure your tow vehicle has a compatible 5-pin receptacle wired for the desired auxiliary function. For electric brake systems, a different brake controller installation and connector (like a 7-way RV blade) would be required.
What wire gauge should I use for a 5-wire trailer harness?
For standard lighting circuits (running lights, turn signals, brake lights), 16-gauge (AWG) wire is generally adequate for most trailer lengths. However, for the main ground wire (White) and the auxiliary/reverse wire (Blue/Purple), especially if it’s powering a solenoid or multiple backup lights, it is advisable to use a slightly heavier gauge, such as 14 AWG or even 12 AWG, to minimize voltage drop and safely handle the current draw. Always consult the component’s specifications for exact wire gauge requirements.
How do I troubleshoot an issue with my 5-wire trailer lighting system?
Begin by checking the most common failure point: the ground connection. Ensure the White wire is securely attached to a clean, rust-free part of the trailer frame. Next, use a multimeter to test for continuity and voltage at each pin of both the tow vehicle’s receptacle and the trailer’s connector. Verify that each pin receives the correct signal corresponding to its function (e.g., 12V for running lights when headlights are on, blinking 12V for turn signals, etc.). Inspect all wire connections for corrosion, damage, or loose crimps. Also, check the tow vehicle’s fuses for the trailer lighting circuits.
What is the specific purpose of the auxiliary/reverse wire (Pin 5) on a boat trailer?
On boat trailers, the auxiliary/reverse wire (Pin 5, typically Blue or Purple) is almost exclusively used to activate the reverse lockout solenoid on hydraulic surge brakes. When a boat trailer is backed down a ramp into the water, the reverse lockout prevents the trailer’s brakes from engaging due to the forward pressure created by the tow vehicle pushing the trailer backward. Without this function, backing up a surge-braked boat trailer would be extremely difficult, potentially damaging the braking system or the tow vehicle’s transmission.
Frequently Asked Questions
What is pin 1 on a 5 wire trailer wiring diagram?
Pin 1 on a 5-wire trailer wiring diagram is universally designated for the Ground connection, typically using a White wire. This provides the common return path for all electrical circuits on the trailer, including running lights, turn signals, and auxiliary power. A secure, corrosion-free ground connection is vital for proper system operation.
What wire color is the brake wire on 5 wire trailer wiring diagram?
In a typical 5-wire trailer wiring diagram, there’s no single dedicated brake wire for an electric brake controller. The Yellow wire handles Left Turn/Brake, and Green handles Right Turn/Brake. The Blue wire is commonly used for auxiliary power or reverse lights, distinct from a brake controller connection.
Can I use 5 wire trailer wiring diagram without a brake controller?
Yes, a 5-wire trailer wiring diagram is primarily for lighting functions (running lights, turn signal, brake lights) and an auxiliary power or reverse circuit. It does not inherently provide for electric trailer brakes that require a separate brake controller. Trailers needing electric brakes typically use a 7-way RV blade connector.
What is the auxiliary pin on 5 wire trailer wiring diagram for?
The auxiliary pin on a 5-wire trailer wiring diagram, typically the Blue wire (Pin 5), is for additional functions beyond standard lighting. It commonly powers reverse lights, provides constant 12V auxiliary power to the trailer, or operates specific trailer accessories. This line is separate from a brake controller connection.
What causes trailer lights to not work with 5 wire trailer wiring diagram?
Common causes for non-working trailer lights include poor ground connections (most frequent), corroded terminals, blown fuses in the tow vehicle, damaged wiring, or faulty bulbs. Always check the tow vehicle’s fuses first, then inspect all connections, especially the White ground wire, for corrosion or looseness.
Is 5 wire trailer wiring diagram compatible with 4-pin adapters?
A 5-wire trailer *can* use a 4-pin adapter, but you will lose the function of the fifth (auxiliary/reverse) wire. The adapter will typically only connect ground, running lights, and turn signals. For full functionality, you should use a 5-pin connection. You cannot gain the fifth wire’s function with a simple 4-pin adapter.
