For a typical 6-pin DPDT reverse polarity switch, connect the positive input (hot wire) to pin 2 and negative (ground wire) to pin 3. Cross-wire pin 5 to pin 1, and pin 4 to pin 6. The DC motor connects to pins 1 and 6. This configuration allows polarity reversal by switching positions.
📌 Key Takeaways
- A DPDT (Double Pole Double Throw) switch, typically 6-pin, is essential for reliable polarity reversal.
- Correct cross-wiring between specific terminals is critical; incorrect wiring will not reverse polarity or may short-circuit.
- Always disconnect power from the circuit before attempting any wiring to prevent electric shock or short circuits.
- The most common mistake is incorrect pin assignment or insufficient wire gauge for the motor’s current draw, causing overheating.
- Consult a certified electrician for high-current DC motor applications or if unsure about circuit safety and compliance.
This guide details the precise steps for executing a reverse polarity switch wiring diagram, a critical procedure for controlling DC motors or actuators that require directional changes, such as power windows, wiper motors, or linear actuators in automotive and equipment applications. Understanding the correct wire color code, pin assignment, and connection sequence is paramount to ensure safe and functional operation, preventing costly damage to components and potential electrical hazards. This comprehensive diagram and accompanying instructions are tailored for experienced technicians and dedicated equipment owners seeking authoritative, technical guidance.
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Pin/Terminal (DPDT Switch) | Notes |
|---|---|---|---|
| Red | Main +12V Hot Wire (Input) | Input Pin 1 (Top Left) | Connects to fused +12V supply. |
| Black | Main Ground Wire (Input) | Input Pin 3 (Bottom Left) | Connects to chassis ground or battery negative. |
| Blue | Motor Lead A | Output Pin 2 (Middle Left) | Connects to one terminal of the DC motor/actuator. |
| Yellow | Motor Lead B | Output Pin 5 (Middle Right) | Connects to the other terminal of the DC motor/actuator. |
| Red (Jumper) | +12V Polarity Feed | From Pin 1 to Pin 6 (Bottom Right) | Short jumper wire to cross-connect polarity. |
| Black (Jumper) | Ground Polarity Feed | From Pin 3 to Pin 4 (Top Right) | Short jumper wire to cross-connect polarity. |
STEP-BY-STEP CONNECTION GUIDE
Properly implementing a reverse polarity switch wiring diagram is crucial for the bidirectional control of DC motors and actuators. This guide details the installation process for a common Double Pole Double Throw (DPDT) rocker switch, which facilitates the reversal of current flow to a load. Always ensure the power source is disconnected before commencing any wiring work.
Before beginning any wiring, disconnect the vehicle’s or equipment’s main power source, typically by removing the negative battery terminal. Failure to do so can result in electrical shock, short circuits, and severe damage to electrical components or personal injury.

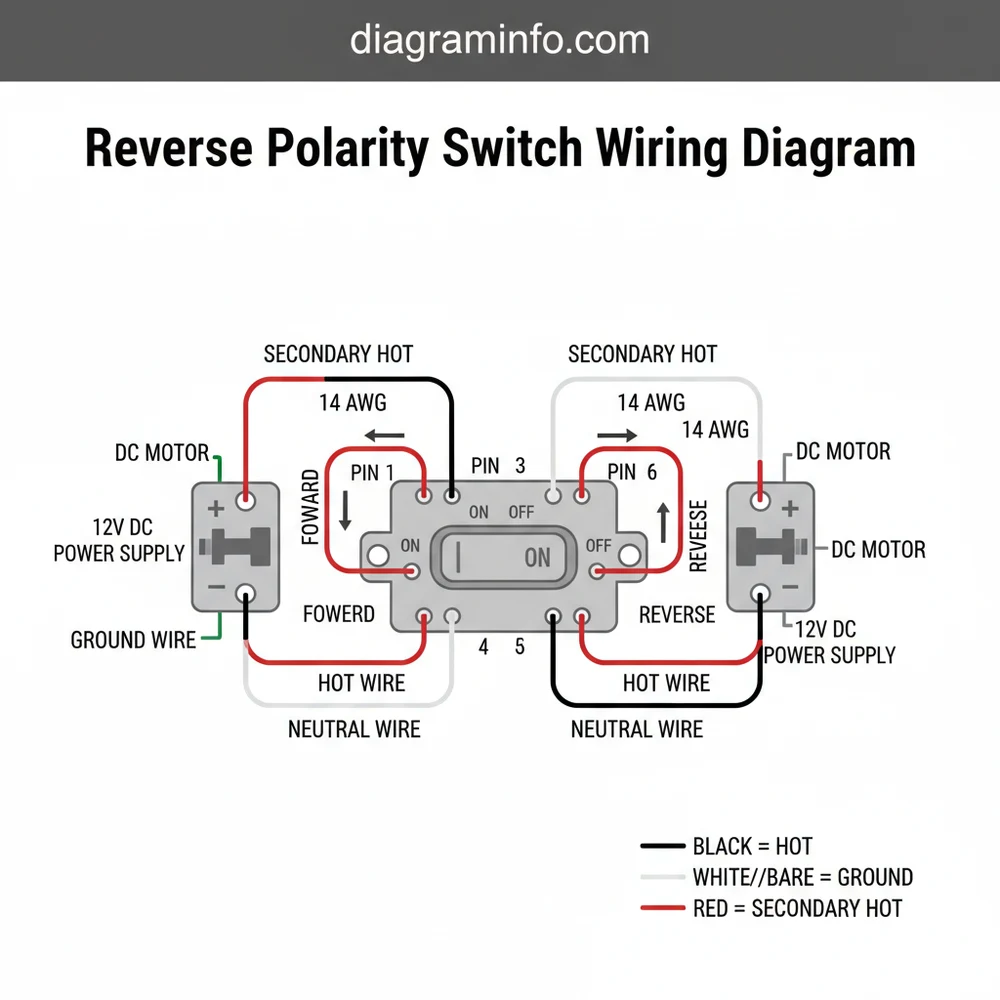

1. Identify Switch Terminals: Refer to your specific DPDT switch’s markings or datasheet. While the diagram above illustrates a common 6-pin layout (3 pins on each side), some switches may vary. Our diagram labels pins 1-3 on the left column and 4-6 on the right column, from top to bottom. Pins 2 and 5 are the central output terminals for the motor.
2. Prepare Power Input Wires: Route a fused +12V hot wire (Red) from your power source (e.g., battery, fuse box) and a ground wire (Black) to the location of your switch. According to manufacturer specifications for most automotive circuits, an appropriate fuse should be rated slightly above the maximum expected motor current. For most actuators drawing under 10A, a 14 AWG wire gauge is typically adequate; however, refer to your motor’s peak current draw and wire gauge selection guidelines for precise sizing.
3. Connect Main Power Inputs:
Connect the Red +12V hot wire to Pin 1 (Top Left) of the DPDT switch. Secure the connection firmly, ensuring no bare strands are exposed.
Connect the Black ground wire to Pin 3 (Bottom Left) of the DPDT switch.
4. Create Polarity Reversal Jumpers: This is the core of the reverse polarity switch wiring.
Cut a short length of Red wire (matching the gauge of your main power wires). Connect one end to Pin 1 (Top Left) and the other end to Pin 6 (Bottom Right). This jumper feeds positive voltage to the opposite side’s lower terminal.
Cut a short length of Black wire (matching the gauge). Connect one end to Pin 3 (Bottom Left) and the other end to Pin 4 (Top Right). This jumper feeds ground to the opposite side’s upper terminal. These cross-connections are critical for reversing the current flow to the motor when the switch is toggled.
5. Connect Motor Output Wires:
Connect the Blue motor lead wire to Pin 2 (Middle Left) of the DPDT switch. This lead will carry either positive or negative voltage depending on the switch position.
Connect the Yellow motor lead wire to Pin 5 (Middle Right) of the DPDT switch. This lead will carry the opposite polarity voltage to the Blue wire.
Ensure these wires are routed cleanly to your DC motor or actuator. Consider using a terminal block for a robust and serviceable connection point between the switch and the motor wiring if the motor is distant or subject to vibration.
6. Connect Motor Leads to Load: Connect the Blue wire to one terminal of your DC motor/actuator and the Yellow wire to the other terminal. The specific assignment (Blue to A, Yellow to B) will determine the initial direction of rotation; if the direction is incorrect, simply swap the Blue and Yellow connections at the motor.
7. Verify All Connections: Double-check every wire connection for tightness and correct pin assignment as per the reverse polarity switch wiring diagram. Ensure all crimps or solder joints are robust and insulated.
8. Test Functionality: Reconnect the main power source. Operate the switch in both directions, observing the motor’s movement. Confirm it moves correctly in both desired directions. Listen for any unusual sounds or detect any heat buildup, which could indicate a short circuit or overload. For advanced applications, consider integrating this switch into a larger DC motor control system for additional safety features or automated operation.
For typical 12V DC automotive applications with a motor drawing up to 15 amps, a DPDT rocker switch rated for 20A at 12V DC is recommended. All wiring should be minimum 14 AWG stranded copper wire, protected by a circuit breaker or fuse rated at 15-20A, positioned as close to the power source as possible. Terminal connections should be crimped with insulated connectors or soldered, then heat-shrink insulated to prevent shorts and corrosion. Torque specifications for battery terminals typically range from 10-14 ft-lbs (13-19 Nm).
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect execution of a reverse polarity switch wiring diagram can lead to various operational issues, component damage, or safety hazards. Addressing these common mistakes promptly is crucial for system integrity.
1. Incorrect Jumper Wire Placement:
Mistake: Cross-connections (Red jumper from Pin 1 to Pin 6, Black jumper from Pin 3 to Pin 4) are swapped or incorrectly routed (e.g., straight connection instead of cross-over).
Consequence: The motor will either not operate, operate in only one direction, or a direct short circuit may occur when the switch is activated, potentially blowing fuses or damaging the switch/wiring.
Fix: Carefully re-verify the jumper wire connections against the reverse polarity switch wiring diagram. Ensure Pin 1 is bridged to Pin 6, and Pin 3 is bridged to Pin 4. This cross-wiring is what enables polarity reversal.
2. Insufficient Wire Gauge or Missing Fuse:
Mistake: Using wires that are too thin (high gauge number) for the motor’s current draw, or failing to install an appropriately rated fuse on the +12V hot wire.
Consequence: Undersized wires will overheat, melt insulation, and pose a fire risk. They also cause voltage drop, reducing motor performance. A missing fuse leaves the circuit vulnerable to overcurrents, potentially damaging the motor, switch, or entire electrical system in the event of a short.
Fix: Consult the motor’s current draw specifications. Select a wire gauge that exceeds the motor’s maximum continuous and surge current, using a reputable wire gauge chart. Install a fast-blow automotive-grade fuse (e.g., ATO/ATC blade fuse) rated 1.25 to 1.5 times the motor’s continuous operating current, placed as close to the power source as possible.
3. Loose or Poorly Insulated Connections:
Mistake: Connections that are not tightly crimped or soldered, or bare wire exposed at terminals.
Consequence: Loose connections create high resistance, leading to heat buildup, intermittent operation, and potential arcing. Exposed wires can short against chassis components or other wires, causing fuses to blow, component damage, or even fire.
Fix: Use high-quality crimp connectors (e.g., heat-shrink spade terminals) or solder connections with appropriate flux. After securing, insulate all exposed metal connections with heat-shrink tubing or electrical tape rated for automotive temperatures. Tug gently on each wire to confirm mechanical security.
4. Incorrect Power Source Voltage:
Mistake: Attempting to power a 12V DC motor with a 24V DC source, or vice versa.
Consequence: Over-voltage (e.g., 24V to a 12V motor) will rapidly burn out the motor, melt internal windings, and potentially damage the switch. Under-voltage (e.g., 12V to a 24V motor) will result in weak or no operation, excessive current draw due to low impedance, and potential overheating of the power supply.
* Fix: Always match the power source voltage to the motor’s rated operating voltage. Confirm the equipment’s electrical system voltage before making any connections.
FAQ
Q: What type of switch is typically used for reverse polarity applications?
A: The most common and effective switch for direct reverse polarity wiring is a Double Pole Double Throw (DPDT) switch. This type of switch features two independent “poles” (input terminals) and two “throws” (output terminals) for each pole, allowing it to switch two separate circuits simultaneously. When wired correctly with cross-over connections, it effectively reverses the positive and negative leads to a DC motor or actuator.
Q: Can I use relays instead of a DPDT switch for reverse polarity?
A: Yes, using relays is a highly effective method for reverse polarity control, especially for higher current applications where a single DPDT switch might be insufficient or prone to premature failure. A common configuration involves two standard SPDT (Single Pole Double Throw) relays or a specialized DPDT relay, often referred to as an H-bridge relay circuit. This allows a lower-current switch or control signal to activate the relays, which then handle the higher motor currents, offering enhanced durability and reliability. Learn more about troubleshooting relay circuits for specific implementations.
Q: Why are short circuit protection and proper wire gauge so critical in this setup?
A: Short circuit protection (via fuses or circuit breakers) and correct wire gauge are paramount for safety and system longevity. DC motors draw significant current, especially during startup or under load. An unexpected short circuit without protection can lead to catastrophic component failure, wiring fires, and battery damage. Undersized wires will overheat, leading to insulation breakdown, power loss, and fire hazards. Adhering to manufacturer specifications for wire gauge and fusing prevents these dangerous and costly failures.
Q: What if the motor spins in the wrong direction after wiring?
A: If your DC motor spins in the unintended direction after completing the reverse polarity switch wiring, it’s typically an easy fix. You do not need to re-wire the entire switch. Simply reverse the two output wires (Blue and Yellow in our diagram) where they connect to the motor or actuator terminals. This will correct the initial direction while still allowing the switch to reverse polarity for the opposite movement.
Q: Does the specific year of a vehicle or equipment affect the reverse polarity switch wiring diagram?
A: While the fundamental electrical principle of a DPDT switch for reverse polarity remains constant across all years, the specific wire color codes, terminal designations, or integration points within a vehicle’s or equipment’s existing harness can vary significantly by manufacturer, model, and year. For instance, pre-2000 vehicles may have less standardized wire colors. Always consult the OEM service manual or vehicle-specific wiring diagrams for the most accurate information regarding power sources, existing control circuits, and ground points to ensure compatibility and avoid conflicts with onboard systems.
Step-by-Step Guide to Understanding the 6-Pin Reverse Polarity Switch Wiring Diagram: Installation Guide 2026
Identify – Determine the specific type of reverse polarity switch (e.g., DPDT 6-pin) and the operating voltage/current requirements of your DC motor.
Locate – Pinpoint your DC power source (positive hot wire, negative ground wire) and the two terminals on your DC motor.
Reference – Carefully consult the switch’s specific wiring diagram and pin assignment to understand input, output, and internal connections.
Connect/Route – Wire the positive input to one common terminal, negative to the other. Cross-wire the output terminals to the motor, ensuring the correct wire color code.
Verify – Double-check all connections for security and correct pin assignment. Ensure the ground wire is properly isolated. Test switch functionality with minimal load.
Troubleshoot – If the motor fails to reverse or functions incorrectly, re-examine the wiring diagram, check continuity, and confirm all power and ground wire connections are sound.
Frequently Asked Questions
What wire color is the hot wire for a reverse polarity switch?
For a reverse polarity switch, the hot wire (positive input) typically connects to one side of the switch’s common terminals (e.g., pin 2 on a 6-pin DPDT). While universal wire color codes don’t exist for switches, red is often used for positive and black for negative or ground wire. Always confirm with the switch’s specific pin assignment diagram.
What do the pin numbers mean on reverse polarity switch wiring diagram?
Pin numbers on a reverse polarity switch diagram denote specific connections. For a 6-pin DPDT, two pins are for the positive input, two for the negative input, and two for the motor connections. The internal cross-wiring is what enables polarity reversal, making correct pin assignment crucial for function. Refer to the specific switch’s pinout for accuracy.
How many wires does a reverse polarity switch wiring diagram have?
A common 6-pin DPDT reverse polarity switch typically involves four external wires: one hot wire (positive), one ground wire (negative), and two wires connecting directly to the DC motor. The diagram will illustrate these connections, ensuring proper current flow and reversal. Some diagrams might show internal switch wiring too.
What are common wiring mistakes with reverse polarity switch wiring diagram?
Common mistakes include incorrect cross-wiring, reversing input power (hot and ground wire swapped), or using an inadequate wire color code. Misidentifying the motor connection pins, leading to no reversal or short circuits, is also frequent. Always double-check your pin assignment against the diagram before applying power to avoid damage.
When should I seek professional help for a reverse polarity switch wiring diagram?
You should seek professional help if you’re working with high-voltage or high-current applications, lack experience with electrical wiring, or if your attempts to troubleshoot issues result in persistent problems. A professional can ensure correct wiring, proper ground wire connections, and adherence to safety codes, preventing potential hazards like shorts or fires.
What gauge wire does reverse polarity switch wiring diagram require?
The required wire gauge depends directly on the current (amperage) drawn by the DC motor and the length of the wire run. Consult a wire gauge chart, matching the motor’s amperage rating to the appropriate gauge (e.g., 18 AWG for low current, 12-10 AWG for higher current). Using an undersized wire can cause overheating and potential fire hazards.
