4 Wire Ignition Switch Diagram: Easy Setup Guide
A 4 wire ignition switch diagram typically shows connections for the battery (hot wire), ignition coil, starter motor, and accessories. The hot wire provides power to the common terminal, while the remaining wires distribute current to start and run the engine. Proper grounding via the ground wire is essential for safe circuit completion and reliable operation.
📌 Key Takeaways
- Explains the electrical routing from power source to starter and ignition circuits.
- Identifying the battery B terminal or hot wire is the most critical first step.
- Always disconnect the battery before working to prevent shorts or accidental starts.
- Use a multimeter to verify continuity between terminals before final installation.
- Use this diagram when replacing a universal ignition switch or troubleshooting starting issues.
Understanding a 4 wire ignition switch diagram is essential for anyone maintaining small engines, classic vehicles, or custom power equipment. Whether you are replacing a faulty switch on a lawn tractor or wiring a project from scratch, knowing the precise connection points ensures safety and functionality. This guide provides a comprehensive breakdown of the wiring layout, terminal identification, and the underlying electrical logic involved in a standard four-terminal setup. You will learn how to identify common wire colors, use the correct gauge for your voltage needs, and complete an installation that stands the test of time. Having the correct diagram prevents electrical shorts and component damage, making it the most critical tool in your toolbox before you even pick up a wrench.

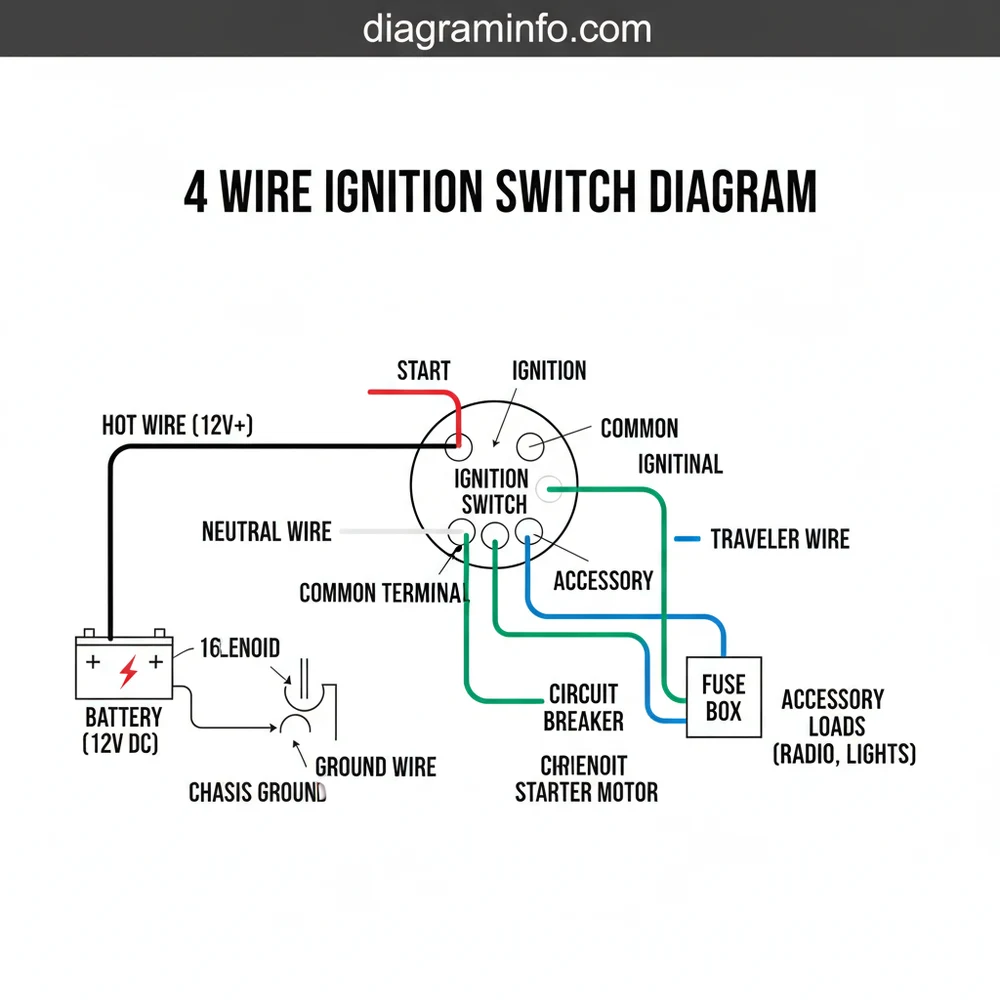

Decoding the 4 Wire Ignition Switch Diagram
The primary purpose of a 4 wire ignition switch diagram is to illustrate the path of electricity from the power source to the various functional components of the machine. In most standard four-terminal switches, the terminals are labeled with letters that correspond to their specific function: B (Battery), S (Starter), L or I (Lights/Ignition), and M or G (Magneto/Ground). Understanding these labels is the first step in mastering the wiring process. The diagram typically represents the back of the switch, showing the spatial relationship between the pins to prevent cross-wiring.
In a typical 12-volt DC system, the hot wire provides the incoming current, while the other wires serve as paths for the electricity to travel once the key is turned to various positions. The diagram will show the “Off” position (where the circuit is broken or grounded), the “On/Run” position (where power flows to accessories or the ignition coil), and the “Start” position (a momentary contact that sends power to the starter solenoid).
Visualizing these connections requires attention to detail regarding the brass screw terminals often found on heavy-duty switches. Unlike modern plastic snap-on connectors, these terminals require the wire to be wrapped or crimped with a ring terminal. The diagram acts as a map, ensuring that the traveler wire—the lead that carries the signal from the switch to the solenoid—is placed on the correct post. Variations exist between manufacturers; for example, a lawn mower switch may use a terminal to ground the magneto to stop the engine, whereas an automotive switch uses that same position to power an ignition coil. Always verify your specific model’s requirements against the general diagram provided here.
Most 4-wire ignition switches use a specific logic: the “B” terminal is the common terminal where the main power enters. Without a solid connection here, none of the other functions will receive voltage.
Step-by-Step Installation Using the Wiring Diagram
Reading a 4 wire ignition switch diagram is one thing, but translating that into a physical installation requires a methodical approach. Follow these steps to ensure a professional-grade result.
1. Preparation and Safety
Before touching any wires, disconnect the negative terminal of the battery. This prevents accidental sparks or short circuits that could blow fuses or damage the internal contacts of your new switch. Gather your tools, including a wire stripper, crimping tool, and a multimeter to verify voltage and continuity.
2. Identify Terminal Markings
Inspect the back of the ignition switch. Look for stamped letters near the terminals.
- ✓ B (Battery): This is for the main hot wire.
- ✓ S (Starter): This connects to the starter solenoid (often called the traveler wire).
- ✓ L or I (Lights/Ignition): This powers your lights, dashboard, or ignition system.
- ✓ G or M (Ground/Magneto): This is the kill circuit or the common ground path.
3. Select the Correct Wire Gauge
The gauge of the wire is critical for safety. For the main power (B terminal) and the starter (S terminal), use a thicker wire, typically 10 to 12 gauge, to handle the high current draw. For the accessory (L) and ground (G) wires, a 14 or 16 gauge is usually sufficient. Using a wire that is too thin can lead to overheating and potential fires.
4. Connect the Hot Wire to the Common Terminal
Strip approximately 1/4 inch of insulation from your red hot wire. If your switch uses a brass screw terminal, crimp a ring connector onto the wire. Secure it to the ‘B’ terminal. Ensure the connection is tight; a loose connection at the common terminal is the leading cause of intermittent power failure.
5. Wire the Starter Solenoid (Traveler Wire)
Connect the S terminal to the small post on your starter solenoid. This wire only carries current when the key is turned to the “Start” position. In electrical terms, this acts as a traveler wire, sending a momentary signal to engage the heavy-duty starter motor.
6. Connect Accessories and Ground
Connect the ‘L’ or ‘I’ terminal to your accessory fuse block or ignition coil. Finally, connect the ‘G’ or ‘M’ terminal. In many small engines, this wire is the neutral wire or ground wire that, when connected to the engine block via the switch in the “Off” position, kills the spark and stops the engine.
Never connect a battery hot wire directly to a Magneto (M) terminal. This will instantly destroy the ignition coil or the switch itself, as magneto systems are not designed to receive external battery voltage.
7. Final Testing
Once all connections are secure, reconnect the battery. Use a multimeter to check the voltage at each terminal as you cycle the key. In the “Run” position, you should see 12V at the ‘L’ terminal. In the “Start” position, you should see 12V at the ‘S’ terminal.
Common Issues & Troubleshooting
Even with a perfect 4 wire ignition switch diagram, issues can arise during or after installation. The most frequent problem is a “no-start” condition. This is often caused by a faulty ground wire or a loose connection at the brass screw terminals. If the engine turns over but won’t stay running, the issue likely lies with the ‘L’ (Ignition) circuit not maintaining constant voltage.
Another common symptom is a “parasitic drain,” where the battery dies overnight. This happens if the hot wire is accidentally bridged with the accessory wire inside the switch or due to a wiring error where a load is connected to the common terminal instead of the switched terminal. If you notice smoke or a burning smell, turn off the power immediately. This indicates a short circuit, likely caused by using the wrong gauge wire for the voltage required by the starter.
Use a dab of dielectric grease on the brass screw connections. This prevents corrosion and ensures a solid electrical path, especially in outdoor equipment like lawn mowers or boats.
Best Practices for Ignition Wiring
To ensure your wiring job lasts for years, follow these professional best practices. First, always use high-quality marine-grade or automotive-grade wire. These wires have more strands and better insulation, making them resistant to vibration and heat. When following your 4 wire ignition switch diagram, label each wire with a piece of masking tape or a heat-shrink label. This makes future troubleshooting much simpler.
Proper wire routing is also vital. Keep your ignition wires away from moving parts like fans or belts, and avoid routing them near high-heat areas like the exhaust manifold. Use plastic conduit or loom to protect the wires from abrasion. When it comes to connectors, heat-shrink butt connectors are superior to standard plastic ones because they provide a waterproof seal that protects the copper strands from oxidation.
Finally, invest in a quality switch. Cheap, generic ignition switches often have thin internal contacts that wear out after a few hundred cycles. A high-quality switch with heavy-duty brass screw terminals will provide better conductivity and more positive “clicks” between key positions, reducing the chance of internal arcing.
- ✓ Color Coding: Stick to standard colors (Red for Battery, Black for Ground, Yellow for Starter).
- ✓ Strain Relief: Ensure there is no tension on the wires at the back of the switch.
- ✓ Fuse Protection: Always install an inline fuse on the hot wire coming from the battery to protect the entire circuit.
Conclusion
Mastering the 4 wire ignition switch diagram is a fundamental skill for any DIY mechanic or electrical enthusiast. By understanding the specific roles of the common terminal, the traveler wire, and the ground wire, you can safely navigate the complexities of engine starting systems. Remember to pay close attention to wire gauge and voltage requirements to prevent overheating, and always double-check your terminal identifications against the manufacturer’s markings. With the right tools and a methodical approach, you can successfully install or troubleshoot an ignition switch, ensuring your equipment starts reliably every time you turn the key. Whether you are dealing with a simple lawn mower or a more complex vehicle, the principles of proper wiring and secure connections remain the same. Always prioritize safety, use quality components, and refer back to your diagram whenever you are in doubt.
