Dual Battery Boat Wiring Diagram 2026: Complete Connection Guide

This comprehensive guide details the precise wiring task of installing a robust dual battery system in a marine vessel, an essential upgrade for enhancing onboard power reliability and extending operational autonomy. Understanding the intricate connections and proper sequencing presented in the accompanying wiring diagram is paramount for preventing electrical faults, ensuring optimal component longevity, and safeguarding both vessel and occupants. This resource is engineered for seasoned marine technicians and experienced DIY enthusiasts who require accurate, technical data on wire color codes, pin assignments, terminal identification, and secure connection methodologies to execute this critical marine electrical upgrade successfully.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

STEP-BY-STEP CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

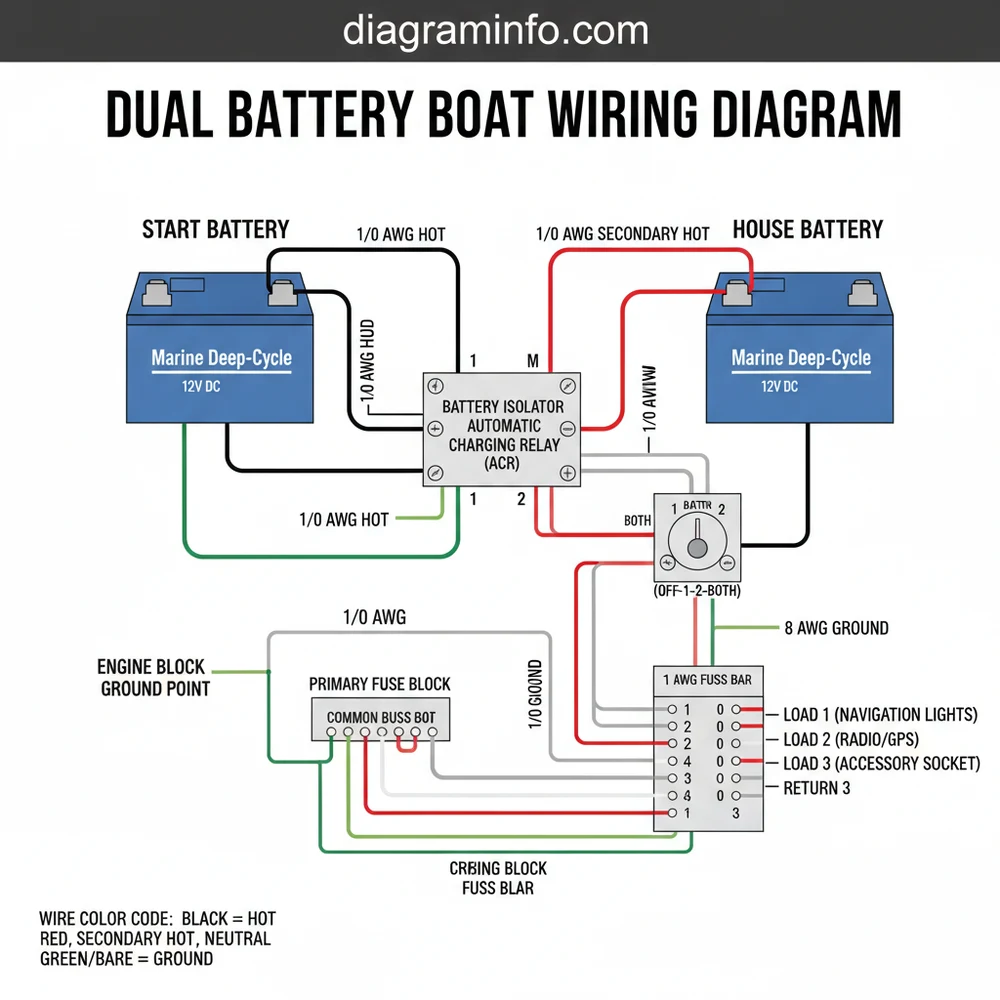

Properly installing a dual battery boat wiring diagram requires meticulous attention to detail, adhering to marine electrical standards, and utilizing the specified components and wire gauges. Refer to the diagram above and the wire color code reference table throughout this procedure. Manufacturer specifications for components such as the Battery Switch (e.g., Blue Sea Systems 3003) or Voltage Sensitive Relay (VSR) (e.g., Victron Cyrix-ct 12/24-120) must always be consulted for precise pin assignment and operational parameters.

1. Battery Placement and Securing: Position Battery 1 (Starting) and Battery 2 (House/Deep Cycle) in designated, well-ventilated, and secure battery boxes. Ensure they are firmly strapped down to prevent movement in rough conditions.
2. Primary Ground Wire Installation: Connect the heavy-gauge Black ground wire (typically 1/0AWG or 2AWG, depending on total amperage draw and distance) from the negative terminal of Battery 1 to a common marine ground bus bar. Similarly, connect another heavy-gauge Black ground wire from the negative terminal of Battery 2 to the same common ground bus. From this common ground bus, run a heavy-gauge Black ground wire to the engine block’s designated ground point. Torque all ground connections to manufacturer specifications, typically 10-12 ft-lbs for 3/8″ studs.
3. Battery Switch / VSR Mounting: Install your chosen battery selector switch or Voltage Sensitive Relay (VSR)/Automatic Charging Relay (ACR) in a dry, accessible location within close proximity to the batteries. For the purpose of this dual battery boat wiring diagram, we will assume a combined switch/VSR system, or separate components where the VSR is wired in parallel with the switch.
4. Battery to Switch/VSR Connections (Hot Wires):
   • Connect a fused, heavy-gauge Red hot wire (1/0AWG or 2AWG) from the positive terminal of Battery 1 to the “Batt 1” terminal on your battery switch or the “Main” input terminal of your VSR.
   • Connect a fused, heavy-gauge Red hot wire (1/0AWG or 2AWG) from the positive terminal of Battery 2 to the “Batt 2” terminal on your battery switch or the “Aux” input terminal of your VSR.
   • Each of these main positive leads MUST incorporate an appropriately sized fuse or circuit breaker (e.g., 200A-300A for starting batteries, 100A-200A for house) installed within 7 inches of the battery terminal, according to ABYC E-11 standards.
5. Engine/Starter Connection: Run a medium-gauge Red hot wire (e.g., 4AWG) from the “Common” (C) terminal of your battery switch (or the VSR’s engine/start output if applicable) to the positive terminal of your engine’s starter solenoid. Ensure this connection is robust and clean.
6. House/Accessory Panel Connection: Connect another medium-gauge Red hot wire (e.g., 6AWG) from the “Common” (C) terminal of your battery switch (or the VSR’s house/accessory output) to the main input post of your boat’s primary terminal block or fuse distribution panel. This will power all auxiliary systems.
7. VSR Control Wiring (if separate VSR): If using a dedicated VSR/ACR, connect the small Yellow ignition sense wire from the VSR’s designated sense terminal to a switched 12V source on your engine’s ignition circuit. This ensures the VSR only connects batteries for charging when the engine is running. Connect the small Black or Brown wire from the VSR’s ground terminal to the common ground bus bar.
8. Accessory Wiring: From your main fuse distribution panel, connect individual fused circuits to each onboard accessory (e.g., bilge pump, navigation lights, stereo). Utilize appropriate wire gauge based on the accessory’s current draw and circuit length, referring to ABYC wire sizing charts for voltage drop calculations.
9. Final Checks and Testing: Double-check all connections for tightness and proper polarity. Verify all fuses are correctly sized and installed. With a multimeter, confirm the expected voltage readings at each battery, the switch terminals, and the main fuse block. Start the engine and verify that both batteries are receiving a charge, typically around 13.8V-14.4V, indicating proper alternator function and VSR operation. For more in-depth troubleshooting, consult a detailed marine electrical troubleshooting guide.

COMMON WIRING MISTAKES & TROUBLESHOOTING

Even for experienced technicians, wiring a dual battery boat wiring diagram can present pitfalls. Awareness of common errors and their solutions is crucial for maintaining system integrity and safety.

1. Incorrect Wire Gauge Selection:
   • Consequence: Using an undersized gauge wire for a given current load and length results in excessive voltage drop, causing components to receive insufficient power. This leads to dimming lights, slow motor operation, overheating wires, and potential fire hazards.
   • Fix: Consult ABYC E-11 standards (e.g., Table 6 for 3% voltage drop circuits or Table 7 for 10% voltage drop circuits for non-critical systems) to determine the appropriate wire gauge. Always size up if in doubt, especially for critical circuits like engine starting and main power feeds. Replace undersized wires with the correct gauge, ensuring proper crimping and terminal selection.
2. Missing or Improper Fusing:
   • Consequence: Absence of proper overcurrent protection (fuses or circuit breakers) on hot wire circuits, particularly within 7 inches of the battery, can lead to a catastrophic short circuit, resulting in melted wires, battery explosion, or fire.
   • Fix: Install appropriately rated ANL or MRBF fuses on the positive terminal of each battery, sized slightly above the maximum expected continuous current for that circuit. For example, a main engine feed might require a 250-300A fuse, while a house bank feed might need a 100-150A fuse. Ensure all accessory circuits from the terminal block are individually fused according to their load.
3. Poor Ground Connections:
   • Consequence: A weak or corroded ground wire connection can manifest as intermittent electrical issues, dim lights, faulty electronics, or difficulty starting the engine. It creates high resistance, leading to voltage drops and potential overheating.
   • Fix: Ensure all ground wires are connected to a common marine-grade ground bus bar. Verify all connections are clean, tight, and corrosion-free, using dielectric grease where appropriate. Regularly inspect ground points, especially on the engine block, for corrosion. Consider upgrading to larger gauge ground wires if persistent issues occur.
4. Reversed Polarity:
   • Consequence: Connecting a positive hot wire to a negative terminal or vice-versa will immediately damage sensitive electronics, charging systems (alternators), and potentially batteries. This typically results in smoke, burning smells, or immediate component failure upon system activation.
   • Fix: Before making any final connections, use a multimeter to verify the polarity of all wires. Red should always be positive (+), and Black should always be negative (-), following the standard wire color code. If a mistake is made, immediately disconnect and rectify the wiring. Damaged components will need replacement.
