Finding the correct 3800 coil pack 3800 firing order diagram is an essential first step for any DIY mechanic working on the legendary General Motors 3800 V6 engine. Whether you are dealing with a rough idle, a flashing check engine light, or a complete “no-start” condition, understanding the relationship between the ignition control module and the spark plugs is vital. This guide provides a comprehensive breakdown of the ignition system layout, helping you identify which coil corresponds to which cylinder. By the end of this article, you will be able to confidently troubleshoot ignition issues, interpret diagnostic codes, and ensure your engine’s firing sequence is perfectly synchronized for peak performance.

Understanding the 3800 Ignition System Layout

The GM 3800 engine, specifically the Series II and Series III variants, utilizes a “waste spark” ignition system. Unlike modern “coil-on-plug” designs where each cylinder has its own dedicated coil, the 3800 uses three separate coil packs mounted on a single Ignition Control Module (ICM). Each of these three coils is responsible for firing two cylinders simultaneously. One cylinder receives the spark during its compression stroke to ignite the fuel-air mixture, while its “companion” cylinder receives a spark during its exhaust stroke, where it does nothing—hence the term “waste spark.”

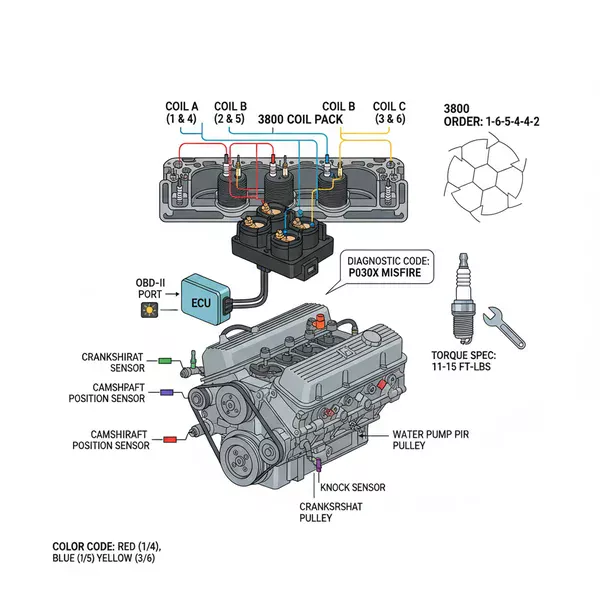

The physical layout of the 3800 coil pack 3800 firing order diagram is organized to facilitate this pairing. When looking at the engine from the front of the vehicle (near the radiator), the cylinders are numbered consistently. The front bank of cylinders, which is closest to the radiator, contains cylinders 1, 3, and 5 (from left to right). The rear bank, closest to the firewall, contains cylinders 2, 4, and 6 (from left to right). The ECU (Engine Control Unit) sends a low-voltage signal to the ICM, which then triggers the high-voltage discharge from the coils.

In the standard 3800 configuration, the coils are arranged on the ignition module in a specific sequence. From left to right (or top to bottom depending on your specific vehicle’s mounting orientation), the coils are paired as follows: 1/4, 5/2, and 3/6. It is a common mistake to assume the coils follow a simple 1-2-3-4-5-6 numerical order. Using an incorrect diagram can lead to cross-firing, severe engine hesitation, and potential damage to the catalytic converter due to unburned fuel entering the exhaust stream.

Step-By-Step Installation and Wiring Guide

Replacing or re-wiring your ignition system requires precision. Follow these steps to ensure you use the 3800 coil pack 3800 firing order diagram correctly and maintain the integrity of the electrical connections.

1. Safety and Preparation: Begin by disconnecting the negative battery terminal. This prevents any accidental electrical arcs while you are working near the ICM. Ensure the engine is cool to the touch, as you will be working near the exhaust manifold and cooling system components.
2. Clear the Path: Locate the ignition coil assembly, usually found on the passenger side of the engine. In some models, you may need to move the accessory belt or unclip wire harnesses to gain full access. Be careful not to disturb the coolant flow through the nearby plastic heater bypass elbows, as these are notoriously brittle on the 3800 engine.
3. Label Existing Wires: Before removing any spark plug wires, use masking tape to label each wire with its corresponding cylinder number. Even if you have a diagram, this double-layer of identification prevents confusion if you get interrupted during the process.
4. Remove the Coils: Each coil is held onto the Ignition Control Module by two small 5.5mm or 7mm bolts. Remove these bolts carefully. Inspect the bottom of the coil for any hairline cracks or carbon tracking, which indicates electrical leakage.
5. Clean the Contact Points: The ICM has metal “blades” that slide into the bottom of the coil packs. Ensure these are free of corrosion. Use a small amount of electronics cleaner if necessary. This ensures a clean signal from the ECU to the coil.
6. Install New Coils: Seat the new coil packs onto the module. Hand-tighten the mounting bolts first to avoid cross-threading. Once seated, tighten them to the proper torque spec, which is usually quite low (approximately 20 to 30 inch-pounds). Over-tightening can crack the plastic housing.
7. Route the Wires: Using your 3800 coil pack 3800 firing order diagram, snap the spark plug wires onto the correct towers. Ensure the wires are routed through their factory looms. Keep them away from the heat of the exhaust and moving parts like the accessory belt. You should feel or hear a distinct “click” when the wire seats on the coil tower.
8. Final Verification: Reconnect the battery and start the engine. Use an OBD-II scanner to check for any pending codes. If the engine runs smoothly and the check engine light remains off, the installation is successful.

Troubleshooting Common Ignition Issues

When the ignition system fails on a 3800 engine, the symptoms are usually very distinct. The most common indicator is the check engine light appearing on the dashboard. Using an OBD-II scanner, you may find a diagnostic code such as P0300 (Random Misfire) or specific codes like P0301 through P0306, which point to a specific cylinder misfire.

If you have a P0301 code, for example, the ECU has detected that cylinder 1 is not contributing power. Using your 3800 coil pack 3800 firing order diagram, you can see that cylinder 1 is paired with cylinder 4. If both cylinders 1 and 4 are misfiring, the fault is almost certainly the coil pack itself or the ICM circuit controlling that coil. If only one cylinder in the pair is misfiring, the issue is likely a bad spark plug or a faulty spark plug wire.

Another common issue is “heat soak” failure of the Ignition Control Module. In this scenario, the car may run perfectly when cold but begin to stumble or die once it reaches operating temperature. This happens because internal circuits in the ICM expand with heat and lose connection. If you suspect a bad coil, a quick DIY test is to swap the suspected bad coil with one of the others on the module. If the misfire “follows” the coil to the new cylinders, you know the coil is defective.

Pro Tips and Best Practices

Maintenance on the 3800 V6 is rewarding because the engine is exceptionally durable, but small details make a big difference in longevity. When working with your coil packs, always use a small dab of dielectric grease inside the spark plug wire boots. This prevents the rubber from seizing onto the porcelain of the plug or the plastic of the coil tower, and it helps seal out moisture that can cause corrosion.

Regarding component quality, the 3800 engine is somewhat sensitive to ignition components. Many enthusiasts recommend staying with AC Delco or Delphi parts, as these were the original equipment manufacturers for GM. While budget-brand coils may work initially, they often have a higher failure rate under high-heat conditions.

Finally, keep an eye on your timing chain as the engine exceeds high mileage. While the 3800 is a non-interference engine, a stretched timing chain can cause erratic timing signals to the ECU, which may mimic the symptoms of a failing ignition system. If you hear a rattling sound from the passenger side of the engine that synchronizes with engine RPM, it may be time to inspect the chain and tensioner rather than just replacing coil packs.

• ✓ Always torque coil mounting bolts to 20-30 in-lbs to prevent housing cracks.
• ✓ Use the 3800 coil pack 3800 firing order diagram to verify 1-4, 5-2, 3-6 pairings.
• ✓ Inspect spark plug wires for “burn through” if they sit too close to the exhaust manifold.
• ✓ Reset the ECU by disconnecting the battery for 10 minutes after replacing ignition components.

By following these guidelines and referencing the 3800 coil pack 3800 firing order diagram, you ensure that your engine remains one of the most reliable powerplants on the road. Proper ignition maintenance not only solves immediate driveability issues but also improves fuel economy and extends the life of your engine’s internal components.
