Honda Civic Serpentine Belt Diagram: Easy Setup Guide
The 2012 Honda Civic serpentine belt diagram illustrates the path around the alternator, water pump, A/C compressor, and crankshaft pulley. To install, rotate the auto-tensioner counter-clockwise to release tension. Ensure the belt is centered on all ribbed pulleys to prevent premature wear and maintain proper accessory function for the vehicle.
📌 Key Takeaways
- Correct routing prevents engine overheating and alternator failure
- The auto-tensioner is the most important component to identify
- Always keep fingers clear of pulleys when the tensioner is loaded
- Check for belt rib alignment on every pulley before starting
- Use this diagram whenever replacing the belt or tensioner assembly
Maintaining a modern vehicle like the ninth-generation Honda Civic requires a blend of mechanical intuition and access to accurate technical data. One of the most common yet critical maintenance tasks you will face is the replacement or inspection of the accessory drive system. To perform this task safely and effectively, having a clear 2012 honda civic serpentine belt diagram is absolutely essential. This diagram serves as a visual map, showing exactly how the belt weaves around the various pulleys that power your alternator, air conditioning compressor, and water pump. Without this guide, it is remarkably easy to misroute the belt, which can lead to improper rotation of components, engine overheating, or a total failure of the charging system. In this comprehensive guide, we will break down the routing for the 1.8L and 2.4L engines, provide a detailed step-by-step installation process, and explore the technical relationship between your belt, the ECU, and your vehicle’s overall health.
Understanding the 2012 Honda Civic Serpentine Belt Diagram
The serpentine belt, often referred to as the accessory belt, is a single, continuous loop that transmits rotational power from the engine’s crankshaft to several vital peripheral devices. For the 2012 Honda Civic, the diagram typically illustrates a complex “S” or “Z” pattern. Depending on whether your Civic is equipped with the standard 1.8L R18 engine or the high-performance 2.4L K24 engine found in the Si model, the specific path will vary slightly, but the fundamental components remain the same.
The diagram identifies several key circles representing pulleys. The largest pulley at the bottom is the crankshaft pulley, which provides the driving force. As the belt moves upward, it usually wraps around the alternator (responsible for keeping the battery charged and powering the ECU), the air conditioning compressor, and the water pump, which facilitates coolant flow throughout the block. A critical element in every diagram is the automatic tensioner pulley. Unlike older cars that required manual adjustment, the 2012 Civic uses a spring-loaded tensioner designed to maintain a specific amount of pressure on the belt at all times.
Most 2012 Honda Civic models do not have a power steering pulley on the serpentine belt path. This is because this generation transitioned to Electric Power Steering (EPS), which uses an electric motor rather than a hydraulic pump driven by the engine. This simplifies the belt routing significantly compared to older generations.
When looking at the diagram, you will notice that the belt has two sides: a ribbed side and a smooth side. The ribbed side must always interface with the grooved pulleys (like the alternator and crankshaft), while the smooth side typically touches the flat “idler” or “tensioner” pulleys. Following the 2012 honda civic serpentine belt diagram ensures that these surfaces meet correctly, preventing premature wear and belt “chirp.”

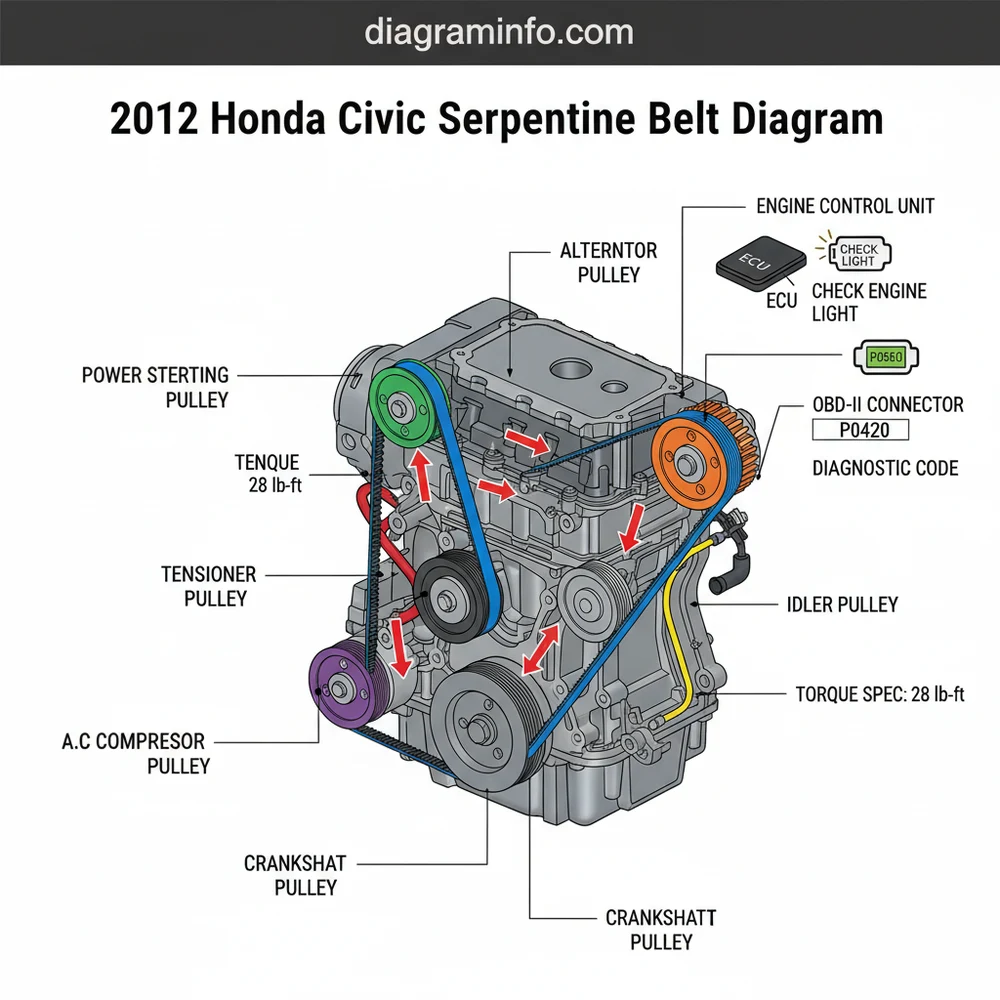

Figure 1: Visual Routing for 1.8L (R18) and 2.4L (K24) Engines. Note the counter-clockwise tensioner release direction.
Detailed Component Identification
Before you begin the physical work, it is helpful to understand the role each component plays in the belt’s ecosystem. The belt is the lifeline for these systems, and a failure in any one can lead to a check engine light or even a complete breakdown.
- ✓ Crankshaft Pulley: The source of all movement. It is connected directly to the engine’s internal rotating assembly.
- ✓ Alternator: Converts mechanical energy into electrical energy to power the ECU and recharge the battery.
- ✓ Water Pump: Ensures consistent coolant flow to prevent the engine from seizing due to heat.
- ✓ A/C Compressor: Pressurizes refrigerant to provide cold air to the cabin.
- ✓ Auto-Tensioner: A spring-loaded arm that keeps the belt tight and absorbs vibrations.
Step-by-Step Installation Guide
Replacing the belt using your 2012 honda civic serpentine belt diagram is a task that can be accomplished with basic hand tools in about 45 to 60 minutes. Because the engine bay in the Civic is relatively compact, patience and the right leverage are your best friends.
Required Tools and Materials
To perform this job correctly, gather the following items:
- ✓ 19mm long-handle wrench or a dedicated serpentine belt tool.
- ✓ New high-quality EPDM serpentine belt.
- ✓ Flashlight or shop light.
- ✓ Torque wrench (if replacing the tensioner assembly).
- ✓ OBD-II scanner (to clear any pending codes if a failure occurred).
Never attempt to replace the belt while the engine is hot. The water pump and alternator pulleys can retain significant heat, and the proximity to the radiator means you risk burns. Ensure the ignition is off and keys are removed from the vehicle to prevent accidental starting.
The Process
Step 1: Preparation and Access. Park the car on a level surface. While some users can reach the tensioner from the top of the engine bay, it is often easier to remove the front passenger-side wheel and a few clips from the plastic inner fender liner. This gives you a direct line of sight to the crankshaft and tensioner pulleys.
Step 2: Compare the New Belt. Before removing the old belt, hold the new one up to it. While the old belt might be slightly stretched (usually by less than half an inch), they should be virtually identical in width and rib count. Ensuring you have the correct accessory belt now prevents frustration later.
Step 3: Relieving Tension. Locate the 19mm hex casting on the auto-tensioner arm. Using your long-handle wrench, rotate the tensioner toward the front of the vehicle (counter-clockwise). This will compress the internal spring and create slack in the belt. Carefully slide the belt off the uppermost pulley (the alternator is usually easiest).
Step 4: Inspection of Pulleys. With the belt removed, take a moment to spin each pulley by hand. They should spin smoothly without any grinding noise or side-to-side play. If the water pump pulley feels “crunchy,” your coolant flow may be at risk. If any pulley is seized, it will destroy a new belt instantly.
Step 5: Routing the New Belt. Refer to your 2012 honda civic serpentine belt diagram. Start by looping the belt around the crankshaft pulley at the bottom, then work your way around the A/C compressor and water pump. Save the alternator or the tensioner pulley for the final step, as these are easiest to reach while holding the tensioner open.
Step 6: Seating the Belt. Once the belt is routed, double-check that the ribs of the belt are perfectly centered in the grooves of every pulley. Even a single “tooth” misalignment can cause the belt to shred within minutes of starting the engine.
Step 7: Final Tension and Testing. Slowly release the tensioner arm so it applies pressure to the new belt. Start the engine and observe the belt’s movement. It should run straight and true without any wobbling or squealing.
If you are replacing the entire tensioner assembly, the torque spec for the mounting bolt is typically 33 lb-ft (45 Nm). Proper torquing prevents the tensioner from vibrating loose, which could cause a catastrophic belt derailment.
Common Issues & Troubleshooting
A failing serpentine belt system can trigger several symptoms that might initially seem unrelated. Because the belt drives the alternator, a slipping belt can cause the ECU to receive inconsistent voltage. This often results in a check engine light or the illumination of the battery symbol on your dashboard. If you connect an OBD-II scanner, you might find a diagnostic code such as P0562 (System Voltage Low).
Another common issue is “belt squeal,” particularly during cold starts or when turning the steering wheel to full lock. While the 2012 Civic uses electric steering, the increased electrical load on the alternator can cause a worn belt to slip. If the belt is glazed (shiny) or cracked, it loses its grip. Furthermore, if the belt snaps, your water pump stops, halting coolant flow. This will lead to rapid engine overheating, which can warp the cylinder head or damage the timing chain guides due to extreme heat expansion.
If you notice a “chirping” sound that increases with engine RPM, the tensioner bearing may be failing. Use your 2012 honda civic serpentine belt diagram to locate the tensioner and listen closely (using a mechanic’s stethoscope if available) to determine if the noise is coming from the pulley itself. Replacing the belt without addressing a bad tensioner is a temporary fix that will likely result in another failure shortly.
The ECU and Drive System Relationship
The 2012 Honda Civic is a highly computerized vehicle. The Engine Control Unit (ECU) constantly monitors the rotational speed of the engine and the load on the alternator. If the belt slips, the alternator’s output drops, and the ECU may attempt to compensate by increasing the idle speed. This is why a belt issue can sometimes feel like a rough idle or a “stumble” at stoplights.
Furthermore, the 2012 Civic utilizes a timing chain rather than a timing belt for internal engine synchronization. While the timing chain is designed to last the life of the engine, it relies on clean oil and a stable operating temperature. Because the serpentine belt drives the water pump, maintaining the belt is actually a critical part of protecting the timing chain. If the belt fails and the engine overheats, the oil thins out and the timing chain tensioners may lose pressure, leading to expensive internal engine damage.
Tips & Best Practices for Longevity
To get the most out of your 2012 Honda Civic, proactive maintenance is superior to reactive repairs. Most automotive experts recommend inspecting your accessory belt every 30,000 miles and replacing it every 60,000 to 100,000 miles, depending on your climate. Extreme heat and road salt can accelerate the degradation of the rubber compounds.
- ✓ Use EPDM Belts: Modern EPDM (Ethylene Propylene Diene Monomer) belts don’t crack as visibly as old neoprene belts. Use a rib depth gauge to check for wear.
- ✓ Clean the Pulleys: Before installing a new belt, use a wire brush or brake cleaner to remove any old rubber deposits from the pulley grooves.
- ✓ Monitor the Tensioner Indicator: Most Honda tensioners have a small arrow or mark. If the arrow moves outside of the “intended range” while the engine is running, the belt is stretched or the tensioner spring has weakened.
- ✓ Address Leaks Promptly: Oil or coolant leaking onto the belt will cause it to swell and slip, leading to immediate failure and potential OBD-II diagnostic codes.
Whenever you replace your serpentine belt, it is a great time to perform a “charging system health check.” Use a multimeter to ensure the alternator is putting out between 13.5 and 14.5 volts. This ensures that your new belt is effectively powering the system and that your ECU is receiving the clean power it requires.
Summary and Final Thoughts
The serpentine belt is a small component with a massive responsibility. By using a 2012 honda civic serpentine belt diagram, you can take control of your vehicle’s maintenance, saving hundreds of dollars in labor costs while ensuring your Civic remains reliable. Whether you are dealing with a squealing noise, a check engine light related to low voltage, or simply performing scheduled maintenance, understanding the routing and tensioning of the accessory belt is a fundamental skill for any DIY enthusiast.
Remember to always prioritize safety, use the correct torque spec when tightening components, and regularly check for diagnostic codes using an OBD-II tool to catch issues before they leave you stranded. With a properly routed belt and a healthy cooling and charging system, your Honda Civic will continue to provide the efficient, dependable performance it is known for.
Frequently Asked Questions
Where is the belt tensioner located?
The belt tensioner is located on the front passenger side of the engine block, accessible from the top. It sits between the alternator and the crankshaft pulley, featuring a 19mm hex head used for pivoting the spring-loaded arm to release tension for belt removal or installation.
What does the serpentine belt diagram show?
The diagram shows the specific routing of the drive belt around various pulleys, including the alternator, air conditioning compressor, and water pump. It identifies which side of the belt (ribbed or flat) contacts each pulley, ensuring all engine accessories rotate in the correct direction during operation.
How many pulleys are in the system?
This system connects five to six main pulleys depending on the engine variant. Each pulley is securely mounted to the engine block or accessory component. Ensure mounting bolts for any replaced pulleys meet the factory torque spec to avoid vibration, belt slippage, or premature component failure.
What are the symptoms of a bad serpentine belt?
Common symptoms include persistent squealing, visible cracks, or fraying. A snapped belt stops the alternator, which may trigger a check engine light or a diagnostic code related to low system voltage. You can confirm these electrical issues by using an OBD-II scanner to check for active faults.
Can I replace this belt myself?
Yes, replacing the serpentine belt is a manageable DIY task. You simply need to follow the routing diagram and use a long-handled wrench to move the tensioner. It is much easier than diagnosing complex ECU errors and can typically be completed in under thirty minutes with basic tools.
What tools do I need for belt replacement?
You will need a 19mm long-handled box-end wrench or a dedicated serpentine belt tool to release the tensioner. A flashlight is helpful for viewing lower pulleys, and a basic socket set is required if you need to remove the splash shield to reach the crankshaft pulley area.
