The AMP Research Power Step wiring diagram Silverado involves connecting the controller to the battery using a dedicated hot wire and ground wire. You must link the motor harnesses to the steps and interface with the vehicle’s OBD-II port or door triggers, ensuring the traveler wire signals are correctly routed for automatic deployment.
📌 Key Takeaways
- Provides a visual map for connecting the electronic controller to the Silverado’s electrical system.
- Identify the main controller unit as the central hub for all power and signal inputs.
- Always disconnect the battery before handling the hot wire to prevent short circuits.
- Use weather-sealed connectors for any exterior wiring to prevent corrosion over time.
- Refer to this diagram when installing new steps or diagnosing motor deployment failures.
Installing a set of automated running boards on your truck is one of the most functional upgrades you can perform, but the process hinges entirely on a clear understanding of the electrical system. Navigating an amp research power step wiring diagram silverado specific guide ensures that you don’t just get the steps to move, but that you do so without compromising your vehicle’s sophisticated electrical architecture. This article provides a comprehensive breakdown of the wiring harness, the critical connection points within the Silverado cab, and the specific color-coded signals required for seamless operation. You will learn how to identify various wire gauges, manage voltage requirements, and bridge the gap between the steps’ external motors and the internal computer modules.
Understanding the Power Step Wiring Components
The wiring diagram for an automated running board system acts as a roadmap for the 12V DC current flowing through your vehicle. At the heart of the system is the smart controller, which acts as the brain, processing signals from the door sensors or the OBD-II port to trigger the motor’s deployment. The diagram typically displays a central harness that branches out into three primary sections: the power supply, the motor leads, and the trigger interface. Unlike simple lighting circuits, these power steps utilize a heavy-gauge hot wire to handle the high-torque demands of the motors when they are under load.
Visualizing the diagram, you will notice the hot wire—usually a thick red lead—intended for direct connection to the battery. This ensures a consistent voltage supply that does not fluctuate with other cabin electronics. The ground wire, often black, must be secured to a clean chassis point to complete the circuit. In the context of the Silverado, the diagram identifies specific pins within the harness that correspond to the driver and passenger side motors. Each motor connection consists of a two-pole plug. Furthermore, the signal wires, often referred to as the traveler wire in signal-routing contexts, carry the digital pulse that tells the controller when a door has been unlatched.
While most of the system operates on a direct current, the diagram might reference a common terminal or a neutral wire path, which in automotive terms represents the shared return path to the battery negative. The harness is designed to be weather-resistant, utilizing high-quality insulation to protect the inner copper strands from the elements found beneath the truck. Recognizing these variations in the diagram helps you avoid crossing signals, which could result in the steps deploying unexpectedly or failing to retract when the vehicle is in motion.
Most modern Silverado installations utilize a Plug-and-Play OBD-II module. This replaces the need to manually tap into individual door trigger wires, as the module reads the “door open” signal directly from the vehicle’s CAN-bus system and transmits it to the traveler wire on the main harness.

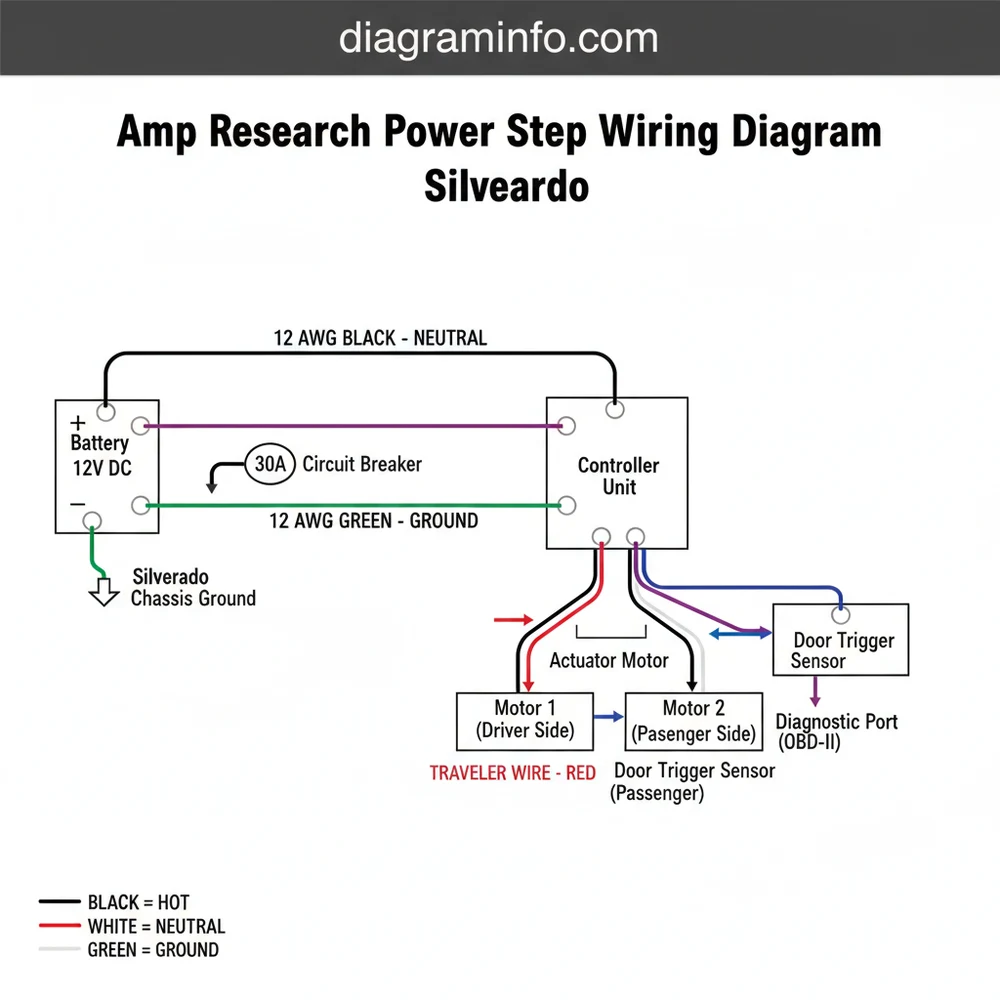

(The diagram illustrates a central electronic controller. A 10-gauge Red Hot Wire connects to the battery via an inline fuse. A 10-gauge Black Ground Wire connects to the chassis. Four 18-gauge signal traveler wires lead to the OBD-II interface. Two weather-proof harnesses lead to the DC motors located at the step hinges. All connections are color-coded: Red for Power, Black for Ground, Blue/White for Motor Signals).
Step-By-Step Wiring Installation Guide
Following the amp research power step wiring diagram silverado protocol requires a methodical approach to ensure safety and longevity. Before beginning, ensure you have a basic set of hand tools, including a socket set, wire strippers, and a multimeter to verify voltage levels during the process.
Step 1: Disconnect the Battery
Safety is paramount when working with high-current automotive electronics. Begin by disconnecting the negative battery terminal. This prevents any accidental short circuits while you are routing the hot wire through the engine bay and into the cab.
Step 2: Mount the Controller
Locate a dry area under the hood, typically near the firewall on the driver’s side. Use the provided screws to secure the controller. Ensure it is positioned so that the harness connectors point downward; this prevents moisture from trickling down the wires and pooling inside the common terminal block of the controller.
Step 3: Route the Main Power Harness
Identify the primary hot wire (Red) and the ground wire (Black). Route the red wire to the positive terminal of the battery. If your kit uses a terminal block, ensure the brass screw or lug is tightened firmly to maintain a low-resistance connection. Route the black ground wire to a factory grounding post on the fender or firewall. Avoid using a neutral wire from an auxiliary light kit as a ground source; always use a dedicated chassis ground.
Do not install the fuse into the red hot wire holder until the very last step. Providing power to the system before the motors and sensors are fully connected can cause the controller to cycle incorrectly or blow the fuse.
Step 4: Pass the Trigger Wires into the Cab
The traveler wire leads must reach the interior of the Silverado. Locate the large rubber grommet on the driver-side firewall. Carefully make a small incision and feed the signal wires through. Once inside, these will connect to the OBD-II port module. This module translates the digital “door open” signal into a voltage pulse that the controller understands.
Step 5: Connect the Motor Harnesses
Drop the motor leads down along the frame rails. The diagram will specify which lead is for the driver side and which is for the passenger side. Use zip ties to secure the wires away from the exhaust system and moving suspension components. The gauge of these wires is specifically designed to handle the 12V motor draw, so do not trim or extend them unless absolutely necessary.
Step 6: Secure the OBD-II Interface
Under the dashboard, plug the module into the OBD-II port. Connect the traveler wire from the harness to the corresponding port on the module. This creates a bridge between the truck’s computer and the step controller. Ensure no wires are hanging near the brake or gas pedals.
Step 7: Final Connections and Testing
With all components plugged in, return to the engine bay. Insert the fuse into the hot wire holder. Reconnect the vehicle’s negative battery terminal. Open the driver’s door to test the deployment. The step should drop smoothly within a second of the door opening.
Apply a small amount of dielectric grease to every weather-proof connector before snapping them together. This prevents corrosion and ensures the voltage remains stable even after years of exposure to road salt and rain.
Common Issues and Troubleshooting
Even with a detailed amp research power step wiring diagram silverado owners may encounter troubleshooting hurdles. The most frequent issue is a “ghosting” effect where the steps deploy and immediately retract. This is usually caused by a poor ground wire connection. If the controller doesn’t see a solid return path to the battery, the voltage drops under load, causing the system to reset. Check the common terminal on your ground post for paint or rust that might be inhibiting current flow.
Another common problem involves the traveler wire signal. If one side of the truck works but the other doesn’t, inspect the specific pin connections at the OBD-II module. Using a multimeter, you can check if the traveler wire is receiving a signal when the door is opened. If the voltage doesn’t change, the issue likely lies in the door sensor or the module itself. Finally, if the steps are sluggish, check the wire gauge. If you have extended the factory harness with a thinner gauge wire, the increased resistance will drop the voltage available to the motors, resulting in poor performance.
Tips and Best Practices
To get the most out of your installation, follow these professional recommendations:
- ✓ Wire Protection: Always use plastic wire loom for any wires running along the frame. This protects the insulation from rock chips and debris.
- ✓ Check Your Connections: After the first week of use, re-tighten the brass screw on the battery terminal and check the ground wire. Vibrations can occasionally loosen new connections.
- ✓ Voltage Verification: Use a multimeter to ensure your battery is providing at least 12.6V when the engine is off. Low battery health is a leading cause of “stuttering” power steps.
- ✓ Avoid Tapping Cabin Fuses: Never attempt to power the motors from a fuse inside the cabin. The high-gauge hot wire must go directly to the battery to avoid melting factory wires.
When it comes to maintenance, keep the hinges of the steps clean. While the wiring is the “nervous system” of the steps, the mechanical hinges are the “joints.” If the hinges become bound by mud or ice, the controller will detect the resistance and stop the motor to prevent damage. This safety feature is triggered by an amperage spike. If your wiring is correct but the steps won’t move, check for mechanical obstructions before tearing into the electrical harness.
By following the amp research power step wiring diagram silverado guidelines and maintaining a clean, organized installation, you ensure that your truck remains both functional and safe. Proper wire management not only extends the life of the steps but also preserves the trade-in value of your vehicle by avoiding “hack-job” electrical taps into the factory loom. Always prioritize high-quality connections and take the time to route your wires properly the first time.
Step-by-Step Guide to Understanding the Amp Research Power Step Wiring Diagram Silverado Guide
Identify the main components in the kit, including the controller, motor harnesses, and the specific hot wire intended for battery connection.
Locate the ideal mounting spot for the controller near the Silverado’s battery and secure it using the provided hardware.
Understand how to route the long motor harnesses down through the engine bay to the frame rails on both sides of the truck.
Connect the ground wire to a solid chassis point and link the traveler wire to the door trigger or OBD-II module.
Verify that the neutral wire connections and power leads are tight and free from potential interference with the exhaust or driveshaft.
Complete the installation by reconnecting the battery and testing each door to ensure the steps deploy and retract smoothly.
Frequently Asked Questions
Where is the AMP Research controller located?
The controller for the Silverado is typically mounted in the engine compartment on the driver-side fender well. This location keeps it close to the battery for easy access to power and provides a central point to route the wiring harnesses down to the frame-mounted step motors.
What does the power step wiring diagram show?
This diagram illustrates the complete electrical path from the vehicle’s power source to the step motors. It highlights the connections for the hot wire, ground wire, and the signaling interface that tells the steps when to deploy or retract based on the vehicle’s door sensors or OBD-II data.
How many wires does the AMP Research controller have?
The controller features several high-current motor leads, a main power supply connection, and a multi-pin signal harness. It utilizes a common terminal for shared grounding points and requires a traveler wire configuration for specific trigger signals, ensuring the logic board can communicate effectively with each independent step motor.
What are the symptoms of a bad power step wiring connection?
Common symptoms include intermittent deployment, steps that only retract halfway, or a complete lack of movement. Often, a loose neutral wire or a corroded ground wire is the culprit. If the steps fail to respond to door triggers, the signal wire or traveler wire connection may be compromised.
Can I install the Silverado power step wiring myself?
Yes, most Silverado owners can complete this installation with basic automotive knowledge. The system is designed as a plug-and-play kit, but you must be comfortable routing wires under the chassis and making secure connections to the battery terminals while following the provided wiring schematic to avoid errors.
What tools do I need for Silverado power step wiring?
You will need a basic socket set for battery connections and mounting, wire strippers, and a crimping tool for any custom terminations. Additionally, use zip ties to secure the harness away from moving parts and heat sources, and a digital multimeter to verify voltage at the common terminal.
