3-Wire LED Strip Wiring Diagram: Connection Mapping 2026
A typical 3-wire LED strip wiring diagram features V+ (often red or black hot wire), Data (often green or white signal wire), and GND (black or blue ground wire/neutral wire). V+ connects to the positive power supply, GND to the negative/ground, and Data receives control signals, enabling addressable lighting. Always verify the specific strip’s pin assignment.
📌 Key Takeaways
- 3-wire LED strips typically require 5V or 12V DC power, utilizing V+, Data, and GND connections.
- Always identify the correct wire color code (V+, Data, GND) using the strip’s documentation to prevent damage, noting the pin assignment.
- Ensure all connections are secure and properly insulated to avoid short circuits and ensure safe, reliable operation.
- Reversing power polarity (V+ and GND) is the most common wiring mistake, often leading to immediate strip failure or malfunction.
- Consult a qualified electrician for high-voltage power supply integration or if unsure about complex control system wiring.
Wiring a 3-wire LED strip requires meticulous attention to polarity, current capacity, and signal integrity to ensure optimal performance and longevity within automotive or industrial equipment environments. This comprehensive guide and accompanying diagram are designed for technical professionals and experienced DIYers, providing the precise details needed for a successful installation. Understanding the specific wire functions, their connection points, and adherence to manufacturer specifications are paramount to prevent system damage, ensure stable operation, and comply with safety standards. This document clarifies the connections, focusing on common anode/common cathode configurations for single-color dimmable or basic addressable LED strips, a prevalent setup in modern vehicle and equipment modifications.
WIRE COLOR REFERENCE TABLE
The following table outlines standard wire color assignments for 3-wire LED strips, common in 12V DC automotive and equipment applications. While industry standards exist, always verify with your specific LED strip’s documentation, as manufacturers may deviate.
| Wire Color (Typical) | Function / Pin Assignment | Connection Point | Notes |
|---|---|---|---|
| Red | Positive Power (Hot Wire) | +12V DC Power Source (Fused) | Connects to the switched or constant 12V positive supply. Always fuse appropriately for the LED strip’s current draw. |
| Black | Negative Power / Ground Wire | Vehicle Chassis Ground / Equipment Ground Terminal | Provides the return path for current. Ensure a clean, secure connection to a factory ground point or dedicated ground bus bar. |
| White / Yellow / Green (Varies) | Control / Data Signal | PWM Dimmer Module / Microcontroller Output | This wire carries the dimming signal (e.g., Pulse Width Modulation) or data for addressable strips. Polarity and signal type are critical. |
For common anode LED strips, the positive rail is common, and the control wires switch individual negative paths. For common cathode, the negative rail is common, and control wires switch individual positive paths. Most 3-wire single-color dimmable strips for automotive applications are common anode, with the control wire providing a ground-side PWM signal to a transistor on the strip. Always consult the LED strip manufacturer’s datasheet for the precise pin assignment and control logic.
STEP-BY-STEP CONNECTION GUIDE

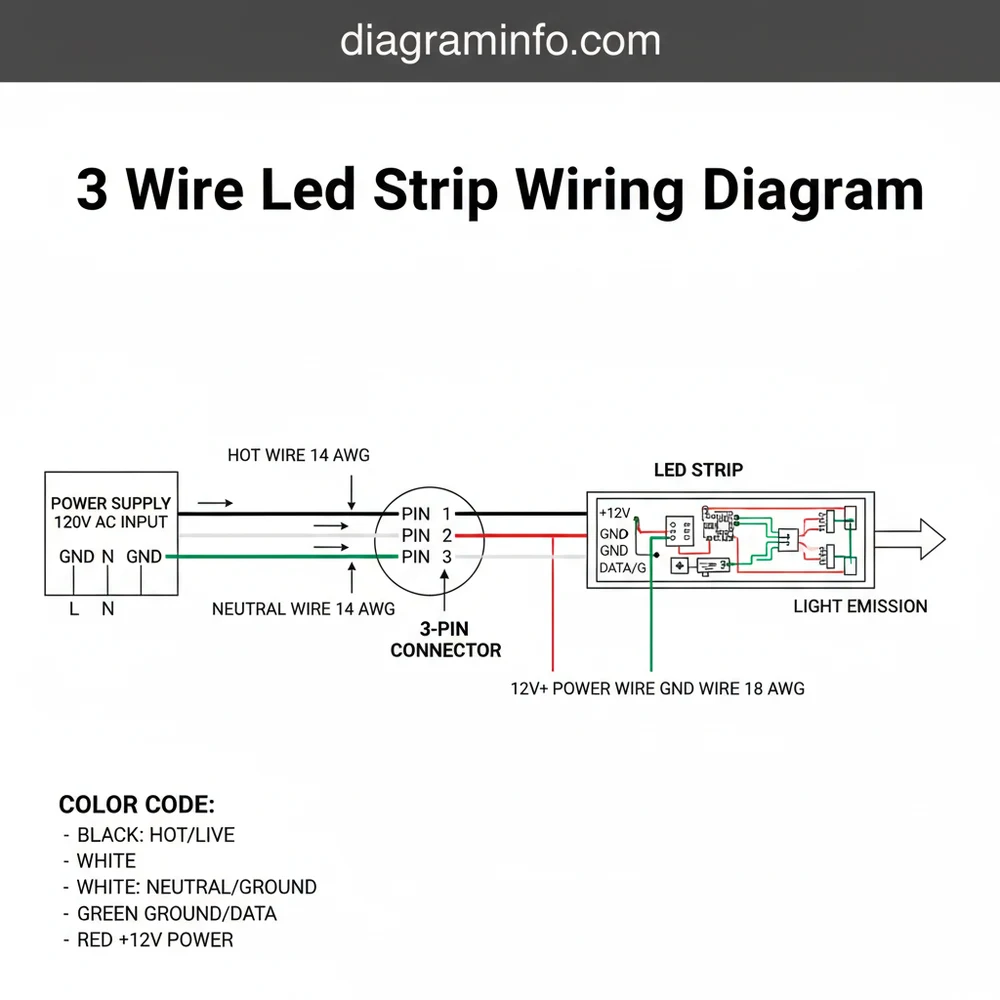

Executing the wiring of a 3-wire LED strip requires a methodical approach, focusing on safety, electrical integrity, and adherence to manufacturer specifications. Refer to the diagram above for a visual representation of these connections.
Before commencing any wiring procedures, ensure the power source is completely disconnected and de-energized. Failure to do so can result in severe electrical shock, component damage, or fire. Always use appropriate personal protective equipment.
- Power Source Preparation: Identify a suitable 12V DC power source. For automotive applications, this typically means a fused switched ignition circuit or a constant 12V supply, depending on whether the strip should operate with the ignition or independently. According to OEM specifications, power take-offs should always be fused. Calculate the total current draw of your LED strip (Watts / Volts = Amps) and select a fuse that is 125% to 150% of the calculated amperage. For example, a 5-amp strip requires a 6.25-7.5 amp fuse; round up to the nearest standard fuse size, typically 7.5A or 10A.
- Wire Gauge Selection: Determine the appropriate wire gauge. For runs under 5 feet and current draws up to 5 amps, 18 AWG wire is typically sufficient. For longer runs or higher currents, refer to our comprehensive guide on Automotive Wire Gauge Selection to prevent voltage drop and overheating. Use high-strand automotive-grade wire for flexibility and durability.
- Ground Wire Connection (Black): Connect the black ground wire from the LED strip to a robust chassis ground point or a dedicated ground bus bar in your equipment. Ensure the connection is clean, free of paint or corrosion, and secured with a crimped ring terminal or a bolted connection. A poor ground connection can lead to flickering or inconsistent performance. This establishes the return path for electrical current.
- Positive Power Connection (Red): Connect the red positive power wire from the LED strip to your chosen 12V DC power source, ensuring it passes through the correctly rated fuse. Utilize a high-quality crimp connector, soldered joint, or an automotive-grade terminal block for a secure connection. Avoid splicing directly into existing critical vehicle wiring harnesses without proper load assessment. This is your primary “hot wire” connection.
- Control/Data Wire Connection (White/Yellow/Green): Connect the third wire (e.g., white, yellow, or green, depending on manufacturer) to the output of your control module, dimming switch, or microcontroller. This connection typically carries a Pulse Width Modulation (PWM) signal for brightness control or data for addressable strips. Verify the signal voltage compatibility (e.g., 5V or 12V logic) with your LED strip’s specifications. Incorrect signal voltage or polarity on this line can damage the LED strip’s control IC.
- Secure Connections: All connections must be mechanically sound and electrically insulated. Use heat-shrink tubing over soldered joints or high-quality insulated crimp connectors to protect against shorts and environmental factors. Secure excess wiring with cable ties to prevent chafing and strain. Understanding proper soldering techniques is crucial for reliable connections; explore our resource on Advanced Automotive Soldering Practices.
- Initial Power-Up and Testing: Once all connections are secure and inspected, reconnect the power source. Activate the LED strip and its control system. Verify correct operation, appropriate brightness levels, and absence of flickering. Check for any unusual heat generation at the connections or on the LED strip itself, which could indicate excessive current or a faulty component.
- Final Securement and Weatherproofing: Mount the LED strip securely in its intended location. For exterior or high-moisture environments, ensure all connections are properly sealed with dielectric grease, liquid electrical tape, or marine-grade heat shrink to prevent water ingress and corrosion. For complex vehicle lighting integrations, consider reviewing our article on Advanced Vehicle Lighting Control Modules.
According to SAE J1128 standards for low-tension primary cable, wire gauge selection must account for both current load and circuit length to maintain voltage drop below 3% for critical circuits and 10% for non-critical lighting. Always adhere to these industry benchmarks for reliable vehicle electrical system performance.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during installation. Recognizing common errors and their solutions can expedite troubleshooting and prevent costly damage to both the LED strip and the vehicle’s electrical system.
- Incorrect Polarity:
- Consequence: While some LED strips incorporate reverse polarity protection, many do not. Incorrectly connecting the positive and ground wires can instantly damage the LED strip, its integrated current-limiting resistors, or the control IC, rendering it inoperable.
- Fix: Always double-check wire color codes against the manufacturer’s documentation and use a multimeter to verify voltage and polarity at the connection points before making final connections. The red wire is almost universally positive (+12V), and the black wire is ground.
- Inadequate Wire Gauge:
- Consequence: Using a wire gauge that is too small for the current draw and circuit length results in excessive voltage drop across the wire. This manifests as dim or flickering LEDs, excessive heat in the wiring (a fire hazard), and premature failure of the LED strip due to insufficient power.
- Fix: Calculate the LED strip’s total current draw and measure the circuit length. Consult a reliable wire gauge chart (e.g., AWG charts specific to 12V DC automotive applications) to select the appropriate gauge. When in doubt, err on the side of a slightly thicker gauge.
- Poor Ground Connection:
- Consequence: An unclean, loose, or corroded ground connection leads to erratic LED behavior, flickering, dimness, or complete non-functionality. The vehicle’s electrical system relies on robust ground paths for stable operation.
- Fix: Ensure the ground wire is connected to a clean, unpainted, and structurally sound metal surface of the vehicle chassis or a dedicated ground bus. Use a wire brush to remove any paint or corrosion before securing the connection with a crimped ring terminal and a bolt. Verify continuity to the main vehicle ground with a multimeter.
- Improper Control Signal:
- Consequence: Connecting the control wire to an incorrect signal type (e.g., constant 12V instead of a PWM signal, or an incompatible data protocol) can damage the LED strip’s control circuitry or result in the strip operating only at full brightness, or not at all.
- Fix: Confirm the required control signal type (e.g., PWM, specific data protocol like WS2812) and voltage level (e.g., 5V, 12V) as specified by the LED strip manufacturer. Ensure your dimmer module or microcontroller output matches these specifications. A digital oscilloscope can be invaluable for verifying signal integrity.
FAQ
Q: What specific voltage should I provide to a 3-wire LED strip?
A: Most 3-wire LED strips designed for automotive or equipment use operate on a nominal 12V DC. However, always verify the exact voltage requirements specified by the manufacturer. While many strips have some voltage regulation, providing a voltage significantly higher or lower than specified can lead to immediate damage or greatly reduced lifespan. Some specialized industrial strips may operate on 24V DC, so diligent verification is critical.
Q: How do I calculate the correct fuse rating for my LED strip?
A: To calculate the fuse rating, first determine the total current draw of your LED strip. This can often be found in the manufacturer’s specifications (e.g., Amps per meter). Multiply the strip’s total length (or specified segment current draw) by its per-unit current consumption to get the total amperage. Then, multiply this total amperage by a safety factor of 1.25 to 1.5. For example, if your strip draws 4 Amps, you would need a fuse rated between 5A (4A 1.25) and 6A (4A 1.5). Always round up to the nearest standard automotive fuse size (e.g., 5A, 7.5A, 10A). The fuse protects the wiring and the power source, not primarily the LED strip itself.
Q: Can I connect a 3-wire LED strip directly to a vehicle’s CAN bus for control?
A: No, a standard 3-wire LED strip cannot be directly connected to a vehicle’s CAN (Controller Area Network) bus. The CAN bus operates on a specific digital communication protocol, while the third wire on most 3-wire LED strips typically expects an analog PWM signal for dimming or a simpler digital data stream (e.g., SPI-like) for basic addressable control. Integrating LED strips with a CAN bus requires an intermediate interface module or a microcontroller programmed to interpret CAN messages and translate them into the appropriate control signal for the LED strip. Attempting a direct connection will likely damage the CAN bus and the LED strip.
Q: What are the environmental considerations for installing 3-wire LED strips in automotive applications?
A: Automotive environments are harsh, characterized by significant temperature fluctuations, vibration, moisture, and exposure to chemicals. For exterior or under-hood installations, use LED strips with an appropriate IP (Ingress Protection) rating (e.g., IP67 or IP68) and ensure all wiring connections are sealed with marine-grade heat shrink, dielectric grease, or weatherproof terminal blocks. Secure the strip and wiring firmly to prevent damage from vibration. Select components (wires, connectors) rated for automotive use to withstand these conditions and maintain long-term reliability.
Step-by-Step Guide to Understanding the 3-Wire Led Strip Wiring Diagram: Connection Mapping 2026
Identify – Identify the V+, Data, and GND pads or wires on your 3-wire LED strip and your power supply/controller outputs.
Locate – Locate your DC power source (e.g., 5V/12V DC power supply) and your chosen LED controller, noting their respective terminals.
Reference – Reference the strip’s manufacturer datasheet or printed markings for the exact wire color code and pin assignment to ensure correct connections, preventing damage.
Connect/Route – Connect the LED strip’s V+ wire (hot wire) to the power supply’s positive output, the GND wire (ground wire/neutral wire) to the power supply’s ground, and the Data wire to the controller’s data output pin.
Verify – Verify all connections are secure, correctly polarized (V+ to V+, GND to GND), and properly insulated before applying any power to the circuit.
Troubleshoot – Troubleshoot by checking the power supply voltage, controller data signal integrity, and connection continuity with a multimeter if the strip does not light or functions erratically.
Frequently Asked Questions
What wire colors typically represent V+, Data, and GND on a 3-wire LED strip?
V+ (hot wire) is often red or black, providing positive power. Data (signal wire) is commonly green or white, transmitting control signals. GND (ground wire/neutral wire) is typically black or blue, completing the circuit. Always check the manufacturer’s specific wire color code and pin assignment for your 3 wire led strip wiring diagram for accuracy before connecting.
What do the pin assignments (V+, Data, GND) mean on a 3-wire LED strip?
Pin assignments on a 3-wire LED strip denote V+ for positive voltage input, Data for the digital signal controlling individual LEDs, and GND for the common ground return path. Understanding these ensures correct power delivery and signal integrity for addressable effects. Incorrect assignment can damage the strip or connected controller, impacting the 3 wire led strip wiring diagram.
How many wires does a 3-wire LED strip actually utilize for functionality?
A 3-wire LED strip utilizes exactly three wires for its primary function, as detailed in its wiring diagram: one for positive voltage (V+), one for data signal (Data), and one for ground (GND). This configuration allows for addressable control of individual LEDs along the strip, making advanced lighting effects possible with a suitable controller and accurate connections.
What are common wiring mistakes with a 3-wire LED strip and how can they be avoided?
Common mistakes in a 3 wire led strip wiring diagram include reversing V+ and GND polarity, which can instantly burn out the strip. Incorrectly connecting the Data line can result in no control or erratic behavior. Overpowering the strip with excessive voltage or using an inadequate wire gauge can also lead to failure or fire hazards. Double-check all connections against the pin assignment.
Do I need a controller for a 3-wire LED strip, or can I connect it directly?
Yes, for a 3-wire LED strip, you almost always need a dedicated LED controller (like an Arduino, ESP32, or specific LED controller) to send data signals. Direct connection to power without a controller will not illuminate or control the addressable LEDs, as they require digital instructions to function according to the 3 wire led strip wiring diagram.
What gauge wire is recommended for connecting a 3-wire LED strip?
For typical low-voltage 3-wire LED strips (5V-12V), 22 AWG to 18 AWG wire is generally sufficient for shorter runs and lower current draws. For longer runs or higher-density strips drawing more current, 16 AWG or even 14 AWG might be necessary to prevent voltage drop and ensure consistent brightness, as indicated in a robust 3 wire led strip wiring diagram.
