Universal 2-Speed Wiper Motor Wiring Diagram: Complete Connection Guide 2026
A standard 2-speed wiper motor typically has 3-5 wires: a ground wire (black), a hot wire for low speed (blue/green), a hot wire for high speed (red/yellow), and sometimes a park switch wire (white/gray). Connect these to the corresponding wiper switch terminals and a constant 12V hot wire for the park function, ensuring a solid ground.
📌 Key Takeaways
- Always identify the ground wire (typically black) first and ensure a secure, clean connection to the vehicle chassis.
- The hot wire for low speed and high speed will typically be distinct colors, often differentiating them from the park wire.
- Proper pin assignment from the motor to the wiper switch is crucial for correct low, high, and park functions.
- Incorrect wiring of the park function is a common mistake, leading to wipers not returning to their resting position.
- If the motor hums but doesn’t move, check for proper power supply (hot wire) and ground, and verify the motor’s internal integrity before replacing.
Successfully wiring a 2-speed wiper motor is critical for maintaining clear visibility and operational safety in any automotive or heavy equipment application. This detailed guide provides an essential 2 speed wiper motor wiring diagram, designed to facilitate precise and compliant electrical connections. Understanding the specific wire color codes, pin assignments, and proper sequencing is paramount for preventing electrical faults, ensuring correct functionality, and extending component lifespan. This resource equips technicians and experienced DIYers with the authoritative data required to execute flawless installations and repairs, safeguarding both the vehicle’s electrical system and operator safety.

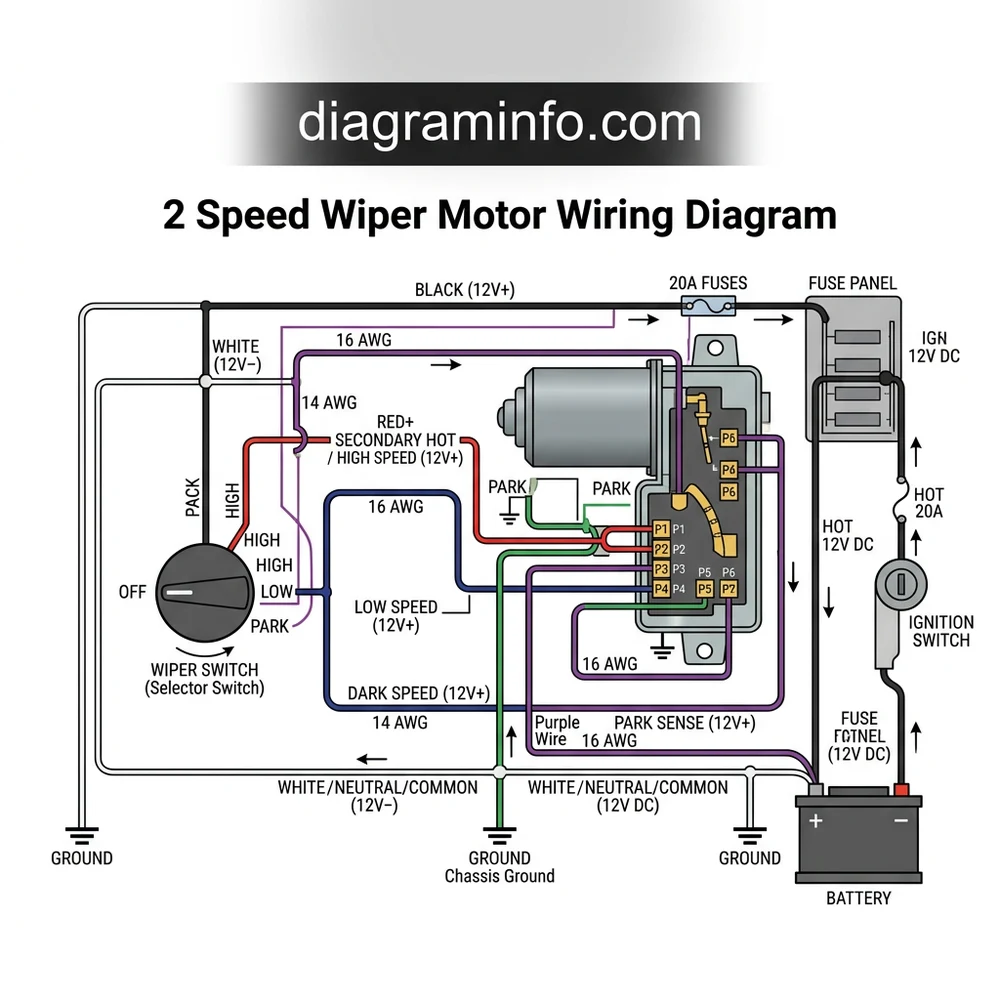

WIRE COLOR REFERENCE TABLE
Refer to this table for a comprehensive breakdown of typical wire color assignments, their functions, and corresponding pin locations on a standard 2-speed wiper motor terminal block. Note that specific colors may vary by manufacturer and model year; always consult the OEM service manual for the exact vehicle or equipment you are working on.
| Wire Color (Typical) | Function | Pin/Terminal (Example) | Notes |
|---|---|---|---|
| Black | Ground (GND) | Terminal 1 / ‘G’ | Provides chassis ground connection for the motor. Ensure a clean, secure connection to minimize resistance. |
| Red (or Yellow) | +12V Constant (Park Circuit) | Terminal 2 / ‘B’ | Fused 12V battery power, essential for the park function even when ignition is off. |
| Blue (or Dark Blue) | High Speed Input | Terminal 3 / ‘H’ | Receives 12V from the wiper switch for high-speed operation. |
| Green (or Light Green) | Low Speed Input | Terminal 4 / ‘L’ | Receives 12V from the wiper switch for low-speed operation. |
| White (or Grey/Orange) | Park Switch Return / Ignition Switched | Terminal 5 / ‘P’ or ‘S’ | Depending on motor type, this is either the internal park switch output or a switched ignition input. This often receives power from the wiper switch when not in a speed setting, allowing the motor to complete a cycle to park. |
Many modern wiper motor systems incorporate internal thermal breakers or current limiting circuits. While these provide protection, consistent overcurrent conditions often indicate a mechanical bind in the linkage or a failing motor, not necessarily a wiring fault. Always diagnose the root cause before simply replacing fuses.
STEP-BY-STEP CONNECTION GUIDE
This guide outlines the precise sequence for connecting a 2-speed wiper motor, ensuring optimal performance and adherence to safety standards. Always de-energize the circuit by disconnecting the battery’s negative terminal before commencing any electrical work. Refer to the 2 speed wiper motor wiring diagram and the Wire Color Reference Table for specific pin assignments.
- Prepare the Wiring Harness and Motor: Inspect both the existing vehicle harness connector and the wiper motor’s terminal block for any corrosion, damage, or loose pins. Clean terminals as necessary using a specialized electrical contact cleaner and a small brush. Ensure you have the correct gauge wire for any extensions or repairs; according to OEM specifications, typical wiper motor circuits utilize 14-gauge to 16-gauge wire to handle the transient current spikes.
- Connect the Ground Wire: Locate the Black wire from the vehicle’s harness, which serves as the ground wire. Connect this directly to the corresponding ground terminal on the wiper motor (e.g., Terminal 1 or ‘G’). Secure this connection with a crimped terminal and ensure it has a robust, low-resistance path to the chassis. A poor ground is a common culprit for erratic motor behavior.
- Connect the Constant Power (Park Circuit): Identify the Red (or Yellow) wire in the vehicle harness, providing a constant +12V fused supply from the battery. Connect this to the motor’s constant power input (e.g., Terminal 2 or ‘B’). This power is crucial for the motor’s internal park mechanism to complete its cycle when the wiper switch is turned off.
- Connect the High-Speed Input: Locate the Blue (or Dark Blue) wire in the harness, which carries the high-speed signal from the wiper switch. Connect this to the motor’s high-speed terminal (e.g., Terminal 3 or ‘H’). This circuit energizes the specific motor winding for maximum sweep velocity.
- Connect the Low-Speed Input: Identify the Green (or Light Green) wire in the harness, responsible for the low-speed signal. Connect this to the motor’s low-speed terminal (e.g., Terminal 4 or ‘L’). This connection activates the motor winding designed for a slower, more deliberate sweep.
- Connect the Park Switch Return / Ignition Switched Wire: The White (or Grey/Orange) wire handles the park function. Depending on the motor and wiper switch design, this wire might provide a switched ignition source or serve as the return path for the internal park switch. Connect it to the designated terminal on the motor (e.g., Terminal 5 or ‘P’/’S’). This connection ensures the motor continues to run momentarily after the switch is turned off, returning the wipers to their parked position. For a deeper understanding of accessory power, refer to an article on relays for accessory circuits.
- Verify Connections and Test: After all connections are made, double-check each terminal for proper seating and insulation. Reconnect the battery’s negative terminal. Activate the ignition and test the wiper motor through all its functions: low speed, high speed, and the park function. Ensure the wipers sweep smoothly and consistently, returning to the correct park position. If you encounter issues, consult the troubleshooting section or an automotive electrical troubleshooting guide.
Failure to disconnect the battery prior to wiring can result in electrical shorts, component damage, or personal injury due to arcing or unexpected component activation. Always verify power is off before handling electrical terminals.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even for experienced technicians, wiring a 2-speed wiper motor can present challenges. Understanding common pitfalls and their solutions is crucial for efficient diagnosis and repair. This section outlines frequent wiring mistakes and offers targeted troubleshooting strategies.
- Incorrect Ground Connection:
- Consequence: Motor runs erratically, slowly, or not at all. May cause other electrical components on the same ground path to malfunction. High resistance ground can lead to excessive heat at the ground point.
- Fix: Verify the ground wire (typically Black) is securely fastened to a clean, unpainted chassis point or a dedicated ground bus. Use a multimeter to check for continuity between the motor casing and the battery’s negative terminal. A reading near 0 ohms indicates a good ground; anything above 0.5 ohms suggests resistance.
- Reversed or Misconnected Speed Wires:
- Consequence: Wipers operate at the wrong speed when the switch is activated, or only one speed works. The motor might exhibit abnormal noise.
- Fix: Double-check the connections for the low-speed (Green) and high-speed (Blue) wires against the 2 speed wiper motor wiring diagram and the OEM manual. Use a test light or multimeter to confirm 12V is present on the correct wire when the respective speed is selected on the wiper switch. If only one speed is working, test the voltage output from the wiper switch itself to rule out a switch defect.
- Park Circuit Malfunction (Constant Power or Park Switch Wire):
- Consequence: Wipers stop immediately wherever the switch is turned off, failing to return to the park position. Alternatively, the motor might continue to run even when the switch is off.
- Fix: Ensure the Red (hot wire/constant 12V) is correctly connected and fused. Verify the White (park switch return) wire is properly connected. Test for continuous 12V on the Red wire and for correct signaling on the White wire when the switch is moved from an active speed to “off.” A faulty internal park switch within the motor or a damaged wiper switch is often the cause.
- Incorrect Wire Gauge or Damaged Insulation:
- Consequence: Undersized wires (e.g., using 20-gauge instead of 14-gauge) can overheat, leading to voltage drop and reduced motor performance. Damaged insulation can cause short circuits.
- Fix: Always use the specified wire gauge as per manufacturer recommendations. Replace any wires with compromised insulation immediately. If voltage drop is suspected, measure voltage at the battery and then at the motor’s positive terminals while the motor is running. A drop exceeding 0.5V suggests high resistance in the circuit.
Typical automotive wiper motors operate on a nominal 12V DC system. Peak current draw during initial sweep or under load can momentarily exceed 10-15 amps, necessitating appropriate wire gauge (14-16 AWG) and fusing (often 15-20 amp fuse, according to manufacturer specs).
FAQ
How do I determine the correct wire gauge for my 2-speed wiper motor?
The correct wire gauge is critical for preventing voltage drop and overheating. According to OEM specifications, most 12V DC wiper motors require 14-gauge or 16-gauge wire, depending on the motor’s power consumption and the length of the wire run. For applications requiring longer runs or operating under heavier loads, such as in heavy equipment, consulting the manufacturer’s specific electrical schematics is essential. Generally, a larger current draw or longer distance necessitates a lower (thicker) wire gauge number.
What does the “park” circuit do in a 2-speed wiper motor?
The “park” circuit is an essential safety feature that ensures the wiper blades return to a designated resting position when the wiper switch is turned off. It typically consists of an internal switch within the motor and a dedicated hot wire (constant 12V) connection. When the main wiper switch is disengaged, the park circuit maintains power to the motor just long enough for the internal switch to open once the blades reach their home position, cutting power and stopping the motor precisely.
Can I use a universal 2-speed wiper motor, and how will the wiring differ?
While universal 2-speed wiper motors are available, their wiring schemes can vary significantly from OEM units. Many universal motors simplify the circuit, sometimes using fewer wires by integrating the park function differently. Always refer to the specific installation instructions and wiring diagram provided with the universal motor. You may need to adapt your vehicle’s harness using a terminal block or specialized adapters, ensuring that pin assignment matches the universal motor’s requirements for ground, constant power, low speed, and high speed.
What if my 2-speed wiper motor only works on one speed?
If your wiper motor only operates on one speed (e.g., only high or only low), the issue typically lies with the wiper switch, the wiring to the non-functioning speed, or an internal fault within the motor itself. First, consult the 2 speed wiper motor wiring diagram to verify the correct wire color code for each speed. Use a multimeter to check for 12V power at the motor’s respective speed input terminals when the switch is set to that speed. If power is present, the motor itself may have a failed winding for that speed. If power is absent, the wiper switch or the wiring between the switch and motor is suspect.
Step-by-Step Guide to Understanding the Universal 2-Speed Wiper Motor Wiring Diagram: Complete Connection Guide 2026
Identify – Locate your specific 2 speed wiper motor and the corresponding wiper switch, noting any existing wire color code or pin assignments.
Locate – Find a reliable 12V fused power source (hot wire) and a clean, solid chassis ground point (ground wire) in your vehicle.
Reference – Consult the 2 speed wiper motor wiring diagram to understand the function of each wire (ground, low speed, high speed, park).
Connect/Route – Begin connecting wires, starting with the ground wire from the motor to the chassis, then connect the power wires from the switch to the motor’s low, high, and park terminals according to the diagram’s pin assignment.
Verify – After all connections are made, test the wiper motor for proper operation at both low and high speeds, and ensure the park function correctly returns the wipers to their resting position.
Troubleshoot – If issues arise, re-check all connections, particularly the ground wire and hot wire, verify fuse integrity, and use a multimeter to confirm power at each motor terminal as per the diagram.
Frequently Asked Questions
What wire color is for ground on a 2 speed wiper motor wiring diagram?
On most universal 2-speed wiper motor wiring diagrams, the ground wire is typically identified as black. It provides the essential return path for the electrical current and must be securely connected to a clean, unpainted chassis point or a dedicated ground bus bar to ensure proper motor operation and prevent electrical issues. Always confirm with the specific diagram.
What do the pin numbers mean on a 2 speed wiper motor wiring diagram?
Pin numbers on a 2-speed wiper motor wiring diagram or the motor itself correspond to specific electrical functions. For example, one pin is for the hot wire (constant power), another for the ground wire, and separate pins for the low-speed and high-speed inputs from the wiper switch. A park switch often has its own dedicated pin assignments.
How many wires does a 2 speed wiper motor wiring diagram typically have?
A typical 2-speed wiper motor wiring diagram will show connections for 3 to 5 wires. These usually include a ground wire, a hot wire for constant power to the park circuit, a wire for low-speed operation, and a wire for high-speed operation. Some motors might have an additional dedicated park switch wire or internal relays, increasing the total count.
What are common wiring mistakes with a 2 speed wiper motor wiring diagram?
Common mistakes when following a 2 speed wiper motor wiring diagram include reversing the polarity of power and ground, incorrectly connecting the low and high speed wires, or improper wiring of the park circuit. Misidentifying the hot wire or failing to establish a solid ground wire connection can also lead to motor malfunction or intermittent operation. Always double-check wire color code.
Does a 2 speed wiper motor need a relay?
While many basic 2-speed wiper motors can operate directly from a switch, using a relay is often recommended, especially for higher current draw motors or complex control systems. A relay protects the wiper switch from excessive current, prolongs its life, and ensures a stable power supply to the motor, preventing voltage drops and ensuring consistent operation across speeds.
What gauge wire does a 2 speed wiper motor wiring diagram require?
For a typical 12V 2-speed wiper motor, 16-gauge or 18-gauge automotive wire is generally sufficient. The specific gauge depends on the motor’s current draw (amperage) and the length of the wire run. Longer runs or higher current applications might require a slightly thicker wire (e.g., 14-gauge) to prevent voltage drop and ensure efficient power delivery.
