2013 Nissan Pathfinder Fuse Box Diagram: 2026 Guide
The 2013 Nissan Pathfinder features three main fuse boxes: the cabin panel behind the driver-side lower dash, the IPDM E/R in the engine bay next to the battery, and a high-current battery fuse block. Key locations include Fuse 12 (10A OBD-II/ECU power) and Fuse 19 (15A fuel pump).
📌 Key Takeaways
- Cabin panel is under the driver-side lower dash; IPDM E/R is located in the engine compartment near the battery.
- Fuse 12 (10A) supplies constant battery voltage to the OBD-II diagnostic port and ECU memory.
- Main fusible link block on the battery positive terminal requires a 13 Nm torque spec when installing replacement lugs.
- Water ingress into the engine bay IPDM E/R causes terminal corrosion and sporadic check engine light illumination.
- Standard blown mini-fuses are easy DIY replacements, but IPDM relay circuit board failures require module diagnostic testing.
Accurately navigating the electrical system of the fourth-generation R52 platform requires an exact reference to the 2013 Nissan Pathfinder fuse box diagram. Nissan utilizes a decentralized power distribution network on this 3.5L VQ35DE V6 platform, comprising the passenger compartment junction block, the engine compartment Intelligent Power Distribution Module Engine Room (IPDM E/R), auxiliary relay blocks, and a high-current battery terminal fusible link assembly. Whether diagnosing a sudden loss of powertrain control module communication or isolating an intermittent accessory fault, understanding the precise component locations, relay pinouts, amperage ratings, and diagnostic pathways is essential for professional mechanics and advanced technicians.
2013 Nissan Pathfinder Fuse Box Locations and Visual Landmarks
The 2013 Nissan Pathfinder utilizes four distinct electrical protection points throughout the vehicle. Locating these boxes requires specific knowledge of engine bay landmarks and interior panel access procedures.
Recommended Best Deal Products
Passenger Compartment Junction Block Location
The interior fuse panel, formally designated as the Junction Block (J/B), is housed on the passenger side lower instrument panel. To access this block, open the front passenger door and lower the glove box assembly. Release the soft-drop damper cord on the right outer edge, then push inward on both side retaining tabs to swing the glove box housing downward past its stops. Look directly behind the lower frame rail below the cabin air filter housing. You will see a black rectangular plastic cover marked with circuit symbols. The panel sits directly forward of the Body Control Module (BCM) wiring harness. For detailed cabin module wiring, consult our R52 body control module pinout chart.
Under-Hood IPDM E/R and Auxiliary Relay Box Locations
The main engine compartment power control hub is the Intelligent Power Distribution Module Engine Room (IPDM E/R). It is situated on the rear passenger-side corner of the engine bay, positioned between the strut tower support and the firewall. It is mounted vertically inside a protective splash-proof plastic sheath directly adjacent to the primary Engine Control Unit (ECU). A secondary visual landmark is the clear plastic engine coolant flow recovery reservoir; the IPDM sits approximately four inches directly behind this tank.
A smaller auxiliary relay box is positioned on the forward passenger-side inner fender apron, tucked directly behind the windshield washer fluid filler neck and headlight wiring harness assembly. This auxiliary block controls secondary high-current loads, including fan speed switches and headlamp washers.
Battery Terminal Fusible Link Assembly
The primary circuit protection unit mounts directly on the positive terminal of the 12-volt battery located in the forward left corner of the engine bay. Covered by a translucent red plastic shield, this multi-fuse block contains high-amperage melt links that feed primary power directly to the alternator, starter motor, IPDM E/R, and cabin power distribution networks.
According to OEM Nissan service manuals, the IPDM E/R features integrated micro-relays soldered directly to its internal printed circuit board (PCB) alongside removable mini-blade fuses and standard ISO relays. Always verify whether a circuit utilizes an external socketed relay or an internal IPDM micro-relay before attempting component replacement.

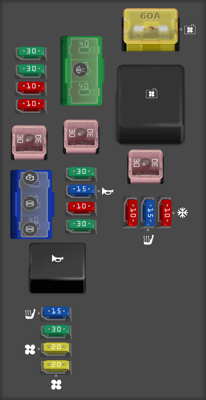

2013 Nissan Pathfinder Fuse Box Diagram Circuit Breakdown
Understanding circuit distribution requires cross-referencing amperage ratings, circuit functions, terminal assignments, and wire coloration. Below is the technical specification matrix for the primary fuses located across the 2013 Nissan Pathfinder fuse boxes.
| Fuse # / Label | Rating (Amps) | Location | Protected Circuit / Component | Wire Color Code |
|---|---|---|---|---|
| Fuse 10 | 10A | Passenger J/B | OBD-II Data Link Connector (Pin 16), Combination Meter | Red / Blue |
| Fuse 12 | 15A | Passenger J/B | Accessory Socket, Cigarette Lighter Power | Violet / Yellow |
| Fuse 19 | 10A | Passenger J/B | Body Control Module (BCM) Logic, Airbag Control Unit | Brown / White |
| Fuse 34 | 15A | IPDM E/R | ECU Power Supply, ECM Relay Coil Voltage | Green / Black |
| Fuse 38 | 15A | IPDM E/R | Ignition Coils 1 through 6, Condenser | Gray / Red |
| Fuse 42 | 20A | IPDM E/R | Fuel Pump Relay Power, Fuel Injector Drivers | Black / Yellow |
| Fuse 49 | 15A | IPDM E/R | CVT TCM Power Supply, Transmission Solenoids | Blue / White |
| Fuse 54 | 40A | Auxiliary Box 2 | Radiator Cooling Fan Motor 1 (High/Low Control) | Black / Red |
| Fuse A | 250A | Battery Link | Main Alternator Output Cable, Starter Motor Feed | Heavy Gauge Red |
| Fuse B | 100A | Battery Link | IPDM E/R Main Feed, Passenger J/B Main Power | Heavy Gauge Black |
Engine Room Fuse and Relay Identification
The IPDM E/R serves as an integrated controller that receives CAN-bus signals from the ECU and BCM. Relays housed inside or attached to this module control high-amperage systems such as the starter motor solenoid, air conditioning compressor clutch, throttle control motor, and front wiper high/low modes. When troubleshooting powertrain issues, refer to our comprehensive Nissan Pathfinder IPDM wiring schematic guide for full trace diagrams.
Passenger Cabin Fuse Assignment Matrix
The interior junction block relies primarily on low-profile mini blade fuses ranging from 10A to 20A ratings. Key components operating off this panel include the diagnostic connection port, heated steering wheel module, power seat adjustments, and interior lighting control networks. Accessing the back of this panel reveals multi-pin white and gray harness connectors locked into place with flip-lever retaining clips.
Check Engine Light Triggers, OBD-II Codes, and Electrical Symptoms
A blown fuse or faulty power relay within the 2013 Nissan Pathfinder fuse distribution network manifests through specific driveability symptoms, warning lights, and diagnostic fault codes.
ECU Power Relay and Ignition Circuit Failures
If Fuse 34 (15A) in the IPDM E/R opens or the main ECM relay contacts fail, the engine will crank continuously without firing. Connecting an OBD-II scan tool to terminal 16 of the diagnostic connector may reveal a “No Communication” status with the engine control module. When the module partially loses reference voltage, the check engine light illuminates on the instrument cluster, accompanied by distinct diagnostic trouble codes stored in memory:
- P0685: ECM Power Relay Control Circuit / Open
- P0690: ECM Power Relay Sense Circuit High Voltage
- P0605: Engine Control Unit (ECU) Microprocessor ROM Fault (frequently induced by sudden supply voltage drops)
- P0300: Random/Multiple Cylinder Misfire (caused by voltage drops across Fuse 38 powering the ignition coils)
Timing Chain Casing Grounds and Sensor Voltage Drops
Electrical stability across the IPDM and ECU depends heavily on physical grounding points. On the VQ35DE engine, the primary sensor ground loom routes directly to the lower front timing chain cover, located adjacent to the engine oil pressure switch. If oil leaks from the oil pressure switch onto the ground terminals, or if corrosion builds up along the aluminum timing chain cover face, system resistance rises sharply.
This grounding degradation creates parasitic voltage drops across the IPDM sensor circuits, leading to false diagnostic codes for variable valve timing (VVT) solenoids and erratic oil pressure gauge readings. To ensure proper signal integrity, technicians should review our VQ35DE sensor diagnostic procedures when diagnosing intermittent engine codes.
Similarly, failure of Fuse 54 or the cooling fan relays situated in Auxiliary Box 2 disrupts radiator fan operation. This restricts coolant flow through the primary radiator core during low-speed driving, causing engine temperatures to spike rapidly while triggering air conditioning high-pressure cut-off switches.
Never replace an opened fuse with a higher amperage rating. The wiring harnesses on the 2013 Pathfinder are calibrated to precise thermal limits. Over-fusing an IPDM circuit can cause irreversible damage to internal micro-relay trace boards or melt primary engine bay harnesses.
Diagnosing Circuits Using the 2013 Nissan Pathfinder Fuse Box Diagram
Isolating electrical faults requires systematic testing using a Digital Multimeter (DMM) set to DC Volts and Resistance, alongside a dedicated 12V test light.
Voltage Drop Testing Across Fuse Test Terminals
Rather than pulling each fuse physically, perform voltage drop tests across the exposed test points on top of each blade fuse:
- Switch the Pathfinder ignition to the ON position (engine OFF).
- Connect the black DMM lead to a clean chassis ground, such as the strut tower stud or engine block.
- Touch the red DMM probe to point A on the top of the fuse, then to point B.
- If 12.6 Volts is present on point A but 0 Volts is measured on point B, the fuse element is open and must be replaced.
- If 0 Volts is present on both points, the feed relay or upstream circuit breaker feeding that entire bus bar is open or unpowered.
Relay Actuation and Resistance Diagnostics
To test standard 4-pin ISO relays found in the IPDM and auxiliary boxes, remove the relay and measure coil terminal resistance using the OEM pin schematic:
- Measure resistance between terminals 85 and 86 (Relay Coil). Manufacturer specs indicate an acceptable resistance range of 60 Ω to 90 Ω at 68°F (20°C). An infinite reading indicates an open coil.
- Check continuity between terminals 30 and 87 (Load Contacts). Resistance should read infinite (Open Circuit) when unpowered.
- Apply 12V power across terminals 85 and 86 using jumper wires. Resistance across terminals 30 and 87 should immediately drop below 0.2 Ω (Closed Circuit).
When reassembling the battery fusible link block or reattaching IPDM power cables, strict torque values must be maintained to prevent high-resistance thermal hot spots:
• Battery Positive Terminal Nut: 11 N·m (8 ft-lbs / 97 in-lbs)
• Fusible Link Cable Mounting Stud: 13 N·m (10 ft-lbs / 115 in-lbs)
• Timing Chain Cover Ground Strap Bolts: 9.5 N·m (7 ft-lbs / 84 in-lbs)
2013 Nissan Pathfinder Fuse Box Diagram Frequently Asked Questions
Where is the OBD-II diagnostic port fuse located in the 2013 Nissan Pathfinder?
The diagnostic link connector (DLC/OBD-II) power feed is protected by Fuse 10, a 10-Amp red mini-blade fuse located in the interior passenger compartment junction block. It supplies 12-volt battery power directly to Pin 16 of the OBD-II port. If your diagnostic scan tool fails to power up when plugged into the socket, verify Fuse 10 in the cabin panel before checking scan tool hardware.
What causes a check engine light with diagnostic code P0685 on this model?
Diagnostic code P0685 indicates a circuit open condition within the ECM power relay control circuit. On the 2013 Pathfinder, this is typically caused by a blown Fuse 34 (15A) inside the under-hood IPDM E/R, a failing ECM relay, or voltage drop across corroded ground terminals bolted to the engine timing chain casing. Inspect Fuse 34 first, then check for 12V switching power at the IPDM relay socket.
How do I properly remove the IPDM cover in the engine compartment?
To access the IPDM mini-fuses without damaging the plastic housing, locate the two lower locking tabs situated on the side facing the passenger headlight assembly and the rear firewall. Press the locking tabs inward using a flat-blade trim tool while pulling the upper housing cover vertically upward. Do not pry against the adjacent coolant flow expansion tank or force the assembly outward, as brittle plastic tabs can snap in cold ambient temperatures.
What is the proper torque spec for the battery terminal fusible link bolts?
The mounting nut securing the translucent battery fusible link assembly to the positive battery post clamp must be torqued to 11 N·m (8 ft-lbs / 97 in-lbs). The M8 eyelet lug studs supplying power cables outward to the alternator and internal fuse boxes require a torque spec of 13 N·m (10 ft-lbs / 115 in-lbs). Under-tightening causes high resistance and intermittent battery dropouts, while over-tightening cracks the plastic link housing.
How does a blown fan relay impact radiator coolant flow on the R52 Pathfinder?
The cooling system relies on dual electric fans controlled by relays in Auxiliary Box 2 and commands from the ECU. If a fan relay or Fuse 54 (40A) opens, the cooling fans fail to engage when engine coolant temperatures rise above 208°F (98°C). Without air drawn through the radiator fins, thermal dissipation drops rapidly, halting heat transfer despite active engine coolant flow driven by the mechanical water pump. This results in rapid engine overheating and high A/C system head pressure.
Step-by-Step Guide to Understanding the 2013 Nissan Pathfinder Fuse Box Diagram
Identify – Pinpoint the specific electrical failure, such as an inactive OBD-II scanner or illuminated check engine light.
Locate – Access the cabin fuse panel under the driver’s lower dash or pop open the IPDM E/R box in the engine bay.
Reference – Cross-reference the 2013 Nissan Pathfinder fuse box diagram lid to confirm fuse placement and circuit amperage.
Connect/Route – Remove suspect mini-fuses using a plastic fuse puller and check filament integrity or terminal voltage with a multimeter.
Verify – Install an exact replacement fuse with identical amperage and turn the key to verify circuit power restored.
Troubleshoot – Connect an OBD-II scanner to clear any active diagnostic code and verify ECU communication; torque battery terminal connections to 13 Nm if servicing fusible links.
