16-Pin ODB Cable Diagram: 2026 Pinout Guide
An odb cable diagram details the 16-pin OBD-II connector layout. Key pinouts include Pin 16 for +12V battery power (red wire), Pins 4 and 5 for chassis and signal ground (black/brown wires), Pin 6 for CAN High (yellow wire), and Pin 14 for CAN Low (green wire) configuration.
📌 Key Takeaways
- Pin 16 supplies continuous +12V DC system power, protected by a 7.5A–10A fuse.
- Pins 4 and 5 isolate chassis structure ground from signal ground to prevent EMI.
- CAN Bus high-speed differential layout operates across Pin 6 (CAN-H) and Pin 14 (CAN-L).
- Most cable failures stem from internal wire fatigue or bent male pin terminal contacts.
- Always test pin continuity using a digital multimeter prior to replacing full assemblies.
Modern automotive diagnostics depend on standard communication interfaces between the vehicle On-Board Diagnostics system and external scan tools. Understanding an odb cable diagram is essential for auto technicians, equipment operators, and retrofitting specialists who need to build custom harnesses, diagnose intermittent signal losses, or repair damaged diagnostic links. The standard OBD-II (SAE J1962) configuration establishes a universal 16-pin physical layout, defining precise voltage tolerances, grounding paths, and high-speed data channels. Analyzing the underlying odb cable diagram allows you to verify pin positions, identify protocol-specific conductors, and trace network wiring accurately across both 12V light-duty and 24V commercial vehicle platforms.

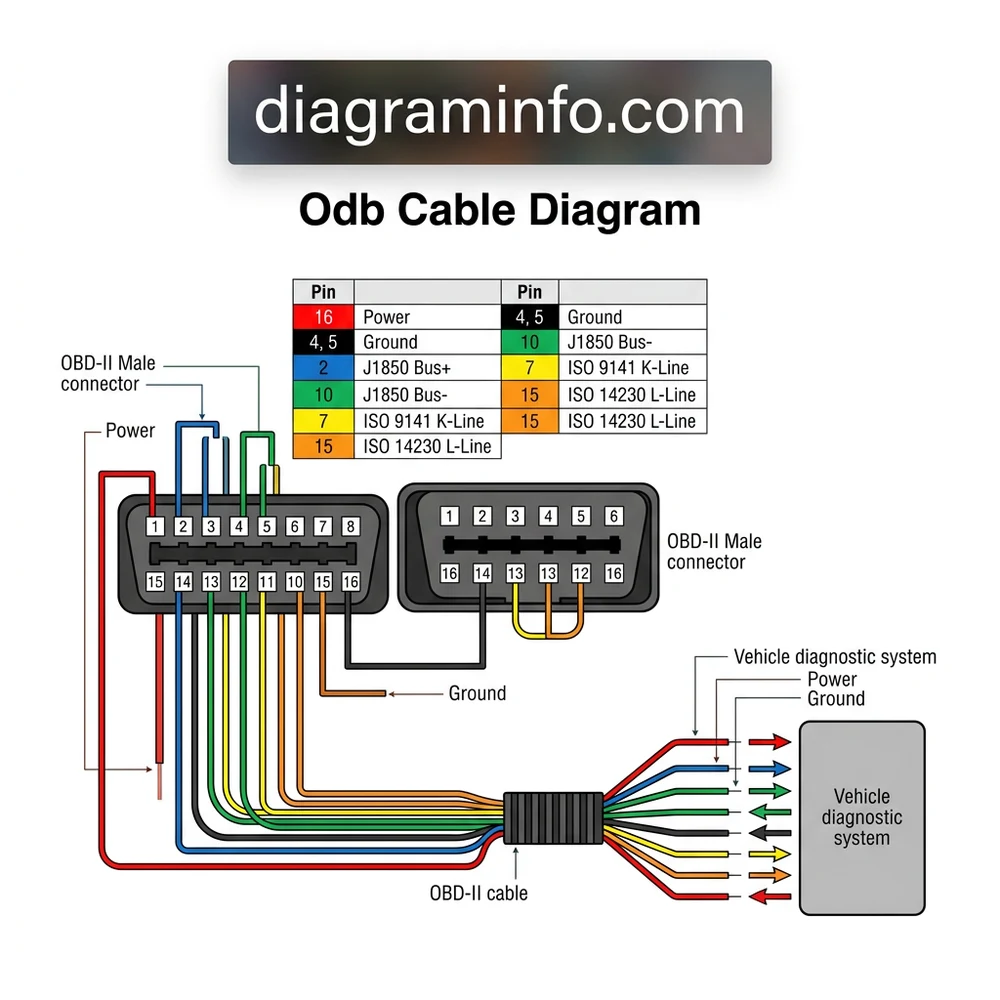

ODB Cable Diagram Pinout and Wire Configuration Breakdown
The standard SAE J1962 diagnostic connector layout is divided into two rows of eight terminals. In a standard odb cable diagram, the top row contains pins 1 through 8, while the bottom row contains pins 9 through 16. OEM manufacturers utilize specific pin locations based on the supported vehicle communication protocol, such as ISO 15765-4 (CAN), ISO 9141-2, ISO 14230-4 (KWP2000), or SAE J1850 (PWM/VPW).
| Pin Number | Signal / Function | Voltage / Protocol Specs | Standard Wire Gauge & Wire Type |
|---|---|---|---|
| Pin 2 | SAE J1850 Bus+ | 0 – 5V Pulse Width Modulation | 20 AWG Stranded Copper |
| Pin 4 | Chassis Ground | 0V Reference (Frame Return) | 18 AWG Heavy Duty Ground |
| Pin 5 | Signal Ground | 0V Reference (ECU Sensor Return) | 18 AWG Low-Noise Ground |
| Pin 6 | CAN High (ISO 15765-4) | 2.5V Nominal (3.5V Dominant State) | 22 AWG Twisted Pair (Shielded) |
| Pin 7 | ISO 9141-2 / KWP2000 K-Line | 0 – 12V DC (Active High Line) | 20 AWG Data Wire |
| Pin 10 | SAE J1850 Bus- | 0 – 5V Variable Pulse Width | 20 AWG Stranded Copper |
| Pin 14 | CAN Low (ISO 15765-4) | 2.5V Nominal (1.5V Dominant State) | 22 AWG Twisted Pair (Shielded) |
| Pin 15 | ISO 9141-2 / KWP2000 L-Line | 0 – 12V DC (Initialization Line) | 20 AWG Data Wire |
| Pin 16 | Unswitched Battery Power B+ | +12V Nominal (+24V Commercial) | 18 AWG Fused Power Line |
According to SAE J1962 standards, unswitched battery power on Pin 16 must be protected by a dedicated fuse rated at a maximum of 4 Amps to 7.5 Amps. The CAN High (Pin 6) and CAN Low (Pin 14) conductors must maintain a differential twisted-pair layout with a rate of at least 33 twists per meter to prevent electromagnetic interference (EMI) from disabling network communications.
Pins 1, 3, 8, 9, 11, 12, and 13 are designated as OEM-discretionary pins. Manufacturers configure these lines for proprietary vendor functions, such as single-wire CAN channels, ECU reflash enable voltages, Ethernet lines (DoIP), or module wake-up triggers. Referencing a vehicle-specific blueprint helps confirm whether discretionary pins carry active signal voltages or remain unpopulated in the connector housing.
How to Interpret the ODB Cable Blueprint and Terminal Mapping
Reading an odb cable schematic requires systematically identifying mechanical pin orientations, verifying continuous power circuits, and matching wire color codes with vehicle harness schematics.
1. Identifying Mechanical Pin Positions and Orientation
To view the connector structure correctly, position the trapezoidal J1962 interface so that the wider side is facing upward. Pin 1 is located at the top-left corner, counting sequentially rightward to Pin 8 at the top-right. Pin 9 starts at the bottom-left corner, ending at Pin 16 at the bottom-right. When working on the back side (solder cup or crimp terminal view) of a cable assembly, this layout is mirrored horizontally. Always reference the stamped pin numbers molded directly into the plastic connector housing to prevent wiring errors.
2. Verifying Power Supplies and Ground Conductors
Before connecting diagnostic equipment, test voltage levels on the physical interface. Pin 16 must provide constant battery voltage (+12.6V DC nominal engine off, +13.8V to +14.4V engine running). Ground integrity must be measured across Pin 4 (Chassis Ground) and Pin 5 (Signal Ground). Resistance from Pin 4 or Pin 5 to clean engine ground must remain below 0.2 Ohms. Voltage drop between Pin 5 and vehicle ground during scan tool operation must not exceed 50mV.
High-speed CAN bus communication requires a total termination resistance of 60 Ohms across the network line. When measuring across Pin 6 (CAN High) and Pin 14 (CAN Low) with the vehicle power turned off and battery disconnected, your multimeter should read approximately 60 Ohms (representing two 120-Ohm terminating resistors connected in parallel across the bus). For advanced network analysis, integrate these steps with CAN bus diagnostic procedures.
3. Tracing Differential CAN Bus and K-Line Signal Data
Modern vehicles rely primarily on CAN bus architecture (Pins 6 and 14). When measured with a digital multimeter against Signal Ground (Pin 5), CAN High rests at approximately 2.5V DC and toggles up to 3.5V DC during transmission. CAN Low rests at 2.5V DC and toggles down to 1.5V DC. Older legacy systems using ISO 9141-2 K-Line (Pin 7) rest near 12V DC when idle and pull down toward 0V during data frame transfer.
Troubleshooting Electrical Faults via the ODB Cable Schematic
Faults in diagnostic wiring manifests as scan tool communication failures (“No Response from ECU”), bus-off errors, or blown power fuses. Tracing issues back through the cable layout enables pin-point isolation of short circuits, broken conductors, and severe signal degradation.
Accidentally shorting Pin 16 (+12V Battery Power) to Pin 4 or Pin 5 (Grounds) during back-probing will cause immediate fuse failure or arc-damage to connector terminals. Shorting Pin 16 to CAN High (Pin 6) can destroy communication transceivers in multiple onboard ECUs. Always use insulated breakout probes during circuit testing.
Open Circuit and High Resistance Detection
A damaged harness wire inside an OBD cable assembly often breaks internally while retaining intact plastic insulation. Perform a continuity sweep using a digital multimeter set to Ohms mode:
- Disconnect the cable from both the vehicle diagnostic port and the scan tool interface.
- Probe each pin from end to end. Measured resistance across any individual conductor must remain below 0.5 Ohms.
- Flex the cable cable strain-relief boot while probing; intermittent resistance spikes above 2.0 Ohms indicate broken internal copper strands requiring harness replacement.
Short Circuits to Ground or Unswitched Power
If a scan tool shuts down unexpectedly when plugged in, check for cross-pin short circuits. Measure resistance between Pin 16 and all surrounding pins. Any reading below 100k Ohms between Pin 16 and any signal pin indicates insulation breakdown or solder-bridge contamination inside the connector hood. When isolating intermittent dropouts, using an OBD-II breakout box testing adapter prevents connector socket wear during physical stress testing.
Data Line Signal Noise and Interference
When CAN High or CAN Low wires are unshielded or un-twisted near ignition components, electric fans, or inverter units, electromagnetic noise degrades signal packets. Inspect the internal cable assembly configuration to ensure that Pins 6 and 14 run continuously as a twisted pair, isolated from high-current power cables running on Pin 16.
Frequently Asked Questions Regarding ODB Cable Systems
What is the difference between Type A and Type B J1962 connector layouts?
Type A J1962 connectors are designed for 12V passenger cars and light trucks, featuring an uninterrupted center alignment tab keyway. Type B connectors are designated for 24V commercial vehicles and heavy machinery, featuring a broken or notched center alignment tab. This physical barrier prevents 12V scan tools from accidentally plugging into 24V equipment ports and causing electrical failure.
Why are both signal ground and chassis ground required in the odb cable diagram?
Chassis Ground (Pin 4) provides a return path for high-current loads and scan tool display power, connecting directly to the vehicle body metal. Signal Ground (Pin 5) connects to the internal analog ground plane of the Engine Control Unit (ECU). Separating these grounds isolates delicate digital communication lines from ground loops, voltage drops, and electrical noise caused by high-draw vehicle accessories.
Can an odb cable schematic be adapted for 24V commercial equipment systems?
Yes, provided the connected diagnostic hardware, pinout configuration, and wire insulation ratings support 24V input voltage on Pin 16. Commercial equipment applications frequently utilize specialized protocol overlays like SAE J1939 over J1962 hardware or conversion adapters to Deutsch 9-pin connectors. Always verify scan tool input tolerances before interfacing with 24V systems.
How do I verify if a custom ECU flashing harness build requires terminating resistors?
If you are assembling a standalone bench harness or custom wiring setup without the vehicle factory wiring loom present, you must install a 120-Ohm terminating resistor between Pin 6 (CAN High) and Pin 14 (CAN Low). Without this termination, data frames reflect off the wire ends, causing communication errors during tuning or flashing. For step-by-step assembly diagrams, consult our detailed custom ECU flashing harness build guide.
Step-by-Step Guide to Understanding the Odb Cable Diagram
Identify – Identify the 16-pin connector housing structure and terminal pin numbering system.
Locate – Locate power (Pin 16) and ground wires (Pins 4/5) on your cable harness layout.
Reference – Reference the odb cable diagram to match wire color codes with designated pinouts.
Connect – Connect communication wires including CAN-H (Pin 6) and CAN-L (Pin 14) securely.
Verify – Verify signal continuity and voltage levels across all pins using a multimeter.
Troubleshoot – Troubleshoot open circuits or shorted connections before plugging into the vehicle port.
