Tail Light Wiring Diagram Ford F150

The tail light wiring diagram for a Ford F150 can be found in the service manual. It shows the location of each wire and its color. The diagram also provides information on the function of each wire.

If you’re looking for a tail light wiring diagram for a Ford F150, you’re in luck. There are a few different ways to get the information you need, and the best way will depend on how much detail you need. The first place to start is with the owner’s manual.

If your truck didn’t come with one, you can usually find them online or at your local library. Once you have the manual, look for the section on electrical diagrams. This is where you’ll find the diagram for the tail lights.

If you need more detail than what’s provided in the owner’s manual, your next best bet is a Haynes repair manual. These manuals provide step-by-step instructions and plenty of pictures to help guide you through each repair. Many libraries carry Haynes manuals, so that’s worth checking out as well.

Finally, if you really want to get into the nitty-gritty of your truck’s electrical system, there are wiring diagrams available from Ford themselves. However, these can be difficult to track down and aren’t always up-to-date with the latest models. If this is something you’re interested in pursuing, your best bet is probably to contact a Ford dealership and see if they can help point you in the right direction.

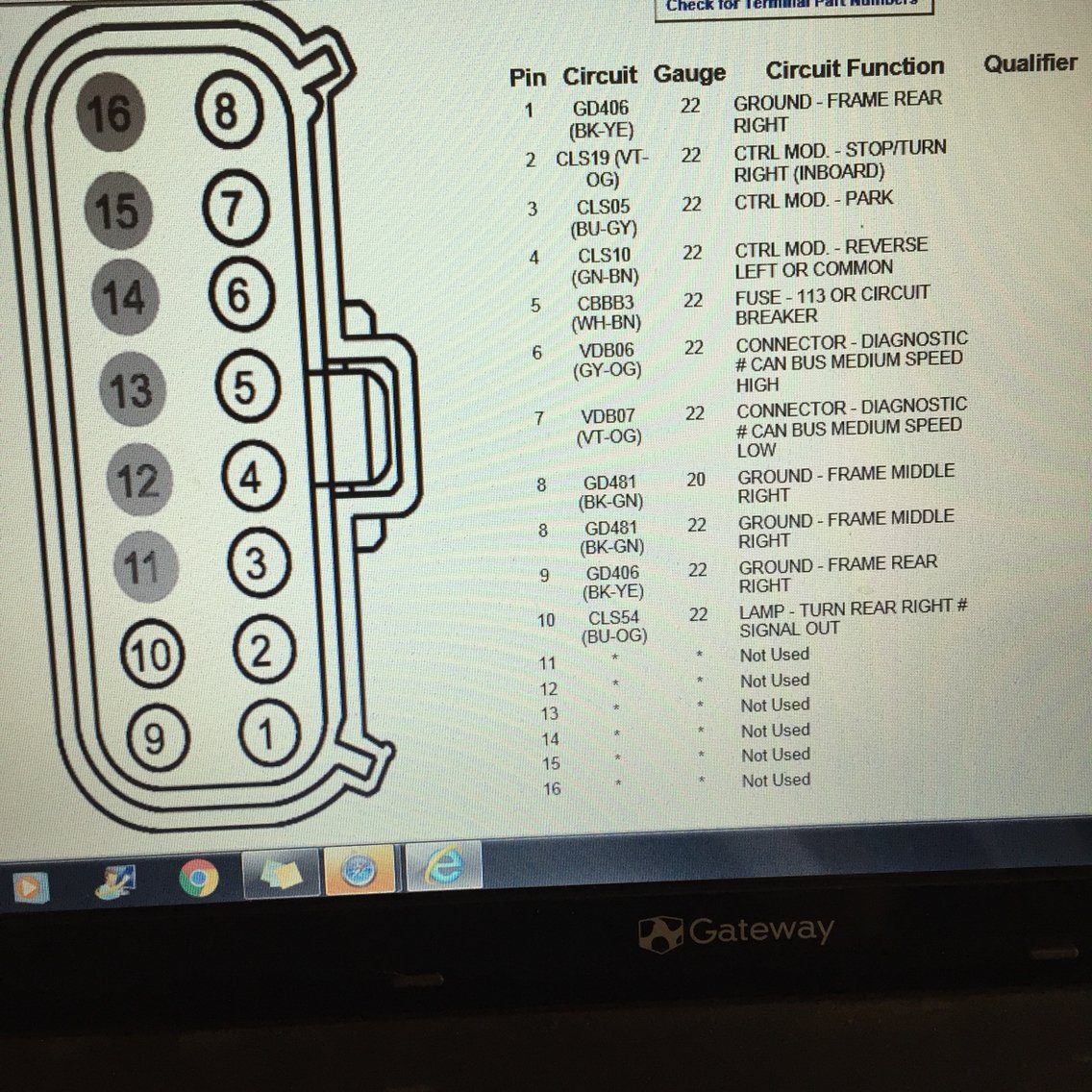

Tail Light Wiring Diagram Ford F150

Credit: www.youtube.com

What Color is the Wire for Tail Light?

Most cars have a red wire for the tail light. However, some cars may have a different color for the tail light wire. If you are unsure what color your car’s tail light wire is, you can check the owners manual or consult with a professional mechanic.

What are the 3 Wires to a Tail Light?

There are three wires to a tail light- the ground wire, the brake/turn signal wire, and the running lights wire. The ground wire is typically black and is connected to the metal chassis of the car. The brake/turn signal wire is typically red or yellow and supplies power to the bulbs when the brakes are applied or the turn signal is activated.

The running lights wire is typically brown or white and supplies power to the bulbs when the headlights are turned on.

How Do You Put a Tail Light in a Ford F150?

The process for changing a tail light on a Ford F-150 is actually quite simple and can be done in just a few minutes. First, you will need to locate the tail light assembly on the vehicle. Once you have found it, you will need to remove the old tail light by removing the screws or bolts that hold it in place.

After the old tail light has been removed, you will then need to install the new one by reversing the steps that you took to remove the old one.

How Do You Check a Tail Light Wire?

Assuming you’re referring to a standard 12-volt automotive system, the process is actually quite simple. First, you’ll need to identify which wire is the tail light wire. In most cases, it will be the green wire.

However, it’s always best to consult your vehicle’s wiring diagram to be sure. Once you’ve located the tail light wire, you can use a multimeter to test it for continuity. Simply set your multimeter to the “continuity” setting and touch one lead to the tail light wire at one end of the circuit (typically at the taillight assembly) and the other lead to ground (usually a metal component of the vehicle body).

If there is continuity, the multimeter will beep or register a reading on its display. If there is no continuity, that means there is an open in the circuit and you’ll need to find and repair that before proceeding.

2011 F150 Tail Light Wiring Repairs Plus Shorted Backup Camera


If you’re looking for a tail light wiring diagram for a Ford F150, you’re in luck. The internet is full of them, and there are even some videos that show you how to wire up your own tail lights. However, before you start wiring up your own tail lights, it’s important to understand the basic principles behind tail light wiring.

Tail light wiring diagrams typically use red and black wires to indicate which side of the vehicle the taillights are on. Red is usually used for the right side and black is usually used for the left side. In most cases, the ground wire will be white or green.

Once you have all of your wires figured out, it’s time to start connecting them together. The best way to do this is to use solderless connectors. These are easy to use and make a very strong connection between two wires.

Once you have all of your connections made, it’s time to test your work by turning on your headlights and taillights. If everything looks good, then it’s time to reinstall your taillights and enjoy improved visibility while driving at night!
