How a Heat Pump Works Diagram: Step-by-Step Instructions

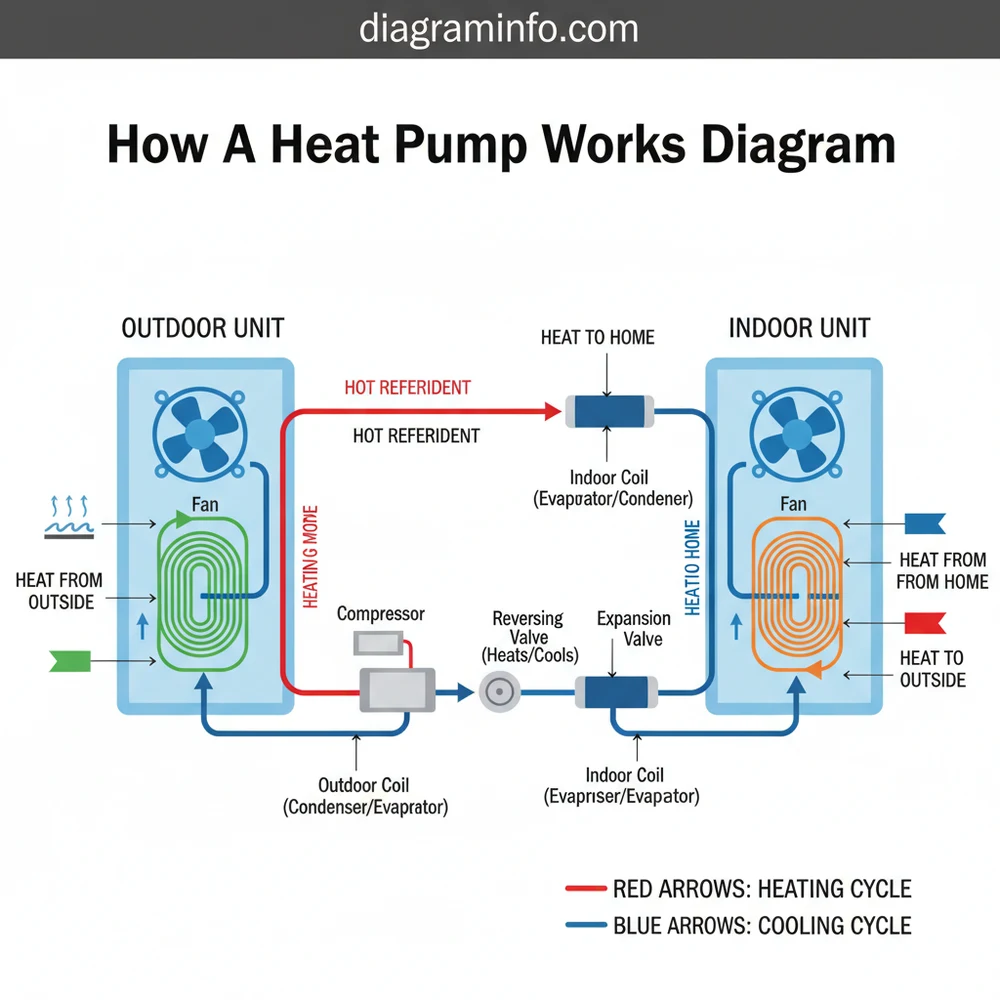

This diagram illustrates how heat pumps move thermal energy between indoor and outdoor units using refrigerant. It details the system configuration, showing how the compressor, evaporator, and condenser work together to transfer heat rather than generating it, providing an efficient HVAC solution for year-round temperature control.
📌 Key Takeaways
- The heat pump cycle is a reversible thermodynamic process
- The compressor is the heart of the system configuration
- Refrigerant must be handled by certified professionals
- Clean coils are essential for efficient heat transfer
- Use this diagram to diagnose airflow or heating issues
Understanding how a heat pump works diagram is the first essential step toward mastering home energy efficiency and technical maintenance. Heat pumps are unique mechanical systems that transfer thermal energy rather than generating it through combustion, requiring a specific configuration of mechanical components to function correctly. This comprehensive guide provides an in-depth overview of the system’s internal structure, allowing you to identify every critical part from the compressor to the expansion valve. By the end of this article, you will be able to read a technical schematic, troubleshoot common performance issues, and understand the thermodynamic blueprint that keeps your home comfortable year-round.
Understanding the System Configuration and Layout
To effectively read a how a heat pump works diagram, one must first recognize that the system is a closed-loop refrigeration cycle. The layout is typically divided into two main sections: the outdoor unit (often containing the compressor and a heat exchanger) and the indoor unit (containing a second heat exchanger and a blower fan). These two sections are connected by copper refrigerant lines, which form the vascular system of the entire configuration.
In a standard schematic, you will notice four primary components that dictate the flow of energy. The compressor acts as the heart of the system, pumping refrigerant through the lines. The condenser and evaporator coils are the sites of heat exchange, where the refrigerant either releases or absorbs thermal energy. Finally, the expansion valve regulates the pressure and flow of the refrigerant. Most modern diagrams use color-coding to represent the state of the refrigerant: bright red or orange typically indicates high-pressure, high-temperature gas, while dark blue represents low-pressure, low-temperature liquid or vapor.
The complexity of the layout often stems from the reversing valve. This specific component is what differentiates a heat pump from a standard air conditioner. In the diagram, the reversing valve is shown as a four-way manifold that can flip the direction of the refrigerant flow. This allows the system to switch between cooling mode (moving heat from inside to outside) and heating mode (extracting heat from the outdoor air to bring indoors). Understanding this specific part of the blueprint is crucial for anyone trying to diagnose why a system might be stuck in one mode or failing to provide the desired temperature.
Heat pumps do not create heat; they move it. Even in freezing temperatures, there is still thermal energy present in the outdoor air. The heat pump’s specialized refrigerant has a boiling point far below zero, allowing it to absorb this ambient heat and concentrate it for use inside your home.
Step-by-Step Guide to Interpreting the How a Heat Pump Works Diagram
Interpreting a complex mechanical schematic can be daunting for beginners. However, by following the flow of energy step-by-step, you can demystify the system’s operation. Use the following steps to trace the refrigerant through the blueprint.
1. Locate the Compressor and Start the Cycle
Begin your analysis at the compressor, usually represented as a cylindrical icon in the outdoor portion of the diagram. The compressor receives low-pressure gas and squeezes it, which significantly raises its temperature and pressure. On your diagram, follow the line exiting the compressor; it should be colored red to indicate high heat.
2. Identify the Reversing Valve Orientation
Look for the four-way valve immediately following the compressor. If the diagram is set to “Heating Mode,” the valve will direct the hot gas toward the indoor coil. If it is set to “Cooling Mode,” the gas is sent to the outdoor coil. This is the most critical junction in the entire system structure.
3. Trace the Heat Exchange Process
Follow the path to the first set of coils. In heating mode, the indoor coil acts as the condenser. As the hot gas passes through these coils, a fan blows air over them. The air picks up the heat and carries it into your living space, while the refrigerant inside the coils cools down and condenses into a high-pressure liquid.
4. Navigate Through the Expansion Valve
After leaving the condenser coils, the liquid refrigerant moves toward the expansion valve. In a schematic, this is often shown as a small triangle or a restricted orifice. As the liquid passes through this component, the pressure drops abruptly. This is similar to the cooling effect you feel when using an aerosol spray can. The refrigerant becomes extremely cold at this point.
5. Observe the Evaporator Coil Function
The cold, low-pressure liquid now enters the evaporator coils (the outdoor coils in heating mode). Because the refrigerant is much colder than the outside air, it absorbs heat from the environment. This causes the refrigerant to evaporate back into a gas. On your diagram, this section should transition from a solid blue line to a light blue or dashed line.
6. Return to the Compressor
The cycle completes as the low-pressure gas travels back to the compressor. Before entering, it usually passes through an accumulator, which ensures no liquid enters the compressor, as liquid can cause mechanical failure.
7. Verify Electrical and Control Layouts
Finally, look at the secondary lines in the diagram which represent the electrical configuration. These show how the thermostat communicates with the contactor and the reversing valve solenoid. This “nervous system” of the heat pump ensures that the mechanical components activate in the correct sequence.
Never attempt to open the refrigerant lines or adjust the expansion valve yourself. Heat pump systems operate under extremely high pressure and contain chemicals that can cause severe frostbite or environmental damage. Always consult a certified technician for internal repairs.
Common Issues and Troubleshooting Using the Schematic
A how a heat pump works diagram is an invaluable tool for troubleshooting. When a system fails, the schematic helps you isolate which component is likely at fault based on the symptoms. For example, if the indoor fan is blowing but the air isn’t warm, you can use the diagram to trace the path from the reversing valve to the indoor coil. If the pipe leading to the indoor coil is cold, the reversing valve may be stuck or the compressor may not be engaging.
Another common issue is ice buildup on the outdoor unit during winter. By looking at the evaporator section of your layout, you can see that if airflow is restricted by dirt or debris, the heat exchange cannot occur efficiently. This causes the refrigerant to stay too cold, freezing the moisture in the air onto the coils. The diagram shows you exactly where these coils are located so you can safely clear them of obstructions.
- ✓ Short Cycling: Often caused by a faulty thermostat or a restricted expansion valve as seen in the system blueprint.
- ✓ Noisy Operation: Usually points to the compressor or the outdoor fan motor identified in the schematic.
- ✓ Auxiliary Heat Constant On: Indicates the heat pump isn’t extracting enough heat from the outside, potentially due to low refrigerant levels.
Tips and Best Practices for Heat Pump Maintenance
To ensure your system operates according to its original design specifications, regular maintenance is required. The configuration of a heat pump makes it sensitive to airflow and cleanliness. If the coils depicted in your how a heat pump works diagram become coated in dust, the entire thermodynamic process is hampered, leading to higher energy bills and increased wear on the compressor.
One of the best pro tips for heat pump owners is to maintain a “clear zone” around the outdoor unit. The blueprint relies on the outdoor unit’s ability to pull in large volumes of air. If shrubs, snow, or fences are too close, the system has to work twice as hard to extract the same amount of heat. Aim for at least two feet of clearance on all sides and five feet of clearance above the unit.
Check your air filters every 30 days. In a heat pump system, airflow is the primary medium for heat transfer. A clogged filter restricts the air moving over the indoor coils, which can cause the refrigerant to slug back to the compressor, leading to expensive repairs.
When it comes to cost-saving, avoid “cranking” the thermostat. Heat pumps are most efficient when they maintain a steady temperature. Setting the thermostat significantly higher when you get home actually forces the system to engage its “emergency” or “auxiliary” electric heat strips, which are far more expensive to run than the heat pump itself. By understanding the system structure through a how a heat pump works diagram, you can appreciate the steady, consistent flow of energy that makes these units so effective for modern climate control.
In conclusion, mastering the how a heat pump works diagram empowers you to take control of your home’s HVAC system. Whether you are identifying the role of the reversing valve or tracing the refrigeration cycle through the compressor and expansion valve, a solid grasp of the schematic is essential. By following the step-by-step guidance provided here and adhering to regular maintenance schedules, you can ensure your heat pump operates at peak efficiency for years to come. Recognizing the layout and components is not just about technical knowledge; it is about ensuring comfort and sustainability in your home environment.
Frequently Asked Questions
Where is the reversing valve located?
The reversing valve is found within the outdoor unit’s structure, typically near the compressor. This critical component changes the direction of refrigerant flow, allowing the system layout to switch between heating and cooling modes seamlessly depending on your thermostat settings and the outdoor temperature.
What does this diagram show?
This diagram illustrates the closed-loop refrigerant cycle and the physical configuration of HVAC components. It details how the evaporator and condenser coils exchange heat with the air, highlighting the flow of energy between the indoor air handler and the outdoor compressor unit during different seasons.
How many main stages does the cycle have?
The heat pump system operates through four primary stages: compression, condensation, expansion, and evaporation. Each stage involves a specific component designed to manipulate refrigerant pressure and temperature, ensuring the layout efficiently moves heat into or out of your home as required by the cycle.
What are the symptoms of a bad compressor?
Symptoms of a failing compressor include loud grinding noises, frequent circuit breaker trips, or the system struggling to maintain set temperatures. If the compressor in your system configuration fails, the heat transfer cycle stops, often requiring professional replacement to restore efficient heating and cooling functions.
Can I service the refrigerant cycle myself?
No, homeowners should not attempt to service the internal refrigerant components themselves. While you can clean debris from the outdoor structure or change filters, federal laws require EPA-certified technicians to handle refrigerant, as specialized tools are needed to manage the high-pressure system configuration safely.
What tools do I need for maintenance?
For basic maintenance of the heat pump layout, you need a garden hose for cleaning coils, a fin comb to straighten bent evaporator fins, and a screwdriver to access the filter compartment. Professional diagnostics require manifold gauges, multimeters, and leak detectors to evaluate the internal system structure.
