Air Conditioner Air Flow Direction Diagram: Guide
An air conditioner air flow direction diagram tracks heat transfer through the system. Warm indoor air is pulled over the evaporator coils by the blower motor, while the compressor pushes refrigerant to the outdoor condenser to release heat, ensuring a continuous cycle of cooling and efficient ventilation throughout your home.
📌 Key Takeaways
- Visualizes the refrigeration cycle and air circulation path
- The evaporator and blower motor are central to indoor cooling
- Proper airflow over the condenser is critical for heat rejection
- Use this diagram to identify blockages or pressure imbalances
- Crucial for diagnosing poor cooling performance or frozen coils
Understanding your HVAC system’s internal mechanics begins with a clear air conditioner air flow direction diagram. Whether you are troubleshooting a cooling issue or performing routine maintenance, knowing how air travels through your home is essential for maximum efficiency. This guide provides a comprehensive breakdown of the refrigeration cycle and air distribution pathways. You will learn to identify key components like the evaporator and condenser, understand the role of the refrigerant, and trace the path from the return duct to the supply vents for optimal climate control.
Airflow is the lifeblood of an HVAC system. Without proper circulation, even the most expensive compressor cannot effectively cool your living space, leading to component strain and high energy bills.

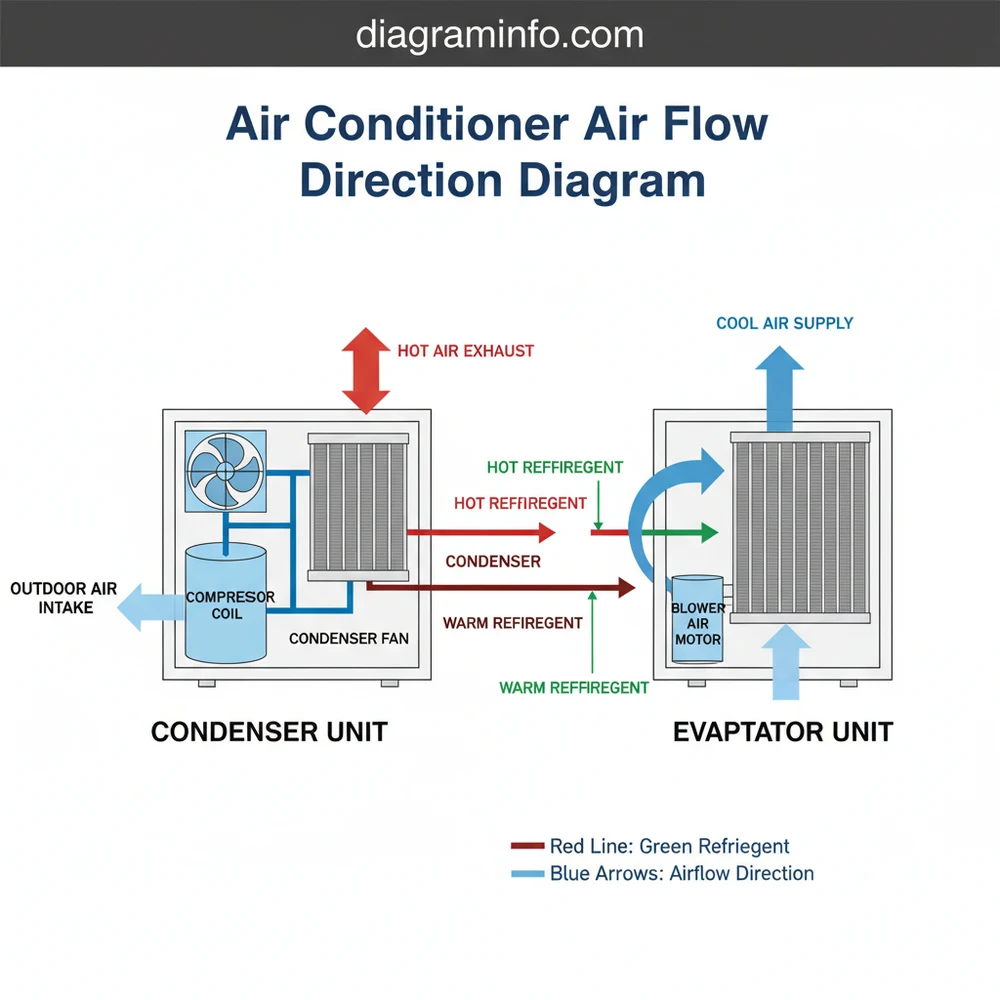

Decoding the Air Conditioner Air Flow Direction Diagram
The air conditioner air flow direction diagram is a visual map that illustrates two distinct cycles working in tandem: the airflow cycle and the refrigerant cycle. In a standard split-system setup, the diagram is split into an indoor section and an outdoor section. The indoor section focuses on the air handler, which houses the blower motor and the evaporator coil. The outdoor section contains the compressor and the condenser coil.
When looking at a professional diagram, arrows typically represent the movement of air and fluid. Blue arrows generally signify cool, low-pressure air or refrigerant, while red or orange arrows indicate warm, high-pressure states. The diagram begins at the return duct, where warm air from your home is sucked into the system. This air passes through a filter and then over the evaporator coil.
Inside the evaporator, the refrigerant absorbs heat from the air, turning from a liquid into a gas. The now-cooled air is pushed by the blower motor into the supply ducts and distributed throughout the house. Simultaneously, the diagram will show the heated refrigerant gas traveling outdoors to the compressor. The compressor increases the pressure and temperature of the gas, sending it to the condenser coil, where a fan blows outdoor air over the coils to release the heat. This continuous loop is the foundation of modern climate control.
How to Read and Interpret the HVAC Diagram
Interpreting an air conditioner air flow direction diagram requires a step-by-step approach to ensure you understand how each component influences the air you breathe. Follow these steps to master the layout of your system.
Step 1: Locate the Return Duct and Filtration Point
The starting point for any airflow diagram is the return duct. This is the “input” side of your HVAC system. On the diagram, you will see wide arrows entering the air handler unit. This air is room-temperature and often contains dust or allergens, which is why the diagram will show a filter located immediately before the internal components. Understanding this entry point is vital for maintaining air quality.
Step 2: Identify the Air Handler and Blower Motor
The air handler is the large box depicted in the indoor section of the diagram. Centrally located within this unit is the blower motor. The diagram uses curved arrows around a circular icon to represent the centrifugal fan. This motor is the heart of the airflow, creating the pressure needed to pull air from the return duct and push it through the rest of the system.
Step 3: Trace the Heat Exchange at the Evaporator Coil
As air moves past the blower, the diagram will show it crossing over a series of zig-zag lines labeled as the evaporator or the heat exchanger. This is where the magic happens. The diagram should illustrate the transition of the refrigerant from a cold liquid to a cold gas as it strips heat from the passing air. If the diagram shows “sweating” or moisture, this represents the dehumidification process, where water collects in a drain pan.
Step 4: Follow the Refrigerant Lines to the Compressor
The diagram will feature two lines connecting the indoor and outdoor units. The larger, insulated line is the suction line, carrying low-pressure gas. Follow this to the outdoor unit where it enters the compressor. The compressor is usually represented by a cylindrical icon. Here, the diagram should show a color change from blue to red, indicating a massive increase in pressure and temperature.
Step 5: Observe the Condenser Heat Release
Once the refrigerant is pressurized, it moves into the condenser coils. The diagram will show a fan (the condenser fan) pulling outdoor air through these coils. This process sheds the heat absorbed from your home into the outside environment. As the heat leaves, the refrigerant reverts to a high-pressure liquid state, ready to return indoors.
Step 6: Trace the Supply Duct Distribution
Returning to the indoor unit, look for the arrows exiting the air handler. These arrows lead into the supply ducts. This air is now significantly cooler and drier than when it entered. The diagram will show these ducts branching off to various rooms in the house, completing the cycle.
Never attempt to open the pressurized refrigerant lines shown in the diagram. Refrigerant must be handled by EPA-certified professionals, as it is hazardous to both human health and the environment.
Common Issues and Troubleshooting via the Diagram
When your cooling system fails, the air conditioner air flow direction diagram serves as a primary diagnostic tool. One of the most common issues is restricted airflow. If you notice weak air coming from your vents, the diagram helps you narrow down the culprit. You can trace the path from the return duct to the blower motor. A blockage at the filter or a failing blower motor often causes this symptom.
Another frequent problem is a frozen evaporator coil. By looking at the diagram, you can see that the evaporator requires a steady stream of warm air to prevent the refrigerant inside from becoming too cold. If the air handler’s airflow is restricted, the coil’s temperature drops below freezing, causing ice buildup. The diagram also helps identify issues with the outdoor unit. If the compressor is running but the condenser fan is not, the diagram clarifies that heat cannot be released, which will eventually cause the compressor to overheat and shut down.
- ✓ Ice on the indoor lines suggests an airflow blockage or low refrigerant.
- ✓ Hot air from supply vents indicates the compressor or refrigerant cycle has failed.
- ✓ Rapid cycling (turning on and off) often points to a thermostat or electrical issue near the air handler.
Maintenance Tips and Best Practices
To keep your system running according to the specifications in your air conditioner air flow direction diagram, regular maintenance is mandatory. The most effective step any homeowner can take is replacing the air filter every 30 to 90 days. A clean filter ensures the return duct delivers the volume of air the blower motor was designed to handle.
Additionally, keep the outdoor condenser unit clear of debris. Referencing the diagram, you can see that the condenser fan needs to move large volumes of air to dissipate heat. If bushes, grass clippings, or dirt clog the condenser fins, the compressor must work much harder, leading to premature failure and increased electricity costs.
Use a fin comb once a year to straighten any bent fins on your outdoor condenser. This small adjustment ensures the airflow matches the original design of the diagram, maximizing heat exchange efficiency.
Finally, ensure that your indoor supply and return vents are never blocked by furniture or curtains. The air conditioner air flow direction diagram relies on a balanced pressure system. If you close too many vents or block the return, you create static pressure that can damage the heat exchanger or blower motor. For high-quality component replacements, always look for parts that match the original manufacturer’s specifications to maintain the integrity of the airflow path. By respecting the physics outlined in your HVAC diagram, you can enjoy a cooler home and a longer-lasting air conditioning system.
Step-by-Step Guide to Understanding the Air Conditioner Air Flow Direction Diagram: Guide
Identify the return air inlet where warm room air enters the system.
Locate the blower motor which pulls air through the filtration system.
Understand how the evaporator coil removes heat and moisture from the air.
Trace the refrigerant path from the compressor to the outdoor condenser unit.
Verify the cooled air path through supply ducts back into the living space.
Complete the process by checking the exhaust air exiting the outdoor fan.
