Start/Run Capacitor Wiring Diagram: Complete Connection Guide 2026
Start/run capacitors typically have three terminals: ‘C’ (Common/Line), ‘HERM’ (Compressor/Hermetic), and ‘FAN’ (Fan Motor). The motor’s run winding connects to ‘HERM’ (start winding also connects here via centrifugal switch), the fan motor connects to ‘FAN’, and the main power supply connects to ‘C’. Always reference the motor or unit’s specific wiring diagram for exact connections.
📌 Key Takeaways
- Dual run capacitors (start/run) typically have three terminals: ‘C’ (Common), ‘HERM’ (Compressor), and ‘FAN’. Single run capacitors have two terminals.
- Always match the capacitor’s MFD (microfarad) rating and voltage (e.g., 30/5 MFD, 370/440 VAC) to the motor’s requirements; an incorrect rating can cause motor damage.
- Always discharge capacitors safely using a screwdriver with an insulated handle across terminals before handling, as they can store dangerous electrical charges. Verify voltage is off.
- The most common wiring mistakes include reversing ‘HERM’ and ‘FAN’ connections or using a capacitor with incorrect MFD or voltage ratings, leading to motor malfunction or burnout.
- If the motor hums but doesn’t start, or repeatedly blows fuses after capacitor replacement, or if you are unsure about high voltage connections, consult a qualified HVAC technician or electrician.
Accurately wiring a start/run capacitor is a critical task for maintaining the operational efficiency and longevity of single-phase AC motors found in various automotive and heavy equipment applications, from HVAC systems to hydraulic power units. This detailed guide provides the precise start/run capacitor wiring diagram, essential wire color codes, pin assignments, and step-by-step connection procedures to ensure your equipment operates within manufacturer specifications. Understanding these connections is paramount to preventing costly motor failures, optimizing performance, and ensuring safety in your technical endeavors.
Before attempting any wiring, always ensure the main power supply to the equipment is disconnected and verified as de-energized. Capacitors can store a significant electrical charge even after power removal. Always discharge capacitors safely before handling to prevent severe electrical shock.
—

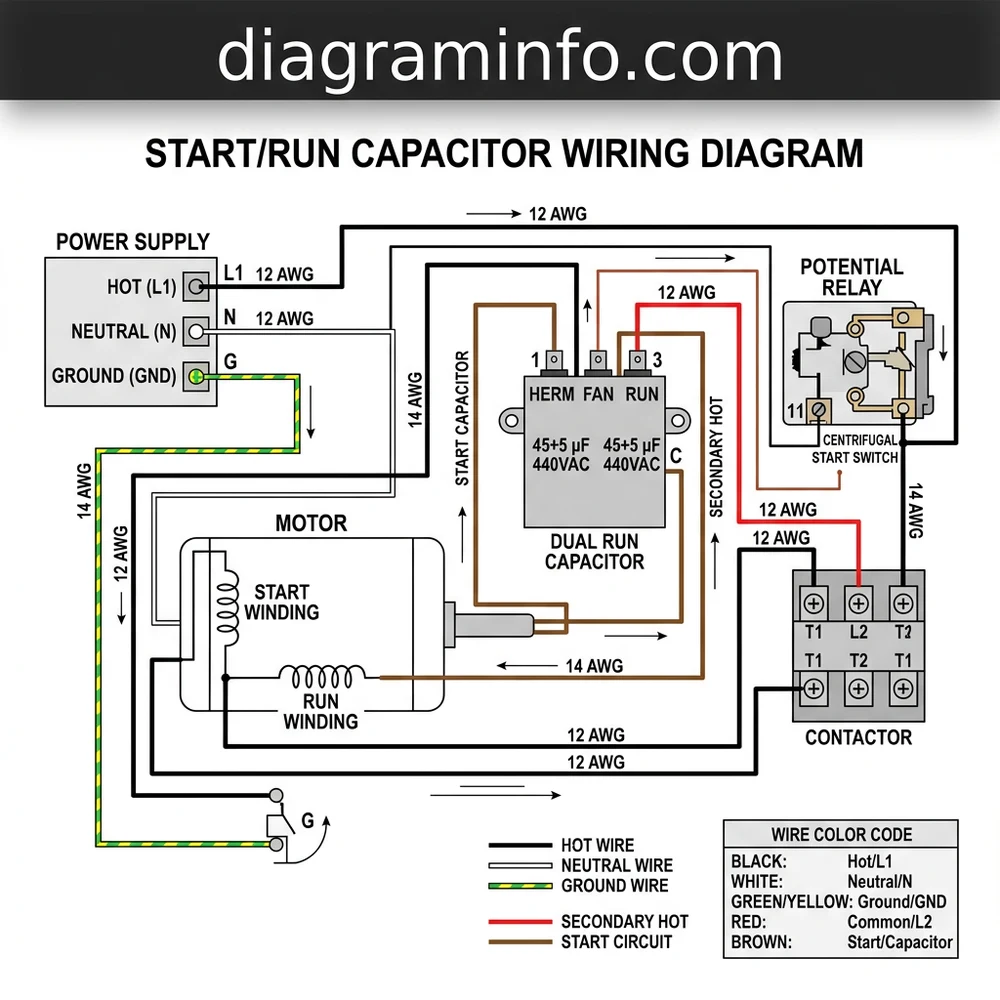

(Note: A detailed wiring diagram illustrating a single-phase AC motor connected to a dual-run capacitor (C, HERM, FAN terminals) and a power source (L1, L2, Ground). It would clearly show wire paths, terminal identifiers, and component representations. For this text-based output, the diagram content will be described in the following sections.)
—
WIRE COLOR REFERENCE TABLE
The specific wire color code for start/run capacitor circuits can vary significantly between equipment manufacturers and regions. However, the table below outlines common industry conventions for a typical single-phase AC motor system utilizing a dual-run capacitor. Always consult the specific OEM wiring diagram for your equipment to confirm these assignments.
| Wire Color (Common) | Function | Connected To (Pin/Terminal) | Notes |
|---|---|---|---|
| Black (L1) | Line 1 (Hot Wire) | Power Supply, Motor Run Winding, Capacitor Common (C) | Primary power input. Often connected to the ‘R’ or ‘T1’ terminal on the motor. |
| White (L2) | Line 2 (Neutral Wire) | Power Supply, Motor Run Winding | Return path for current. Often connected to the ‘L’ or ‘T2’ terminal on the motor. |
| Green/Bare Copper | Ground Wire | Equipment Chassis, Motor Casing, Power Supply Ground | Safety ground connection. Essential for electrical safety. |
| Red (or Yellow) | Compressor Start Winding | Capacitor HERM Terminal | Connects the motor’s start winding to the run capacitor. |
| Brown (or Yellow) | Compressor Run Winding | Directly to L1 or L2 | Main power connection for the motor’s continuous operation. |
| Orange (or Blue) | Fan Motor (if applicable) | Capacitor FAN Terminal | Connects the fan motor’s start winding to the capacitor. |
For applications requiring both a start and a run capacitor, such as some heavy-duty industrial motors or older designs, the start capacitor is typically wired in series with a centrifugal switch or potential relay, disconnecting it from the circuit once the motor reaches approximately 75% of its operating speed. The run capacitor remains in the circuit continuously. A dual-run capacitor effectively integrates these functions for common compressor and fan motor combinations, simplifying the wiring by providing distinct HERM, FAN, and C (Common) terminal block connections.
STEP-BY-STEP CONNECTION GUIDE
This guide assumes you are installing or replacing a dual-run capacitor in a single-phase AC motor system, common in HVAC units, pumps, and other auxiliary equipment. Always prioritize safety by following Lockout/Tagout procedures.
1. De-energize and Verify Safety: Before beginning, locate the main circuit breaker or disconnect switch supplying power to the equipment. Turn it OFF. Use a rated voltage tester to confirm that no voltage is present at the motor’s terminal block or the capacitor connections. This step is non-negotiable.
2. Discharge the Old Capacitor (If Replacing): If replacing an existing capacitor, it will likely retain a charge. Using a screwdriver with an insulated handle, short the capacitor’s terminals together (e.g., C to HERM, C to FAN, and HERM to FAN) ensuring the metal shaft makes contact with both terminals simultaneously. You may hear a small spark or pop. Repeat this for all terminal combinations. Wear safety glasses and gloves during this process.
3. Identify Motor Windings and Power Input: Locate the motor’s main (run) winding and start winding connections. Typically, the main winding leads will be thicker and connect directly to the power supply. The start winding leads are usually thinner and connect via the capacitor. Identify the L1 (hot wire) and L2 (neutral wire) inputs from the main power source, along with the ground wire. Refer to the motor’s nameplate or OEM wiring schematic for precise terminal identification and wire color codes.
4. Connect the Ground Wire: Securely attach the green or bare copper ground wire from the power supply to the designated ground terminal on the equipment chassis or motor casing. This provides essential electrical safety, diverting fault currents away from the system and personnel.
5. Connect the Main Power to the Capacitor Common (C) and Motor Run Winding: Connect the black L1 (hot wire) from your power supply to the ‘C’ (Common) terminal of the dual-run capacitor. Simultaneously, connect a jumper wire from this ‘C’ terminal to the motor’s main run winding input (e.g., typically a brown wire, or as specified by the OEM). The white L2 (neutral wire) from the power supply should connect directly to the other side of the motor’s main run winding.
6. Connect the Motor Start Winding to the HERM Terminal: Take the wire originating from the motor’s start winding (often red or yellow, as shown in the diagram) and connect it securely to the ‘HERM’ (Hermetic Compressor) terminal on the dual-run capacitor. This routes the start winding through the capacitor, providing the necessary phase shift for motor starting torque.
7. Connect the Fan Motor (If Applicable) to the FAN Terminal: If your system includes a separate fan motor (e.g., condenser fan), locate its dedicated start winding wire (often orange or blue) and connect it to the ‘FAN’ terminal on the dual-run capacitor. The fan motor’s run winding typically connects directly to the L1 (hot wire) and L2 (neutral wire) supply.
8. Verify All Connections and Secure Wiring: Double-check every connection point against the official start/run capacitor wiring diagram and the wire color reference table. Ensure all terminal block screws are tight, adhering to manufacturer-specified torque values (e.g., 20-30 in-lbs for standard #10 terminals) to prevent loose connections, which can lead to arcing and overheating. Confirm appropriate wire gauge is used for the circuit’s amperage. For instance, a 14 AWG wire is typically rated for up to 15 amps, while 12 AWG is suitable for up to 20 amps, depending on insulation and temperature ratings.
9. Re-energize and Test: Once all connections are confirmed, restore power to the equipment. Observe the motor’s operation. It should start smoothly, reach its rated speed, and operate without unusual noise or excessive heat. If issues arise, immediately disconnect power and refer to the troubleshooting section. You can find more comprehensive details on troubleshooting specific motor issues by checking our guide on motor winding resistance testing.
Always match the replacement capacitor’s microfarad (µF) and voltage (VAC) ratings precisely to the OEM specifications. Using an incorrectly rated capacitor can lead to motor damage, inefficient operation, and premature failure. Refer to the motor’s nameplate or equipment service manual for these critical values.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring of start/run capacitors can lead to immediate failure or long-term damage to the motor and associated equipment. Recognizing these common errors is crucial for effective troubleshooting.
1.
Incorrect Capacitor Microfarad (µF) or Voltage (VAC) Rating
Consequence: Using a capacitor with an incorrect µF rating will lead to suboptimal motor performance. An undersized capacitor reduces starting torque and run efficiency, causing the motor to hum, overheat, and eventually fail prematurely. An oversized capacitor can cause excessive current in the start winding, leading to overheating and insulation breakdown. An incorrect voltage rating (e.g., using a 370 VAC capacitor where a 440 VAC is required) will lead to the capacitor failing quickly due to overvoltage.
Fix: Always replace the capacitor with one that matches the original OEM specifications for both µF and VAC ratings. These are typically printed on the capacitor label or found in the equipment’s service manual. For detailed guidance, see our article on HVAC compressor diagnostics, which often involves capacitor assessment.
2.
Misidentification of Capacitor Terminals (C, HERM, FAN)
Consequence: Connecting the motor’s start winding to the ‘FAN’ terminal or the fan motor to the ‘HERM’ terminal will result in improper motor operation or complete failure to start. The compressor motor may hum loudly without turning, or the fan may spin in the wrong direction or at an incorrect speed.
Fix: Carefully identify each terminal on the new dual-run capacitor. The ‘C’ (Common) terminal connects to the incoming line voltage (L1) and the motor’s run winding. The ‘HERM’ terminal connects specifically to the compressor’s start winding. The ‘FAN’ terminal connects to the fan motor’s start winding. Always verify these pin assignments against the capacitor’s labeling and the equipment’s wiring diagram.
3.
Loose Connections or Incorrect Wire Gauge
Consequence: Loose terminal connections create high resistance, leading to localized heating, arcing, and potential fire hazards. This can also cause intermittent operation or voltage drops that starve the motor of power, leading to reduced efficiency and damage. Using an undersized wire gauge for the current draw of the motor will result in excessive heating of the wire, insulation degradation, and increased risk of fire.
Fix: Before re-energizing, meticulously inspect all connections. Ensure all wires are firmly seated in their respective terminal blocks and tightened to the manufacturer’s specified torque settings. Use a calibrated torque wrench for critical connections. Verify that the wire gauge aligns with the circuit’s amperage requirements, referring to the National Electrical Code (NEC) or local electrical standards. For robust connections, use high-quality crimp terminals where appropriate.
4.
Failure to Discharge Capacitor Before Handling
Consequence: Capacitors can store a dangerous electrical charge even after power has been removed, potentially delivering a severe, even fatal, electrical shock upon contact.
Fix: Develop a habit of always discharging the capacitor safely before touching its terminals or removing it from the circuit. Use a discharge tool or an insulated screwdriver to short the terminals, ensuring you maintain physical isolation from the circuit. This is a critical safety protocol that should never be overlooked, especially when performing generator maintenance procedures where similar capacitor banks may exist.
5.
Using a Start Capacitor as a Run Capacitor (or Vice-Versa)
Consequence: Start capacitors are designed for intermittent duty, providing a high surge of capacitance for a very short duration (a few seconds). If used as a run capacitor, they will overheat and fail rapidly, potentially melting or exploding due to continuous current flow. Run capacitors are designed for continuous duty but typically have lower microfarad ratings and cannot provide the necessary starting torque if used in a dedicated start capacitor circuit without a centrifugal switch.
Fix: Identify the type of capacitor required based on the OEM specification or the motor’s design. If the motor requires a run capacitor, ensure the replacement is clearly labeled as such. If it requires a start capacitor, confirm it has the appropriate intermittent duty rating and is paired with a functional centrifugal switch or potential relay.
FAQ
What is the fundamental difference between a start capacitor and a run capacitor?
A start capacitor is an electrolytic type designed for intermittent duty, providing a large microfarad (µF) boost for a few seconds to initiate motor rotation by creating a phase shift in the start winding. It’s typically disconnected from the circuit by a centrifugal switch or potential relay once the motor reaches about 75% speed. A run capacitor, conversely, is an oil-filled film type designed for continuous duty. It remains permanently in the circuit, optimizing motor efficiency, power factor, and reducing operational current draw by maintaining a continuous phase shift in the start winding.
Can I substitute a start capacitor for a run capacitor, or vice-versa?
No, you absolutely should not substitute them. A start capacitor used as a run capacitor will quickly overheat and fail, potentially rupturing or exploding, because it’s not designed for continuous current flow. A run capacitor used as a start capacitor may not provide enough starting torque to get the motor running, leading to the motor humming but not starting, and could damage the motor’s windings due to excessive current draw during prolonged attempts to start.
How do I test a start/run capacitor to determine if it’s faulty?
To test a capacitor, first, safely discharge it. Then, use a multimeter with a capacitance (µF) testing function. Connect the multimeter leads to the capacitor terminals. The reading should be within +/- 5% (or 10% depending on manufacturer tolerance) of the capacitor’s rated microfarad value. If the reading is significantly lower, higher, or displays an “OL” (overload) or “open circuit,” the capacitor is faulty and requires replacement. Some multimeters can also test for resistance to check for short circuits, which would show near zero ohms.
What voltage rating should my replacement capacitor have?
The voltage rating of a capacitor must be equal to or greater than the peak AC voltage of the circuit it’s installed in. For common single-phase 120V AC circuits, a 250 VAC or 370 VAC capacitor is typically used. For 240V AC circuits, a 370 VAC or 440 VAC capacitor is common. Always match or exceed the original capacitor’s voltage rating. Using a capacitor with a lower voltage rating will lead to premature failure and potentially a hazardous rupture, as it cannot withstand the peak voltage surges of the system.
My motor hums loudly but doesn’t start. Could it be the capacitor?
Yes, a motor humming but failing to start is a classic symptom of a faulty start or run capacitor. This indicates that the main (run) winding is receiving power, but the start winding isn’t receiving the necessary phase shift to initiate rotation. The motor tries to turn but lacks the required torque. Other potential causes include issues with the centrifugal switch (if present), or a seized bearing, but a capacitor failure is a very common culprit in such scenarios and should be among the first components to be tested.
Step-by-Step Guide to Understanding the Start/Run Capacitor Wiring Diagram: Complete Connection Guide 2026
Identify – Identify the type of capacitor (start, run, or dual run) and verify its MFD and voltage ratings match the motor’s requirements exactly.
Locate – Locate the existing capacitor (if replacing) or the motor terminals requiring capacitor connection. Always power down the unit completely at the circuit breaker and confirm zero voltage.
Reference – Reference the motor or unit’s specific wiring diagram to confirm terminal assignments (‘C’, ‘HERM’, ‘FAN’) and corresponding wire color codes and pin assignment for accurate connection.
Connect/Route – Discharge the old capacitor (if replacing) and disconnect wires. Connect the new capacitor wires according to the diagram: Common (line or hot wire) to ‘C’, Compressor (run winding) to ‘HERM’, Fan (motor) to ‘FAN’.
Verify – Double-check all wire connections for snugness and correct terminal assignment. Ensure no bare wires are exposed, especially for the hot wire, and that no ground wire is accidentally connected to a capacitor terminal.
Troubleshoot – Restore power. If the motor hums but doesn’t start, runs intermittently, or makes unusual noises, re-verify all wiring connections and the capacitor’s MFD rating. If issues persist, perform a capacitor MFD test or seek professional diagnosis.
Frequently Asked Questions
What wire color is function on start/run capacitor wiring diagram?
On dual run capacitors, the ‘C’ (Common) terminal is often connected to a red or yellow wire from the power supply. The ‘HERM’ (Compressor) terminal typically uses a brown or purple wire for the compressor’s run winding. The ‘FAN’ terminal commonly uses an orange or black wire for the fan motor. Always verify with the specific motor’s diagram, as wire colors can vary significantly by manufacturer.
What do the pin numbers mean on start/run capacitor wiring diagram?
Start/run capacitors typically don’t use ‘pin numbers’ in the traditional sense, but rather terminal labels like ‘C’, ‘HERM’, and ‘FAN’. ‘C’ signifies the common connection to the main power (hot wire). ‘HERM’ connects to the compressor’s run winding. ‘FAN’ connects to the fan motor’s run winding. Understanding these labels is crucial for correct wiring and motor operation, ensuring proper pin assignment.
How many wires does start/run capacitor wiring diagram have?
A start/run capacitor (dual run capacitor) typically has three terminals, meaning it will connect to three main wires: one from the power supply (to ‘C’, often a hot wire), one to the compressor motor’s run winding (to ‘HERM’), and one to the fan motor’s run winding (to ‘FAN’). Single run capacitors, which only assist either starting or running, have two terminals and thus two wires connected.
What are common wiring mistakes with start/run capacitor wiring diagram?
Common wiring mistakes include reversing the ‘HERM’ and ‘FAN’ connections, using a capacitor with the wrong microfarad (MFD) rating, or an insufficient voltage rating. Incorrect wire color code adherence, or failing to secure connections, can cause the motor to hum but not start, run in the wrong direction, overheat, or fail prematurely. Always match MFD and voltage precisely.
Do I need a brake controller for start/run capacitor wiring diagram?
No, a brake controller is completely unrelated to a start/run capacitor wiring diagram. Brake controllers are electronic devices used in vehicles for managing trailer braking systems. A start/run capacitor is an electrical component used to provide a starting torque and improve the running efficiency of AC induction motors, typically found in HVAC systems, refrigerators, or other appliances. They serve entirely different purposes.
What gauge wire does start/run capacitor wiring diagram require?
The wire gauge required for a start/run capacitor connection depends on the motor’s amperage draw and the length of the wire run. For typical HVAC or appliance applications, 12-14 gauge wire is often used for the main motor circuits. Always refer to the motor’s specifications or the appliance’s wiring diagram for the exact recommended wire gauge to ensure safe and efficient operation and prevent overheating of the hot wire connections.
