Detached Garage Sub Panel Wiring Diagram: Easy Setup Guide
A detached garage sub panel requires a four-wire feeder system: two hot wires, one neutral wire, and a separate ground wire. In the sub panel, the neutral bar must be isolated from the ground bar to prevent dangerous ground loops. Additionally, a local grounding rod must be installed and bonded to the panel.
📌 Key Takeaways
- Provides a visual map for running electrical service to a secondary building
- Identification of the four-wire feeder system is the most critical step
- Neutral and ground bars must never be bonded in a sub panel setup
- Always use weather-rated conduit for underground feeder lines
- Use this diagram when adding lighting, outlets, or EV chargers to a garage
Installing a secondary power source in your outbuilding requires a precise understanding of electrical theory and local building codes. When you are looking for a detached garage sub panel wiring diagram, you are likely planning to extend your home’s electrical capacity to support lighting, power tools, or even electric vehicle charging stations. This guide provides a comprehensive visual and technical breakdown of how to safely route power from your main service entrance to a secondary distribution center. By following a detailed diagram, you ensure that your installation maintains proper grounding and bonding, which is the most critical safety factor in detached structures. You will learn the specific requirements for wire selection, conduit depth, and terminal connections to create a robust and code-compliant electrical system.

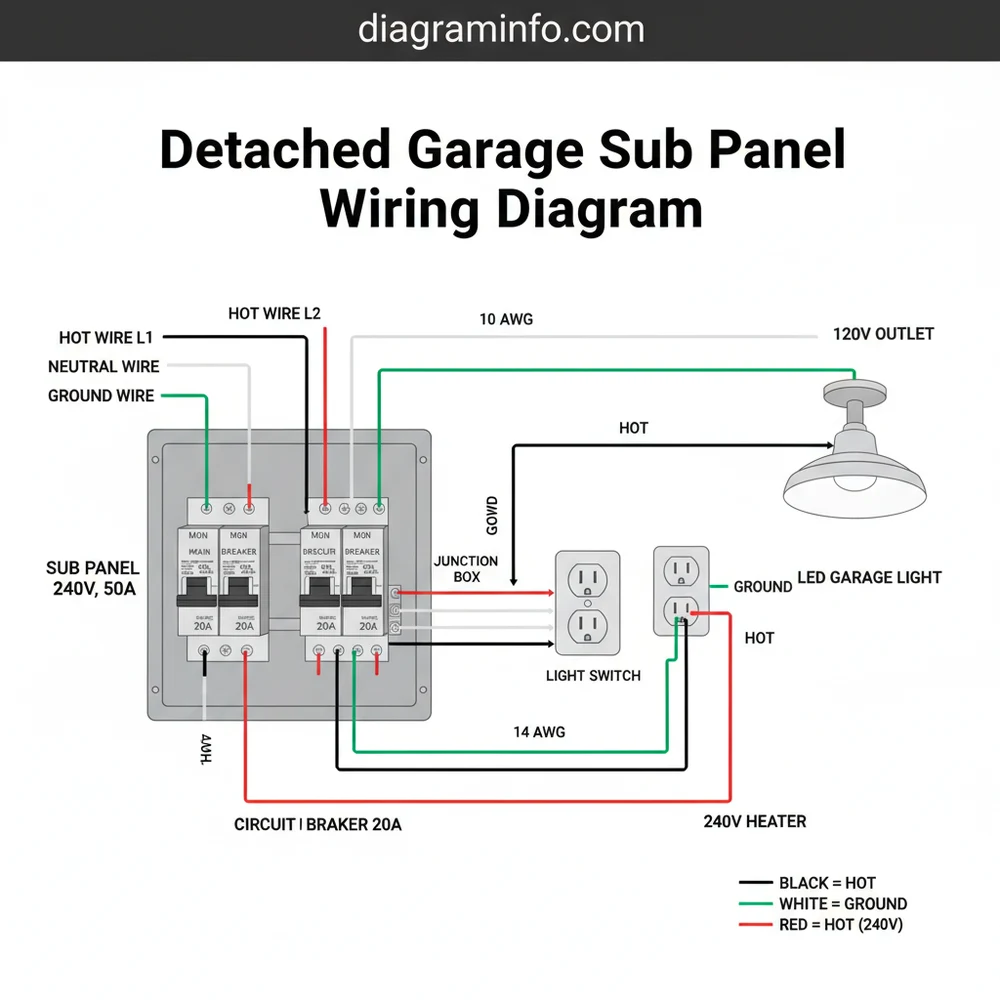

The detached garage sub panel wiring diagram illustrates a four-wire system, which is the standard requirement for modern electrical installations in separate structures. This system consists of two hot wires, one neutral wire, and one ground wire. In the diagram, you will see the primary feed originating from a double-pole breaker in your main house panel. This breaker determines the total amperage available to your garage, typically ranging from 50 to 100 amps depending on your needs. The diagram highlights the path of these conductors through a weather-proof conduit system, entering the sub panel through a dedicated hub or knockout.
A critical visual element in the diagram is the separation of the neutral and ground buses. Unlike a main service panel where these two are bonded together, a sub panel in a detached garage must keep them isolated to prevent “objectionable current” from flowing over the ground system. The diagram shows the neutral wire (usually white) connecting to an insulated neutral bar, while the ground wire (usually green or bare copper) connects to a grounding bar that is bolted directly to the metal enclosure. Additionally, the diagram will indicate the connection to an external grounding electrode system, which usually involves one or two copper-clad ground rods driven into the earth near the garage.
In a detached structure, you must install a local grounding electrode system (ground rods) and connect it to the sub panel’s ground bus, even though a ground wire is also coming from the main house. This provides a path for lightning and surge protection local to the garage.
Understanding the components within the diagram is the first step toward a successful installation. The hot wires, typically color-coded black and red, are connected to the two main lugs at the top of the sub panel. These wires provide the 240-volt potential required for heavy machinery or can be split across the bus bars to provide 120-volt power for standard outlets and lights. The gauge of these wires is determined by the distance of the run and the amperage of the breaker. For instance, a 60-amp sub panel located 100 feet away may require 4-gauge THWN-2 aluminum or 6-gauge copper conductors to account for voltage drop over the distance.
The diagram also details the internal branch circuits. Once the main lugs are powered, you will install individual breakers for your garage’s needs. A 20-amp breaker for wall outlets will use 12-gauge wire, where the hot wire connects to the breaker, the neutral wire connects to the neutral bar, and the ground wire connects to the ground bar. If you are installing a three-way switch for garage lighting, the diagram would also include a traveler wire system. In this scenario, the traveler wire facilitates communication between two switches, connecting to the traveler terminals while the hot feed connects to the common terminal of the first switch.
Never bond the neutral and ground bars in a sub panel. Doing so creates a parallel path for return current, which can energize the metal casings of your tools and appliances, leading to a significant shock hazard.
Step-by-Step Installation Guide
Implementing a detached garage sub panel wiring diagram requires a methodical approach to ensure both safety and functionality. Follow these steps to execute the installation correctly.
- ✓ Step 1: Calculate Load and Distance – Determine the total wattage of the tools and lights you plan to use. Use a voltage drop calculator to ensure your wire gauge is sufficient for the length of the run. For a detached garage, 240V is standard, and maintaining a voltage drop of less than 3% is ideal for performance.
- ✓ Step 2: Trenching and Conduit – Dig a trench between the main house and the garage. Most codes require a depth of 18 inches for PVC conduit or 24 inches for direct-burial cable (though conduit is highly recommended for sub panels). Install 1-1/4 inch or 1-1/2 inch Schedule 40 PVC to allow for easy wire pulling.
- ✓ Step 3: Pull the Conductors – Use a fish tape to pull four separate conductors through the conduit: two hots (Black/Red), one neutral (White), and one ground (Green). Ensure you are using THWN-2 rated wire, which is designed for wet locations inside underground conduit.
- ✓ Step 4: Main Panel Connection – Inside the main house panel, install a double-pole breaker. Connect the two hot wires to the breaker terminals. Connect the white neutral wire to the main neutral bus and the green ground wire to the main ground bus. Ensure the main breaker is OFF during this process.
- ✓ Step 5: Sub Panel Wiring – Mount the sub panel in the garage. Connect the two hot wires to the main lugs. Connect the white neutral wire to the isolated neutral bus bar. Connect the green ground wire to the grounding bus bar. Ensure all connections are torqued to the manufacturer’s specifications.
- ✓ Step 6: Grounding Electrode Installation – Drive an 8-foot copper ground rod into the earth outside the garage. Run a #6 bare copper wire from the sub panel’s ground bus to the rod, securing it with a direct-burial rated clamp. This satisfies the NEC requirement for a local grounding system.
- ✓ Step 7: Branch Circuit Wiring – Install your branch breakers. When wiring a standard 120V outlet, connect the black wire to the brass screw on the receptacle, the white wire to the silver screw, and the bare wire to the green ground screw. If wiring a light switch, identify the common terminal for the hot feed and the traveler terminals if using a multi-location setup.
- ✓ Step 8: Testing and Inspection – Before closing the panel, use a multimeter to check the voltage between the two hot lugs (should be ~240V) and between each hot and the neutral (should be ~120V). Check for continuity between the neutral and ground bars—there should be NONE in a sub panel.
When working with branch circuits after the sub panel is installed, paying attention to terminal identification is vital. For instance, on a standard outlet, the brass screw is always designated for the hot wire. If you are wiring a switch for the garage lights, the common terminal is usually a darker color than the others and is the point where power enters or leaves the switch loop. If you are implementing a 3-way switch system to control lights from both the garage door and a side entry, the traveler wire pair will connect the two switches, allowing the circuit to be opened or closed from either location.
The choice of gauge is also paramount. For a 100-amp sub panel, you might use 2/0 aluminum or 1-gauge copper. For smaller 60-amp panels, 4-gauge or 6-gauge is common. Always reference the specific detached garage sub panel wiring diagram for your hardware, as different manufacturers (Square D, Siemens, Eaton) may have slightly different lug configurations or torque requirements.
Common Issues & Troubleshooting
Even with a detailed diagram, DIYers often encounter obstacles during the wiring process. One of the most frequent problems is the “tripping” of the main breaker as soon as power is applied. This is often caused by a ground fault or an accidental bond between the neutral and ground wires in the sub panel. If the neutral bar is touching the metal cabinet or if the bonding screw (usually a long green screw provided with the panel) was accidentally installed, the system will detect an imbalance and trip the breaker.
Another common issue is voltage drop. If your lights flicker when a saw or air compressor starts, your wire gauge may be too thin for the length of the run. The diagram assumes a standard distance, but if your garage is 200 feet from the house, you must upsize the conductor gauge to maintain steady voltage. Finally, ensure that the traveler wire in any 3-way lighting circuits is not swapped with the common terminal wire, as this will lead to the switches only working in specific “on/off” combinations rather than independently.
Use “No-Al-Ox” or a similar anti-oxidant paste on the ends of aluminum wires before inserting them into the lugs. This prevents corrosion and ensures a long-lasting, low-resistance connection that prevents overheating.
Tips & Best Practices
To ensure a professional-grade installation, always leave “service loops” in your wiring. This means leaving an extra 6 to 12 inches of wire coiled neatly inside the panel before making your connections. This provides flexibility if you ever need to move a breaker or replace a damaged terminal. Additionally, clearly label every breaker in the sub panel. In a garage environment, knowing exactly which breaker controls the “North Wall Outlets” versus the “Lighting Circuit” saves time and increases safety during future maintenance.
When selecting components, prioritize quality. Use “Specification Grade” receptacles, which have better clamping force than the cheaper residential alternatives. When connecting wires to these devices, always wrap the wire clockwise around the brass screw. This ensures that as you tighten the screw, the wire is pulled tighter into the connection rather than being pushed out.
For cost-saving, consider using Aluminum SER or THWN-2 cable for the main feed. Aluminum is significantly cheaper than copper for large-gauge applications and is perfectly safe when sized and installed correctly with the proper lugs and anti-oxidant paste. However, for branch circuits (the wires going to your outlets and lights), copper is still the preferred choice for its ease of use and reliability in smaller gauges.
Finally, always consult your local building department before beginning. While a detached garage sub panel wiring diagram provides the technical roadmap, local codes may require specific conduit types or additional grounding measures. Getting a permit and having a professional inspection not only ensures your safety but also protects your home’s resale value and insurance eligibility. By following these best practices and adhering to the wiring sequence, you can transform your garage into a fully powered, functional workspace that meets all modern safety standards.
Frequently Asked Questions
Where is the sub panel located?
The sub panel is typically located on an interior wall of the detached garage, at least 4 feet above the floor for safety. It should be easily accessible and have at least 36 inches of clear workspace in front of it to comply with standard electrical codes.
What does a sub panel wiring diagram show?
The diagram illustrates the flow of electricity from the main house breaker to the garage panel. It highlights the connection points for the hot wire, neutral wire, and ground wire, as well as the layout for branch circuits like lights, which may use a traveler wire and common terminal.
How many wires does the sub panel have?
A modern sub panel installation requires four wires: two 120V hot wires (to provide 240V), one neutral wire for the return path, and one dedicated ground wire. Internal branch circuits for switches will also utilize specific connections like a traveler wire and common terminal for multi-way lighting.
What are the symptoms of a bad sub panel?
Signs of failure include frequent breaker trips, flickering lights, or buzzing sounds coming from the box. Physical symptoms like scorched terminals or a hot panel cover indicate poor connections or overloaded circuits that require immediate attention and potentially a full rewire based on a proper diagram.
Can I install this myself?
While a DIYer can run conduit and mount the box, connecting the sub panel to the main service is high-risk. It requires understanding load calculations and local codes. Most jurisdictions require a permit and a professional inspection to ensure the ground and neutral paths are correctly separated.
What tools do I need for installation?
Essential tools include a multimeter for testing voltage, wire strippers, a knock-out set for the panel box, and a torque wrench to tighten lugs to specification. You will also need a fish tape for pulling the hot, neutral, and ground wires through the underground conduit.
