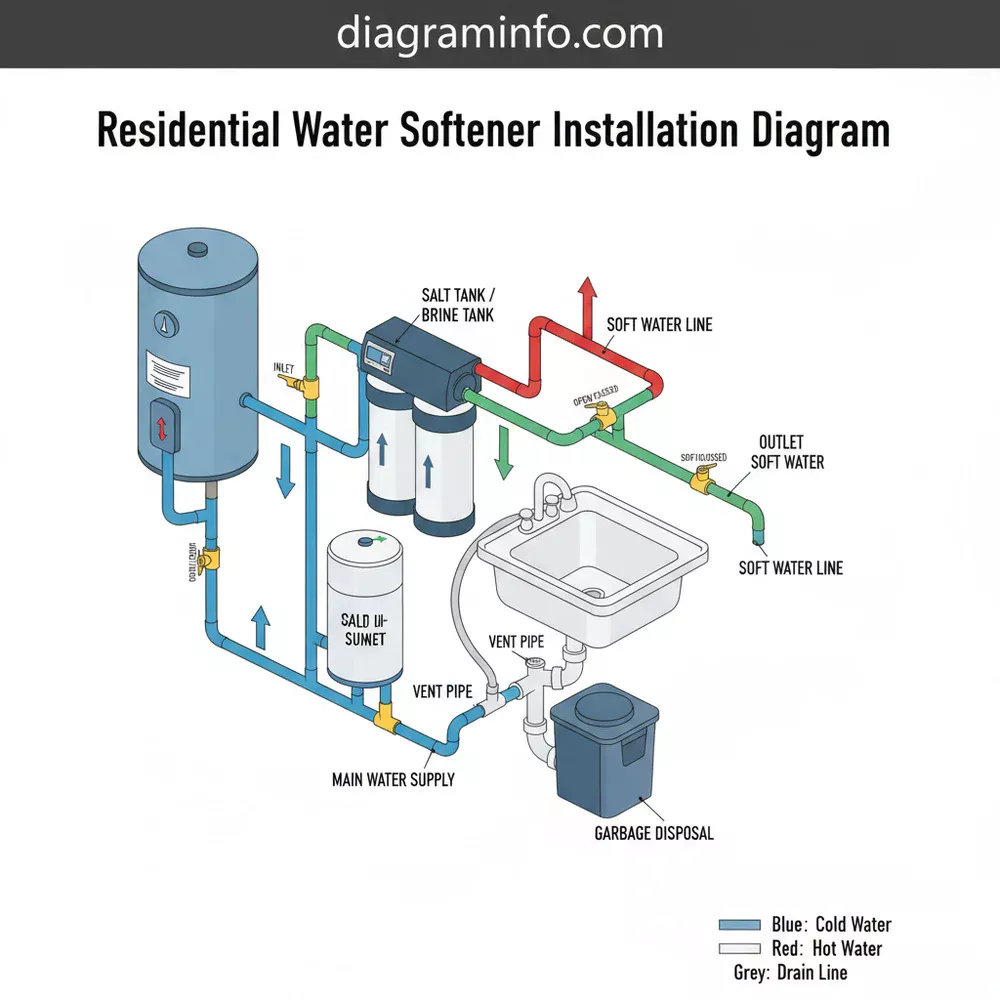

Residential Water Softener Installation Diagram: Setup Guide
A residential water softener installation diagram identifies the connection points between your main water line and the softener unit. It illustrates how to route the brine discharge into a drain assembly or P-trap, ensuring the system integrates safely with your existing vent pipe and plumbing for optimal whole-home water treatment.
📌 Key Takeaways
- Visualizes the flow from the main supply to the treated water outlet
- Identifies the critical bypass valve and drain line connections
- Highlights the need for a proper air gap to prevent backflow contamination
- Simplifies connecting the unit to your existing plumbing infrastructure
- Helps plan space requirements for the resin tank and brine tank
Implementing a water treatment system is one of the most significant upgrades you can make to your home’s infrastructure. Whether you are dealing with scale buildup in your pipes or dry skin after a shower, understanding a residential water softener installation diagram is the first step toward reclaiming your water quality. A clear, technical diagram acts as your roadmap, ensuring that you navigate the complexities of plumbing codes, pressure requirements, and drainage logistics without making costly errors. In this guide, we will break down every component of a standard installation, from the mineral tank to the brine well, while explaining the vital connections to your home’s existing drainage and supply lines. You will learn how to integrate these systems safely, ensuring your appliances are protected and your water remains crystal clear.
Understanding the Residential Water Softener Installation Diagram
A comprehensive residential water softener installation diagram serves as a visual guide to the “ion exchange” process and the physical layout of the hardware. The diagram typically highlights three primary zones: the supply zone, the treatment zone, and the discharge zone. In the supply zone, you will see the main cold water line being diverted into the unit. It is crucial that the softener is installed after the main shut-off valve but before the water heater to ensure that all hot water used in the home is softened.
The treatment zone consists of the resin tank (the tall, slender cylinder) and the brine tank (the shorter, wider tank). The diagram illustrates how water enters the control valve at the top of the resin tank, flows down through the resin beads, and exits through a distributor tube. The brine tank is connected via a small diameter “brine line,” which the diagram should clearly mark as a bidirectional flow path—drawing brine solution in during regeneration and refilling the tank with fresh water afterward.
The discharge zone is where many DIY installers face challenges. The diagram will show a dedicated drain line exiting the control valve. This line must be routed to a suitable discharge point, such as a floor drain, a laundry standpipe, or a utility sink. The diagram will emphasize the “air gap,” a physical space between the end of the drain line and the drain itself, which prevents siphoning and backflow. You will also notice the overflow line on the brine tank, which is a gravity-fed safety feature designed to prevent flooding if the brine valve fails.
[MAIN WATER INLET] ----> [BYPASS VALVE] ----> [RESIN TANK]
| |
| [CONTROL VALVE] <--- [BRINE LINE] --- [BRINE TANK]
| |
[SOFT WATER OUTLET] <----------+ [DRAIN LINE] ----> [AIR GAP] ----> [HOUSE DRAIN]
Figure 1: Standard Three-Tank Logic Diagram (Supply, Treatment, and Discharge)
Step-by-Step Installation Guide
Installing a water softener requires precision and a basic understanding of plumbing assembly. Before you begin, ensure you have allocated approximately 3 to 6 hours for the project, depending on your experience level and the existing pipe material in your home.
- • Pipe cutter (for PVC, Copper, or PEX)
- • Adjustable wrenches and channel locks
- • Teflon tape and pipe sealant
- • PVC cement and primer (if using PVC)
- • Measuring tape and permanent marker
- • Soldering kit (if using copper)
1. Site Selection and Preparation
Identify a level spot near the main water entry point and a reliable power outlet. Ensure the location is downstream of the pressure tank (for well water) or the water meter (for city water) but upstream of the water heater. The site must be protected from freezing temperatures and direct sunlight.
2. Main Supply Integration
Shut off the main water supply and drain the pipes by opening the lowest faucet in the house. Cut into the main cold water line. This is where you will install the bypass valve assembly. Most modern units come with a pre-assembled bypass valve that allows you to divert water away from the softener for yard watering or maintenance. Connect the “Inlet” side of the bypass to the incoming water and the “Outlet” side to the line feeding the rest of the house.
3. Connecting the Drain Assembly
This step is critical for home safety. The softener needs to flush its minerals during the regeneration cycle. You must connect a drain line to the control valve’s drain port. If you are routing this to a kitchen or utility area, you might interact with the existing drain assembly. You may need to use a tailpiece with a branch connection or integrate the line near a P-trap. Ensure the drain line is secured with a slip joint and that you maintain a clear air gap. If the drain is far from a vent pipe, you might need to install an AAV valve (Air Admittance Valve) to ensure the drain flows freely without creating a vacuum.
Never hard-pipe the softener drain directly into a sewer line or a garbage disposal. A physical air gap of at least two inches (or twice the diameter of the drain pipe) is required to prevent sewage from backing up into your water treatment system.
4. Linking the Brine Tank
Place the brine tank next to the resin tank. Insert the brine well into the brine tank and connect the 3/8-inch plastic brine line between the brine tank’s float assembly and the control valve. Use the provided compression fittings, ensuring they are snug but not over-tightened to avoid cracking the plastic.
5. Overflow Safety Line
Attach a separate drain hose to the overflow elbow on the side of the brine tank. This line should be routed to a floor drain. Unlike the main drain line, this is gravity-fed, so it must always run “downhill” and cannot be elevated above the exit point on the tank.
6. Leak Testing and Startup
Slowly turn the water back on with the bypass valve in the “Bypass” position. Check for leaks in your new PVC or copper joints. If clear, move the valve to the “Service” position slowly to allow air to escape through a nearby faucet. Once the air stops sputtering, plug in the unit and perform an initial manual regeneration cycle to rinse the resin beads.
Common Issues & Troubleshooting
Even with a perfect residential water softener installation diagram, issues can arise during or after the setup. Understanding how the physical components interact helps isolate the problem quickly.
- ✗ Salt Bridges: A hard crust forms in the brine tank, creating an empty space between the salt and the water. The unit will “regenerate” but won’t actually soften the water because the brine solution is too weak. Break the bridge with a broom handle and reduce the humidity in the room.
- ✗ Constant Draining: If water is constantly running out of the drain line, the internal seals in the control valve may be fouled by debris or the motor may be stuck. Check the drain assembly for obstructions and ensure the vent pipe is clear if you are using an AAV valve.
- ✗ Pressure Drop: If your home’s water pressure drops significantly after installation, the resin bed may be clogged with iron or sediment. A pre-filter installed before the softener can prevent this.
- ✗ Brine Tank Overflow: This is usually caused by a stuck float valve or a kinked brine line. Inspect the connections and ensure the brine line is free of air leaks.
If you notice a metallic taste or if the water becomes discolored, consult a professional. This could indicate a breach in the resin tank or a chemical imbalance that requires specialized testing equipment.
Tips & Best Practices for Long-Term Maintenance
A water softener is a significant investment, and proper maintenance will extend its lifespan from 10 years to 20 years or more. Following the best practices outlined below ensures the system remains efficient and the water quality stays consistent.
First, always use high-quality salt pellets. Evaporated salt pellets are the purest and leave the least amount of residue in your brine tank. Avoid “rock salt,” which contains impurities that can clog the injector and the control valve. If your water has high iron content, consider using specialized “Iron Fighter” salt or an iron-out resin cleaner once a month to prevent resin fouling.
Second, check your salt levels once a month. The brine tank should generally be at least one-third full of salt, but you should avoid filling it to the very top, as this increases the likelihood of salt bridges forming. Keeping the salt level about 4-6 inches above the water level is usually the “sweet spot” for most residential units.
Third, sanitize the system annually. Over time, bacteria can grow within the resin bed. Most manufacturers recommend a simple bleach sanitization process or the use of a specialized sanitizing packet during a regeneration cycle. Always refer to your specific model’s manual for the correct dosage.
Fourth, keep an eye on your plumbing connections. Periodically check the slip joint fittings on your drain line and the condition of your PVC pipes. Vibrations from a nearby garbage disposal or washing machine can occasionally loosen these fittings over several years. Ensuring that your P-trap remains filled with water will also prevent sewer gases from entering the treatment area.
Finally, set your hardness levels correctly. If you set the hardness too high, you will waste salt and water; if it is too low, you will still experience scale buildup. Test your water’s grains per gallon (GPG) hardness every six months, as municipal water quality can fluctuate seasonally.
Conclusion
Navigating a residential water softener installation diagram does not have to be an overwhelming task. By understanding the relationship between the supply lines, the resin treatment process, and the necessary drainage components like the P-trap and tailpiece, you can complete a professional-grade installation on your own. Remember that the key to a successful system lies in the details: maintaining a proper air gap, using the right PVC materials, and ensuring the drain assembly is vented correctly. With the right tools and a methodical approach to the step-by-step instructions provided, you can transform your home’s water quality, protect your plumbing infrastructure, and enjoy the numerous benefits of soft water for decades to come. Proper planning today leads to a maintenance-free tomorrow.
Frequently Asked Questions
Where is the bypass valve located?
The bypass valve is typically located at the rear of the water softener control head, where the main water lines connect. It allows you to divert water away from the softener for maintenance or outdoor watering, keeping the system isolated from the rest of the home’s plumbing.
What does a residential water softener installation diagram show?
This diagram provides a visual layout of the entire system, including the resin tank, brine tank, and bypass valve. It specifically details how the supply lines, overflow tubes, and discharge lines connect to your home’s drain assembly or sink tailpiece while maintaining necessary safety air gaps.
How many pipe connections does the control valve have?
Most standard control valves have four primary connections: the hard water inlet, the softened water outlet, the brine line connection to the salt tank, and the drain line connection. Some models may include additional ports for specialized sensors or advanced regeneration cycles depending on the specific model.
What are the symptoms of a bad water softener installation?
Symptoms include a noticeable drop in water pressure, salty-tasting water, or leaks at the bypass valve. If the drain line is improperly connected to a garbage disposal or lacks a proper air gap, you may also experience backup issues or foul odors entering the water softening system.
Can I install a residential water softener myself?
Yes, many homeowners can install a softener using a diagram. The process involves cutting into the main water line and connecting the discharge to a tailpiece or P-trap. However, ensure you follow local codes regarding the vent pipe and air gap requirements to prevent any cross-contamination.
What tools do I need for water softener installation?
You will need a pipe cutter, adjustable wrenches, and materials for joining pipes such as solder and a torch or push-to-connect fittings. Additionally, keep a tape measure, pliers, and a bucket handy to manage any residual water during the initial cutting of the main supply line.
