Mobile Home Sewer Pipe Diagram: Step-by-Step Instructions
A mobile home sewer pipe diagram illustrates how wastewater travels from fixtures like a garbage disposal through the tailpiece and P-trap. It shows the connection to the vent pipe for air pressure balance before flowing into the main drain line, ensuring a leak-free and odorless plumbing system throughout your home.
📌 Key Takeaways
- Understand the gravity-fed layout of the mobile home waste system
- Identify the P-trap as the primary barrier against sewer gases
- Ensure the vent pipe is clear to prevent slow drainage
- Use the diagram to map connections from sinks to the main sewer exit
- Ideal for diagnosing leaks or planning a plumbing upgrade
Understanding the layout of your waste management system is essential for any homeowner, but it becomes particularly vital when dealing with the unique structural requirements of manufactured housing. If you are currently facing a leak, a slow drain, or are planning a renovation, having a clear mobile home sewer pipe diagram is the first step toward a successful DIY project. This guide provides a comprehensive breakdown of how these systems are engineered, the specific components involved, and how the various parts—from the sink tailpiece to the main exterior sewer drop—interconnect to keep your home sanitary and functional. By the end of this article, you will have a professional-grade understanding of your plumbing’s architecture, allowing you to troubleshoot issues with confidence and precision.
Mobile home plumbing differs from traditional site-built homes primarily in how it handles venting and its placement within the floor joists and belly wrap. Most modern manufactured homes utilize PVC (Polyvinyl Chloride) or ABS (Acrylonitrile Butadiene Styrene) piping, which are lightweight, durable, and resistant to the chemicals found in household cleaners.

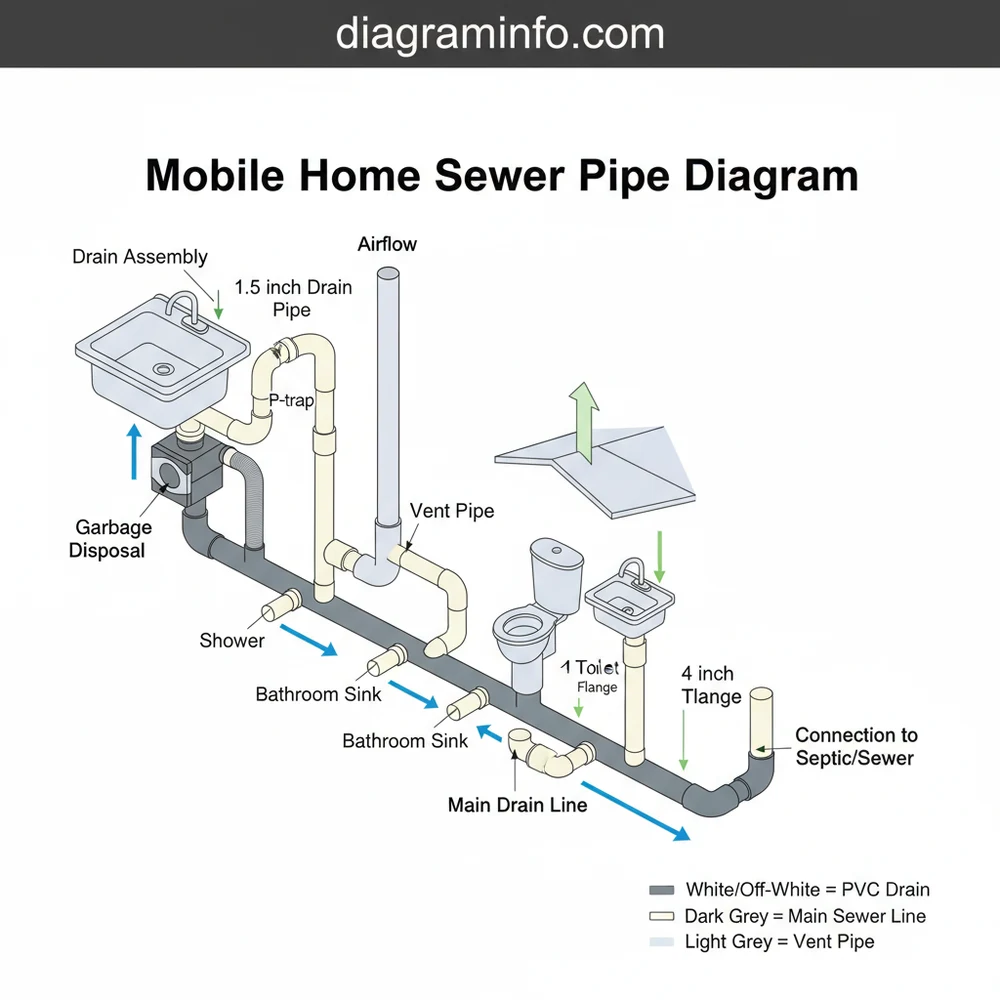

Decoding the Mobile Home Sewer Pipe Diagram
When you look at a mobile home sewer pipe diagram, you are essentially looking at a roadmap of gravity-fed waste removal. Unlike a site-built home where pipes may be buried deep within concrete slabs or hidden in thick interior walls, mobile home plumbing is often more accessible but more compact. The diagram begins at the fixture—such as your kitchen sink, bathroom vanity, or toilet—and follows the water downward through a series of specific connectors.
The primary components identified in a standard diagram include the drain assembly, which is the physical connection point at the bottom of your sink or tub. Attached to this is the tailpiece, a straight section of pipe that leads directly into the P-trap. The P-trap is perhaps the most recognizable part of the system; its “U” or “P” shape is designed to hold a small amount of water at all times. This water acts as a seal, preventing sewer gases from rising back up through the drain and into your living space. Without a functioning P-trap, your home would quickly be filled with dangerous and unpleasant odors.
Another critical element often highlighted in these diagrams is the AAV valve, or Air Admittance Valve. Because mobile homes often lack the space for a full stack vent that goes through the roof for every individual fixture, the AAV valve allows air into the system to equalize pressure, ensuring that water flows smoothly without siphoning the P-trap dry. These are usually located under sinks or behind access panels. Finally, the diagram will show the horizontal branch lines that collect waste from various rooms and funnel them into the main trunk line, which eventually exits the home through the belly board and connects to the park’s septic or municipal sewer system.
Variations in these diagrams are common depending on the age of the home. Older models might feature thinner wall pipes or metal components that have since been phased out in favor of Schedule 40 PVC. Additionally, if your home is equipped with a garbage disposal, the diagram will show an additional junction where the disposal discharge connects to the sink’s drain assembly before entering the trap. Understanding these nuances is key to identifying exactly which replacement parts you need when a repair becomes necessary.
Step-by-Step Guide to Interpreting and Using Your Diagram
Reading a mobile home sewer pipe diagram for the first time can feel overwhelming, but it is a logical system that follows the path of least resistance. To use the diagram effectively for an installation or repair, follow these steps to ensure you are viewing the system correctly and safely.
-
✓ Step 1: Identify the Fixture Source
Locate the specific area of the home you are working on within the diagram. Sewer diagrams are usually grouped by room (Kitchen, Master Bath, Guest Bath). Find the drain assembly for that specific fixture to establish your starting point. -
✓ Step 2: Trace the Tailpiece and Trap
Follow the line from the sink down through the tailpiece. Note where the slip joint connections are located. Slip joints are the adjustable nuts and washers that allow you to tighten or loosen the pipe sections by hand or with a pipe wrench. -
✓ Step 3: Locate the Venting Method
Check the diagram to see if the fixture uses a traditional vent pipe that exits the roof or an AAV valve. If the diagram shows a short vertical pipe ending in a cap under your sink, that is your air admittance valve. -
✓ Step 4: Map the Main Trunk Line
Follow the pipes as they exit the individual rooms and merge into the larger 3-inch or 4-inch main sewer line. In a mobile home, this trunk line usually runs the length of the chassis, supported by straps. -
✓ Step 5: Verify Slope and Drop
Sewer pipes must have a specific “fall” or slope—typically 1/4 inch per foot. The diagram will often indicate the direction of flow. When inspecting your actual pipes, ensure they follow this downward trajectory toward the exit point.
Before you begin any physical work, take a photo of your existing setup and compare it to the mobile home sewer pipe diagram. Sometimes previous owners may have performed “creative” plumbing repairs that do not follow standard codes. Your goal is to bring the system back to the configuration shown in the professional diagram.
When preparing for a project based on the diagram, gather the necessary tools: a hacksaw or PVC cutter, a tape measure, PVC primer and cement, and replacement slip joint washers. Always ensure the water supply is turned off if you are working on a fixture, even though the sewer lines are separate, as a dripping faucet can quickly flood your workspace while the pipes are disconnected.
Mobile home waste systems rely on a delicate balance of air and water. Never cap off a vent pipe or an AAV valve. Doing so will create a vacuum, causing your drains to gurgle, flow slowly, and eventually pull the water out of your P-traps, allowing sewer gas to enter your home.
Common Issues & Troubleshooting with Your Sewer Diagram
Even with a perfect mobile home sewer pipe diagram, issues can arise due to the settling of the home, temperature fluctuations, or general wear and tear. One of the most frequent problems is a “phantom smell” in the bathroom or kitchen. By consulting your diagram, you can identify the location of the P-trap and the AAV valve. If the P-trap is dry, the seal is broken. If the AAV valve has failed, it may be stuck in the open position, allowing gas to escape from the sewer line into your cabinet space.
Another common issue is localized clogging. If only one sink is backed up, the diagram helps you isolate the problem to the tailpiece or the P-trap. If multiple fixtures are backed up, the diagram will point you toward the main trunk line or the exit point under the home. Often, the transition point where the interior plumbing exits through the belly wrap and connects to the external sewer line is a hotspot for clogs or animal damage. Use the diagram to find this “drop” point and inspect the exterior connections for any signs of sagging or disconnection.
Slow drainage throughout the entire home often points to a venting issue. If your diagram indicates an AAV valve, this is the first part to replace, as they are inexpensive and easy to swap out. If the diagram shows a roof vent, you may need to check the roof for obstructions like bird nests or debris that could be blocking the airflow.
Maintenance Tips & Best Practices for Mobile Home Plumbing
To keep your system running as efficiently as the mobile home sewer pipe diagram suggests, regular maintenance is mandatory. Unlike stick-built homes, manufactured homes are more susceptible to movement. This movement can cause slip joints to loosen over time. Every six months, it is wise to open your sink cabinets and manually check the tightness of the slip joints. A quarter-turn is often all it takes to prevent a slow drip that could rot your cabinetry.
- ✓ Use High-Quality Components: When replacing parts, choose Schedule 40 PVC over thinner “utility” grade pipes. They offer better sound dampening and superior longevity.
- ✓ Maintain Your Belly Wrap: The insulation and plastic barrier under your home protect your sewer pipes from freezing. Ensure the pipes are properly supported by straps so they don’t put stress on the joints.
- ✓ Avoid Harsh Chemicals: Excessive use of caustic drain cleaners can weaken the glue joints in your PVC system. Use enzymatic cleaners or a mechanical snake for better long-term results.
- ✓ Monitor the Slope: If your home is releveled, re-check the slope of your main sewer line. Even a small shift can cause “flat spots” where solids collect and create massive clogs.
Properly managing your mobile home’s waste system doesn’t have to be a mystery. By using a mobile home sewer pipe diagram as your primary reference, you can demystify the network of pipes hidden beneath your floors. Whether you are replacing a simple P-trap or diagnosing a complex venting issue with an AAV valve, understanding the flow and connection points is your best defense against water damage and costly professional repairs. Keep your diagrams handy, inspect your joints regularly, and always prioritize the integrity of your seals and vents to ensure a healthy, odor-free living environment.
In conclusion, the key to a functional plumbing system in a manufactured home is a combination of accurate knowledge and proactive maintenance. Your mobile home sewer pipe diagram is more than just a piece of paper; it is a vital tool for maintaining the value and safety of your property. By identifying components like the tailpiece, slip joint, and vent pipe early on, you can tackle repairs before they become emergencies. Remember that a well-maintained sewer system is the backbone of a comfortable home, and with the right diagram and a bit of DIY spirit, you are well-equipped to handle whatever plumbing challenges come your way.
Frequently Asked Questions
Where is the sewer pipe located?
The sewer pipes are located directly beneath the subfloor, usually accessible through the crawl space or skirting. They transition from the drain assembly of individual fixtures, like the tailpiece under a sink, and run at a slight downward slope toward the main septic or municipal sewer connection point.
What does a mobile home sewer pipe diagram show?
A mobile home sewer pipe diagram shows the entire wastewater network, highlighting how pipes connect fixtures to the main exterior line. It identifies critical parts like the vent pipe and P-trap, helping you visualize how gravity and air pressure work together to move waste efficiently without odors.
How many connections does the main sewer line have?
Most mobile home drain lines use 1.5-inch to 2-inch pipes for sinks and showers, while the main trunk line is typically 3 to 4 inches in diameter. These pipes connect via a series of ABS or PVC fittings, including Y-connectors and elbows, to maintain a consistent drainage slope.
What are the symptoms of a bad sewer pipe?
A bad sewer pipe system often manifests as slow-draining sinks, gurgling sounds in the pipes, or foul sewage odors inside the home. You may also notice wet spots or mold under the mobile home, indicating a crack or loose fitting in the drain assembly or main sewer line.
Can I replace the sewer pipes myself?
You can replace many sections of mobile home plumbing yourself, such as a P-trap or tailpiece, using basic tools and PVC glue. However, major repairs to the main trunk line or extensive venting issues may require a professional to ensure the slope and seals meet local building codes.
What tools do I need for sewer pipe repair?
To work on your sewer pipes, you will need a hacksaw or PVC cutter, ABS/PVC cement, a level to check for proper slope, and adjustable wrenches. Plumber’s tape or putty is essential for sealing threaded joints at the drain assembly to prevent leaks and ensure a tight fit.
