Air Compressor Unloader Valve Diagram: Complete Layout Guide

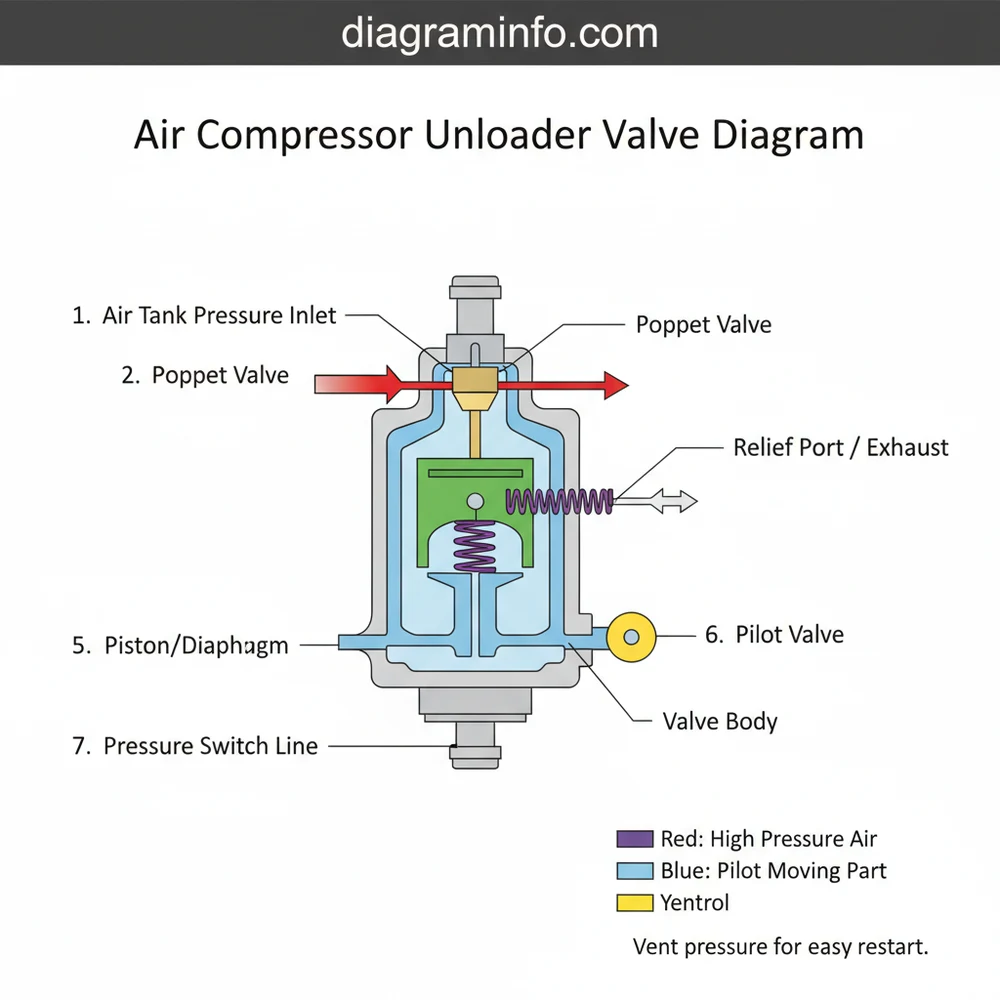

An air compressor unloader valve diagram illustrates the internal structure and configuration of the valve responsible for releasing trapped air. By showing how the component integrates into the pneumatic system, the diagram helps users identify the vent port and spring mechanisms that allow the motor to restart without resisting high pressure.
📌 Key Takeaways
- The diagram illustrates how pressure is vented to prevent motor burnout.
- Identifying the pilot line and vent port is essential for repair.
- Always depressurize the tank before inspecting the internal valve structure.
- Use the diagram to check for worn seals or broken springs.
- Refer to the layout when replacing the pressure switch or check valve.
If you have ever been frustrated by an air compressor that hums but refuses to start, or one that leaks air continuously after the motor shuts off, you are likely dealing with a mechanical bottleneck. Navigating these repairs requires a clear air compressor unloader valve diagram to understand how air pressure is managed within the system. This schematic serves as a roadmap for identifying why your motor might be struggling against residual head pressure or why your tank isn’t holding the charge it should. By studying the correct configuration, you can pinpoint the exact component—whether it is a worn-out seal or a clogged pilot tube—that is causing the malfunction. In this comprehensive guide, we will break down the structural layout of various unloader systems, explain how to interpret technical blueprints, and provide actionable steps for maintaining this critical safety and performance component.
Understanding the Air Compressor Unloader Valve Diagram
When you look at a standard air compressor unloader valve diagram, you are essentially looking at the “breath” of the machine. The diagram illustrates the path air takes once the pressure switch reaches its cut-out point. The primary purpose of this component is to release the trapped air inside the discharge line and the compressor head. Without this release, the motor would have to fight against high pressure the next time it tries to start, which often leads to blown fuses or damaged capacitors.
The diagram typically features a central valve body, which acts as the junction for several lines. You will notice a pilot line—a thin tube usually made of copper or nylon—that connects the unloader valve to the pressure switch or the check valve. In many schematics, this is labeled as the “signal line.” The diagram also highlights the internal structure, which usually includes a spring-loaded piston or a diaphragm. These elements are color-coded in more advanced technical drawings to distinguish between high-pressure zones (usually red) and the atmospheric exhaust zones (usually blue or green).
Most modern portable compressors use an unloader valve that is integrated directly into the pressure switch assembly. On larger industrial units, the unloader may be a standalone component mounted on the side of the pump or the check valve.
In the layout, you will also find the “exhaust port.” This is the specific point where the air is vented into the atmosphere. On the schematic, this is often represented by a small arrow pointing away from the valve body. Understanding this blueprint is vital because it shows the relationship between the check valve and the unloader. If the check valve on the tank is leaking, the unloader valve will hiss indefinitely because it is trying to exhaust the entire tank’s volume, not just the small amount of air in the head.
Detailed Component Breakdown and System Configuration
To fully grasp the air compressor unloader valve diagram, you must understand the individual parts that make up the system. Each component plays a role in the “unload” cycle, and a failure in any one can lead to system-wide inefficiency.
- ✓ The Valve Body: This is the housing, typically made of brass or heavy-duty plastic, that contains the moving parts. In a blueprint, this is the central hub where all lines converge.
- ✓ The Piston/Actuator: This is the mechanical “trigger.” When the pressure switch trips, it physically pushes this piston to open the airway.
- ✓ The Compression Spring: Located inside the valve, this spring keeps the valve closed while the compressor is running. It must be strong enough to resist the air pressure generated by the pump.
- ✓ The Orifice/Seat: The tiny hole that the piston covers. Even a microscopic piece of debris here can prevent a proper seal, leading to constant leaking.
- ✓ Pilot Line Connection: The port where the tube from the compressor head enters. This is often a 1/8″ or 1/4″ NPT (National Pipe Thread) fitting.
The overview of the system configuration shows that the unloader is positioned between the pump and the tank check valve. This specific placement is the “magic” of the design. It allows the pump to start in a “no-load” condition, meaning it only has to move the air currently inside its cylinders, rather than pushing against the 100+ PSI already stored in the tank. When you analyze the schematic, follow the line from the pump head to the check valve; you will see the unloader “teed” into this path.
Step-by-Step Guide: How to Read and Apply the Diagram
Reading a technical blueprint or schematic can be intimidating if you aren’t familiar with the symbols. Follow these steps to interpret your air compressor unloader valve diagram and apply that knowledge to a repair or installation.
Step 1: Identify the Main Air Flow
Start by locating the pump on your diagram. Trace the thickest line coming out of the pump—this is your discharge line. Follow it until you hit a component with a small arrow pointing toward a tank symbol. That is your check valve. The unloader valve is almost always located on a secondary line branching off just before that check valve.
Step 2: Locate the Signal Source
Look for the pressure switch on the diagram. There will be a small, thin line connecting the switch to the unloader valve. This is the pilot line. In many layouts, this indicates that the physical movement of the pressure switch (when it clicks off) is what triggers the unloader.
Step 3: Prepare Your Workspace and Tools
Before you touch the valve, ensure you have the necessary tools gathered. Based on most standard configurations, you will need:
- – Adjustable wrenches or a socket set
- – Teflon tape or thread sealant
- – Needle-nose pliers
- – Replacement O-rings (if rebuilding)
- – Soapy water in a spray bottle (for leak testing)
Never attempt to service the unloader valve while the tank is pressurized. Always pull the safety relief valve or drain the tank completely to zero PSI before loosening any fittings. Failure to do so can result in high-velocity parts causing serious injury.
Step 4: Disconnect the Pilot Line
Using the diagram as a guide, identify the pilot line fittings. Use two wrenches—one to hold the valve body and one to turn the nut—to prevent twisting the thin copper or plastic tubing. Once disconnected, inspect the tube for kinks or cracks that might not be visible on the schematic but are present in reality.
Step 5: Inspect the Internal Piston
If the diagram shows an internal assembly, you can usually unscrew the top cap of the unloader valve. Remove the spring and piston. Check for carbon buildup. Since this valve handles air directly from the pump, it often gets coated in burnt oil or “carbon,” which can cause the piston to stick in the open or closed position.
Step 6: Reassemble According to the Blueprint
When putting the valve back together, refer to the “exploded view” section of your diagram. Ensure the spring is seated correctly against the piston. A common mistake is installing the spring upside down or misaligning the diaphragm, which will lead to immediate failure upon startup.
Step 7: Reinstall and Seal
Apply a thin layer of Teflon tape to the male threads, ensuring you do not cover the very first thread (to prevent tape bits from entering the valve). Screw the valve back into the pressure switch or manifold.
Step 8: The “Bubble Test”
Turn on the compressor and let it reach full pressure. Once it shuts off, you should hear a short “pssh” sound. If you hear a continuous hiss, spray soapy water on the exhaust port. If it bubbles, the valve isn’t seating. Use the diagram to re-verify that you haven’t swapped the inlet and outlet lines.
Common Issues and Troubleshooting with the Unloader System
Even with a perfect air compressor unloader valve diagram, things can go wrong. The diagram helps you isolate whether the problem is the valve itself or a related component.
One of the most frequent issues is the “Never-Ending Hiss.” If the compressor stops, the unloader vents, but then continues to leak air indefinitely, the diagram reveals the likely culprit: the tank check valve. Look at your schematic; the check valve is designed to prevent tank air from flowing back toward the unloader. If that check valve fails, the tank air flows “upstream,” through the unloader, and out the exhaust port. Without the diagram, you might waste money replacing the unloader when the check valve is actually at fault.
Another common problem is the “Stalled Start.” If the motor hums and trips the breaker, use the diagram to find the exhaust port. Manually trigger the valve. If no air comes out, the head pressure wasn’t released. This indicates the unloader is stuck closed. The schematic shows the internal piston; this is your cue to clean or replace that specific internal part.
If you’re having trouble identifying where a leak is coming from, use a piece of mechanic’s stethoscope or even a length of garden hose held to your ear to trace the sound back to the specific port labeled on your diagram.
Tips and Best Practices for Long-Term Maintenance
Maintaining your unloader valve is far cheaper than replacing a burned-out motor. Here are some professional recommendations to keep your system running smoothly based on the structural requirements of the valve.
1. Keep the Air Clean
The internal components of the unloader are precision-engineered. Dust and moisture are its greatest enemies. Ensure your intake filters are changed regularly. If your diagram shows a “muffler” on the unloader exhaust, clean it periodically, as a clogged muffler can create backpressure that prevents the valve from opening fully.
2. Moisture Management
Drain your tank daily. Moisture travels through the pilot lines and can cause the internal spring of the unloader to rust. A rusted spring loses its tension, leading to premature venting or “fluttering” where the valve opens and closes rapidly while the machine is running.
3. Temperature Sensitivity
In cold weather, the small amount of oil and moisture in the lines can thicken or freeze. If you work in a cold garage, the unloader may stick. Reference your air compressor unloader valve diagram to find the pilot line and ensure it is routed away from areas where moisture can pool (low spots in the tubing).
4. Quality Over Cost
When parts fail, it is tempting to buy generic replacements. However, check the specifications on your original equipment manufacturer (OEM) diagram. Different valves have different “cracking pressures.” If you install a valve with a spring that is too weak, it will leak constantly. If it’s too strong, it may never open, risking your motor’s health. Always match the part number found on your specific model’s blueprint.
5. Lubrication Caution
While it might seem like a good idea to spray lubricant into the valve, many unloader diaphragms are made of specific rubbers (like Viton or Nitrile) that can swell and fail if they come into contact with petroleum-based oils. Only use silicone-based lubricants if the manufacturer’s guide specifically recommends it.
Conclusion: Mastering Your Compressor’s Pressure Cycle
A solid understanding of the air compressor unloader valve diagram is the difference between a quick, five-minute fix and an expensive, unnecessary replacement of the entire pressure switch or motor. By visualizing the layout and knowing how each component—from the pilot line to the exhaust port—interacts, you gain total control over your equipment’s health.
Whether you are performing a routine check or troubleshooting a complex failure, always refer back to the schematic to ensure you are treating the cause, not just the symptom. Remember that the “pssh” sound is the sound of a healthy machine; if that sound is missing, or if it never stops, your diagram is the first tool you should reach for. With the steps and tips outlined in this guide, you are now equipped to handle any unloader-related challenge with confidence and technical precision. Keep your lines clear, your seals tight, and your compressor will serve you reliably for years to come.
Frequently Asked Questions
Where is the unloader valve located?
The unloader valve is typically located on the side of the pressure switch or integrated into the compressor head. In a standard system configuration, you can find it by following the small copper or plastic line that runs from the discharge pipe or check valve back to the pressure switch assembly.
What does an air compressor unloader valve diagram show?
This diagram shows the internal structure and component layout of the valve, including the piston, spring, and venting ports. It illustrates how the valve interacts with the pressure switch to bleed off air from the pump head when the motor stops, ensuring an easy restart for the compressor motor.
How many connections does an unloader valve have?
Most unloader valves feature two primary connections within the pneumatic system. The first is the intake port that receives pressurized air from the pump via a pilot line. The second is the exhaust or vent port, which releases air into the atmosphere once the compressor reaches its cut-out pressure.
What are the symptoms of a bad unloader valve?
A failing component often causes the compressor to struggle or hum during startup because trapped air creates high resistance. You may also hear a continuous hiss of air leaking from the pressure switch area while the motor is running or after the machine has shut down completely during a cycle.
Can I replace this myself?
Replacing an unloader valve is a manageable DIY task for most owners. By following the system layout and using basic wrenches, you can disconnect the pilot lines and swap the valve. Always ensure the tank is fully drained of air pressure before beginning any disassembly or maintenance on the unit.
What tools do I need for this task?
To service the valve based on the diagram, you will need a set of adjustable wrenches or open-end wrenches to loosen the compression fittings. A screwdriver may be required to access the pressure switch housing, and some thread sealant or Teflon tape is necessary for airtight reassembly of the parts.
