6 Pin DPDT Switch Wiring Diagram: Easy Setup Guide
A 6 pin DPDT switch wiring diagram shows how to connect two separate circuits to one toggle. Typically, the hot wire enters the center common terminal. Use a traveler wire to link outputs, ensuring the neutral wire and ground wire are properly routed to prevent shorts and ensure safe operation.
📌 Key Takeaways
- Controls two independent circuits with a single switch mechanism.
- The common terminal is the most critical point for power input.
- Always verify ground wire connections for electrical safety.
- Use for motor reversing or dual-source power switching.
- Perfect for boat panels, RVs, and custom industrial controls.
Understanding the intricacies of a 6 pin dpdt switch wiring diagram is a fundamental skill for anyone involved in electronics, automotive repairs, or home DIY electrical projects. When you are tasked with controlling two separate circuits simultaneously or reversing the polarity of a DC motor, the Double Pole Double Throw (DPDT) switch is the most versatile component in your toolkit. Without a clear and accurate diagram, you risk improper connections that could lead to short circuits, blown fuses, or even permanent damage to your sensitive components. This comprehensive guide is designed to demystify the 6-pin configuration, providing you with a visual breakdown of terminal identification, wire color coding, and the logical sequence required for a successful installation. By the end of this article, you will have a professional-level grasp of how voltage flows through these terminals and how to implement them in various real-world scenarios.
A DPDT switch acts like two separate SPDT (Single Pole Double Throw) switches housed in one body, operated by a single actuator. This allows for complex logic switching with a single physical movement.

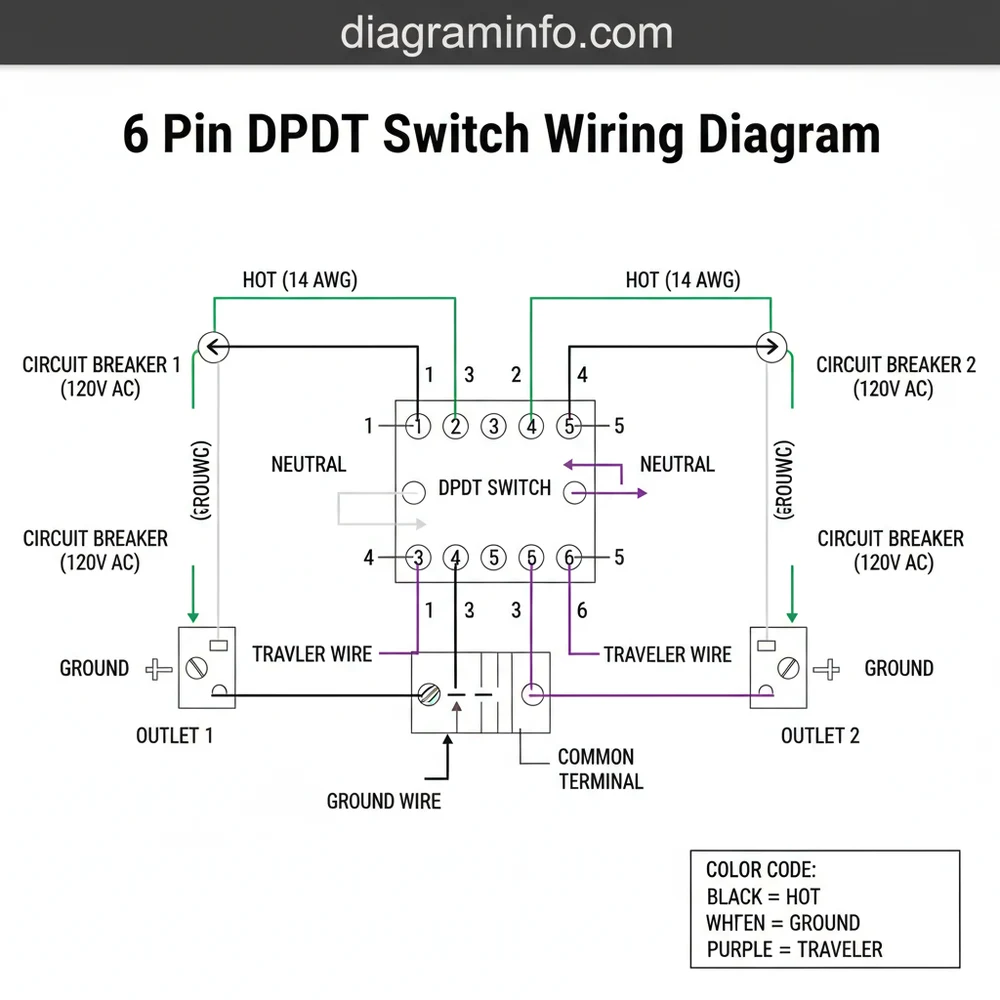

The 6 pin dpdt switch wiring diagram is characterized by its 2×3 grid of terminals. To interpret the diagram correctly, you must first understand the physical layout of the switch housing. Typically, the pins are arranged in two vertical columns of three pins each. In electrical terminology, each column represents a “Pole,” and the available connection points within those poles are the “Throws.” The middle pins in each column are known as the common terminal (C1 and C2). These are the points where the incoming voltage or the “hot wire” usually enters the switch. The top and bottom pins are the “Traveler” or “Throw” terminals (T1, T2, T3, and T4).
When the switch is toggled to the “Up” position, the common terminal creates a closed circuit with the bottom pins. Conversely, when toggled “Down,” the connection shifts to the top pins. In many diagrams, you will notice a color-coded legend to assist with identification. For example, the common terminal might be indicated by a brass screw or a darker metal finish, while the traveler pins may have a silver appearance. If you are working with AC household current, the “hot wire” (typically black or red) connects to the center, while the “neutral wire” (white) may be bypassed or switched depending on the specific application. A dedicated ground wire (green or bare copper) is essential for safety and is usually attached to a specific grounding lug on the switch body rather than the six primary pins.
To deepen your understanding of the 6 pin dpdt switch wiring diagram, it is crucial to recognize how the internal mechanism functions. Inside the switch, there are two separate metal sliders or “wipers.” When you flip the toggle, these wipers move in unison. This is why it is called a “Double Pole” switch—it controls two independent lines of current. The “Double Throw” aspect means each of those lines can be switched between two different output paths. This makes the DPDT switch indispensable for “Phase Reversal” or “Polarity Reversal” circuits, which are commonly used to change the direction of DC motors in robotics or automotive window regulators.
Always ensure the power source is disconnected before attempting any wiring. Use a multimeter to verify that no voltage is present on the wires you are handling.
Essential Materials and Tools
Before following the steps below, gather the necessary tools to ensure a clean and safe installation:
- ✓ Wire strippers (matched to your wire gauge)
- ✓ Multimeter (for continuity testing)
- ✓ Soldering iron and resin-core solder (for electronics) or crimp connectors (for automotive/home)
- ✓ Heat shrink tubing or electrical tape
- ✓ Screwdriver set
Step-by-Step Installation Guide
Step 1: Identify the Pin Configuration
Hold your DPDT switch so that the pins are facing you in two vertical rows. If the switch has markings like “1, 2, 3” on one side and “4, 5, 6” on the other, note that 2 and 5 are typically your common terminals. If there are no markings, use your multimeter on the “Continuity” or “Ohms” setting. Place one probe on the center pin and the other on a corner pin. Flip the switch; if it beeps, you have found a matched pair.
Step 2: Prepare the Wires
Using your wire strippers, remove approximately 1/4 inch of insulation from each wire. For most 12V DC applications, a 16 or 18 gauge wire is sufficient. For 120V AC applications, you must use at least 14 gauge wire (or 12 gauge for 20-amp circuits). Ensure the strands are twisted tightly together to avoid stray hairs that could cause a short circuit between the closely spaced pins.
Step 3: Connect the Power Source (Poles)
In a standard power-switching setup, take your “hot wire” (the one carrying the voltage) and connect it to the first common terminal (Pin 2). If you are switching a second independent circuit, connect its power source to the second common terminal (Pin 5). If you are using the switch for polarity reversal, you will connect the positive lead to Pin 2 and the negative lead to Pin 5.
Step 4: Connect the Travelers (Throws)
Now, connect your output wires to the traveler pins. If you want a device to turn on when the switch is in the “Up” position, wire that device’s load lead to the bottom pins (Pins 3 and 6). If you want a different device to activate in the “Down” position, wire it to the top pins (Pins 1 and 4). This creates the “Double Throw” logic where you can toggle between “System A” and “System B.”
Step 5: Bridging for Polarity Reversal (Optional)
If your 6 pin dpdt switch wiring diagram is for a DC motor direction controller, you must “criss-cross” the traveler wires. Connect Pin 1 to Pin 6 with a small jumper wire, and Pin 3 to Pin 4 with another jumper wire. Then, connect your motor leads to Pin 1 and Pin 3. This setup flips the positive and negative flow to the motor whenever the switch is toggled.
Step 6: Integrate the Ground Wire
Safety is paramount. Even if your switch pins do not include a ground terminal, the metal housing or the electrical box must be grounded. Connect your green or bare copper ground wire to the grounding screw (often a green or brass screw on the mounting strap). This ensures that if a wire comes loose and touches the metal frame, the current will trip the breaker rather than electrifying the switch handle.
Step 7: Final Insulation and Testing
Once all connections are made, slide heat shrink tubing over the pins or wrap them individually with high-quality electrical tape. This is critical because the pins on a 6-pin switch are very close together. After insulating, restore power and use your multimeter to check the voltage at each output stage to ensure the switch is operating according to your intended logic.
When soldering to switch pins, apply heat to the pin first, then touch the solder to the pin—not the iron. This ensures a “wet” connection that won’t crack under vibration.
Common Issues and Troubleshooting
One of the most frequent problems encountered when following a 6 pin dpdt switch wiring diagram is a “dead” center position. Some DPDT switches are “ON-OFF-ON” models, meaning the middle position breaks all connections. If your device doesn’t work when the switch is centered, this is normal behavior. However, if it doesn’t work in one of the “ON” positions, you likely have a loose traveler wire or a “cold” solder joint.
Another common issue is a short circuit caused by the “hot wire” touching the neutral wire or the metal casing. This often happens if the wire gauge is too large for the terminal, causing stray copper strands to bridge the gap between pins. If your fuse blows immediately upon toggling the switch, inspect the pins for any physical contact between adjacent wires.
Lastly, polarity issues are common in DC motor applications. If the motor turns the same direction regardless of switch position, you have likely failed to cross-connect the traveler wires correctly. Re-examine your jumper wires to ensure they create the “X” pattern required for reversal.
Best Practices for Long-Term Reliability
To ensure your wiring stands the test of time, always choose components that match the voltage and amperage requirements of your project. A switch rated for 5 amps will quickly overheat and melt if used in a 20-amp automotive circuit. Always look for the stamp on the side of the switch housing that indicates its maximum ratings.
Furthermore, consider the environment where the switch will be installed. For marine or outdoor use, look for DPDT switches with internal gaskets and sealed pins to prevent corrosion. In high-vibration environments, such as on machinery or in vehicles, use crimp-on spade connectors with locking tabs rather than simple soldering. This prevents the wires from fatiguing and snapping off at the terminal.
Maintenance is also a key factor. Over time, the internal contacts of a DPDT switch can develop carbon buildup or “pitting” due to electrical arcing. If you notice the switch becomes “crunchy” or requires multiple toggles to work, it is time to replace it. Using a high-quality contact cleaner can sometimes extend the life of a switch, but replacement is the only permanent fix for internal mechanical wear.
Logic and Applications of DPDT Wiring
The power of the 6 pin dpdt switch wiring diagram lies in its logical flexibility. Beyond simple motor reversal, these switches are used in “bypass” circuits for guitar pedals, allowing the signal to go through an effect or straight to the amplifier. They are also used in emergency power systems to switch a load between “Main Power” and “Battery Backup” simultaneously for both the hot and neutral lines, ensuring total isolation between the two power sources.
When planning your project, always draw out your own version of the 6 pin dpdt switch wiring diagram first. Label each wire with its function (e.g., “Motor Left,” “Power In,” “LED Indicator”). This documentation will be invaluable if you ever need to troubleshoot the system years later. By following these structured steps and maintaining a focus on safety and precision, you can master the complexities of DPDT wiring and build circuits that are both functional and professional.
In conclusion, mastering the 6 pin dpdt switch wiring diagram allows you to control complex electrical systems with ease. By identifying the common terminal, properly routing traveler wires, and ensuring the ground wire is secure, you create a safe and efficient interface for your electronics. Whether you are managing high voltage AC or low voltage DC, the principles of pole and throw remain the same: precision in connection leads to excellence in performance.
