Knob and Tube Wiring Diagram: Easy Setup Guide
A knob and tube wiring diagram shows the vintage method of routing a separate hot wire and neutral wire through ceramic insulators. Unlike modern cables, these wires are kept apart and do not include a ground wire, using porcelain knobs for support and tubes to pass safely through wooden framing members.
📌 Key Takeaways
- Main purpose of this diagram is to map out ungrounded historical electrical systems
- The most important components to identify are the separate hot and neutral runs
- A critical safety consideration is the total lack of a dedicated ground wire
- Use this diagram to trace circuits during home inspections or renovations
- Apply these schematics when transitioning from old wiring to modern junction boxes
If you are living in an older home or renovating a vintage property, encountering an original electrical system can be a daunting experience. Understanding a knob and tube wiring diagram is the first step toward safely managing, troubleshooting, or planning the eventual replacement of this historic wiring method. Unlike modern cables that bundle all necessary conductors into a single jacket, knob and tube (K&T) systems utilize individual wires supported by porcelain insulators. This article provides a comprehensive breakdown of how these circuits are structured, how to identify specific wires like the hot wire and neutral wire, and how they interact with modern fixtures and switches. By the end of this guide, you will have the technical clarity needed to interpret these layouts and understand the safety protocols required for vintage electrical architecture.
Knob and tube wiring was the standard from the late 1800s through the 1940s. Its defining characteristic is the lack of a ground wire, which significantly changes how you must interpret diagrams compared to modern Romex installations.
Detailed Breakdown of the Knob and Tube Wiring Diagram
To read a knob and tube wiring diagram effectively, you must first visualize the physical separation of the conductors. In a modern 12/2 or 14/2 NMB cable, the wires are physically touching within an outer sheath. In a K&T system, the hot wire and the neutral wire are run separately, often spaced several inches apart. This spacing was designed to allow heat to dissipate into the surrounding air, which is why these systems often fail when covered by modern thermal insulation.
The diagram begins at the service panel (or the original fuse box). From there, two separate conductors of a specific gauge—typically 12 or 14 AWG—travel through the structure. The “knobs” are the cylindrical porcelain insulators that support the wires along the sides of joists and studs, preventing the energized copper from touching the wood. The “tubes” are porcelain sleeves inserted into holes drilled through joists, protecting the wire as it passes through the timber.

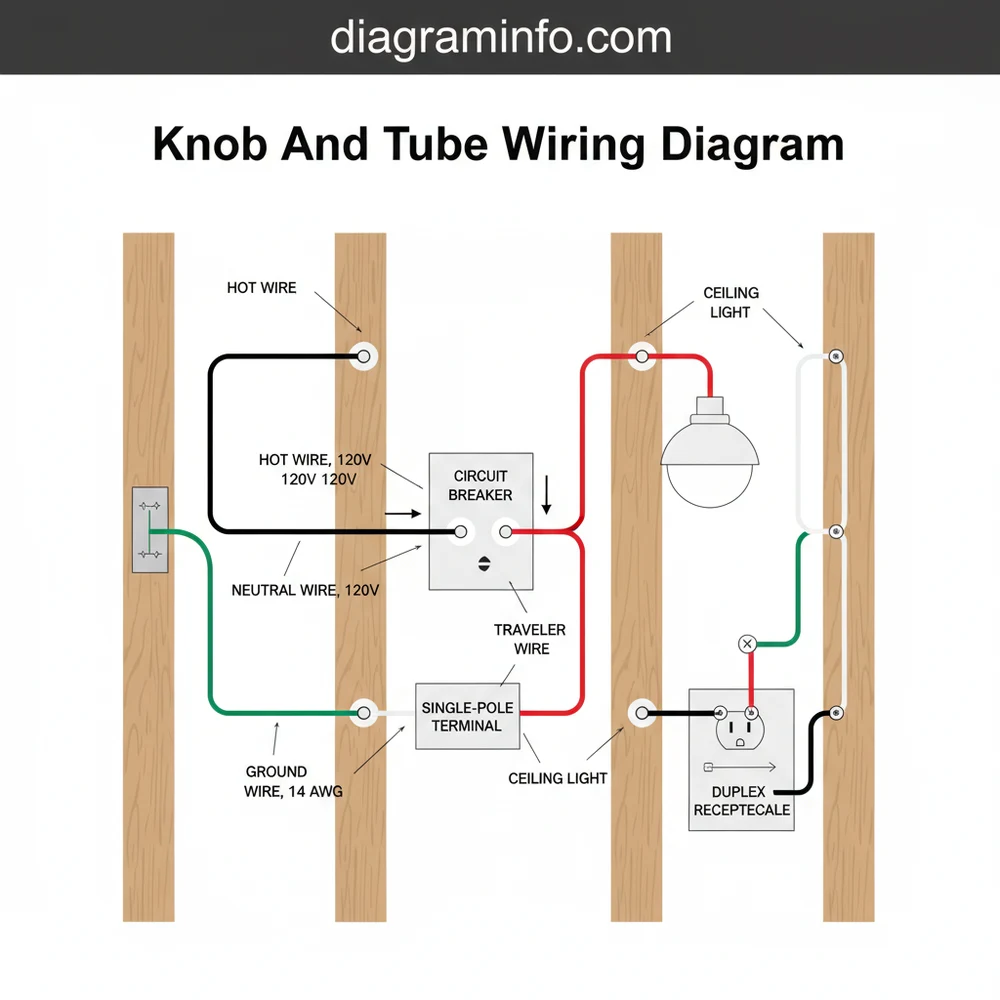

In a standard wiring diagram for a room, you will see a parallel layout. The hot wire (historically black, though often faded to gray or brown) carries the voltage to the device, while the neutral wire (historically white, also usually faded) completes the circuit back to the panel. When the diagram includes a switch, the hot wire is interrupted. In complex three-way switch configurations, the diagram will display a traveler wire system. These travelers connect the two switches, allowing the circuit to be opened or closed from two different locations. Identifying the common terminal on these switches is the most critical part of the diagram, as it is the point where the main power enters or the switched power leaves for the light fixture.
Identifying Components and Terminal Connections
A key challenge when using a knob and tube wiring diagram is that the physical wires often look identical after decades of dust and heat exposure. Unlike modern systems where color coding is rigid, K&T relies on “positional” logic and testing.
- ✓ Hot Wire: The conductor that is energized. In a diagram, this connects to the brass screw on an outlet or the common terminal on a switch.
- ✓ Neutral Wire: The return path for the current. This connects to the silver-colored screw on an outlet.
- ✓ Porcelain Knobs: Indicated in diagrams as circular anchors that keep the wire taut and isolated from the building frame.
- ✓ Loom: A flexible, non-metallic tubing used to protect wires where they enter metal boxes or cross over other conductors.
- ✓ Ground Wire: Not present in original K&T diagrams. Any grounding must be added via specialized modern retrofitting or GFCI protection.
Step-by-Step Guide: How to Interpret and Work with the Diagram
Working with a knob and tube system requires a methodical approach to ensure safety and code compliance. Follow these steps to map your system against a standard wiring diagram.
Step 1: De-energize the Circuit
Before touching any part of a K&T system, identify the correct fuse or circuit breaker at the main panel. Use a non-contact voltage tester to verify that the wire is dead. Because K&T can be interconnected in unusual ways (such as “shared neutrals”), never assume a wire is dead just because a nearby switch is off.
Step 2: Identify the Hot and Neutral Leads
Since both wires often appear black, use a multimeter to check the voltage. With the power back on briefly, measure between the wire and a known ground (like a copper water pipe). The wire showing approximately 120V is your hot wire. The wire showing near zero is your neutral wire. Mark them clearly with colored electrical tape (Black for hot, White for neutral).
Step 3: Map the Run from Knob to Tube
Follow the physical path of the wires. Ensure that the hot and neutral remain separated by the standard distance (usually 3 to 6 inches). If you see the wires twisting together or touching without a porcelain insulator between them, they are deviating from the proper wiring diagram and constitute a fire hazard.
Step 4: Locating the Common Terminal in Switch Loops
If the diagram involves a light switch, you must find the common terminal. On older switches, this is often the screw that is a different color (usually darker) than the others. In a 3-way knob and tube setup, the two traveler wire conductors will connect the remaining terminals between the two switches.
Step 5: Verify Wire Gauge and Load
Most K&T uses 14-gauge copper, which is rated for 15 amps. Check the diagram to ensure you aren’t overloading the circuit with modern appliances. If the wire is 12-gauge, it may handle a 20-amp load, but this is rare in residential K&T systems.
Step 6: Inspecting Splices (The “Flying Splice”)
In a traditional knob and tube wiring diagram, splices are made in mid-air rather than inside a junction box. These are known as “flying splices.” They must be soldered and wrapped in rubber tape followed by friction tape. If you find a splice that is merely twisted together or secured with modern wire nuts in mid-air, it must be moved into a proper junction box to meet modern safety standards.
Never attempt to add a third-prong (grounded) outlet directly to knob and tube wiring without a GFCI. Since there is no ground wire, the third prong will not function, creating a false sense of security and a potential shock hazard.
Common Issues and Troubleshooting
Even with a perfect knob and tube wiring diagram, these aging systems present unique challenges. The most frequent issue is the degradation of the cloth insulation. Over time, the rubber and fabric coating becomes brittle and flakes off, leaving the bare hot wire exposed. If this occurs near a joist or another wire, it can cause arcing and fire.
Another common problem is the “Carter System,” an obsolete and dangerous 3-way switching method sometimes found in K&T installations. In this setup, both the hot and neutral are switched, which can leave a light socket “hot” even when the light is off. If your diagram shows the neutral wire entering a switch, you likely have a Carter System, which should be decommissioned immediately by a professional.
Finally, look for signs of “amateur” modifications. Many K&T systems have been tapped into by DIYers using modern NM cable. These transitions must happen inside a junction box. If you see modern plastic-coated wire spliced directly to old cloth wire without a box, it is a code violation and a significant safety risk.
When testing for the hot wire in a K&T system, always use a digital multimeter rather than a simple light-up tester. Ghost voltages can often trigger cheap testers in these old systems, leading to incorrect wire identification.
Tips and Best Practices for Maintenance
If you are not ready to fully replace your knob and tube system, there are several ways to maintain its integrity while following your knob and tube wiring diagram.
First, prioritize “low-load” usage. K&T was designed for a few light bulbs and a radio, not for hair dryers, space heaters, and high-end gaming computers. Keep high-wattage appliances on modern, grounded circuits.
Second, ensure that your attic or walls containing K&T are not packed with blown-in insulation. This wiring relies on air space for cooling. Covering it with insulation can cause the wires to overheat, potentially melting the insulation or starting a fire. If you must insulate, a licensed electrician should replace the K&T in those specific areas first.
Third, use GFCI (Ground Fault Circuit Interrupter) outlets at the beginning of every K&T run. While a GFCI does not provide a ground wire, it does provide significant protection against electrocution by monitoring the balance of current between the hot wire and neutral wire. If an imbalance is detected, the GFCI trips, cutting power instantly. This is the only code-approved way to install 3-prong outlets on a 2-wire K&T system.
Understanding Switch Logic: Travelers and Common Terminals
In a standard knob and tube wiring diagram, the complexity increases significantly with 3-way and 4-way switches. These were used for staircases and hallways. In these circuits, you will encounter the traveler wire. These are the two wires that run between the switches.
When identifying connections on a 3-way switch:
1. The common terminal (usually a brass screw or a dark-colored screw) is the entry point for power.
2. The two traveler terminals (usually silver or lighter brass) connect to the two traveler wires.
3. In K&T, these travelers are often run through the house as two separate, parallel wires, making them difficult to distinguish from the main hot and neutral lines without a continuity test.
If you are replacing a vintage switch with a modern one, you must correctly identify which wire was on the common terminal of the old switch. Simply matching the physical positions of the wires is often not enough, as modern switch terminal layouts differ from those used 80 years ago.
Conclusion
Successfully navigating a knob and tube wiring diagram requires a blend of historical knowledge and modern electrical safety principles. By understanding how the hot wire and neutral wire are isolated by porcelain knobs and protected by tubes, you can better appreciate the logic of this century-old technology. While the lack of a ground wire and the aging of the cloth insulation are valid concerns, a well-maintained and un-modified K&T system can still function safely for light loads.
Always remember to use a multimeter to verify voltage, identify your common terminal when working with switches, and look for the correct wire gauge before adding any modern devices. If you encounter brittle wires, “flying splices,” or evidence of the dangerous Carter switching system, consult with a qualified electrician. Whether you are performing a minor repair or mapping the system for a future overhaul, the diagram is your most valuable tool in maintaining the electrical integrity of your historic home.
Frequently Asked Questions
Where is the knob and tube wiring located?
Knob and tube wiring is typically found in the joists of attics and basements or behind lath-and-plaster walls in homes built before 1950. You can identify it by the white ceramic knobs used to anchor the hot wire and neutral wire to the wooden structure of the building.
What does a knob and tube wiring diagram show?
The diagram illustrates the parallel routing of individual insulated copper conductors. It shows how the hot wire and neutral wire are physically separated by air space and how they utilize ceramic tubes to pass through studs and porcelain knobs to maintain tension across open spans without touching wood.
How many connections does a knob and tube circuit have?
A standard circuit has two primary connections: the hot wire and the neutral wire. In some specialized vintage three-way switch layouts, you may also see a traveler wire connecting to a common terminal, though these older configurations often lack the safety features and grounding found in modern residential wiring.
What are the symptoms of a bad knob and tube system?
Common symptoms include brittle or crumbling rubber insulation, flickering lights, and warm switches. Because there is no ground wire, a significant risk involves short circuits if the hot wire contacts the building’s structure. Blown fuses are also a sign that the system is being dangerously overloaded by modern appliances.
Can I replace knob and tube wiring myself?
Replacing these systems is highly complex and usually requires a licensed electrician to meet modern building codes. A diagram helps you identify components like the common terminal, but the lack of a ground wire makes DIY updates dangerous. Professional replacement ensures your home meets current safety and insurance standards.
What tools do I need for inspecting knob and tube?
You will need a non-contact voltage tester to safely identify the hot wire and a high-lumen flashlight to inspect ceramic knobs for cracks. A multimeter is useful for testing the common terminal on old switches, while a comprehensive knob and tube wiring diagram helps you trace the circuit’s path.
