A Toro TimeCutter starter solenoid connects a large hot wire from the battery to one main terminal, and a large wire to the starter motor to the other. A small gauge trigger wire, energized by the ignition switch, connects to the small terminal, activating the solenoid to engage the starter.
📌 Key Takeaways
- A typical starter solenoid features two large terminals (for battery and starter motor) and one small trigger terminal (for ignition signal).
- The main hot wire from the battery to the solenoid is a heavy gauge (e.g., 6-8 AWG) red cable, supplying primary power.
- The solenoid’s small trigger terminal receives a 12V signal (often via a red/yellow or purple wire) from the ignition switch to activate.
- A common failure symptom is a single ‘click’ when turning the key, but no engine cranking, indicating the solenoid isn’t passing power.
- Always disconnect the battery’s negative (ground wire) terminal before performing any wiring work to prevent shorts and electric shock.
Understanding the intricate Toro TimeCutter starter solenoid wiring diagram is paramount for any technical professional or experienced DIYer seeking to diagnose, replace, or repair their mower’s starting system. This diagram serves as a critical roadmap, detailing the precise wire color codes, pin assignments, and electrical pathways that ensure reliable engine startup. Mastering these connections is essential for efficient troubleshooting and maintaining the operational integrity of your Toro TimeCutter, preventing costly downtime and ensuring peak performance.

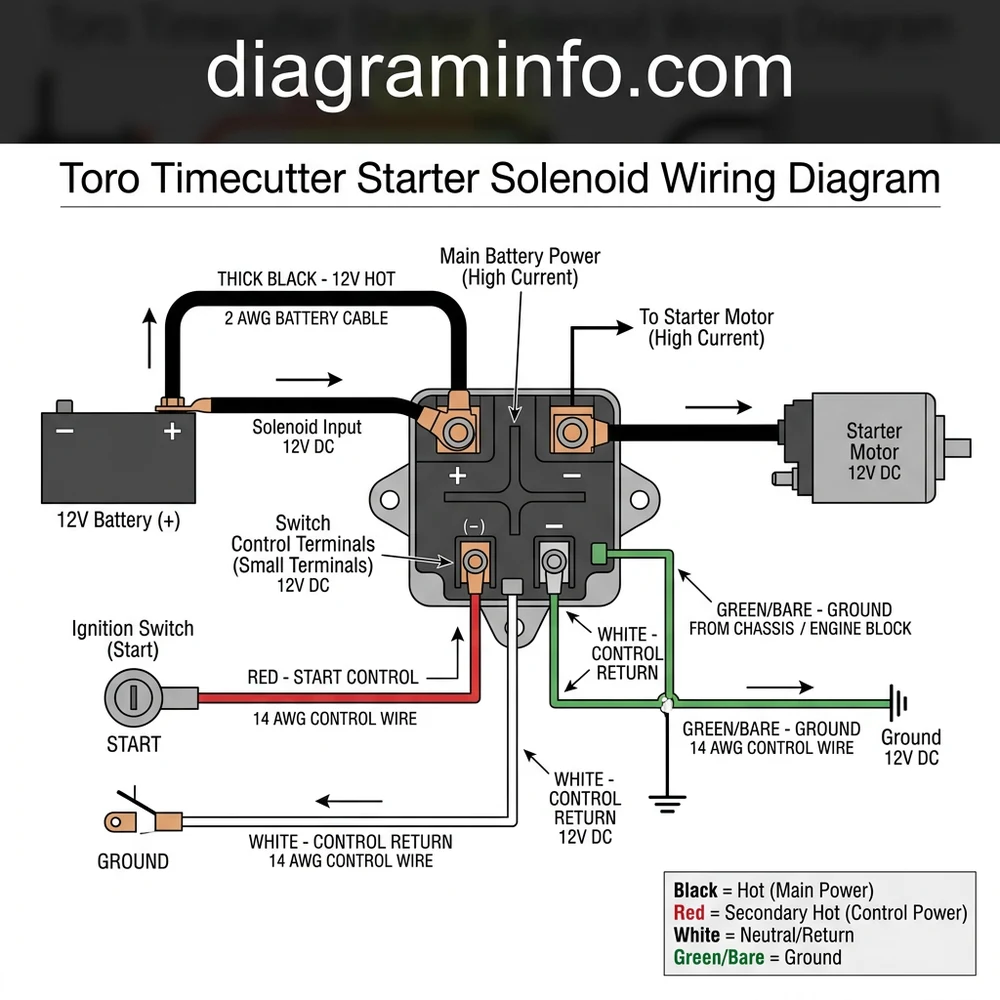

– Insert a detailed wiring diagram showing the starter solenoid, battery, ignition switch, and starter motor connections, including wire colors and terminal labels (e.g., BATT, MTR, S, G).
Wire Color Reference Table
The following table provides a comprehensive wire color code reference for a typical Toro TimeCutter starter solenoid. While specific models and year variations (e.g., 2015 Toro TimeCutter SS5000 vs. 2020 TimeCutter HD XS4850) may exhibit minor differences, these generally represent the common conventions. Always consult your specific model’s service manual for definitive documentation.
| Wire Color (Common) | Function | Pin/Terminal Identification | Notes |
|---|---|---|---|
| Thick Red | Battery Positive (Main Hot Wire) | Large Stud, often labeled “BATT” or “+” | Connects directly to the positive (+) post of the 12V battery. This is the constant power supply to the solenoid. Typically 6-8 gauge. |
| Thick Black (or Black/Red) | Starter Motor Positive Output | Large Stud, often labeled “MTR” or “OUT” | Connects directly to the positive (+) terminal of the starter motor. Carries high amperage when solenoid is engaged. Typically 6-8 gauge. |
| Thin Yellow (or Yellow/Purple) | Solenoid Activation (Ignition Signal) | Small Stud, often labeled “S” or “IGN” | Receives 12V voltage signal from the ignition switch, typically routed through safety switches (seat, PTO, brake). This activates the solenoid coil. Typically 16-18 gauge. |
| Thin Black (or Green) | Chassis Ground Wire / Solenoid Coil Ground | Small Stud, often labeled “G” or attached via mounting bracket | Provides the return path for the activation coil. Can be a dedicated wire to chassis ground or achieved through the solenoid’s mounting bolts to a grounded frame. Absence of good ground prevents engagement. Typically 16-18 gauge. |
Step-by-Step Connection Guide
Properly wiring a Toro TimeCutter starter solenoid requires precision and adherence to manufacturer specifications to ensure both functionality and safety. Follow these steps meticulously, referencing your specific model’s wiring diagram and the wire color code table above. This guide assumes a standard 12-volt DC system commonly found in these mowers.
Before performing any electrical work, always disconnect the negative (-) terminal of the battery. Failure to do so can result in electrical shorts, component damage, or serious personal injury. Ensure the key is removed from the ignition.
- Isolate and Prepare the Workspace: Begin by thoroughly cleaning the area around the starter solenoid. Identify all necessary wires based on your TimeCutter’s wiring diagram and the wire color code reference. Ensure you have the correct replacement solenoid and all required tools, including crimpers, wire strippers, and a torque wrench.
- Connect the Main Battery Positive Cable: Locate the thick Red cable originating from the positive (+) terminal of your 12V battery. This is the primary hot wire. Connect this cable securely to the large terminal on the solenoid typically labeled “BATT” or identified as the input side. Ensure the connection is clean, free of corrosion, and tightened to manufacturer specifications, often around 10-12 ft-lbs for a secure, low-resistance connection. This cable is typically a heavy-duty 6-8 gauge wire to handle high amperage.
- Connect the Starter Motor Cable: Next, identify the thick Black or Black/Red cable that leads directly to the starter motor. Connect this cable to the other large terminal on the solenoid, typically labeled “MTR” or “OUT.” This terminal provides the high-amperage current to the starter motor when the solenoid is activated. Like the battery cable, ensure this connection is tight and clean, torquing it appropriately to prevent voltage drop and overheating. This cable should also be a heavy 6-8 gauge.
- Connect the Solenoid Activation Wire: Locate the thinner Yellow or Yellow/Purple wire. This is the control wire that carries a 12V voltage signal from the ignition switch (and safety interlocks) to activate the solenoid coil. Connect this wire to the small terminal on the solenoid, often labeled “S” or “IGN.” This connection should be firm, typically using a spade connector or a small nut, ensuring good electrical contact. Verify the pin assignment on your specific solenoid, as some older models might have different configurations. This wire is usually 16-18 gauge.
- Ensure Proper Ground Wire Connection: The solenoid’s internal coil requires a complete circuit to operate. For solenoids with a dedicated small ground terminal (often labeled “G”), connect the thin Black or Green ground wire from this terminal to a clean, unpainted section of the mower’s chassis frame, ensuring excellent conductivity. If your solenoid grounds through its mounting bracket, ensure the mounting surface is clean and painted-free, and the mounting bolts are securely tightened. A poor ground connection is a common cause of solenoid malfunction.
- Double-Check and Reconnect Battery: Before reattaching the battery, visually inspect all connections, ensuring they are correctly assigned, tight, and free from any potential shorts. Pay close attention to the terminal block areas and cable routing to prevent chafing. Reconnect the negative (-) terminal of the 12V battery last. Test the starting system to confirm proper operation. Listen for a distinct “click” from the solenoid followed by the starter motor engaging. If you encounter issues, refer to our comprehensive guide on Starter Motor Diagnostics.
It’s crucial to differentiate between the primary power circuit (heavy gauge wires) and the control circuit (lighter gauge wires). The solenoid acts as a high-current relay, allowing a small current from the ignition switch to control a much larger current flow to the starter motor. Incorrect wire sizing or compromised connections in either circuit can lead to starting failures or even electrical fires.
Common Wiring Mistakes & Troubleshooting
Even with a clear Toro TimeCutter starter solenoid wiring diagram, errors can occur during installation or repair. Understanding common mistakes and their troubleshooting methods is vital for efficient resolution and system reliability. These issues often manifest as a “no-crank” condition or intermittent starting problems.
- Loose or Corroded Connections:
- Consequence: High electrical resistance, leading to voltage drop across the connection. This can manifest as a slow crank, a solenoid that clicks but doesn’t engage the starter, or complete failure to start. Corrosion acts as an insulator, impeding current flow.
- Fix: Disconnect the battery. Visually inspect all terminals and wire ends for corrosion (greenish-white buildup) or looseness. Clean all mating surfaces with a wire brush or sandpaper until shiny. Apply a thin layer of dielectric grease to prevent future corrosion. Ensure all nuts and bolts are securely tightened to OEM torque specifications. This applies to both the heavy hot wire and ground wire connections.
- Incorrect Wire Gauge for High-Current Lines:
- Consequence: Using a wire that is too thin (higher gauge number) for the main battery or starter motor cables. This results in excessive resistance, significant voltage drop under load, overheating of the wire (potential for fire), and insufficient current reaching the starter motor to crank the engine.
- Fix: Always use wires of the specified gauge (typically 6-8 gauge) for the heavy current paths. If a thinner wire was incorrectly installed, replace it with the appropriate gauge. Refer to the manufacturer’s manual or a reliable automotive wire gauge chart.
- Improper Ground Wire Connection or Faulty Chassis Ground:
- Consequence: The solenoid coil requires a complete circuit to activate. If its ground wire (or chassis connection) is poor or non-existent, the solenoid will not energize, resulting in no clicking sound and no starter engagement.
- Fix: Verify the small ground wire (if applicable) is securely attached to a clean, unpainted metal surface on the mower’s frame. If the solenoid grounds through its mounting, ensure the mounting bolts are tight and the area beneath the solenoid is free of paint or rust. Use a multimeter to check for continuity between the solenoid’s ground point and the battery’s negative terminal.
- Reverse Polarity on Solenoid Activation Terminal:
- Consequence: While less common with standard 3-post solenoids, some specific configurations or aftermarket units might be polarity sensitive on their activation terminals. Incorrectly connecting the 12V signal wire to a terminal expecting a ground, or vice-versa, will prevent the solenoid from activating. This could also lead to blown fuses in the control circuit.
- Fix: Double-check the pin assignment on your specific solenoid and the wiring diagram. Most common solenoids are activated by supplying 12V to the ‘S’ terminal while the body or another small terminal is grounded. Ensure the control hot wire (Yellow/Purple) goes to the correct signal input terminal.
- Short Circuit in Control Wiring:
- Consequence: A damaged insulation on the thin Yellow/Purple control wire that touches metal (chassis ground) before reaching the solenoid can cause a short circuit. This typically blows the associated fuse in the ignition circuit, preventing the solenoid from ever receiving its activation signal.
- Fix: Isolate the short by carefully inspecting the entire length of the control wire for any frayed insulation or pinched sections. Use a multimeter to check for continuity to ground on the wire with the battery disconnected. Repair any damaged sections with heat shrink tubing or by replacing the wire. Replace the blown fuse with one of the correct amperage, as detailed in your owner’s manual. For more detailed diagnostics, refer to our article on Electrical System Troubleshooting for Mowers.
