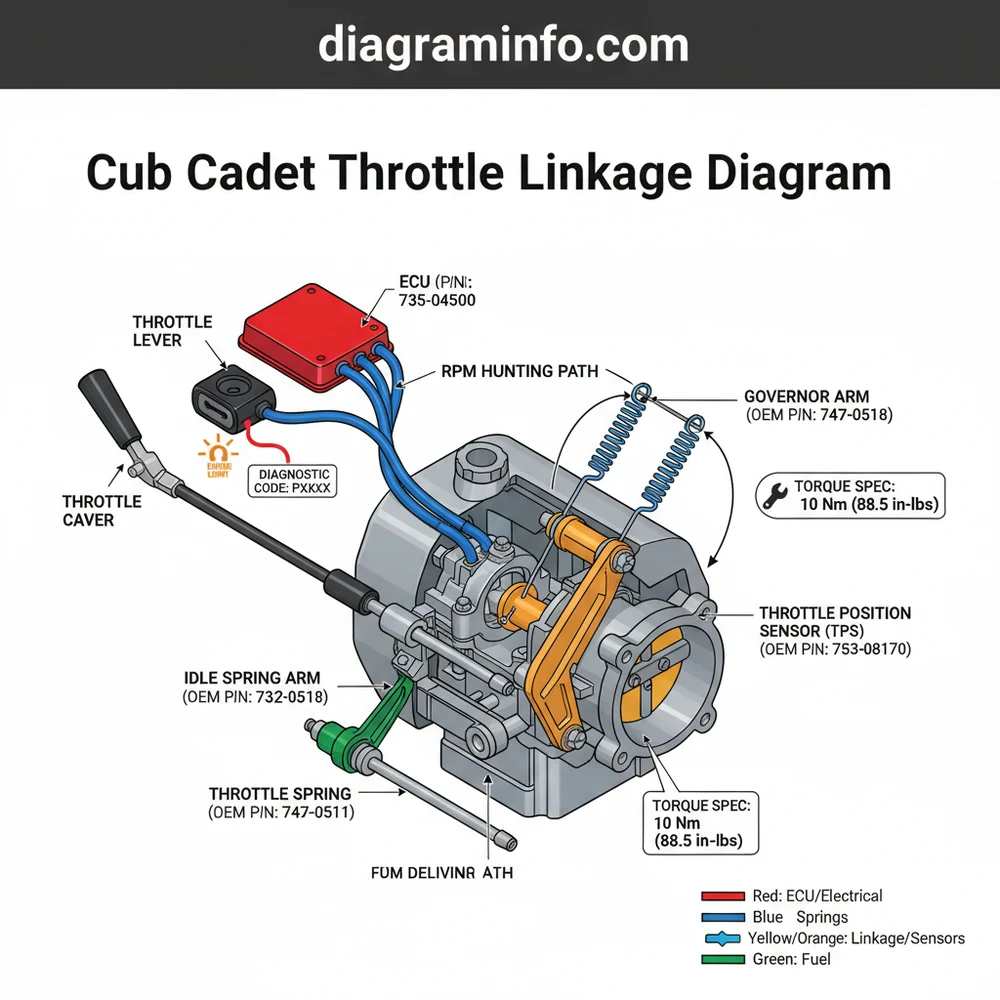

Mapping the Cub Cadet Throttle Linkage Diagram Components

Understanding how mechanical and electronic governor systems interact requires identifying every individual component within the throttle control loop. On standard Cub Cadet riding mowers and zero-turn mowers, mechanical linkages transfer force between the operator dash lever, governor gear assembly inside the crankcase, and throttle plate on the carburetor or throttle body.

Governor Arm Assembly and Mechanical Throttle Springs

The governor arm acts as the primary mechanical summing lever. It receives opposing forces from the operator-controlled main governor spring and the internal flyweight assembly via the governor cross-shaft. Mounted directly to the arm is the rigid throttle linkage rod, which connects to the carburetor throttle plate lever. Encasing or running parallel to this rigid rod is a fine, low-tension anti-rattle spring (dampener spring). The dampener spring eliminates mechanical play in the Z-bend or rod-end pivots, preventing high-frequency throttle oscillation under steady load.

Choke Assembly and Carburetor/Throttle Body Interface

On dual-action or single-lever Cub Cadet setups, a dedicated choke rod runs directly from the speed control bracket to the choke shaft. The choke system operates independently of the governor arm, using a detent spring or return coil to hold the choke butterfly open during normal operation. On mechanical carburetor systems, ensuring free travel without binding at the pivot bushings is essential to prevent rich-running conditions, wet-fouled spark plugs, or engine stalling.

EFI Servo Actuator and ECU Interface on Modern Engine Units

Modern commercial Cub Cadet platforms featuring Kohler Command PRO EFI or Vanguard EFI engines replace the mechanical spring-and-flyweight arrangement with a digital throttle control system. The ECU processes real-time sensor inputs—including engine speed, manifold absolute pressure (MAP), oil temperature, and throttle position—to drive a electronic stepper motor actuator. Understanding how these wires map on the schematic is vital when diagnosing non-responsive throttle actuators or signal circuit faults.

Troubleshooting Failures in the Cub Cadet Throttle Linkage Diagram

When studying a cub cadet throttle linkage diagram to rectify engine performance problems, mechanics usually encounter one of three root failure categories: mechanical governor surging, cable/rod binding, or ECU electronic control loops.

Engine Surging and Mechanical Governor Bouncing

Engine hunting or surging (rpm rhythmically rising and falling under steady load) occurs when the balance between governor spring tension and internal flyweight force becomes unstable. Common causes include:

• Stretched or non-OEM governor main springs lack the correct spring rate (k-factor).
• Connecting the governor spring into the wrong hole location on the governor arm or control bracket, altering leverage ratios.
• Missing or damaged anti-rattle dampener spring, allowing vibration-induced slop between the Z-bend linkage rod and throttle shaft arm.
• Vacuum leaks at the intake manifold gasket, forcing the governor to hunt as the engine tries to correct lean air-fuel ratios.

Throttle Shaft Binding and Unresponsive Cable Travel

Physical restriction in linkage movement prevents the throttle butterfly valve from returning to idle or reaching maximum wide-open throttle (WOT). Debris accumulation around the control plate, bent linkage rods from improper maintenance, or corrosion inside the outer throttle control cable housing are frequent culprits. If you are also addressing fuel delivery issues alongside mechanical adjustments, refer to our comprehensive carburetor service guide for proper gasket orientation.

Electronic Actuator Faults and Diagnostic Code Triggering

On electronic fuel-injected mowers equipped with diagnostic systems, physical binding in the throttle linkage or actuator wiring faults will illuminate the check engine light. The onboard control module monitors target RPM versus actual Throttle Position Sensor (TPS) feedback. If the actuator cannot achieve the target position due to mechanical resistance or open circuits, the system logs a specific diagnostic code and enters a safe limp-home mode.

Calibrating Governor Adjustments and Torque Specs via the Schematic

Restoring factory governor performance requires performing a static governor adjustment before tuning dynamic high-idle RPM. Follow this step-by-step technical procedure to zero out shaft clearance using the reference schematic.

Static Governor Adjustment and Mechanical Linkage Zeroing

1. Engine Shutdown and Safety: Ensure the engine is off, key removed, and spark plug boots disconnected and grounded to prevent accidental ignition.
2. Loosen Fastener: Using a 10mm socket, loosen the governor arm pinch bolt (Ref A on diagram) so the governor arm rotates freely on the cross-shaft.
3. Move Control Lever to Full Throttle: Move the dash or engine throttle control lever to the Fast/WOT position. This applies full tension to the governor spring, pushing the governor arm toward the wide-open throttle plate position.
4. Rotate Cross-Shaft to Internal Stop: Insert small pliers or a flathead screwdriver into the slotted end of the governor cross-shaft. Rotate the shaft fully clockwise (for most Kohler/Kawasaki twin engines; check engine manual to verify shaft rotation direction relative to flyweights) until internal resistance against the governor spool is met.
5. Torque Pinch Bolt: While holding both the arm at WOT and the shaft against its internal stop, tighten the governor arm pinch bolt to the specified torque spec of 35–45 in-lbs (4.0–5.0 Nm).

Verifying ECU Sensor Feedback, Oil Pressure, and Diagnostic Codes

For EFI systems, mechanical static setting is replaced by sensor alignment and electrical diagnostics. Connect an OBD-II style diagnostic interface or OEM scan tool to the engine diagnostic port to monitor sensor output:

• Verify closed throttle TPS voltage reads between 0.45V and 0.55V DC.
• Confirm Wide Open Throttle voltage reads approximately 4.2V to 4.7V DC.
• Check engine sensor data logs for registered low oil pressure faults or high cylinder head temperature alerts that trigger automatic throttle reduction safety features. Liquid-cooled engines must also maintain proper coolant flow across thermal sensors to prevent thermal shutdown protocols.
• If internal engine mechanical rebuilds were recently performed involving the timing chain or camshaft gear synchronization, verify mechanical engine timing before attempting dynamic governor tuning.

Cub Cadet Throttle Linkage Diagram Frequently Asked Questions

How do I know which hole on the governor arm to attach the governor spring to?

The correct hole location is determined by the specific model code and application RPM (deck size and blade tip speed requirements). On the cub cadet throttle linkage diagram, holes are numbered 1 through 3 starting closest to the pivot shaft. Attaching the spring further away from the pivot axis increases sensitivity but may induce surging, while moving it closer decreases sensitivity but widens the RPM droop under load. Always consult the OEM service manual table for your exact engine model number.

Why does my Cub Cadet surge after reinstalling the carburetor throttle linkage?

Surging after reassembly is almost always caused by omitting the fine anti-rattle dampener spring, installing the primary spring in the incorrect governor arm hole, or introducing a vacuum leak at the carburetor mounting flange gaskets. Ensure the small spring stretches parallel over the solid Z-bend rod and that flange nuts are torqued evenly to 65–85 in-lbs to eliminate intake air leaks.

How do modern EFI Cub Cadet models trigger a check engine light for linkage faults?

Modern EFI engines utilize an electronic ECU that constantly cross-references driver demand with actual engine RPM and throttle position sensor feedback. If the ECU commands the electronic throttle actuator to open but detects no change in engine speed or TPS voltage—due to a bound shaft, disconnected link rod, or failed motor winding—it logs a diagnostic code and illuminates the dash check engine light.

Can a scanner be connected to read OBD-II diagnostic codes on Cub Cadet mowers?

Commercial-grade Cub Cadet mowers equipped with electronic fuel injection utilize standard CAN-bus communication protocols. Technicians can connect standard handheld OBD-II scanners using an OEM 4-pin or 6-pin adapter harness. Scanning the system allows mechanics to view real-time data streams, verify throttle motor duty cycle percentages, monitor engine parameters, and clear stored diagnostic fault codes.

What torque spec should I use when reinstalling throttle body or governor hardware?

Governor arm pinch bolts require precise torquing to 35–45 in-lbs (4.0–5.0 Nm). Carburetor and throttle body mounting nuts securing the manifold to the cylinder head typically specify 65–85 in-lbs (7.3–9.6 Nm). Never over-torque small aluminum threaded holes or pinch clamps, as thread stripping will cause air leaks or governor failure.
