6.0 Powerstroke Engine Diagram 2026: Layout & Component Identification
The 6.0 Powerstroke engine diagram illustrates the internal and external components of Ford’s 6.0L V8 turbocharged diesel engine, produced from 2003-2007. Key components include the cylinder heads, valve train, crankshaft, and high-pressure oil pump (HPOP), crucial for understanding its complex operation and common failure points like the oil cooler.
📌 Key Takeaways
- The 6.0L Powerstroke engine uses a HEUI (Hydraulic Electronic Unit Injector) fuel system, requiring a high-pressure oil pump (HPOP) for injector actuation.
- Identify key components like the turbocharger, EGR cooler, oil cooler, cylinder head, and valve train, which are frequently associated with common engine issues.
- Maintaining FICM (Fuel Injection Control Module) voltage at a stable 48V is crucial for proper engine operation and injector longevity.
- EGR cooler, oil cooler, and head gasket failures are the most common issues, often leading to overheating and significant damage.
- Complex diagnostics and repairs, especially involving the HPOP, crankshaft, or internal engine components, typically require specialized tools and professional expertise.
The 6.0 Powerstroke diesel engine, produced by Navistar for Ford Super Duty trucks from late 2003 to 2007, represents a pivotal era in heavy-duty diesel performance and design. Understanding the intricate architecture of this engine is crucial for anyone involved in its maintenance, repair, or upgrade. A detailed 6.0 Powerstroke engine diagram serves as an indispensable tool, revealing the complex interplay of components that deliver its robust power while also highlighting areas prone to common issues. This guide will help you decipher such a diagram, identifying key parts and understanding their function in the context of this powerful, albeit sometimes problematic, V8 diesel.
Engine Component Breakdown

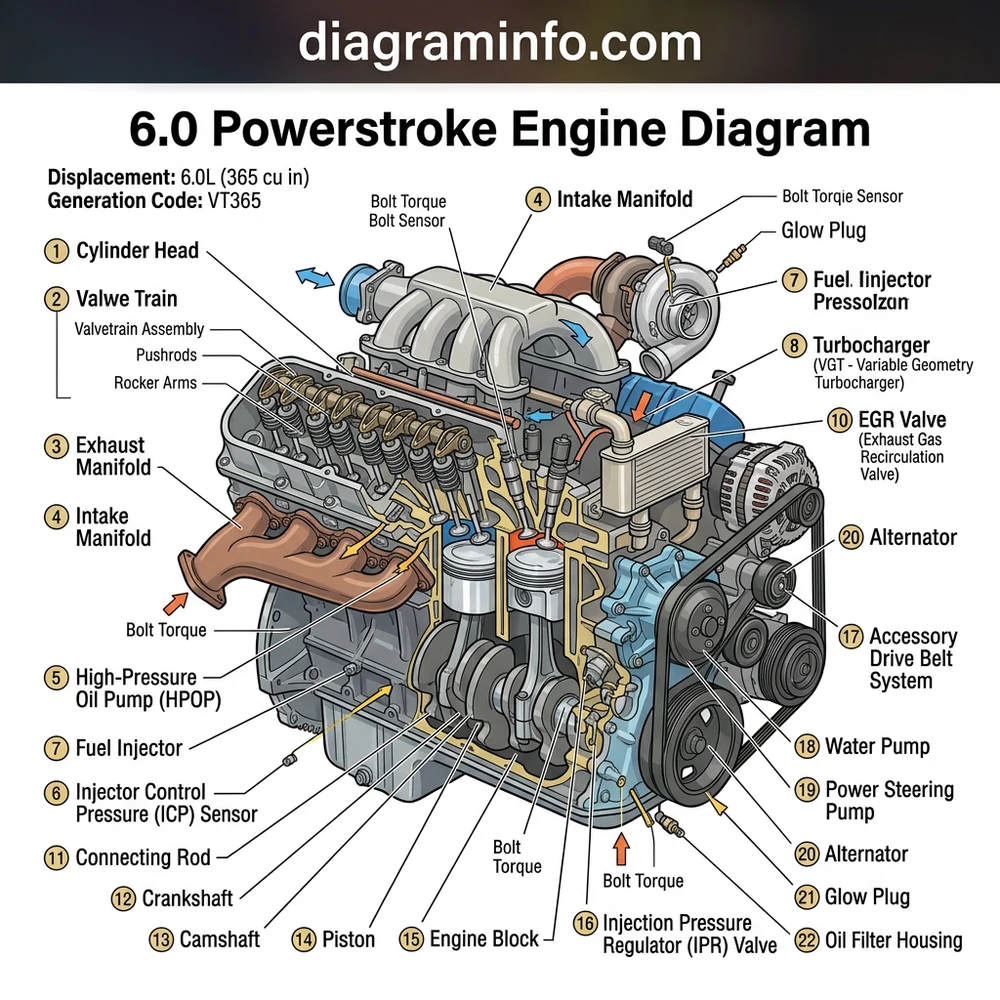

To effectively interpret a 6.0 Powerstroke engine diagram, you must familiarize yourself with its primary components and their roles. As depicted in a typical 6.0 Powerstroke engine diagram, the engine is a V8 configuration, renowned for its strong lower end and complex high-pressure oil system.
- Engine Block: The foundational cast-iron structure providing the framework for all other components. It houses the cylinders, coolant passages, and oil galleries. Your diagram will show the V-configuration of the 8 cylinders, forming the backbone of the engine.
- Cylinder Head: Mounted atop the engine block, each of the two aluminum cylinder head units contains four cylinders’ worth of intake and exhaust ports, valve seats, and the specialized bores for the HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) fuel injectors. The cylinder head also integrates passages for the high-pressure oil necessary to actuate the injectors.
- Valve Train: Comprising the pushrods, rocker arms, and valves, the valve train system on the 6.0 Powerstroke controls the precise timing of intake and exhaust valve opening and closing. This overhead valve (OHV) design is robust but requires proper lubrication and adjustment, as seen in detailed sections of the 6.0 Powerstroke engine diagram.
- Piston: Within each cylinder, the piston moves vertically, converting the force of combustion into mechanical energy. These forged aluminum components are designed to withstand extreme temperatures and pressures.
- Connecting Rod: Each connecting rod links a piston to the crankshaft, translating the piston’s reciprocating motion into the rotational motion of the crankshaft. These robust steel components are critical for power transfer.
- Crankshaft: The heart of the engine’s rotational assembly, the crankshaft converts the up-and-down motion of the pistons into rotational energy that drives the transmission. It features main bearing journals and connecting rod journals, critical areas for lubrication.
- Camshaft: Located within the engine block, the camshaft is gear-driven from the crankshaft and features lobes that actuate the pushrods, thus controlling the valve train. Proper camshaft timing is essential for engine performance and emissions compliance.
- Oil Pan: Positioned at the very bottom of the engine block, the oil pan serves as a reservoir for the engine’s lubricating oil. It also typically houses the oil pickup tube and screen, ensuring a continuous supply of oil to the oil pump.
- Turbocharger: The Variable Geometry Turbocharger (VGT) dramatically improves power and reduces turbo lag by adjusting exhaust flow to the turbine. Its intricate mechanism is often depicted in close-up sections of a 6.0 Powerstroke engine diagram.
- EGR (Exhaust Gas Recirculation) Cooler & Valve: This system reduces NOx emissions by recirculating a portion of exhaust gases back into the intake. The cooler dissipates heat from the exhaust, while the valve regulates flow.
- Oil Cooler: An internal component, often overlooked until failure, the oil cooler uses engine coolant to cool the engine oil before it goes to critical components like the HPOP and turbocharger. Its location and coolant/oil passages are often highlighted in diagnostic diagrams.
- High-Pressure Oil Pump (HPOP): Unique to the HEUI system, the HPOP generates the extreme oil pressure (up to 3,600 PSI) needed to actuate the fuel injectors. Its reservoir, supply lines, and internal gearing are vital for engine operation.
- Fuel Injectors (HEUI): These hydraulically actuated, electronically controlled unit injectors receive high-pressure oil from the HPOP and low-pressure fuel, precisely atomizing and injecting fuel into the combustion chamber.
- FICM (Fuel Injection Control Module): Though external, its interaction with the injectors is critical. The FICM boosts voltage to 48V to rapidly open the injector solenoids.
- Front Cover & Timing Gears: The front cover encases the timing gears that synchronize the crankshaft and camshaft rotation, along with the engine’s low-pressure oil pump.
Year & Generation Coverage Table
The 6.0 Powerstroke engine underwent several revisions during its production run. Understanding these year-specific changes is crucial for proper diagnosis and repair, as parts are not always interchangeable. Refer to a comprehensive 6.0 Powerstroke engine diagram relevant to your specific model year.
| Year | Generation Code | Engine Changes | Notes |
|---|---|---|---|
| 2003 (Early) | MY03 | HPOP on top of engine (front), ICP sensor located under turbo. | Least desirable HPOP design; prone to premature failure. Requires specific diagnostic approaches. |
| 2003 (Late) – 2004 | MY04 | HPOP moved to rear of engine (under turbo), ICP sensor moved to passenger side valve cover. Introduction of updated dummy plugs and standpipes. | Improved HPOP design. Standpipes and dummy plugs still prone to O-ring failure. |
| 2005 – 2007 | MY05+ | Updated HPOP with Snap-To-Connect (STC) fitting, revised oil cooler, updated EGR valve, revised dummy plugs and standpipes with improved O-rings. | STC fitting itself became a common failure point. EGR cooler design also saw multiple iterations. These engines often feature a larger, rectangular EGR valve. |
Common Failure Points
Despite its robust design, the 6.0 Powerstroke is notorious for several common failure points. A thorough understanding of these, often illuminated by a specific 6.0 Powerstroke engine diagram focusing on problem areas, is essential for proactive maintenance and efficient repair.
Neglecting these common failure points can lead to catastrophic engine damage or costly repairs. Always use OEM-spec replacement parts or proven aftermarket alternatives. For detailed diagnostic steps, consider reviewing a 6.0 Powerstroke No-Start Issues troubleshooting guide.
- EGR Cooler Failure: The most infamous issue. The factory EGR coolers are prone to cracking or clogging due to exhaust soot and coolant cavitation. This leads to coolant loss, excessive exhaust gas in the coolant, and potentially hydro-locking a cylinder. Symptoms include coolant consumption, white smoke from the exhaust, and an overflowing degas bottle. Replacement with a heavy-duty aftermarket unit or a proper EGR delete kit (where legal) is common. For specific removal and replacement steps, refer to a dedicated 6.0 Powerstroke EGR Cooler Replacement guide.
- Oil Cooler Clogging: Directly related to EGR cooler issues, the engine oil cooler sits in the valley of the engine. It uses engine coolant to cool the oil. Over time, casting sand and silicate dropout from inappropriate coolants can clog its internal passages, restricting coolant flow to the EGR cooler and reducing oil flow to critical components like the HPOP and turbo. This often leads to high EOT (Engine Oil Temperature) versus ECT (Engine Coolant Temperature) differentials.
- HPOP STC Fitting Failure: On 2005-2007 models, the Snap-To-Connect (STC) fitting on the high-pressure oil pump (HPOP) is a weak link. Its design allows it to separate under pressure, leading to a loss of high-pressure oil and a no-start condition when hot. A robust aftermarket one-piece fitting is a common upgrade. Consider consulting a 6.0 Powerstroke HPOP Upgrade Guide for detailed procedures.
- Head Gasket Failure: Often attributed to insufficient head bolt clamping force (Torgue-to-Yield – TTY bolts) combined with sustained high cylinder pressures (e.g., from aggressive tuning or restricted exhaust). Symptoms include coolant pushing out of the degas bottle, overheating, and loss of compression. Upgrading to ARP head studs and ensuring absolutely flat cylinder heads are critical for a lasting repair. OEM specifications require new TTY bolts tightened to specific stages.
- FICM (Fuel Injection Control Module) Issues: The FICM supplies 48 volts to the fuel injectors. If its internal circuitry degrades, voltage can drop below 45V, causing various issues from hard starts to rough running and misfires. You can often diagnose this by monitoring FICM voltage via a diagnostic scanner.
- Injector Stiction/Failure: The HEUI injectors are highly precise but sensitive to oil quality and contamination. “Stiction” (sticking of the internal spool valve) is common, especially when cold, leading to rough idle, misfires, or loss of power. Using a high-quality synthetic 5W-40 engine oil and specific oil additives can mitigate this. Full failure often requires replacement. For replacement steps, consult a 6.0 Powerstroke Injector Replacement Procedures guide.
- Turbocharger VGT Actuator/Vanes Sticking: Soot buildup in the VGT mechanism can cause the vanes to stick, leading to over-boosting, under-boosting, or erratic boost control. Cleaning or replacement of the turbocharger often resolves this.
- Dummy Plugs and Standpipes: These components, located within the cylinder heads, facilitate high-pressure oil routing to the injectors. Their internal O-rings are known to fail, leading to internal high-pressure oil leaks and no-start conditions, especially when hot. Revised designs improve reliability.
FAQ
How do I read a 6.0 Powerstroke engine diagram effectively?
To effectively read a 6.0 Powerstroke engine diagram, start by identifying the major systems: the engine block and cylinder heads forming the core, the rotating assembly (crankshaft, connecting rods, pistons), and the valvetrain (camshaft, pushrods, rocker arms, valves). Next, focus on the unique systems: the high-pressure oil system (HPOP, standpipes, dummy plugs, injectors), the fuel system, the turbocharger, and the EGR system. Trace the flow of fluids—oil, coolant, fuel, and exhaust gas—to understand component interaction. Pay close attention to numbered labels and their corresponding legends for detailed part identification and critical sensor locations like the ICP (Injection Control Pressure) or IPR (Injection Pressure Regulator).
What are the most critical maintenance items for the 6.0 Powerstroke?
The most critical maintenance items for a 6.0 Powerstroke involve ensuring optimal fluid quality and addressing known weak points proactively. This includes regular oil changes with full synthetic 5W-40 diesel-specific oil, meticulous fuel filter replacements (both frame-mounted and engine-mounted filters, typically every 10,000 to 15,000 miles), and diligent coolant system maintenance. Use only a compatible Extended Life Coolant (ELC) and ensure it’s free of silicates. Regularly monitor engine oil temperature (EOT) and engine coolant temperature (ECT) differentials to detect early signs of oil cooler clogging. Cleaning or replacing the EGR valve is also a proactive measure.
What are the torque specifications for the 6.0 Powerstroke cylinder heads?
The 6.0 Powerstroke cylinder heads utilize Torque-to-Yield (TTY) head bolts, meaning they are designed to stretch during tightening and should not be reused. The OEM specification for tightening involves multiple stages:
- Tighten all bolts in sequence to 20 lb-ft.
- Tighten all bolts in sequence to 40 lb-ft.
- Tighten all bolts in sequence an additional 90 degrees.
- Tighten all bolts in sequence a final 90 degrees.
For those opting for aftermarket ARP head studs, the procedure typically involves lubricating the threads and nuts, then tightening to 210-220 lb-ft in three equal stages, following the manufacturer’s specific instructions. Always verify torque specs with the latest OEM service manual or ARP documentation.
What role does the FICM play in the 6.0 Powerstroke, and how do I diagnose it?
The Fuel Injection Control Module (FICM) is crucial for the 6.0 Powerstroke’s operation because it takes the truck’s 12-volt supply and boosts it to 48 volts, which is necessary to actuate the high-pressure fuel injectors. Without sufficient voltage from the FICM, the injectors cannot open quickly or fully, leading to various issues like hard starts, misfires, rough idle, or a complete no-start condition. To diagnose the FICM, you typically use a diagnostic scanner to monitor its output voltage. A healthy FICM should maintain a consistent 48.0 to 48.5 volts, even under load. Readings consistently below 45 volts, especially during cranking or acceleration, indicate a failing FICM that requires repair or replacement.
Are there differences in 6.0 Powerstroke engines across model years?
Yes, the 6.0 Powerstroke underwent several significant revisions throughout its production run from late 2003 to 2007. Key differences, as highlighted in the Year & Generation Coverage Table above, include the relocation of the High-Pressure Oil Pump (HPOP) and Injection Control Pressure (ICP) sensor, improvements in dummy plug and standpipe designs, and the introduction of the problematic Snap-To-Connect (STC) fitting on the HPOP for 2005-2007 models. The EGR cooler and valve designs also saw multiple iterations. These year-specific variations mean that parts are not always interchangeable, and diagnostic procedures can differ. Always identify the specific model year of the engine when ordering parts or consulting repair diagrams.
Step-by-Step Guide to Understanding the 6.0 Powerstroke Engine Diagram 2026: Layout & Component Identification
Identify – Locate the specific component you are interested in on the 6.0 Powerstroke engine diagram, such as the cylinder head or crankshaft.
Locate – Find associated sub-components or connections, such as oil lines for the HPOP or coolant lines for the EGR cooler.
Reference – Use the diagram’s legend or labels to understand component names, functions, and typical routing paths for the valve train.
Connect/Route – Trace the flow of fluids (oil, coolant, fuel) or electrical signals through the diagram to understand system operation.
Verify – Compare the diagram’s layout to the physical engine to confirm component placement and identification, including the camshaft and connecting rod locations.
Troubleshoot – Use the diagram to pinpoint potential areas of failure based on symptoms, like a leaking oil cooler or faulty FICM location, aiding in diagnosis.
Frequently Asked Questions
What generation is the 6.0 powerstroke engine diagram?
The 6.0 Powerstroke engine diagram represents Ford’s second generation of V8 diesel engines, produced from late 2002 for the 2003 model year through 2007. It succeeded the 7.3L Powerstroke and was later replaced by the 6.4L Powerstroke. It was primarily used in Super Duty trucks and E-Series vans.
What are the main components visible in 6.0 powerstroke engine diagram?
A 6.0 Powerstroke engine diagram typically highlights the turbocharger, EGR cooler, oil cooler, fuel injection control module (FICM), high-pressure oil pump (HPOP), cylinder heads, and injectors. Internally, it would show the crankshaft, camshaft, connecting rods, and pistons, crucial for understanding its operational flow and potential failure points.
What are common failure points in 6.0 powerstroke engine diagram?
Common failure points for the 6.0 Powerstroke engine, often visible or related to components in its diagram, include the EGR cooler, oil cooler, high-pressure oil pump (HPOP) and its standpipes/dummy plugs, fuel injection control module (FICM), and head gaskets. These issues frequently stem from design flaws or inadequate maintenance.
What is the displacement of 6.0 powerstroke engine diagram?
The 6.0 Powerstroke engine has a displacement of 6.0 liters, which translates to approximately 365 cubic inches. This V8 turbocharged diesel engine, manufactured by International Truck and Engine Corporation (Navistar), was renowned for its power output but also its complex architecture leading to specific troubleshooting challenges.
How do I identify 6.0 powerstroke engine diagram year by VIN?
To identify the 6.0 Powerstroke engine year by VIN, locate the 10th digit. This digit represents the model year. For example, a ‘3’ denotes 2003, ‘4’ is 2004, and so on, up to ‘7’ for 2007. The 8th digit of the VIN usually confirms the engine code, often a ‘P’ for the 6.0L diesel.
What vehicles use 6.0 powerstroke engine diagram?
The 6.0 Powerstroke engine was primarily used in Ford F-Series Super Duty trucks, specifically the F-250, F-350, F-450, and F-550, from the 2003 to 2007 model years. It also powered Ford Excursion SUVs from 2003 to 2005 and E-Series vans (E-350/E-450) from 2003 to 2010.
