7-Pin Chevrolet R30 1988 Headlight Switch Pinout: Installation Setup 2026
The 1988 Chevrolet R30 headlight switch pinout uses terminal B (red, 12V battery power), R (brown, tail and running lights output), H (yellow, headlights), and I (dark green, dash dimming). Terminal R triggers trailer running lights via an auxiliary relay to protect the switch from high amperage on 7-way RV blade setups.
📌 Key Takeaways
- Terminal R (Brown wire) supplies the 12V tail and running lights signal output.
- Terminal B1/B2 (Red wires) provides 12V fused battery input directly from the fuse block.
- Always install a 30A relay on running lights circuits when powering heavy 7-way trailer setups.
- Direct wiring of trailer brake controllers to the headlight switch will overload internal contacts.
- Verify clean frame ground points on the Chevrolet R30 metal dash substrate before testing.
The 1988 Chevrolet R30 one-ton chassis relies on a heavy-duty, push-pull dashboard headlamp switch (Delco chassis switch) to distribute power to front lighting, rear tail lamps, instrument cluster backlighting, and auxiliary trailer circuits. When integrating a 4-pin flat connector or a 7-way RV blade trailer receptacle, tapping into the vehicle switch requires precise knowledge of terminal circuit assignments. The Chevrolet R30 1988 headlight switch pinout provides terminal designations for high-current battery feeds, switched running lights, dome lamp ground paths, and instrument panel illumination, preventing dangerous circuit overloads, thermal shutdown, and voltage drops across electric brake or towing circuits.
Pin Identification for Chevrolet R30 1988 Headlight Switch Pinout
According to OEM General Motors service schematics, the 1988 Chevrolet R30 C/K and R/V series trucks utilize a blade-style terminal connector mounted directly behind the driver-side lower dash panel. The switch body houses internal bi-metallic thermal circuit breakers designed to handle high headlight currents while distributing fused power to exterior marker lights and instrument panel dimmers. Below is the full terminal assignment, wire color breakdown, and functional circuit mapping for the factory connector.
| Terminal ID | Wire Color | GM Circuit # | Primary Function & Towing Application |
|---|---|---|---|
| B (Battery) | Red (12 AWG) | Circuit 2 | Unswitched +12V battery power input from firewall fusible link. Primary supply for headlamps and trailer running lights circuit. |
| H (Headlamp) | Yellow (14 AWG) | Circuit 10 | Switched +12V power output to the floor or column-mounted dimmer switch for high and low beam selection. |
| R (Park / Running) | Brown (16/14 AWG) | Circuit 9 | Switched power to front park lamps, tail lights, clearance markers, and trailer running lights feed (flat connector / RV blade pin 3). |
| I (Inst Panel) | Dark Green (18 AWG) | Circuit 8 | Dimmable output fed through internal switch rheostat to cluster gauge backlighting and auxiliary dash backlighting. |
| D1 (Dome Feed) | Orange (16 AWG) | Circuit 40 | Fused +12V constant battery feed from CTS/DOME fuse; supplies voltage for internal dome light override contacts. |
| D2 (Ground / Switch) | White (18 AWG) | Circuit 156 | Switched ground pin path. Grounded when knob is turned fully counterclockwise to turn on interior dome lighting manually. |
| G (Chassis Ground) | Black (18 AWG) | Circuit 150 | Direct switch housing chassis ground reference for internal rheostat dimming stability and grounding circuit paths. |
Manufacturer specifications indicate that Circuit 2 (Red 12 AWG) is protected by a 30-Amp internal bi-metallic breaker within the switch body. Circuit 9 (Brown wire) is fused at 20 Amps at the fuse block. Adding high-draw trailer lighting loads directly to Terminal R without a relay can exceed total switch thermal capacity, leading to intermittent headlight cycling.
Technical Breakdown of Key Switch Terminals
When working with the chevrolet r30 1988 headlight switch pinout, understanding the distinct role of each terminal prevents miswiring when installing trailering equipment or replacing damaged factory pigtails:
- Terminal B (Circuit 2 – Red): Constant 12-volt current flows from the starter solenoid or junction block through a fusible link directly to Terminal B. This terminal remains hot regardless of key position.
- Terminal R (Circuit 9 – Brown): Moving the switch slider to the first pull position energizes Terminal R. This powers the parking lights, license plate lights, side marker lights, and sends signal power to the running lights pin on a 4-pin flat connector or 7-pole trailer harness.
- Terminal H (Circuit 10 – Yellow): Pulling the knob fully out energizes Terminal H, directing battery voltage down to the floor-mounted or steering column turn signal and dimmer switch assembly where high/low beams are split.
- Terminal I (Circuit 8 – Dark Green): Rotating the switch knob adjusts resistance on an internal wire-wound rheostat, lowering or raising voltage across Terminal I to control gauge cluster illumination.
Wiring the 1988 Chevrolet R30 Headlight Switch to Trailer Running Lights and Brake Controller
Integrating heavy towing equipment into a 1988 Chevrolet R30 requires careful isolation of high-amperage auxiliary circuits from the primary headlight switch. Wiring an aftermarket brake controller, a 7-way RV blade socket, or an auxiliary power feed directly off the headlamp switch without external relays will damage the original harness contacts.
- Disconnect the Battery and Gain Harness Access: Detach the negative battery terminal under the hood. Remove the lower left driver-side knee bolster and unbolt the headlight switch mounting bezel using a 7mm nut driver. Press the switch shaft release button located on the top side of the switch body to pull the control shaft completely free from the dash.
- Identify Terminal R (Brown 14 AWG) for Running Lights Signal: Locate the heavy brown wire attached to Terminal R on the switch pigtail. Tap into Circuit 9 using a soldered splice to send a low-current trigger signal to a 30-amp automotive relay. Connect Pin 86 of the relay to Terminal R and Pin 85 to a clean chassis ground.
- Route Dedicated Battery Voltage for Auxiliary Power and Trailer Lights: Run a dedicated 10 AWG wire from an inline 30A circuit breaker connected to the engine bay battery junction block directly to Pin 30 of the running light relay. Connect Pin 87 of the relay to the tail light terminal of your trailer harness (green wire on standard flat connector or pin 3 on an RV blade socket).
- Interface the Brake Controller Output: Do not source brake controller operating power from the headlight switch. Wire the brake controller main power input (12 AWG black wire) directly to an under-hood 30A auto-reset breaker. Tap the brake switch trigger (cold side of the brake pedal switch, light blue wire) to send the stop signal to the brake controller, sending the regulated output directly down the frame rail to the electric brake pin on the trailer socket.
- Verify Turn Signal and Ground Pin Connections: Standard turn signal feeds (Circuit 14 light blue for left turn signal, Circuit 15 dark green for right turn signal) bypass the headlight switch and feed directly from the steering column switch. Ensure the trailer ground pin (10 AWG white wire) is grounded directly to the R30 frame rail, completely isolated from the switch ground pin (D2/White wire).
- Reinstall and Verify Pin Voltage: Reconnect the negative battery cable, plug the factory connector into the switch body, insert the control knob shaft until it clicks into place, and test all functions with a digital multimeter before reassembling the dash trim.
Using an external 4-pin relay driven by Terminal R prevents voltage drop across long trailer wiring runs. It preserves switch life when towing trailers fitted with high numbers of incandescent running lights or broad marker light packages.
Common Chevrolet R30 1988 Headlight Switch Pinout Overload and Grounding Errors
Improper modifications to the chevrolet r30 1988 headlight switch pinout frequently result in melted harness connectors, unexpected interior light loss, and thermal circuit breaker cycling. Because 1988 GM truck switches lack modern computer module protection, physical circuit isolation is required.
One of the most frequent technician errors involves tapping high-draw electric brake controllers or auxiliary power lines into Terminal B (Red wire) at the back of the switch. Terminal B is designed solely to supply headlamp and marker light currents. Adding an extra 15 to 20 Amps for trailer electric brakes exceeds the thermal tolerance of the internal 30A breaker, causing headlamps to intermittently turn off and on while driving at night.
Do not ground Terminal D2 (White wire) directly to the chassis frame when installing aftermarket equipment. Terminal D2 is a switched ground return path for the dome light circuit. Grounding this terminal permanently will leave your interior dome lamp continuously illuminated, draining the vehicle battery overnight.
Another major mistake occurs when upgrading from a simple flat connector (4-pin) to a full 7-way RV blade harness. Technicians often misidentify the dark green wire (Terminal I) for the dark green turn signal wire from the steering column. Connecting trailer turn signal lines to Terminal I will feed regulated panel-dimmer voltage into the turn signal circuit, blowing fuses and damaging dashboard backlighting.
Chevrolet R30 1988 Headlight Switch Pinout Troubleshooting FAQ
Why do my headlights flick off and on intermittently when towing my RV trailer?
This flickering occurs because the thermal circuit breaker inside the 1988 Chevrolet R30 headlight switch is tripping due to high current draw. Tapping your RV blade running lights directly into the brown wire (Terminal R) without using an auxiliary relay overloads the internal switch circuit. As the internal breaker overheats, it trips open to prevent a fire, cools down, resets, and then trips again. Installing an isolated relay powered directly from the battery resolves this issue instantly.
Can I connect the electric brake output from my brake controller through the headlight switch harness?
No. Electric brake controllers require a dedicated high-amperage circuit completely independent of the headlight switch. Power for the brake controller must be drawn from an under-hood circuit breaker directly connected to the battery positive post using 12 AWG or 10 AWG wire. The headlight switch pinout provides no connection point for brake control voltage or electric brake activation outputs.
How do I test Terminal R (Running Lights) with a multimeter to verify pinout function?
Set your digital multimeter to DC volts. Attach the black meter lead to a solid chassis ground. Probe the back of Terminal R (Brown wire) on the headlight switch pigtail. With the switch pushed all the way in (Off), voltage should read 0V. Pull the switch out to the first detent (Park position); voltage should jump to approximately 12.6V. If voltage drops below 11.5V under load, high resistance exists in the switch contacts or the main Terminal B battery supply line.
What causes my dash lights to stop working after I wired in a flat connector trailer harness?
If your dash cluster illumination failed after connecting a flat connector harness, you likely tapped the trailer running light feed into Terminal I (Dark Green wire) instead of Terminal R (Brown wire). Terminal I is protected by a small 4-amp INST LPS fuse. Connecting trailer lights to Terminal I instantly pops this fuse, disabling dash backlighting. Shift your trailer running light feed to Terminal R and replace the blown INST LPS fuse.
Where should I hook up the ground pin for my trailer plug on an 1988 R30?
The trailer plug ground pin (10 AWG white wire) should always be attached directly to the truck frame chassis near the rear bumper with a clean, rust-free ring terminal connection. Never attempt to splice trailer grounds into the headlight switch ground pin (D2 / White wire) or the small instrument cluster ground wire (Terminal G / Black wire), as those small-gauge wires cannot carry the return current of trailer lighting systems.
Step-by-Step Guide to Understanding the Chevrolet R30 1988 Headlight Switch Pinout
Identify – Access the rear of the dash panel and detach the factory harness connector from the headlight switch.

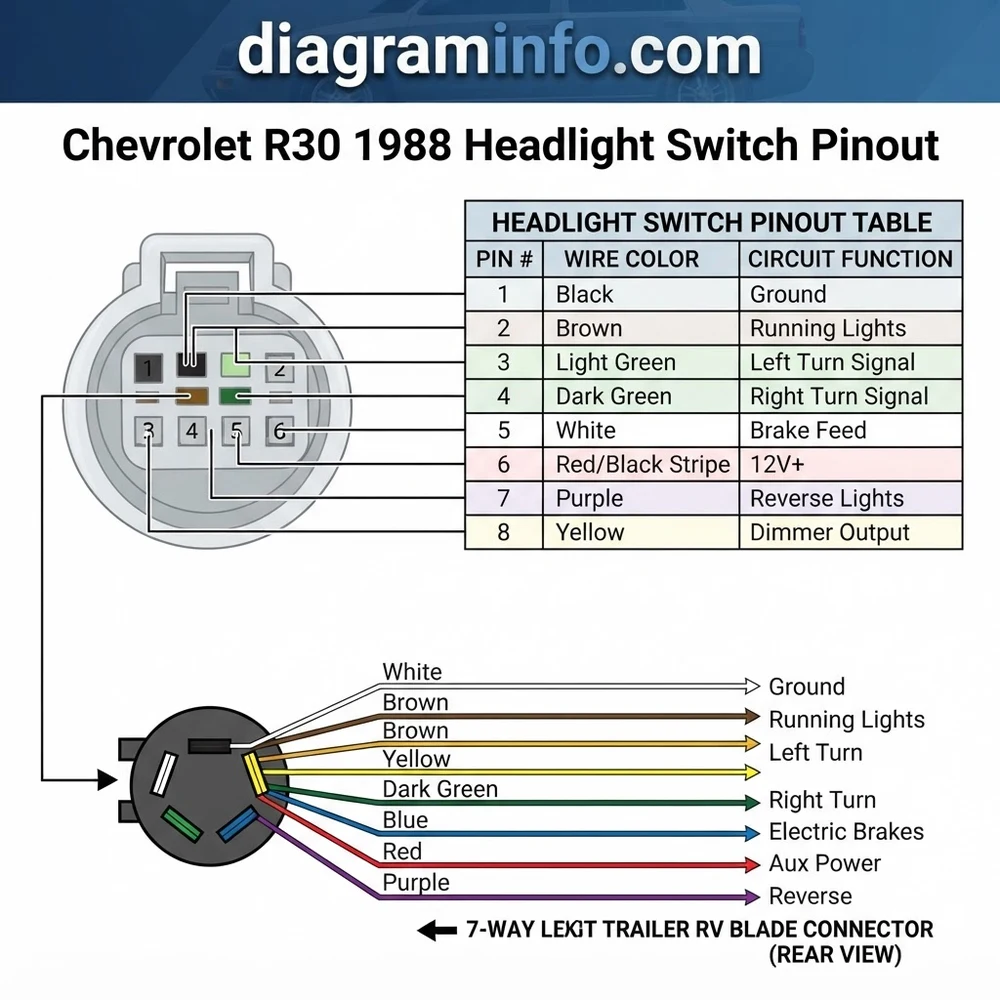

Locate – Use the pinout diagram to identify Terminal R (Brown), Terminal B (Red), and Terminal H (Yellow).
Reference – Cross-reference your trailer wire functions including running lights, brake controller lines, and auxiliary power feeds.
Connect/Route – Tap terminal R brown wire into pin 86 of a 4-pin relay to trigger running lights safely.
Verify – Use a 12V multimeter to test voltage across output pins when pulling the headlight switch rod.
Troubleshoot – Check inline fuses, dash grounds, and connection tightness if turn signal or running light output fails.
