7 Way Trailer Diagram: Plug Wiring & Pinout Guide 2026
A standard 7-way RV blade trailer plug connects white (pin 1) to ground, blue (pin 2) to electric brake controller, green (pin 3) to tail/running lights, black (pin 4) to 12V auxiliary power, yellow (pin 5) to left turn/brake, red (pin 6) to right turn/brake, and purple (pin 7) to reverse lights.
📌 Key Takeaways
- Pin 1 (White, 10 AWG) serves as the primary ground line and must terminate directly to clean chassis metal.
- Pin 2 (Blue, 12 AWG) transfers variable DC voltage from the cabin brake controller to electric trailer brakes.
- Pin 4 (Black, 10 AWG) supplies 12V auxiliary power rated up to 30 amps for charging onboard RV batteries.
- Swapping yellow (left turn) and green/red (running lights or right turn) wires is the leading cause of inverted lighting functions.
- Grounding faults cause over 80% of trailer circuit failures; replace damaged harness connectors if pin corrosion occurs.
The 7-way trailer connector, standardized under SAE J2863 for RV blade applications and SAE J560 for commercial heavy-duty equipment, serves as the primary multi-circuit electrical interface between a tow vehicle and a towed unit. Designed to conduct both high-amperage current and low-voltage control signals, this connection manages primary lighting, modulated electric brake power, 12V DC auxiliary charge lines, and reverse illumination circuits. Proper pin assignment identification and lead termination are essential to maintain circuit integrity, prevent severe voltage drop over extended wiring runs, and ensure the reliable function of an integrated electric brake controller. Whether retrofitting an older utility trailer or wiring a custom flatbed, adhering to standardized pinout configurations prevents cross-circuit shorting, erratic light operation, and premature component failure.

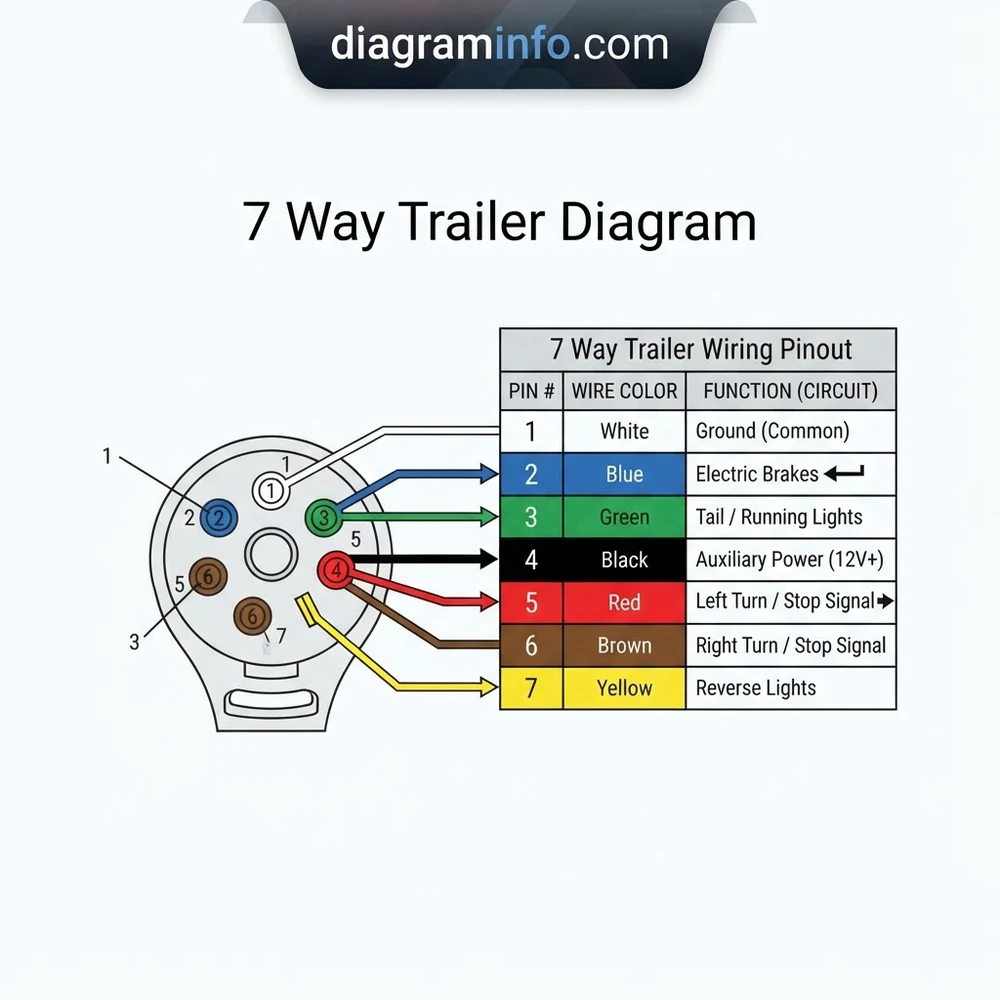

7 Way Trailer Diagram Pinout and Wire Color Standard
The standard RV blade 7-way connector uses specific blade locations to establish electrical connections. Note that viewing the socket from the front face yields a mirrored perspective compared to viewing the wire insertion side from the rear of the plug. The table below details the industry-standard North American RV blade pinout according to SAE J2863 requirements.
| Pin ID | Wire Color | Wire Gauge | Primary Function | Circuit Specifications |
|---|---|---|---|---|
| Pin 1 (10 o’clock) | White | 10 AWG | Main Ground Pin | Direct chassis earth ground connection |
| Pin 2 (1 o’clock) | Blue | 12–10 AWG | Electric Brake Control | Switched output from electric brake controller |
| Pin 3 (3 o’clock) | Green | 14 AWG | Tail / Running Lights | Clearance, side marker, and tail lamp circuit |
| Pin 4 (5 o’clock) | Black | 10 AWG | Auxiliary Power (+12V) | Fused +12V DC battery charge line (30A max) |
| Pin 5 (7 o’clock) | Red | 14 AWG | Left Turn / Stop Signal | Pulsed signal for left turn and high-mount brake light |
| Pin 6 (9 o’clock) | Brown | 14 AWG | Right Turn / Stop Signal | Pulsed signal for right turn and high-mount brake light |
| Pin 7 (Center) | Yellow / Purple | 14 AWG | Reverse / Auxiliary | Backup lamps or lockout solenoid for surge brakes |
Always verify terminal alignment on the back of the plug receptacle before securing set screws. Pin positions are standardized looking direct at the socket face. Mirroring mistakes commonly occur when installers wire the harness from the rear wire-entry side without accounting for terminal rotation.
RV Blade vs Heavy-Duty Commercial 7-Pin Configurations
A critical distinction exists between the standard RV blade pattern (common on light-duty trucks, SUVs, travel trailers, and horse trailers) and the commercial 7-round pin pattern (SAE J560) found on class 7 and 8 tractors. While both use seven conductors, the physical design and functional pin assignments differ completely.
The RV blade housing features flat contact blades arranged circularly with a central round pin, optimized for weather protection and compact mounting. Conversely, the SAE J560 commercial design utilizes solid round brass pins inside a heavy cast-metal shell designed for rigorous industrial usage. In commercial systems, Pin 1 is universally designated as the primary ground pin, but wire color codes follow traditional fleet standards (e.g., white for ground, black for clearance lights, yellow for left turn, green for right turn). Connecting a vehicle with an RV blade system to a commercial trailer requires an active pin adapter; passive cross-wiring will cause severe dead shorts across lighting and brake power lines.
For lighter equipment originally outfitted with a standard 4-way flat connector, installing a full 7-way system requires adding three dedicated leads: a 10 AWG ground, a 12 AWG modulated line from an brake controller, and a 10 AWG fused direct line for auxiliary power.
Step-by-Step 7 Way Trailer Wiring Diagram Installation
When wiring a 7-way RV blade plug or vehicle socket, strict adherence to terminal prep, wire gauge selection, and strain relief prevents future intermittent open circuits and ground faults. Follow this sequence for precise assembly:
1. Harness Preparation and Stripping
Strip approximately 2 inches of the outer rubber jacket from the main harness bundle. Strip 3/8 inch of insulation from each individual wire lead using a precision wire stripper. Inspect copper strands for oxidation or damage. Tin the exposed conductor copper tips with solder if using screw-clamp terminals, or utilize zinc-plated copper ferrule sleeves to prevent wire strands from squishing out under terminal set screws.
2. Ground Pin Termination (Pin 1 – White Wire)
Connect the 10 AWG white ground wire directly to the Pin 1 terminal terminal lug (10 o’clock position on socket face). According to OEM trailer building standards, this ground lead must extend without splices directly to a clean bare-metal chassis frame ground on the trailer using a ring terminal, star lock washer, and self-tapping frame bolt. Torque terminal set screws to 15–18 in-lbs.
3. Electric Brake Circuit Connection (Pin 2 – Blue Wire)
Attach the 12 AWG or 10 AWG blue wire to Pin 2 (1 o’clock position). Route this dedicated conductor along the trailer frame directly to the electric brake magnet assemblies. Avoid splicing this line into standard signal wires. Electric brake magnets draw up to 3.0 to 3.5 Amps per magnet; a tandem-axle trailer with four magnets requires up to 14 Amps full load, necessitating low-resistance crimp terminations using marine-grade heat-shrink butt connectors.
4. Running Lights and Turn Signal Lines (Pins 3, 5, 6)
Connect the 14 AWG green wire to Pin 3 (3 o’clock position) for tail and running lights. Connect the 14 AWG red wire to Pin 5 (7 o’clock position) for the left turn signal and stop lamp circuit. Connect the 14 AWG brown wire to Pin 6 (9 o’clock position) for the right turn signal and stop lamp circuit. Ensure signal wire runs are routed away from hot exhaust components and sharp frame edges.
5. Auxiliary Power and Reverse Lines (Pins 4, 7)
Connect the 10 AWG black auxiliary power wire to Pin 4 (5 o’clock position). This line delivers high-amperage +12V DC current from the tow vehicle alternator to charge auxiliary trailer batteries. The circuit must be protected by a 30A auto-reset circuit breaker placed near the vehicle battery terminal. Connect the 14 AWG yellow or purple wire to the center Pin 7 for reverse backup lights or to trigger an electro-hydraulic surge brake lockout solenoid when shifting into reverse.
6. Final Mechanical Assembly and Weatherproofing
Apply dielectric grease liberally across all exposed metal terminals inside the plug cap to prevent oxidation and moisture intrusion. Slide the rear rubber strain-relief boot firmly over the back housing entry, tightening the mechanical cord clamp until the outer harness sheath is securely gripped without crushing internal conductors.
Recommended Conductor Sizing:
• Ground Circuit (Pin 1): 10 AWG Min (8 AWG for high-draw heavy equipment)
• Electric Brakes (Pin 2): 12 AWG (10 AWG for triple-axle applications)
• Running/Signal Circuits (Pins 3, 5, 6, 7): 14 AWG
• Auxiliary Charge Line (Pin 4): 10 AWG with 30A inline protection
Troubleshooting RV Blade Ground Pins and Wiring Mistakes
Electrical failure on 7-way trailer systems can usually be traced back to incorrect terminal pinout alignment, inadequate ground return paths, or severe voltage drops on high-amperage lines. Identifying these common errors saves time and prevents blown vehicle fuses.
High-Resistance Ground Loops
The single most frequent failure point on trailer electrical systems is an insufficient ground pin connection. When the white ground wire lacks a direct connection to the vehicle chassis frame, electric current attempts to return through the mechanical trailer hitch ball. This intermittent ground causes dimming tail lights, erratic turn signal flashing, and total failure of the electric brake system when the hitch moves or vibrates while driving. Always verify that resistance between Pin 1 and the tow vehicle frame is below 0.2 Ohms using a digital multimeter.
Wire Color Standard Confusion
Installers frequently mix up traditional aftermarket 4-way color codes with standard 7-way RV blade configurations. In standard 4-way flat wiring, yellow is left turn and green is right turn. However, on standard 7-way RV blade harnesses, red is left turn/brake, brown is right turn/brake, and green is used for running lights. Splicing color-to-color without checking pinout position tables leads to running lights flashing during turn signals or brake light activation backfeeding into clearance lamps.
Never swap the auxiliary power (Pin 4) and brake control (Pin 2) leads. Applying unmodulated +12V constant battery power directly to electric brake magnets will cause immediate full brake lockup, overheating the brake coils and rapidly destroying the friction linings or melting internal coil insulation.
How to Test Auxiliary Power and Electric Brake Circuits
Diagnosing potential harness faults requires systematic testing with a digital multimeter (DMM) and a 12V test light under simulated loads. Follow standard technical diagnostic protocols to pinpoint circuit drops:
1. Testing Tow Vehicle Output Voltage
With the vehicle engine running at idle, connect the black multimeter lead to the ground pin (Pin 1) on the vehicle bumper socket. Probe the auxiliary power blade (Pin 4) with the red DMM lead. Voltage must read between 13.6V DC and 14.2V DC. If reading zero, inspect the under-hood power distribution box for a missing or blown 30A trailer tow fuse/relay.
2. Measuring Brake Controller Voltage and Pulse Modulation
Have an assistant activate the manual slide lever on the dashboard electric brake controller while probing Pin 2 (brake output) against Pin 1 (ground). High-quality brake controllers output a Pulse-Width Modulated (PWM) signal. The voltage reading should smoothly sweep from 0V up to full battery voltage (12.8V–13.5V DC) proportional to the controller lever displacement.
3. Voltage Drop Testing Under Load
A standard multimeter draws negligible current and can show 12 volts even on a high-resistance corroded circuit. To perform a true load test, connect a 50W 12V halogen bulb or dedicated trailer circuit tester across Pin 4 (+12V) and Pin 1 (Ground). Measure voltage across the bulb terminals while illuminated. If the voltage drops by more than 0.5V compared to battery terminal voltage, the supply line or ground connection suffers from high resistance due to undersized wire gauge or corroded terminals.
7 Way Trailer Wiring Diagram Frequently Asked Questions
What is the difference between RV blade standard and traditional 7-pin commercial round connectors?
The standard RV blade connector features flat, rectangular terminal blades and is primarily used on consumer tow vehicles, light trucks, travel trailers, and utility haulers. The commercial 7-round connector (SAE J560) uses heavy solid round pins in a cast-zinc shell and is used on commercial semi-trucks and heavy transport trailers. The pin layout, physical shell dimensions, and terminal color assignments are completely incompatible without a custom wiring adapter hub or cross-over harness.
Why do my trailer electric brakes activate when I turn on my running lights?
This condition occurs when the running light circuit (Pin 3) and electric brake circuit (Pin 2) are bridged together. This usually happens due to severe oxidation, water ingress, or brass debris bridging terminals inside the rear of the plug housing. It can also occur if the green running light wire was inadvertently connected to the electric brake wire terminal post during harness assembly.
How do I adapt a standard 4-way flat connector harness to a 7-way trailer plug?
To convert from a 4-way flat to a full 7-way RV blade socket, plug the existing 4-way flat connector directly into the rear pig-tail of a standard 7-way vehicle adapter socket. This instantly supplies ground, tail lights, left turn, and right turn circuits. You must then manually run three individual dedicated leads: a 10 AWG chassis ground wire to Pin 1, a 12 AWG brake signal wire from an aftermarket brake controller to Pin 2, and a 10 AWG fused +12V battery power line to Pin 4.
What size wire gauge should be used for the ground pin and auxiliary power line?
The ground wire (Pin 1) and auxiliary charge line (Pin 4) should use a minimum conductor thickness of 10 AWG copper wire. High-draw applications, such as enclosed trailers running interior winches, hydraulic dump gates, or high-capacity battery banks, require 8 AWG wire to prevent excessive resistive heating and maintain system efficiency across long wire runs exceeding 20 feet.
Why does my auxiliary power pin show 12 volts but fail to charge my RV house battery?
This scenario indicates a high-resistance circuit fault. While a open-circuit digital multimeter measures static battery voltage without load, a corroded connection terminal or undersized wire gauge (e.g., 16 AWG instead of 10 AWG) cannot deliver high amperage. When the depleted RV house battery attempts to pull 15–20 Amps of charging current, the excessive circuit resistance causes an immediate high voltage drop across the connection, reducing effective charging current down to zero.
